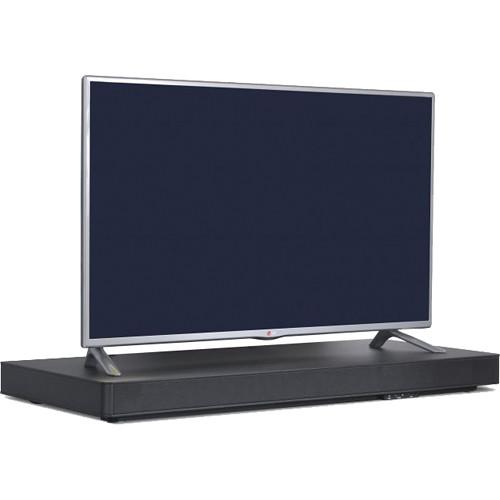

Product description How to Choose a Soundbar System Read More The ZVOX SoundBase 770 125W Soundbar System is designed to deliver optimized sound with powerful bass reproduction. This speaker uses a class-D digital amplifier, and can produce up to 125W of total power for a dynamic audio experience. Housed inside of this soundbar are 5 main speaker drivers and 3 subwoofers. The three 5.25" subwoofers are designed to add powerful bass impact to movie and music soundtracks. Built-in Bluetooth technology allows you to wirelessly stream audio from compatible devices such as smartphones and tablets.
The SoundBase 770 is well equipped for wired device connections with two stereo RCA, two optical, digital coaxial, and 3.5mm interfaces. As an added convenience, stereo RCA and digital optical cables are included. In addition to the included remote control, this soundbar system can be controlled using your existing remote. - PhaseCue II Virtual Surround Sound
- The SoundBase 770 uses ZVOX's proprietary PhaseCue II virtual surround processing. This technology is designed to deliver rich, three-dimensional virtual surround sound for movies or music.
- Built-In Bluetooth Wireless Audio
- This soundbar uses BlueGiga Bluetooth Wireless Audio with aptX for optimal connectivity, range, and sound quality.
- Green Design
- The SoundBase 770 uses an efficient class-D digital amplifier. Even at loud volumes, it typically consumes less than 10W of total power. And standby power usage is approximately 0.1W.
- AccuVoice
- When you push the "DE" button on the remote control you engage a circuit that mimics the functions of a hearing aid. The frequencies used by human voices are dynamically emphasized, while other frequencies are minimized for clear dialog playback.
- Uses Your Existing Remote Control
- This SoundBase system can be programmed to respond to your existing remote control. The illuminated display walks you through a programming cycle, and then your remote can control volume, mute, and power functions of the ZVOX system. Once configured, turning on your TV will automatically turn on the ZVOX system. Approximately three minutes after you turn off your TV, the ZVOX system will automatically go into standby mode.
- Output Leveling (OL)
- Pushing the OL button on the remote control activates the soundbar's internal processing. This feature is designed to make soft sounds louder and loud sounds softer, so there are fewer jarring moments when switching channels or when commercials come on. This system also helps by boosting the audio levels from a DVD or Blu-ray player that is not loud enough.
- Disappearing Display
- The SoundBase 770 features a four-digit display located behind the speaker grille that shows the current setting for volume, bass, treble, and PhaseCue II (virtual surround). It also shows when you have engaged the mute, Output Leveling (OL), or Dialog Emphasis (DE) features. A few seconds after you stop using your remote (or front panel) controls, the display disappears completely.
- Multiple Inputs and Dolby Digital Decoder

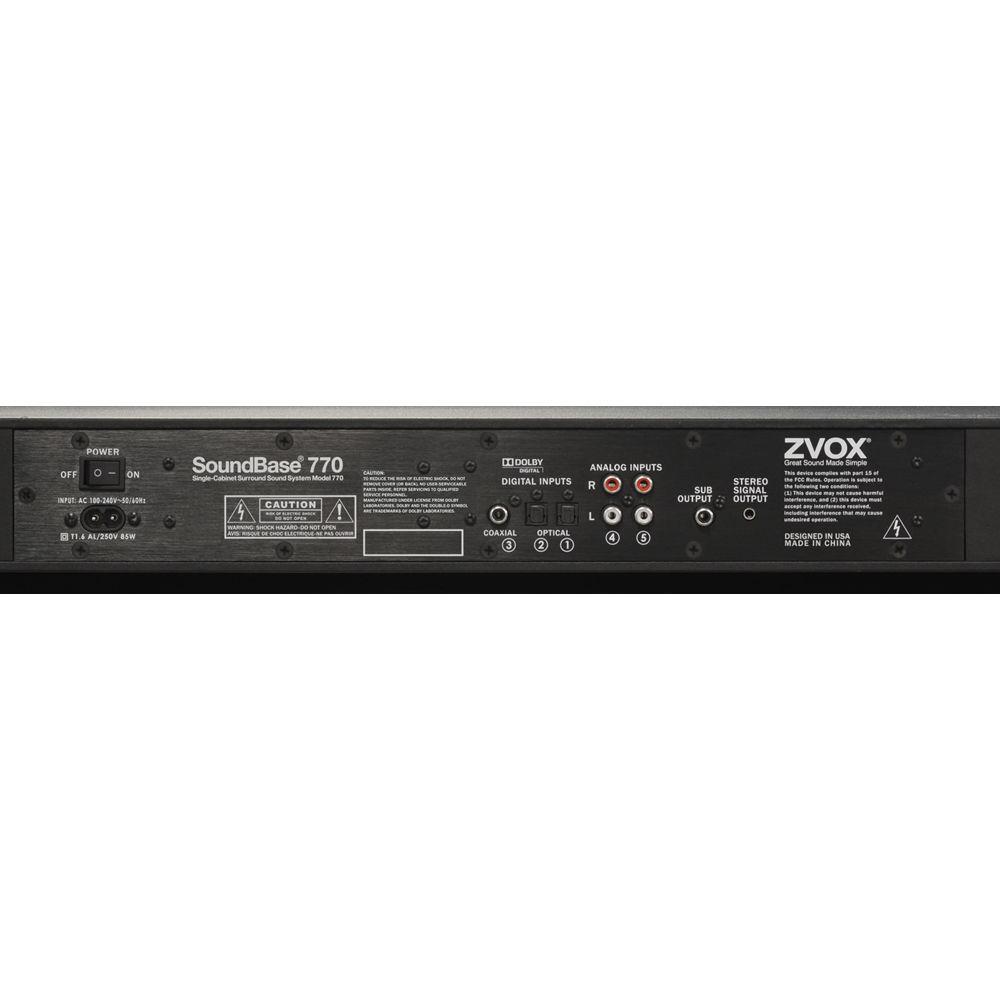

- The SoundBase 770 has two analog audio inputs, two optical (TOSLINK) digital inputs, one coaxial digital input, and a front-panel 3.5mm analog stereo input for convenient connection of your iPod or other portable audio device. Any specific input can be selected using either the remote control or the slim-line module below the speaker grille. The two digital inputs work with a built-in Dolby Digital decoder, which can improve virtual surround performance, and allow for simplified connections to a wide variety of TVs, cable boxes, and disc players.
- Wood (MDF) Cabinet
- The SoundBase 770 features a hand-built cabinet of heavy MDF. Its low-profile frame is designed to seamlessly blend with flat-panel TVs.
- Additional Features
-

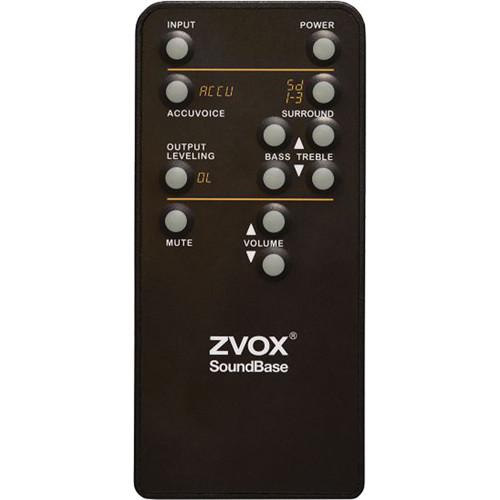

- Remote Control Buttons: Power on/off, volume up/down, mute, PhaseCue II (three level settings), bass up/down and treble up/down, input selection, Output Leveling (OL), AccuVoice (ACCU)
- Designed to match TVs up to 80"
- The SoundBase 770 is bi-amplified, using a specially designed amplifier that includes electronic contouring for an optimized frequency response
UPC: 882360077010 In the Box ZVOX SoundBase 770 125W Soundbar System 6.56' (2 m) Stereo RCA to Stereo Cable Digital Optical (TOSLINK) Cable Remote Control Power Cord Limited 1-Year Warranty Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 yuzuzdae Quick start Guide PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ZVOX SoundBase 770 125W Soundbar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZVOX 4007701 Specs | Low-Frequency Drivers | 3 x 5.3" / 133 mm Cone | Full-Range Drivers | 5 x 3" / 76 mm | Amplification | Class-D | Amplifier Output | 125 W | Frequency Response | 45 Hz to 20 kHz | | Inputs | 2 x Optical TOSLINK 1 x Stereo RCA 1 x Digital Coaxial 1 x 1/8" (3.5 mm) | Outputs | 1 x RCA - Subwoofer 1 x 1/8" (3.5 mm) | Wireless Audio Protocols | Bluetooth | | Audio Decoding | Dolby Digital | | AC Input Power | 120 VAC, 60 Hz | | Material of Construction | MDF | Dimensions | 42.0 x 16.5 x 3.5" / 106.7 x 41.9 x 8.9 cm | Weight | 32 lb / 14.5 kg | | Package Weight | 34.5 lb | Box Dimensions (LxWxH) | 45.5 x 22.0 x 6.5" |
