Zylight F8-100 200 Daylight LED Fresnel

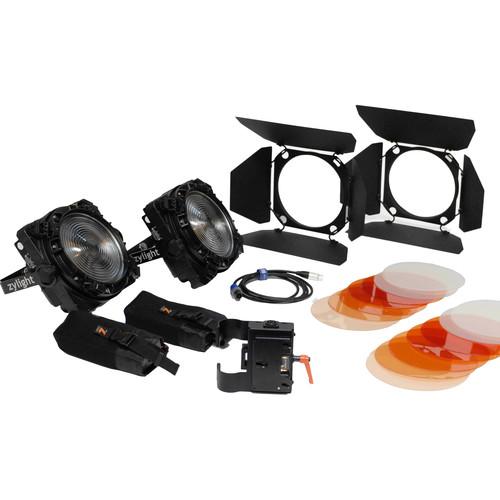

User Manual for Zylight F8-100 200 Daylight LED Fresnel Combo ENG Kit with Gold Mount Battery Plates

• Product category: LED Lights Zylight
• Brand: Zylight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zylight LED Lights

Product description

• F8 LED Fresnel (Daylight) The F8 LED Fresnel (Daylight) from Zylight is the next generation of Fresnel lights. All of the hallmarks of a traditional Fresnel light are present; single shadow beam shaping through barn doors, continuous focusing and a smooth light field. The Zylight F8 adds wireless and DMX control, water-resistant IP54 rating, and very rugged construction for field reliability. Available in both Tungsten and Daylight color temperature versions, the Zylight F8 is extremely compact, durable and one of the most versatile Fresnel lights on the market.
  Field Friendly
  • The Zylight F8 can be powered by either a worldwide AC power adapter or a standard 14.4V camera battery for complete portability. Its thin design and shape allow it to pack into small cases and be taken anywhere. The water-resistant IP54 rating ensures the F8 will be comfortable in falling rain or snow, and blowing dirt and dust. Whether you're shooting a stand-up in a hurricane or snow storm, the F8 will deliver bright light with ease.
  Studio Friendly
  • In the studio, all functionality of the Zylight F8 can be controlled via DMX or remotely via the built-in ZyLink wireless link. Local control such as dimming, focus and wireless operation are provided on the rear of the F8. At 15 x 12 x 4" it will take up considerably less space in your lighting grid than its traditional counterpart. The yoke mount allows for easy panning and tilting for quick focusing. The F8's silent operation means it can run in a studio setting without disruption of audio recording or talent distraction.
  Ultra Bright Output
  • The F8's advanced ultra bright LED module ensures excellent skin tones and rich, accurate color rendition. Continual focusing and an adjustable beam spread between 16-70 degrees allows for even coverage when shooting with wide-angle lenses or HD 16x9 format. The F8 uses a high quality glass 8.0" Fresnel lens and has an equivalent output of a traditional 1,000W instrument. Barn doors, soft box and other accessories are available as options.
  Other Features
  • Thin, lightweight design
  • High 95+ CRI
  • Completely silent operation
  • Single shadow beam shaping
  • Fully Dimmable 100-0%
  • Battery or worldwide AC power
  • Yoke mount for pan and tilt
  • Made in the USA
  • Low power draw
  • No spare bulbs to buy or carry
  • Low maintenance cost and downtime
  UPC: 899141001744
• F8-200 Daylight LED Fresnel Embrace the variable beam angle of a Fresnel light while keeping a compact kit by using the F8-200 Daylight LED Fresnel from Zylight. It has a flat shape and an 8" lens that extends away from the body, but closes down for storage and transport. Inside is a 200W Quantum Dot LED with a CRI of 92 that gives this unit an output equivalent to that of a 400W HMI fixture. Also, it is balanced with a 5600K color temperature and has an adjustable beam angle from 16-70°. Also, the light can be dimmed from 0-100% via local controls, over DMX, or by using the ZyLink Wireless system.

  The physical design is quite durable with an IP54-rated weather resistance and active cooling for reducing heat. It accepts power via a 4-pin XLR input and can accept an optional battery caddie for true portability. Along with this, it has a yoke mount for use on a light stand and comes with a universal AC power supply. UPC: 899141002413
• Universal AC Adapter for F8 LED Fresnel The Universal AC Adapter for F8 LED Fresnel from Zylight is a replacement accessory that allows you to use the F8-D LED and F8-T LED Fresnel’s across the globe.
• Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black) This black Mesh Carrying Bag from Zylight is a nylon bag for the IS3 and F8 worldwide AC power adapters. It has a drawstring with a cord lock, as well as a buckle fastener to attach the bag to other gear. UPC: 899141001959
• Replacement Barndoors for F8 LED Fresnels The Barndoors from Zylight are a replacement accessory suitable for use with the F8-D and F8-T LED Fresnels.
• F8 Gold Mount Battery Kit The F8 Gold Mount Battery Kit from Zylight is designed for use with F8-D and F8-T LED Fresnel’s. The battery adapter plate allows for complete portability using your existing 8A/14.4V battery. The kit also includes mounting plate and all hardware to mount the gold mount plate to the rear of F8. UPC: 899141001775
• Hard Gel Filter Kit for F8 LED Fresnel Designed to fit the F8 LED Fresnel, this Zylight Hard Gel Filter Kit contains amber conversion filters to warm the F8's daylight output and diffusion filters to soften its output. The kit is comprised of Full, 3/4, 1/2, and 1/8 amber CTO filters as well as White Diffusion and Half White Diffusion filters. UPC: 899141002123

• F8-D Daylight-Balanced Fresnel Light

• Universal AC Adapter for F8 LED Fresnel

• AC Adapter Bag

• Replacement Barndoors for F8 LED Fresnels

• Yoke Mount

• User Guide

• Limited 1-Year Warranty

• Replacement Barndoors for F8 LED Fresnels

• Universal AC Adapter for F8 LED Fresnel

• Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black)

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Mounting Plate

• Installation Hardware

• Limited 1-Year Warranty

• CTO Filter (Full)

• CTO Filter (3/4)

• CTO Filter (1/2)

• CTO Filter (1/8)

• White Diffusion Filter

• Half White Diffusion Filter

Also Includes

• RawPower Dual Battery Module
• RawPower F8-200 Power Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• F8 LED Fresnel (Daylight)

  Beam Angle	16 to 70°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	15.0 x 12.6 x 4.6" / 382.0 x 319.0 x 97.0 mm
  Fixture Weight	10.9 lb / 4.9 kg

  Power Input Connector	4-Pin XLR
  DMX Connector	5-Pin XLR

  Lens Diameter	8" / 20.3 cm
  Lens Type	Fresnel

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX
  Wireless Channels / Groups	9 / X

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  DC Input Power	10 to 20 VDC at 8 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	110 W

  Certifications	RoHS, as per Manufacturer
  IP Rating	IP54

  Box Dimensions (LxWxH)	18.9 x 17.0 x 11.6"

• F8-200 Daylight LED Fresnel

  Beam Angle	16 to 70°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 92
  Cooling System	Fan
  Dimming	Yes, 0 to 100%
  Display	None
  Fixture Dimensions	15.0 x 12.6 x 4.6" / 38.0 x 32.0 x 12.0 cm
  Fixture Weight	10.25 lb / 4.7 kg

  DMX Connector	5-Pin XLR

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX, Proprietary Wireless

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  DC Input Power	24 VDC at 10 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	200 W

  IP Rating	IP54

  Box Dimensions (LxWxH)	19.2 x 17.3 x 15.3"

• Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black)

  Closure Type	Drawstring
  Carry and Transport Options	Strap
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	4 x 6" / 10.2 x 15.2 cm
  Weight	8 oz / 226.8 g

  Box Dimensions (LxWxH)	10.394 x 6.693 x 1.89"

• F8 Gold Mount Battery Kit

  Box Dimensions (LxWxH)	10.0 x 4.8 x 0.6"

• Hard Gel Filter Kit for F8 LED Fresnel

  Box Dimensions (LxWxH)	10.7 x 10.3 x 1.7"

• Universal AC Adapter for F8 LED Fresnel
• Replacement Barndoors for F8 LED Fresnels
