Zylight F8-100 200 Daylight LED Fresnel

Search your instruction manual in PDF to download

User Manual for Zylight F8-100 200 Daylight LED Fresnel Combo ENG Kit with V-Mount Battery Plates

Click to enlarge the picture
Zylight F8-100 200 Daylight LED Fresnel Combo ENG Kit with V-Mount Battery Plates Contents of the user manual for the Zylight F8-100 200 Daylight LED Fresnel
  • Product category: LED Lights Zylight
  • Brand: Zylight
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Zylight LED Lights

User manual for the Zylight F8-100 200 Daylight LED Fresnel contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Zylight product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Zylight user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Zylight product will considerably shorten its lifespan!



Product description

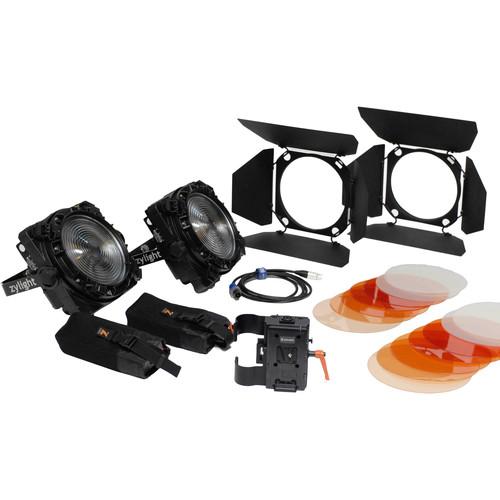

The F8-100/200 Daylight LED Fresnel Combo ENG Kit from Zylight contains the F8-100 and 200 LED Fresnel lights and V-Mount battery plates for creating a completely portable setup. This kit also includes two worldwide power adapters, two AC adapter bags, 4-way barndoors, a RawPower dual battery module, a RawPower F8 200 power cable, and two filter kits. The F8-100 and 200 Fresnel lights will operate worldwide on the included universal power supplies or on a 14.4V battery (available separately) in the field where mains power is unavailable.These lights incorporate a special blend of Quantum Dot nanoparticles along with phosphor to provide 95+ CRI performance for faithful rendering of even the subtlest hues. Each of the F8 Fresnel light offers a daylight-balanced color temperature of 5600K. They have an adjustable beam angle from 16-70°. The lights can be dimmed from 0 to100% via local controls, over DMX, or by using the ZyLink Wireless system. The physical design of these light fixtures is quite durable with an IP54-rated weather resistance and active cooling for reducing heat.
  • F8 LED Fresnel (Daylight) The F8 LED Fresnel (Daylight) from Zylight is the next generation of Fresnel lights. All of the hallmarks of a traditional Fresnel light are present; single shadow beam shaping through barn doors, continuous focusing and a smooth light field. The Zylight F8 adds wireless and DMX control, water-resistant IP54 rating, and very rugged construction for field reliability. Available in both Tungsten and Daylight color temperature versions, the Zylight F8 is extremely compact, durable and one of the most versatile Fresnel lights on the market.
      Field Friendly
    • The Zylight F8 can be powered by either a worldwide AC power adapter or a standard 14.4V camera battery for complete portability. Its thin design and shape allow it to pack into small cases and be taken anywhere. The water-resistant IP54 rating ensures the F8 will be comfortable in falling rain or snow, and blowing dirt and dust. Whether you're shooting a stand-up in a hurricane or snow storm, the F8 will deliver bright light with ease.
      Studio Friendly
    • In the studio, all functionality of the Zylight F8 can be controlled via DMX or remotely via the built-in ZyLink wireless link. Local control such as dimming, focus and wireless operation are provided on the rear of the F8. At 15 x 12 x 4" it will take up considerably less space in your lighting grid than its traditional counterpart. The yoke mount allows for easy panning and tilting for quick focusing. The F8's silent operation means it can run in a studio setting without disruption of audio recording or talent distraction.
      Ultra Bright Output
    • The F8's advanced ultra bright LED module ensures excellent skin tones and rich, accurate color rendition. Continual focusing and an adjustable beam spread between 16-70 degrees allows for even coverage when shooting with wide-angle lenses or HD 16x9 format. The F8 uses a high quality glass 8.0" Fresnel lens and has an equivalent output of a traditional 1,000W instrument. Barn doors, soft box and other accessories are available as options.
      Other Features
    • Thin, lightweight design
    • High 95+ CRI
    • Completely silent operation
    • Single shadow beam shaping
    • Fully Dimmable 100-0%
    • Battery or worldwide AC power
    • Yoke mount for pan and tilt
    • Made in the USA
    • Low power draw
    • No spare bulbs to buy or carry
    • Low maintenance cost and downtime
    UPC: 899141001744
  • F8-200 Daylight LED Fresnel Embrace the variable beam angle of a Fresnel light while keeping a compact kit by using the F8-200 Daylight LED Fresnel from Zylight. It has a flat shape and an 8" lens that extends away from the body, but closes down for storage and transport. Inside is a 200W Quantum Dot LED with a CRI of 92 that gives this unit an output equivalent to that of a 400W HMI fixture. Also, it is balanced with a 5600K color temperature and has an adjustable beam angle from 16-70°. Also, the light can be dimmed from 0-100% via local controls, over DMX, or by using the ZyLink Wireless system.

    The physical design is quite durable with an IP54-rated weather resistance and active cooling for reducing heat. It accepts power via a 4-pin XLR input and can accept an optional battery caddie for true portability. Along with this, it has a yoke mount for use on a light stand and comes with a universal AC power supply. UPC: 899141002413
  • Universal AC Adapter for F8 LED Fresnel The Universal AC Adapter for F8 LED Fresnel from Zylight is a replacement accessory that allows you to use the F8-D LED and F8-T LED Fresnel’s across the globe.
  • Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black) This black Mesh Carrying Bag from Zylight is a nylon bag for the IS3 and F8 worldwide AC power adapters. It has a drawstring with a cord lock, as well as a buckle fastener to attach the bag to other gear. UPC: 899141001959
  • Replacement Barndoors for F8 LED Fresnels The Barndoors from Zylight are a replacement accessory suitable for use with the F8-D and F8-T LED Fresnels.
  • V-Mount Battery Plate Kit for F8 Fresnel Fixture The V-Mount Battery Plate Kit for F8 Fresnel Fixture from Zylight is designed to allow both the F8-D and F8-T (daylight/tungsten) versions of the F8 LED Fresnel to run on 8A/14.4V V-Mount camera batteries. The kit includes the V-Mount plate as well as mounting hardware. UPC: 899141001782
  • Hard Gel Filter Kit for F8 LED Fresnel Designed to fit the F8 LED Fresnel, this Zylight Hard Gel Filter Kit contains amber conversion filters to warm the F8's daylight output and diffusion filters to soften its output. The kit is comprised of Full, 3/4, 1/2, and 1/8 amber CTO filters as well as White Diffusion and Half White Diffusion filters. UPC: 899141002123
In the Box Bundle Items F8 LED Fresnel (Daylight) yedqdxycasesuazteaxzyrzffsewqwtsy
  • F8-D Daylight-Balanced Fresnel Light
  • Universal AC Adapter for F8 LED Fresnel
  • AC Adapter Bag
  • Replacement Barndoors for F8 LED Fresnels
  • Yoke Mount
  • User Guide
  • Limited 1-Year Warranty
F8-200 Daylight LED Fresnel yedqdxycasesuazteaxzyrzffsewqwtsy
  • Replacement Barndoors for F8 LED Fresnels
  • Universal AC Adapter for F8 LED Fresnel
  • Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black)
  • Limited 1-Year Warranty
2 x Universal AC Adapter for F8 LED Fresnel
  • Limited 1-Year Warranty
2 x Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black) 2 x Replacement Barndoors for F8 LED Fresnels
  • Limited 1-Year Warranty
V-Mount Battery Plate Kit for F8 Fresnel Fixture
  • Limited 2-Year Warranty
Hard Gel Filter Kit for F8 LED Fresnel
  • CTO Filter (Full)
  • CTO Filter (3/4)
  • CTO Filter (1/2)
  • CTO Filter (1/8)
  • White Diffusion Filter
  • Half White Diffusion Filter

Also Includes

  • RawPower Dual Battery Module
  • RawPower F8-200 Power Cable
User Manual-F 8 100 PDF 799.2kb Table of Contents




Upload User Manual

Have you got an user manual for the Zylight F8-100 200 Daylight LED Fresnel Combo ENG Kit with V-Mount Battery Plates in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • F8 LED Fresnel (Daylight)
    Beam Angle 16 to 70°
    Color Temperature 5600K
    Color Accuracy Standard CRI 95
    Cooling System None
    Dimming Yes, 0 to 100%
    Display None
    Expected Lamp Life 50,000 Hours
    Fixture Dimensions 15.0 x 12.6 x 4.6" / 382.0 x 319.0 x 97.0 mm
    Fixture Weight 10.9 lb / 4.9 kg
    Power Input Connector 4-Pin XLR
    DMX Connector 5-Pin XLR
    Lens Diameter 8" / 20.3 cm
    Lens Type Fresnel
    Yoke Mount TVMP/ Hex Bolt
    Fixture Mount 5/8" Receiver
    Accessory Mount None
    Remote Control Type DMX
    Wireless Channels / Groups 9 / X
    AC Input Power 120 to 240 VAC, 50 / 60 Hz
    DC Input Power 10 to 20 VDC at 8 A
    Power Source AC Adapter, External Battery
    Max Power Consumption 110 W
    Certifications RoHS, as per Manufacturer
    IP Rating IP54
    Box Dimensions (LxWxH) 18.9 x 17.0 x 11.6"
  • F8-200 Daylight LED Fresnel
    Beam Angle 16 to 70°
    Color Temperature 5600K
    Color Accuracy Standard CRI 92
    Cooling System Fan
    Dimming Yes, 0 to 100%
    Display None
    Fixture Dimensions 15.0 x 12.6 x 4.6" / 38.0 x 32.0 x 12.0 cm
    Fixture Weight 10.25 lb / 4.7 kg
    DMX Connector 5-Pin XLR
    Yoke Mount TVMP/ Hex Bolt
    Fixture Mount 5/8" Receiver
    Accessory Mount None
    Remote Control Type DMX, Proprietary Wireless
    AC Input Power 120 to 240 VAC, 50 / 60 Hz
    DC Input Power 24 VDC at 10 A
    Power Source AC Adapter, External Battery
    Max Power Consumption 200 W
    IP Rating IP54
    Box Dimensions (LxWxH) 19.2 x 17.3 x 15.3"
  • Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black)
    Closure Type Drawstring
    Carry and Transport Options Strap
    Material of Construction Nylon
    Exterior Dimensions (W x H x D) 4 x 6" / 10.2 x 15.2 cm
    Weight 8 oz / 226.8 g
    Box Dimensions (LxWxH) 10.394 x 6.693 x 1.89"
  • V-Mount Battery Plate Kit for F8 Fresnel Fixture
    Box Dimensions (LxWxH) 9.0 x 5.0 x 1.0"
  • Hard Gel Filter Kit for F8 LED Fresnel
    Box Dimensions (LxWxH) 10.7 x 10.3 x 1.7"
