Zylight F8-100 Tungsten LED Fresnel Studio

User Manual for Zylight F8-100 Tungsten LED Fresnel Studio Kit

• Product category: LED Lights Zylight
• Brand: Zylight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zylight LED Lights

Product description

• F8 LED Fresnel (Tungsten) The F8 LED Fresnel (Tungsten) from Zylight is the next generation of Fresnel lights. All of the hallmarks of a traditional Fresnel light are present; single shadow beam shaping through barn doors, continuous focusing and a smooth light field. The Zylight F8 adds wireless and DMX control, water-resistant IP54 rating, and very rugged construction for field reliability. Available in both Tungsten and Daylight color temperature versions, the Zylight F8 is extremely compact, durable and one of the most versatile Fresnel lights on the market.
  Field Friendly
  • The Zylight F8 can be powered by either a worldwide AC power adapter or a standard 14.4V camera battery for complete portability. Its thin design and shape allow it to pack into small cases and be taken anywhere. The water-resistant IP54 rating ensures the F8 will be comfortable in falling rain or snow, and blowing dirt and dust. Whether you're shooting a stand-up in a hurricane or snow storm, the F8 will deliver bright light with ease.
  Studio Friendly
  • In the studio, all functionality of the Zylight F8 can be controlled via DMX or remotely via the built-in ZyLink wireless link. Local control such as dimming, focus and wireless operation are provided on the rear of the F8. At 15 x 12 x 4" it will take up considerably less space in your lighting grid than its traditional counterpart. The yoke mount allows for easy panning and tilting for quick focusing. The F8's silent operation means it can run in a studio setting without disruption of audio recording or talent distraction.
  Ultra Bright Output
  • The F8's advanced ultra bright LED module ensures excellent skin tones and rich, accurate color rendition. Continual focusing and an adjustable beam spread between 16-70 degrees allows for even coverage when shooting with wide-angle lenses or HD 16x9 format. The F8 uses a high quality glass 8.0" Fresnel lens and has an equivalent output of a traditional 1,000W instrument. Barn doors, soft box and other accessories are available as options.
  Other Features
  • Thin, lightweight design
  • High 97+ CRI
  • Completely silent operation
  • Single shadow beam shaping
  • Fully Dimmable 100-0%
  • Battery or worldwide AC power
  • Yoke mount for pan and tilt
  • Made in the USA
  • Low power draw
  • No spare bulbs to buy or carry
  • Low maintenance cost and downtime
  UPC: 899141001737
• Universal AC Adapter for F8 LED Fresnel The Universal AC Adapter for F8 LED Fresnel from Zylight is a replacement accessory that allows you to use the F8-D LED and F8-T LED Fresnel’s across the globe.
• Rear AC Adapter Mount for F8 Fresnel This Rear AC Adapter Mount for F8 Fresnel attaches the optional Zylight F8 Worldwide Power Supply to the back of the light to prevent disconnection while hanging from the fixture. A bracket and mounting hardware are included. UPC: 899141002062
• DMX Interface Box for F8 Fresnel The Zylight DMX Interface Box plugs into the back of Zylight's F8 LED Fresnel and allows remote console control of the F8 with the DMX512 protocol. The box mounts to the light's yoke. UPC: 899141002079
• Replacement Barndoors for F8 LED Fresnels The Barndoors from Zylight are a replacement accessory suitable for use with the F8-D and F8-T LED Fresnels.

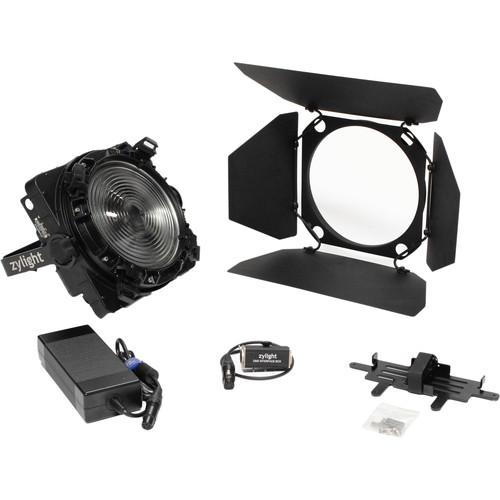

• F8-D Tungsten-Balanced Fresnel Light

• Universal AC Adapter for F8 LED Fresnel

• AC Adapter Bag

• Replacement Barndoors for F8 LED Fresnels

• Yoke Mount

• User Guide

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Bracket

• Mounting Hardware

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• F8 LED Fresnel (Tungsten)

  Beam Angle	16 to 70°
  Color Temperature	3200K
  Color Accuracy Standard	CRI 97
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	15.0 x 12.6 x 4.6" / 382.0 x 319.0 x 97.0 mm
  Fixture Weight	10.9 lb / 4.9 kg

  Power Input Connector	4-Pin XLR
  DMX Connector	5-Pin XLR

  Lens Diameter	8" / 20.3 cm
  Lens Type	Fresnel

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX
  Wireless Channels / Groups	9 / X

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  DC Input Power	10 to 20 VDC at 8 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	110 W

  Certifications	RoHS, as per Manufacturer
  IP Rating	IP54

  Box Dimensions (LxWxH)	18.8 x 17.1 x 11.7"
