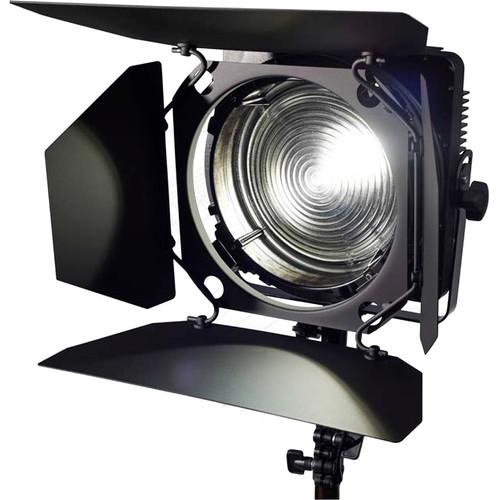

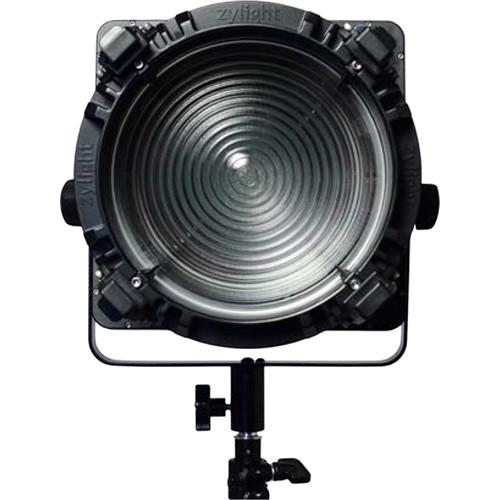

Product description Embrace the variable beam angle of a Fresnel light while keeping a compact kit by using the F8-200 Daylight LED Fresnel from Zylight. It has a flat shape and an 8" lens that extends away from the body, but closes down for storage and transport. Inside is a 200W Quantum Dot LED with a CRI of 92 that gives this unit an output equivalent to that of a 400W HMI fixture. Also, it is balanced with a 5600K color temperature and has an adjustable beam angle from 16-70°. Also, the light can be dimmed from 0-100% via local controls, over DMX, or by using the ZyLink Wireless system.

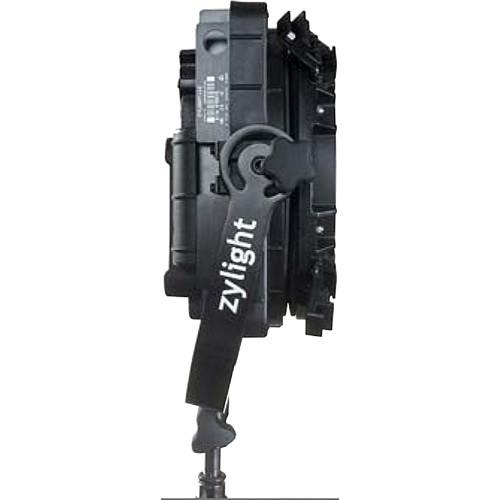

The physical design is quite durable with an IP54-rated weather resistance and active cooling for reducing heat. It accepts power via a 4-pin XLR input and can accept an optional battery caddie for true portability. Along with this, it has a yoke mount for use on a light stand and comes with a universal AC power supply. UPC: 899141002413 In the Box Zylight F8-200 Daylight LED Fresnel Replacement Barndoors for F8 LED Fresnels trqxwctfbqytuyuxtczxbwzqry Universal AC Adapter for F8 LED Fresnel Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight F8-200 Daylight LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZylight F8-200 Specs | | | Beam Angle | 16 to 70° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 92 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | 15.0 x 12.6 x 4.6" / 38.0 x 32.0 x 12.0 cm | | Fixture Weight | 10.25 lb / 4.7 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Proprietary Wireless | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 10 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 200 W | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 19.2 x 17.3 x 15.3" |
