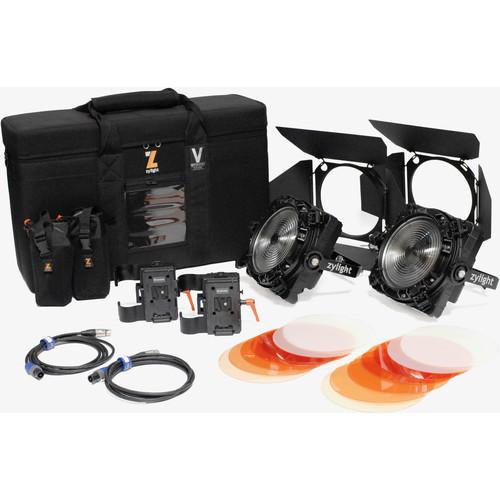

User Manual for Zylight F8-200 Daylight LED Fresnel Dual Head ENG Kit with V-Mount Battery Plates and Case Click to enlarge the picture
Contents of the user manual for the Zylight F8-200 Daylight LED Fresnel Dual
- Product category: LED Lights Zylight
- Brand: Zylight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zylight LED Lights
|
User manual for the Zylight F8-200 Daylight LED Fresnel Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zylight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zylight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zylight product will considerably shorten its lifespan!
|
Product description Light effectively and efficiently while on location with this F8-200 Daylight LED Fresnel Dual Head ENG Kit from Zylight, which includes V-mount battery plates for creating a completely portable setup. It features two flat 8" Fresnel fixtures with a daylight-balanced color temperature of 5600K, two filter kits with CTO and diffusion gels, and a dual head case to hold the lights and accessories.
Each light has a 200W Quantum Dot LED with a CRI of 92; providing an output equivalent to that of a 400W HMI fixture. They have an adjustable beam angle from 16-70°, and can be dimmed from 0-100% via local controls, over DMX, or by using the ZyLink Wireless system.
The physical design is quite durable with an IP54-rated weather resistance and active cooling for reducing heat. When not using the battery, it accepts power via a 4-pin XLR input. Along with this, it has a yoke mount for use on a light stand and comes with a universal AC power supply and barndoors. - F8-200 Daylight LED Fresnel Embrace the variable beam angle of a Fresnel light while keeping a compact kit by using the F8-200 Daylight LED Fresnel from Zylight. It has a flat shape and an 8" lens that extends away from the body, but closes down for storage and transport. Inside is a 200W Quantum Dot LED with a CRI of 92 that gives this unit an output equivalent to that of a 400W HMI fixture. Also, it is balanced with a 5600K color temperature and has an adjustable beam angle from 16-70°. Also, the light can be dimmed from 0-100% via local controls, over DMX, or by using the ZyLink Wireless system.
The physical design is quite durable with an IP54-rated weather resistance and active cooling for reducing heat. It accepts power via a 4-pin XLR input and can accept an optional battery caddie for true portability. Along with this, it has a yoke mount for use on a light stand and comes with a universal AC power supply. UPC: 899141002413 - V-Mount Battery Plate Kit for F8 Fresnel Fixture The V-Mount Battery Plate Kit for F8 Fresnel Fixture from Zylight is designed to allow both the F8-D and F8-T (daylight/tungsten) versions of the F8 LED Fresnel to run on 8A/14.4V V-Mount camera batteries. The kit includes the V-Mount plate as well as mounting hardware. UPC: 899141001782
- Hard Gel Filter Kit for F8 LED Fresnel Designed to fit the F8 LED Fresnel, this Zylight Hard Gel Filter Kit contains amber conversion filters to warm the F8's daylight output and diffusion filters to soften its output. The kit is comprised of Full, 3/4, 1/2, and 1/8 amber CTO filters as well as White Diffusion and Half White Diffusion filters. UPC: 899141002123
- Dual Head Case for F8 LED Fresnel Light The Zylight Dual Head Case is designed to securely hold two F8 LED Fresnel Lights. It is soft sided with metal reinforcement for security. Additionally, it is ATA flight approved for traveling with your lights. UPC: 899141001935
In the Box Bundle Items 2 x F8-200 Daylight LED Fresnel twfswzcfuuervccwarxbbtxwrusrarq - Replacement Barndoors for F8 LED Fresnels
- Universal AC Adapter for F8 LED Fresnel
- Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black)
2 x V-Mount Battery Plate Kit for F8 Fresnel Fixture 2 x Hard Gel Filter Kit for F8 LED Fresnel - Half White Diffusion Filter
Dual Head Case for F8 LED Fresnel Light User Manual PDF 915.9kbtwfswzcfuuervccwarxbbtxwrusrarq Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight F8-200 Daylight LED Fresnel Dual Head ENG Kit with V-Mount Battery Plates and Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - F8-200 Daylight LED Fresnel
| | | Beam Angle | 16 to 70° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 92 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | 15.0 x 12.6 x 4.6" / 38.0 x 32.0 x 12.0 cm | | Fixture Weight | 10.25 lb / 4.7 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Proprietary Wireless | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 10 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 200 W | | | | Box Dimensions (LxWxH) | 19.2 x 17.3 x 15.3" | - V-Mount Battery Plate Kit for F8 Fresnel Fixture
| | | Box Dimensions (LxWxH) | 9.0 x 5.0 x 1.0" | - Hard Gel Filter Kit for F8 LED Fresnel
| | | Box Dimensions (LxWxH) | 10.7 x 10.3 x 1.7" | - Dual Head Case for F8 LED Fresnel Light
| | | Box Dimensions (LxWxH) | 29.0 x 21.0 x 20.0" |
