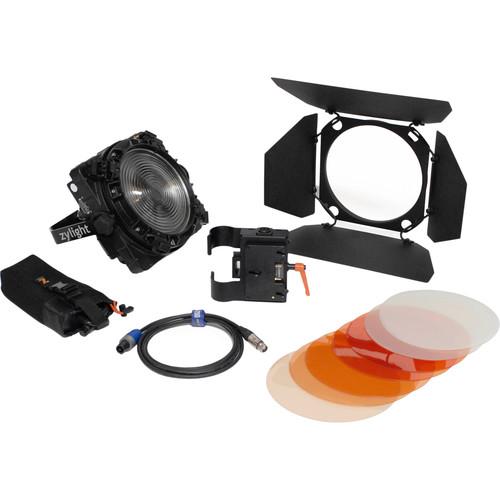

User Manual for Zylight F8-200 Daylight LED Fresnel Single Head ENG Kit with Gold Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the Zylight F8-200 Daylight LED Fresnel Single
- Product category: LED Lights Zylight
- Brand: Zylight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zylight LED Lights
|
User manual for the Zylight F8-200 Daylight LED Fresnel Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zylight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zylight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zylight product will considerably shorten its lifespan!
|
Product description Light effectively and efficiently while on the move with this F8-200 Daylight LED Fresnel Single Head ENG Kit from Zylight, which includes Gold mount battery plate for creating a completely portable setup. It features a flat 8" Fresnel fixture with a daylight-balanced color temperature of 5600K, a filter kit with CTO and diffusion gels.
Inside the light is a 200W Quantum Dot LED with a CRI of 92 that gives these units an output equivalent to that of a 400W HMI fixture. Also, they have an adjustable beam angle from 16-70°. The light can be dimmed from 0-100% via local controls, over DMX, or by using the ZyLink Wireless system.
The physical design is quite durable with an IP54-rated weather resistance and active cooling for reducing heat. When not using the battery, it accepts power via a 4-pin XLR input. Along with this, it has a yoke mount for use on a light stand and comes with a universal AC power supply and barndoors. - F8-200 Daylight LED Fresnel Embrace the variable beam angle of a Fresnel light while keeping a compact kit by using the F8-200 Daylight LED Fresnel from Zylight. It has a flat shape and an 8" lens that extends away from the body, but closes down for storage and transport. Inside is a 200W Quantum Dot LED with a CRI of 92 that gives this unit an output equivalent to that of a 400W HMI fixture. Also, it is balanced with a 5600K color temperature and has an adjustable beam angle from 16-70°. Also, the light can be dimmed from 0-100% via local controls, over DMX, or by using the ZyLink Wireless system.
The physical design is quite durable with an IP54-rated weather resistance and active cooling for reducing heat. It accepts power via a 4-pin XLR input and can accept an optional battery caddie for true portability. Along with this, it has a yoke mount for use on a light stand and comes with a universal AC power supply. UPC: 899141002413 - F8 Gold Mount Battery Kit The F8 Gold Mount Battery Kit from Zylight is designed for use with F8-D and F8-T LED Fresnel’s. The battery adapter plate allows for complete portability using your existing 8A/14.4V battery. The kit also includes mounting plate and all hardware to mount the gold mount plate to the rear of F8. UPC: 899141001775
- Hard Gel Filter Kit for F8 LED Fresnel Designed to fit the F8 LED Fresnel, this Zylight Hard Gel Filter Kit contains amber conversion filters to warm the F8's daylight output and diffusion filters to soften its output. The kit is comprised of Full, 3/4, 1/2, and 1/8 amber CTO filters as well as White Diffusion and Half White Diffusion filters. UPC: 899141002123
In the Box Bundle Items F8-200 Daylight LED Fresnel rxsuffxfytucybybdbrtrdvyv - Replacement Barndoors for F8 LED Fresnels
- Universal AC Adapter for F8 LED Fresnel
- Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black)
F8 Gold Mount Battery Kit Hard Gel Filter Kit for F8 LED Fresnel - Half White Diffusion Filter
User Manual PDF 915.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight F8-200 Daylight LED Fresnel Single Head ENG Kit with Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - F8-200 Daylight LED Fresnel
| | | Beam Angle | 16 to 70° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 92 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | 15.0 x 12.6 x 4.6" / 38.0 x 32.0 x 12.0 cm | | Fixture Weight | 10.25 lb / 4.7 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Proprietary Wireless | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 10 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 200 W | | | | Box Dimensions (LxWxH) | 19.2 x 17.3 x 15.3" | - F8 Gold Mount Battery Kit
| | | Box Dimensions (LxWxH) | 10.0 x 4.8 x 0.6" | - Hard Gel Filter Kit for F8 LED Fresnel
| | | Box Dimensions (LxWxH) | 10.7 x 10.3 x 1.7" |
