Zylight F8-200 Daylight LED Fresnel Single

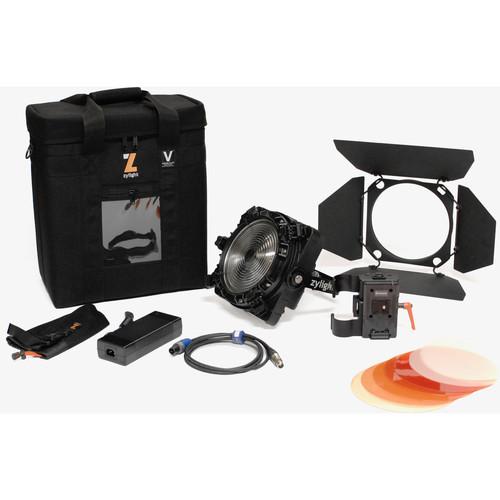

User Manual for Zylight F8-200 Daylight LED Fresnel Single Head ENG Kit with V-Mount Battery Plate

• Product category: LED Lights Zylight
• Brand: Zylight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zylight LED Lights

Product description

• F8-200 Daylight LED Fresnel Embrace the variable beam angle of a Fresnel light while keeping a compact kit by using the F8-200 Daylight LED Fresnel from Zylight. It has a flat shape and an 8" lens that extends away from the body, but closes down for storage and transport. Inside is a 200W Quantum Dot LED with a CRI of 92 that gives this unit an output equivalent to that of a 400W HMI fixture. Also, it is balanced with a 5600K color temperature and has an adjustable beam angle from 16-70°. Also, the light can be dimmed from 0-100% via local controls, over DMX, or by using the ZyLink Wireless system.

  The physical design is quite durable with an IP54-rated weather resistance and active cooling for reducing heat. It accepts power via a 4-pin XLR input and can accept an optional battery caddie for true portability. Along with this, it has a yoke mount for use on a light stand and comes with a universal AC power supply. UPC: 899141002413
• V-Mount Battery Plate Kit for F8 Fresnel Fixture The V-Mount Battery Plate Kit for F8 Fresnel Fixture from Zylight is designed to allow both the F8-D and F8-T (daylight/tungsten) versions of the F8 LED Fresnel to run on 8A/14.4V V-Mount camera batteries. The kit includes the V-Mount plate as well as mounting hardware. UPC: 899141001782
• Hard Gel Filter Kit for F8 LED Fresnel Designed to fit the F8 LED Fresnel, this Zylight Hard Gel Filter Kit contains amber conversion filters to warm the F8's daylight output and diffusion filters to soften its output. The kit is comprised of Full, 3/4, 1/2, and 1/8 amber CTO filters as well as White Diffusion and Half White Diffusion filters. UPC: 899141002123
• Single Head Case for F8 LED Fresnel Light The Zylight Single Head Case is designed to accommodate the F8 LED Fresnel Light. This compact case easily fits in the overhead compartment of airplanes. UPC: 899141001928

• Replacement Barndoors for F8 LED Fresnels

• Universal AC Adapter for F8 LED Fresnel

• Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black)

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• CTO Filter (Full)

• CTO Filter (3/4)

• CTO Filter (1/2)

• CTO Filter (1/8)

• White Diffusion Filter

• Half White Diffusion Filter

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• F8-200 Daylight LED Fresnel

  Beam Angle	16 to 70°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 92
  Cooling System	Fan
  Dimming	Yes, 0 to 100%
  Display	None
  Fixture Dimensions	15.0 x 12.6 x 4.6" / 38.0 x 32.0 x 12.0 cm
  Fixture Weight	10.25 lb / 4.7 kg

  DMX Connector	5-Pin XLR

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX, Proprietary Wireless

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  DC Input Power	24 VDC at 10 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	200 W

  IP Rating	IP54

  Box Dimensions (LxWxH)	19.2 x 17.3 x 15.3"

• V-Mount Battery Plate Kit for F8 Fresnel Fixture

  Box Dimensions (LxWxH)	9.0 x 5.0 x 1.0"

• Hard Gel Filter Kit for F8 LED Fresnel

  Box Dimensions (LxWxH)	10.7 x 10.3 x 1.7"

• Single Head Case for F8 LED Fresnel Light

  Box Dimensions (LxWxH)	18.8 x 18.3 x 15.2"
