User Manual for Zylight F8-200 Tungsten LED Fresnel Click to enlarge the picture
Contents of the user manual for the Zylight F8-200 Tungsten LED Fresnel
- Product category: LED Lights Zylight
- Brand: Zylight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zylight LED Lights
 |
User manual for the Zylight F8-200 Tungsten LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zylight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zylight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zylight product will considerably shorten its lifespan!
|

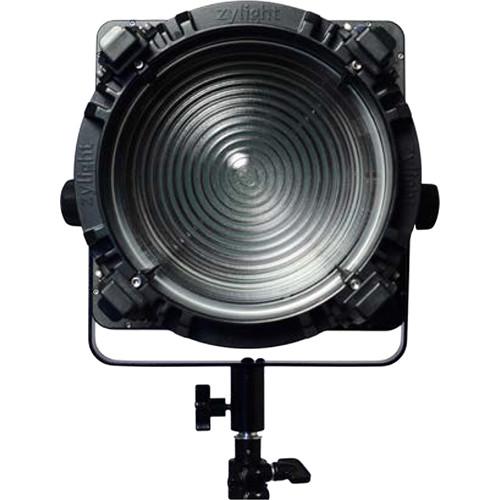

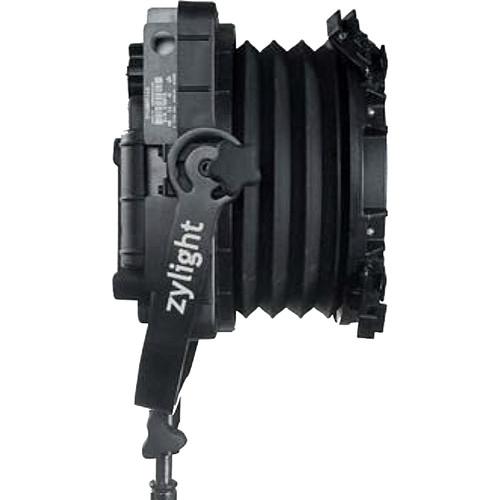

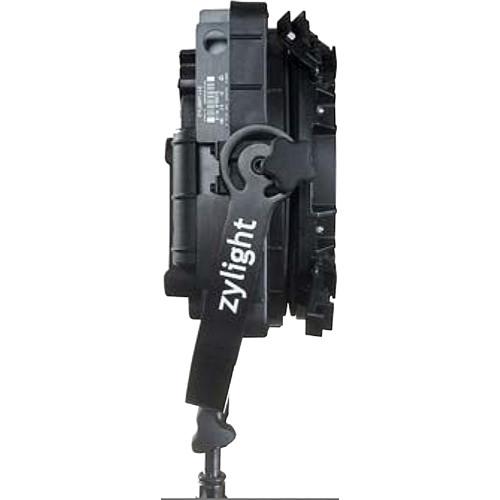

Product description Embrace the variable beam angle of a Fresnel light while keeping a compact kit by using the F8-200 Tungsten LED Fresnel from Zylight. It has a flat shape and an 8" lens that extends away from the body, but closes down for storage and transport. Inside is a 200W Quantum Dot LED with a CRI of 93 that gives this unit an output equivalent to that of a 400W HMI fixture. Also, it is balanced with a 3200K color temperature and has an adjustable beam angle from 16-70°. Also, the light can be dimmed from 0-100% via local controls, over DMX, or by using the ZyLink Wireless system.

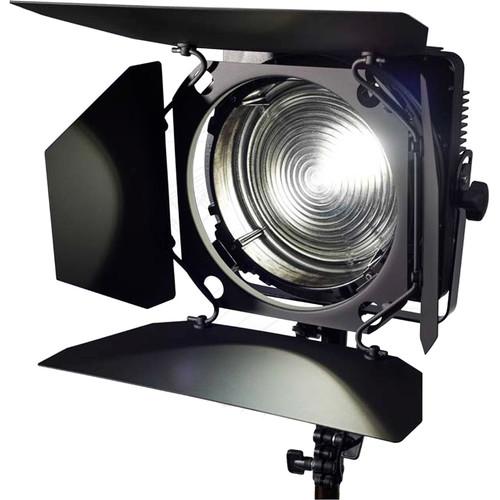

The physical design is quite durable with an IP54-rated weather resistance and active cooling for reducing heat. It accepts power via a 4-pin XLR input and can accept an optional battery caddie for true portability. Along with this, it has a yoke mount for use on a light stand and comes with a universal AC power supply. In the Box Zylight F8-200 Tungsten LED Fresnel Replacement Barndoors for F8 LED Fresnels Universal AC Adapter for F8 LED Fresnel Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black) Limited 1-Year Warranty Spec sheet PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight F8-200 Tungsten LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZylight F8-200 Specs | | | Beam Angle | 16 to 70° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 93 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | 15.0 x 12.6 x 4.6" / 38.0 x 32.0 x 12.0 cm | | Fixture Weight | 10.25 lb / 4.7 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Proprietary Wireless | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 10 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 200 W |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
