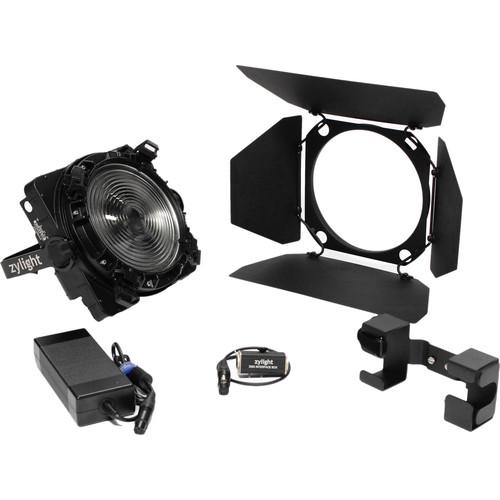

User Manual for Zylight F8-200 Tungsten LED Fresnel Studio Kit Click to enlarge the picture
Contents of the user manual for the Zylight F8-200 Tungsten LED Fresnel Studio
- Product category: LED Lights Zylight
- Brand: Zylight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zylight LED Lights
|
User manual for the Zylight F8-200 Tungsten LED Fresnel Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zylight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zylight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zylight product will considerably shorten its lifespan!
|
Product description The F8-200 Tungsten LED Fresnel Studio Kit from Zylight includes the F8-200 LED Fresnel with a tungsten-balanced color temperature of 3200K, a DMX interface box, a universal power adapter, a yoke AC adapter mount, and barn doors. This light uses an 8" round traditional Schott glass Fresnel lens, and incorporates a special blend of Quantum Dot nanoparticles along with phosphor to provide 95+ CRI performance for faithful rendering of even the subtlest hues. It offers an adjustable beam angle from 16 to 70°, and can be dimmed from 0 to100% via local controls, over DMX, or by using the ZyLink Wireless system.The light can be powered via the included worldwide AC power adapter or via dual standard 14.4V camera batteries (available separately) for complete portability. The DMX interface box plugs into the back of the LED Fresnel allowing for remote console control via DMX512 protocol. The AC adapter mount secures the universal power supply to the back of the light to prevent disconnection while hanging from the fixture. The physical design of this F8-200 light fixture is quite durable with an IP54-rated weather resistance and active cooling for reducing heat. - F8-200 Tungsten LED Fresnel Embrace the variable beam angle of a Fresnel light while keeping a compact kit by using the F8-200 Tungsten LED Fresnel from Zylight. It has a flat shape and an 8" lens that extends away from the body, but closes down for storage and transport. Inside is a 200W Quantum Dot LED with a CRI of 93 that gives this unit an output equivalent to that of a 400W HMI fixture. Also, it is balanced with a 3200K color temperature and has an adjustable beam angle from 16-70°. Also, the light can be dimmed from 0-100% via local controls, over DMX, or by using the ZyLink Wireless system.
The physical design is quite durable with an IP54-rated weather resistance and active cooling for reducing heat. It accepts power via a 4-pin XLR input and can accept an optional battery caddie for true portability. Along with this, it has a yoke mount for use on a light stand and comes with a universal AC power supply. - Universal AC Adapter for F8 LED Fresnel The Universal AC Adapter for F8 LED Fresnel from Zylight is a replacement accessory that allows you to use the F8-D LED and F8-T LED Fresnel’s across the globe.
- DMX Interface Box for F8 Fresnel The Zylight DMX Interface Box plugs into the back of Zylight's F8 LED Fresnel and allows remote console control of the F8 with the DMX512 protocol. The box mounts to the light's yoke. UPC: 899141002079
- Replacement Barndoors for F8 LED Fresnels The Barndoors from Zylight are a replacement accessory suitable for use with the F8-D and F8-T LED Fresnels.
- Yoke AC Adapter Mount for F8-200 Fresnel
In the Box Bundle Items F8-200 Tungsten LED Fresnel rdsbbryrsbsfvezfaubuurrscfs - Replacement Barndoors for F8 LED Fresnels
- Universal AC Adapter for F8 LED Fresnel
- Mesh Carrying Bag for IS3 and F8 Worldwide AC Adapters (Black)
Universal AC Adapter for F8 LED Fresnel Yoke AC Adapter Mount for F8-200 Fresnel DMX Interface Box for F8 Fresnel Replacement Barndoors for F8 LED Fresnels Spec sheet PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight F8-200 Tungsten LED Fresnel Studio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - F8-200 Tungsten LED Fresnel
| | | Beam Angle | 16 to 70° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 93 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | 15.0 x 12.6 x 4.6" / 38.0 x 32.0 x 12.0 cm | | Fixture Weight | 10.25 lb / 4.7 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Proprietary Wireless | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 10 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 200 W | - DMX Interface Box for F8 Fresnel
| | | Box Dimensions (LxWxH) | 4.7 x 4.0 x 1.3" | - Universal AC Adapter for F8 LED Fresnel
- Yoke AC Adapter Mount for F8-200 Fresnel
- Replacement Barndoors for F8 LED Fresnels
