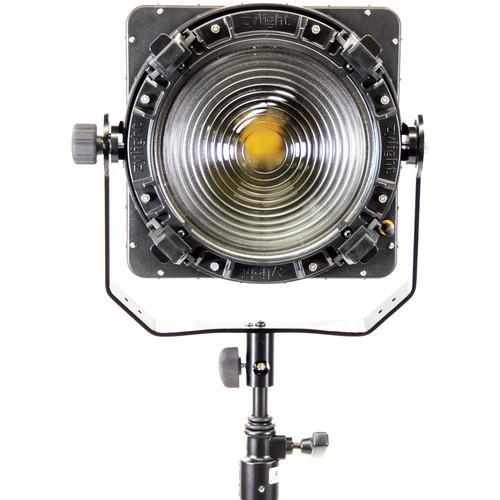

User Manual for Zylight F8-B LED UV Fresnel Black-Light Fixture Click to enlarge the picture
Contents of the user manual for the Zylight F8-B LED UV Fresnel Black-Light
- Product category: DJ & Effect Lights Zylight
- Brand: Zylight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zylight DJ & Effect Lights
|
User manual for the Zylight F8-B LED UV Fresnel Black-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zylight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zylight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zylight product will considerably shorten its lifespan!
|
Product description The F8-B LED UV Fresnel Black-Light from Zylight is a fixture that emits a narrow band of true 365nm ultraviolet light for dramatic black-light effects. It combines a Zylight Tru365 LED module with the flexibility and control of a focusable glass Fresnel lens. The F8-B delivers black-light LED technology with no lenses to change, no filters to check, and no fixed beam patterns to limit your creativity. - Long-life Tru365 UV-LED Zylight engine
- Adjustable speed and random strobe, as well as flash modes (via firmware update)
- Thin and lightweight at 9 lb
- High-contrast OLED display
- Water resistance IP54 rating
- Continual focus-variable spot-flood
- Optically clear Schott glass Fresnel lens
- Passive cooling and silent operation
- Single shadow beam shaping
- DMX/Zylink/local control or wireless operation
- Battery or worldwide AC power
- Yoke mount for pan and tilt
- Sturdy, durable aluminum construction
UPC: 899141002215 In the Box Zylight F8-B LED UV Fresnel Black-Light Fixture F8 Worldwide Power Adapter AC Adapter Bag Set of Barn Doors Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight F8-B LED UV Fresnel Black-Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZylight F8-B Specs | Wireless Frequency | 2.45 GHz | | Wireless Channels | 10, user selectable | | Operating Range | -4 to 104°F (-20 to 40°C) | | IP Rating | 54 | | PWM Frequency | 11.8 KHz | | Power Requirement | 10 - 20 VDC | | Consumption | 100 W maximum, 8 A @ 14 VDC | | Power Supply (AC) | 120 - 240 VAC, 50/60 Hz | | Electrical Specifications | Worldwide AC power supply, 14.4 VDC (8 A) battery powering | | Power Plug | XLR 4-pin | | Beam Angle | 16 - 70°, variable spot-flood | | Radiometric Data | Flood (70°):
960 W/m2 @ 5' (1.52 m)
15 W/m2 @ 40' (12.19 m)
3.744 W/m2 @ 80' (24.38 m)
1.6656 W/m2 @ 120' (36.57 m)
Spot (16°):
4800 W/m2 @ 5' (1.52 m)
75 W/m2 @ 40' (12.19 m)
18.72 W/m2 @ 80' (24.38 m)
8.328 W/m2 @ 120' (36.57 m) | | Focus Operation | Via rear knob; continuously variable; no modifying lenses needed | | Dimming | 0 - 100% (13 - 100% using ZyLink remote) | | Cooling | Passive / silent | | Flicker Free | Up to 5,600 fps tested (full brightness) | | DMX Channels | CH1 - on/off, CH2 - brightness (0 - 100%) | | LED Life | 50,000 hours (quantum dot powered), minimum | | Materials | Machined aluminum and high-impact plastic | | Mounting | Manual yoke
5/8" female spigot
Pole yoke (26-02014)
Handle Kit (19-02041) | | Dimensions | Optical: 8" (203 mm) round traditional Schott glass Fresnel lens
General: 15.0 x 12.6 x 4.6" (382 x 319 x 97 mm) | | Weight | 9 lb (4.3 kg) with yoke | | | | Package Weight | 20.265 lb | | Box Dimensions (LxWxH) | 19.2 x 17.4 x 12.1" |
