User Manual for Zylight F8 LED Fresnel Click to enlarge the picture
Contents of the user manual for the Zylight F8 LED Fresnel
- Product category: LED Lights Zylight
- Brand: Zylight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zylight LED Lights
 |
User manual for the Zylight F8 LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zylight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zylight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zylight product will considerably shorten its lifespan!
|

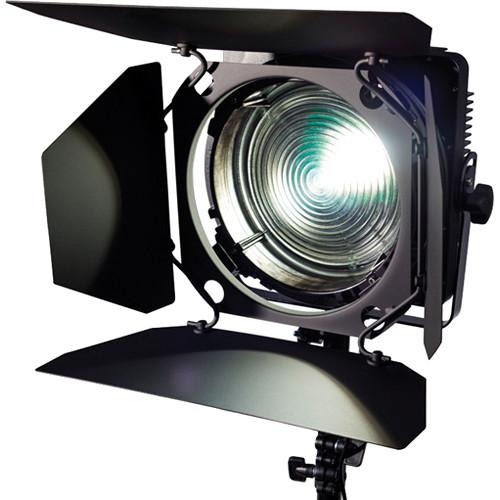

Product description The F8 LED Fresnel (Daylight) from Zylight is the next generation of Fresnel lights. All of the hallmarks of a traditional Fresnel light are present; single shadow beam shaping through barn doors, continuous focusing and a smooth light field. The Zylight F8 adds wireless and DMX control, water-resistant IP54 rating, and very rugged construction for field reliability. Available in both Tungsten and Daylight color temperature versions, the Zylight F8 is extremely compact, durable and one of the most versatile Fresnel lights on the market. - Field Friendly
- The Zylight F8 can be powered by either a worldwide AC power adapter or a standard 14.4V camera battery for complete portability. Its thin design and shape allow it to pack into small cases and be taken anywhere. The water-resistant IP54 rating ensures the F8 will be comfortable in falling rain or snow, and blowing dirt and dust. Whether you're shooting a stand-up in a hurricane or snow storm, the F8 will deliver bright light with ease.
- Studio Friendly

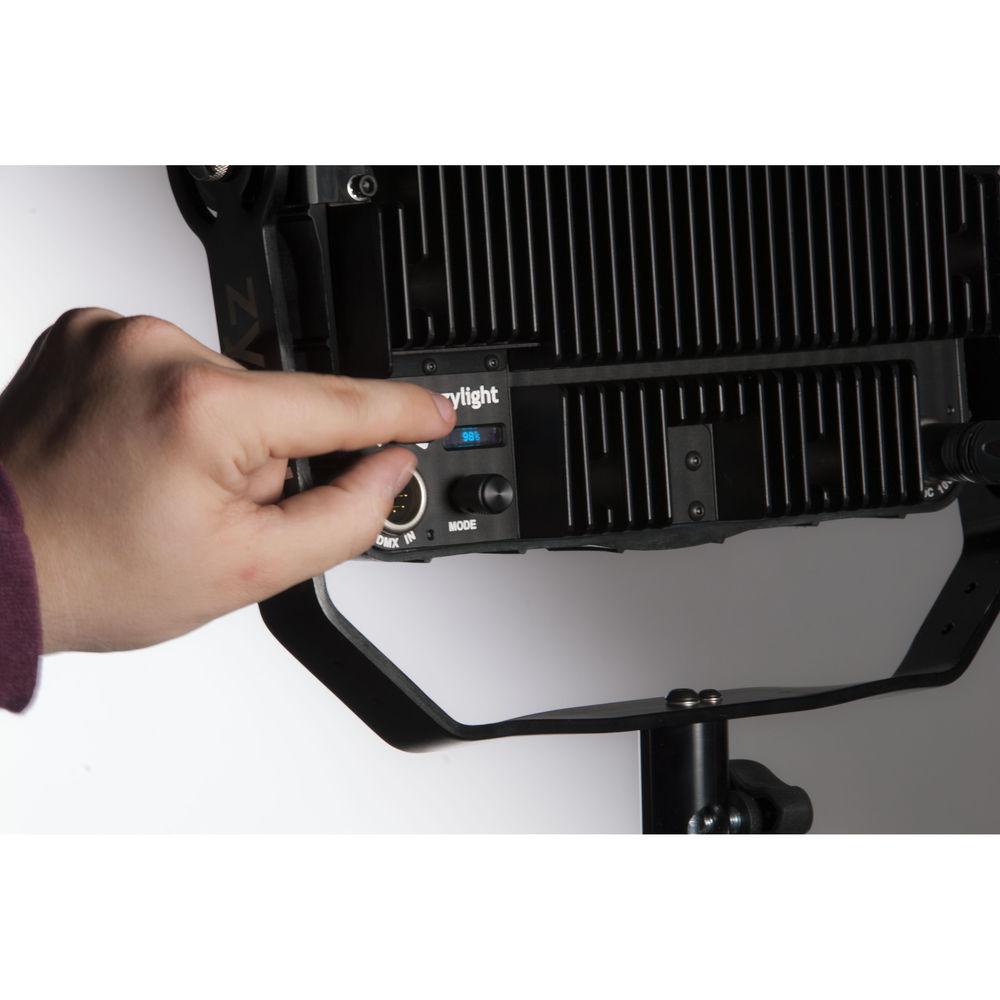

- In the studio, all functionality of the Zylight F8 can be controlled via DMX or remotely via the built-in ZyLink wireless link. Local control such as dimming, focus and wireless operation are provided on the rear of the F8. At 15 x 12 x 4" it will take up considerably less space in your lighting grid than its traditional counterpart. The yoke mount allows for easy panning and tilting for quick focusing. The F8's silent operation means it can run in a studio setting without disruption of audio recording or talent distraction.
- Ultra Bright Output
- The F8's advanced ultra bright LED module ensures excellent skin tones and rich, accurate color rendition. Continual focusing and an adjustable beam spread between 16-70 degrees allows for even coverage when shooting with wide-angle lenses or HD 16x9 format. The F8 uses a high quality glass 8.0" Fresnel lens and has an equivalent output of a traditional 1,000W instrument. Barn doors, soft box and other accessories are available as options.
- Other Features
-
- Thin, lightweight design
- High 95+ CRI
- Completely silent operation
- Single shadow beam shaping
- Fully Dimmable 100-0%
- Battery or worldwide AC power
- Yoke mount for pan and tilt
- Made in the USA
- Low power draw
- No spare bulbs to buy or carry
- Low maintenance cost and downtime
UPC: 899141001744 In the Box Zylight F8 LED Fresnel (Daylight) F8-D Daylight-Balanced Fresnel Light Universal AC Adapter for F8 LED Fresnel bwcqcxtevzebsrffdeuf AC Adapter Bag Replacement Barndoors for F8 LED Fresnels Yoke Mount User Guide Limited 1-Year Warranty User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight F8 LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZylight F8-D Specs | | | Beam Angle | 16 to 70° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 15.0 x 12.6 x 4.6" / 382.0 x 319.0 x 97.0 mm | | Fixture Weight | 10.9 lb / 4.9 kg | | | | Power Input Connector | 4-Pin XLR | | DMX Connector | 5-Pin XLR | | | | Lens Diameter | 8" / 20.3 cm | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX | | Wireless Channels / Groups | 9 / X | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 10 to 20 VDC at 8 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 110 W | | | | Certifications | RoHS, as per Manufacturer | | IP Rating | IP54 | | | | Package Weight | 19.4 lb | | Box Dimensions (LxWxH) | 18.9 x 17.0 x 11.6" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
