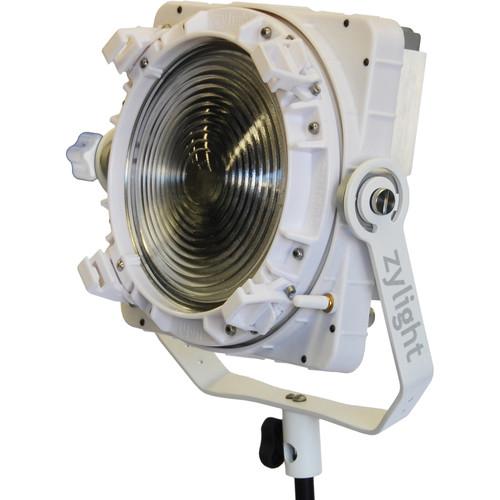

User Manual for Zylight F8-T LED Focusable Fresnel Tungsten Head Light Click to enlarge the picture
Contents of the user manual for the Zylight F8-T LED Focusable Fresnel Tungsten
- Product category: LED Lights Zylight
- Brand: Zylight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zylight LED Lights
|
User manual for the Zylight F8-T LED Focusable Fresnel Tungsten contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zylight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zylight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zylight product will considerably shorten its lifespan!
|
Product description The F8-T LED Focusable Fresnel Tungsten Head Light from Zylight features single shadow beam shaping through barn doors, continuous focusing, and a smooth light field. The Fresnel light adds wireless and DMX control, water-resistant IP54 rating, and a rugged construction for field reliability. This compact and durable light has a 3200K color temperature. The unit can be powered by either a worldwide AC power adapter or a standard 14.4V camera battery for complete portability. Its thin design and shape allow it to be packed into small cases and be taken anywhere. The water-resistant IP54 rating ensures the F8 will be comfortable in falling rain or snow, and blowing dirt and dust. Whether shooting a stand-up in a hurricane or snow storm, the F8 will deliver bright light with ease. In the studio, all functionality of the F8 can be controlled via DMX or remotely via the built-in ZyLink wireless link. Local control such as dimming, focus and wireless operation are provided on the rear of the F8. The compact dimensions take up considerably less space in your grid than its traditional counterpart. The yoke mount allows for easy panning and tilting for quick focusing. The F8′s silent operation means it can run in a studio setting without disruption of audio recording or talent distraction.The advanced ultra bright LED module ensures excellent skin tones and rich, accurate color rendition. Continual focusing and an adjustable beam spread between 16 to 70° allows for even coverage when shooting with wide-angle lenses or HD 16 × 9 format. The F8 uses a high quality glass 8″ Fresnel lens and has an equivalent output of a traditional 650W instrument. Note: DMX Cable is sold separately. - Thin & lightweight design
- Continual focus-variable spot-flood
- Completely silent operation
- Single shadow beam shaping
- DMX or wireless operation 1
Please Note: DMX Cable is sold separately. close - Battery or worldwide AC power
- Yoke mount for pan & tilt
- Sturdy, durable aluminum construction
- No spare bulbs to buy or carry
- Low maintenance cost & downtime
In the Box Zylight F8-T LED Focusable Fresnel Tungsten Head Light Limited 1-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight F8-T LED Focusable Fresnel Tungsten Head Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZylight F8-T Specs | | | Beam Angle | 16 to 70° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 97 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 15.0 x 12.6 x 4.6" / 381.0 x 320.0 x 116.8 mm | | Fixture Weight | 9 lb / 4.3 kg | | | | Power Input Connector | 4-Pin XLR | | DMX Connector | 5-Pin XLR | | | | Lens Diameter | 8" / 20.3 cm | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Wireless Channels / Groups | 9 / X | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 10 to 20 VDC at 8 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 110 W | | | | Certifications | RoHS, as per Manufacturer | | IP Rating | IP54 |
