User Manual for Zylight IS3 LED Light Click to enlarge the picture
Contents of the user manual for the Zylight IS3 LED Light
- Product category: LED Lights Zylight
- Brand: Zylight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zylight LED Lights
 |
User manual for the Zylight IS3 LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zylight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zylight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zylight product will considerably shorten its lifespan!
|

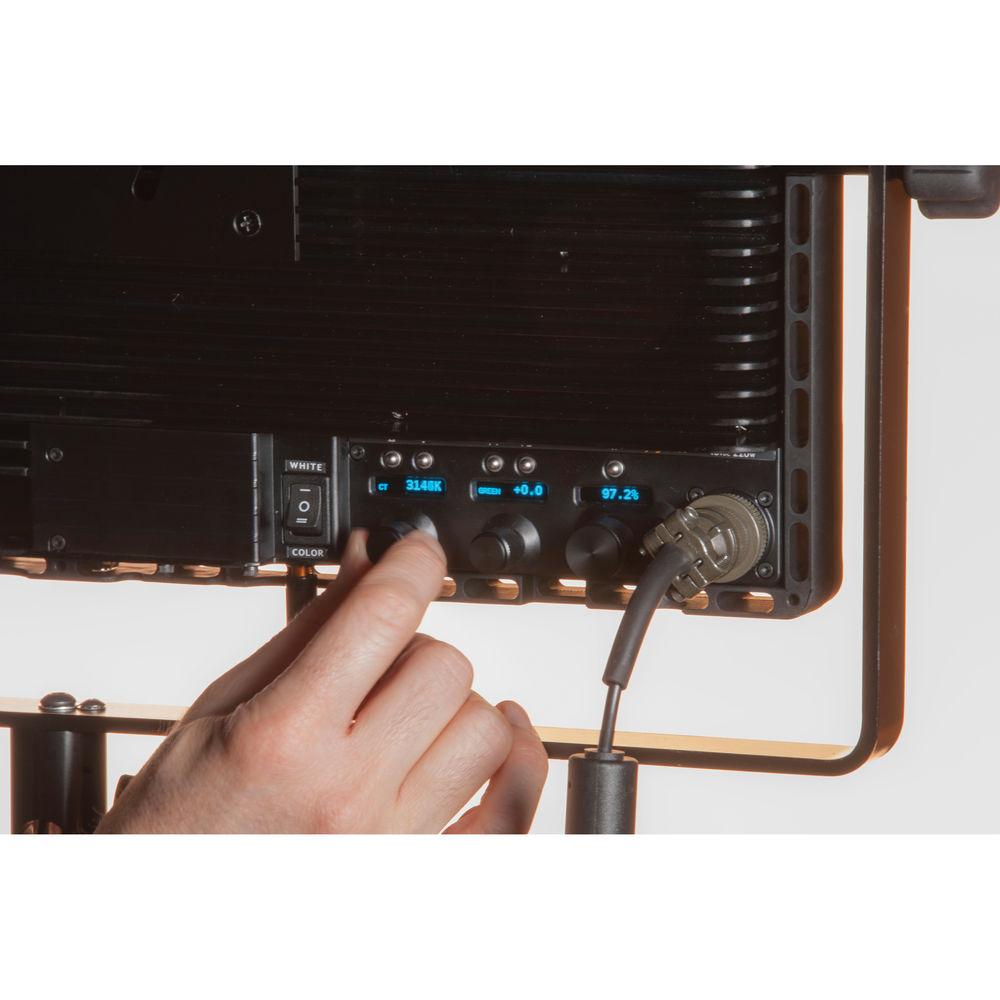

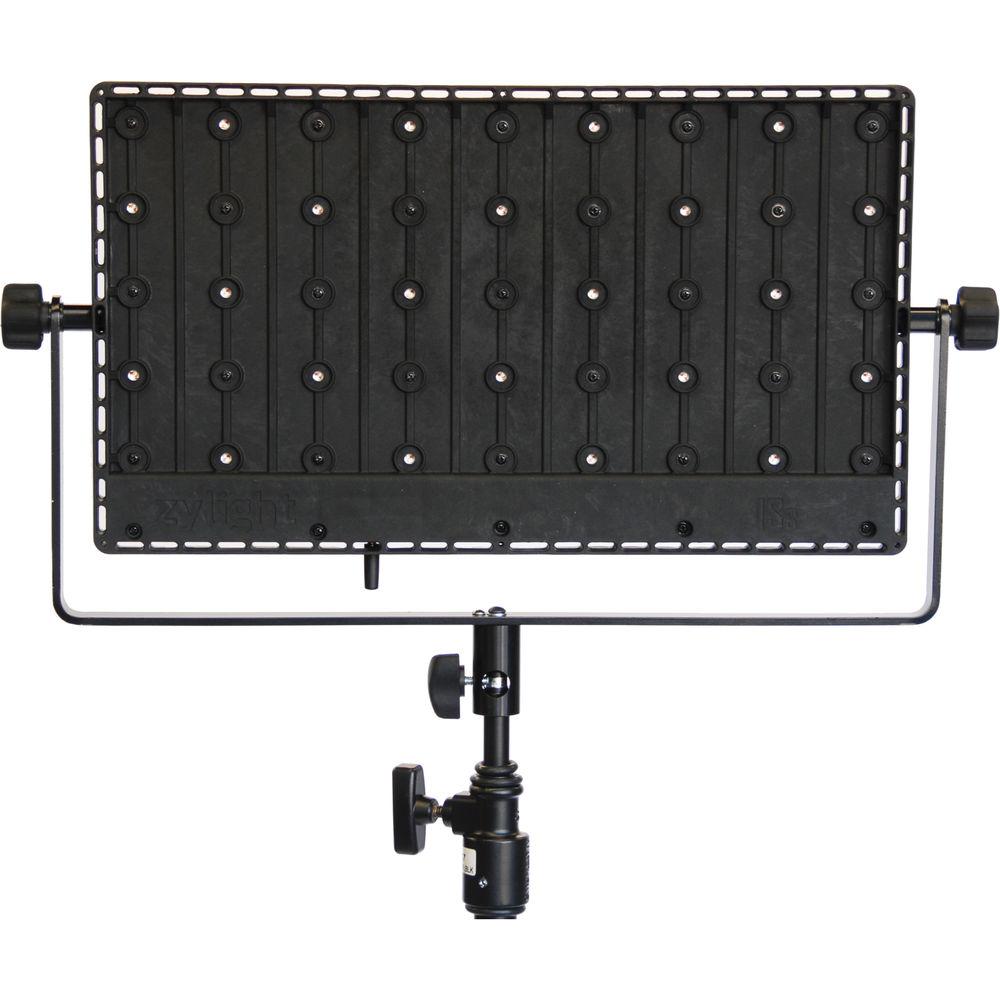

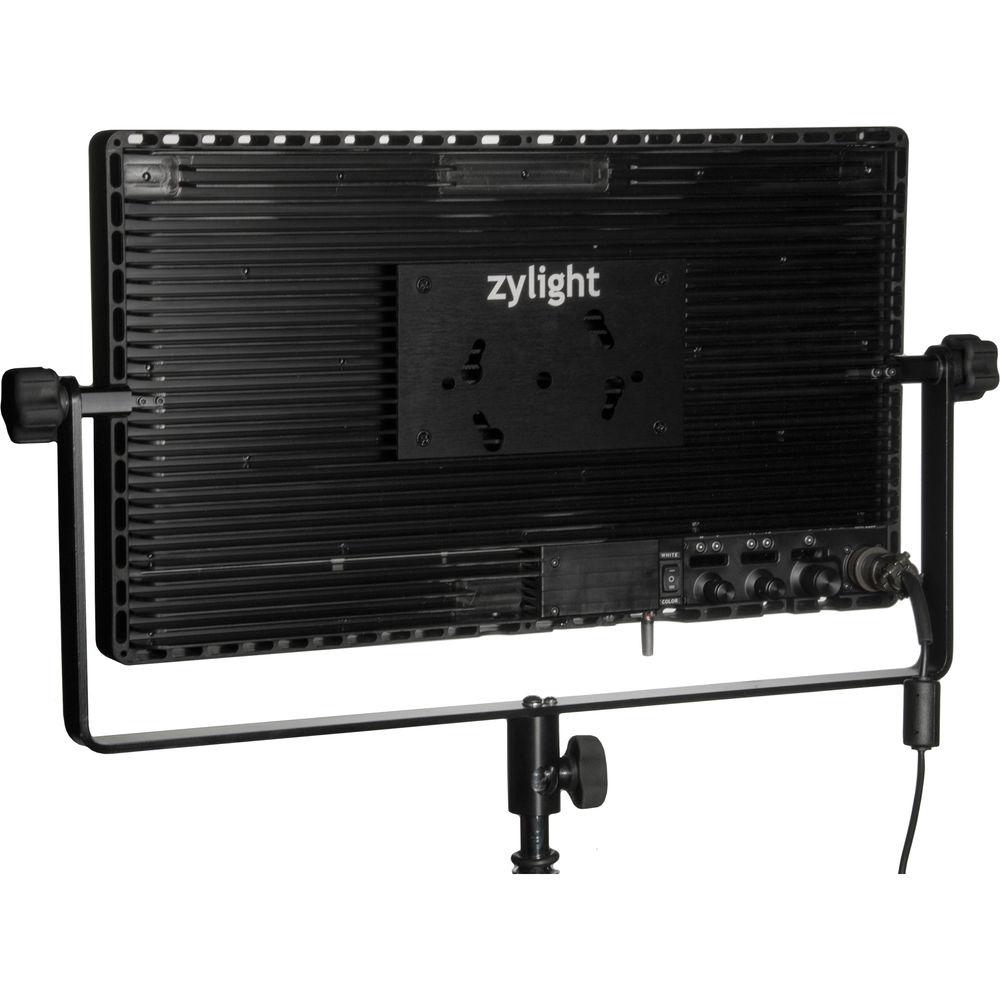

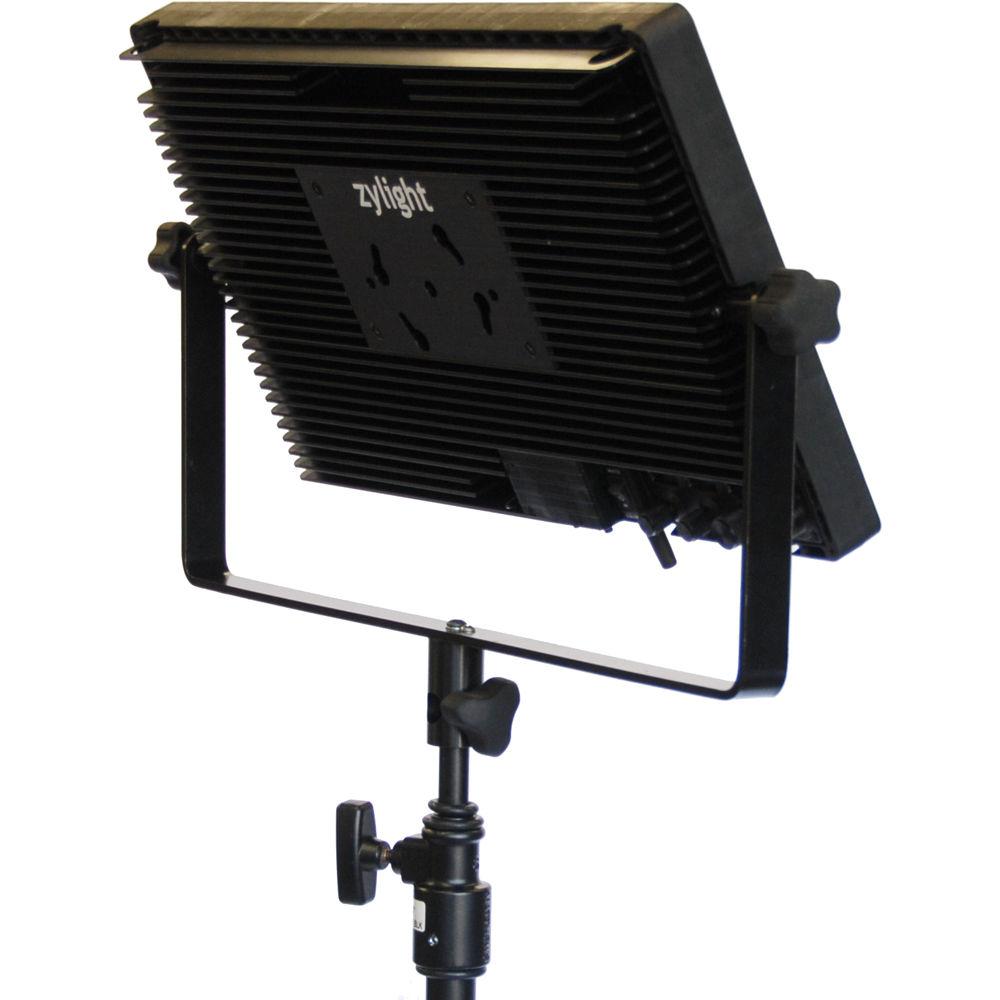

Product description This is the black Zylight IS3 LED Light. The IS3 panel combines a host of features in an LED panel that were unavailable in a single light source. The high output unit is multi-voltage AC or 24-48 VDC powered. The panel offers up to 100% dimming without color shift and color temperature control from 2,500 to a remarkable 10,000K. Additionally, +/- Green CC control makes very precise fine-tuning easy. All of these features can be controlled with 5-pin standard DMX cable while multiple panels ganged together behave as one unit via built in ZyLink technology. The package includes a universal voltage AC power supply, Kino-style mounting plate and a 90° arm with a 5/8" (16mm) receiver. - HD-led Module
- At the heart of every Zylight is a next-generation High-Density light-emitting diode (HD-LED) module that packs multiple high-power LED elements into a single square inch.
- LED Control
- Zylight's patented control circuitry and built-in microprocessor automatically compensate for small variations in voltage, current, and temperature and continually adjust the HD-LED module to ensure stable, flicker-free output over the entire dimming range for years of reliable operation.
- High Output
- Zylight's HD-LED module has no lensing, maximizing the amount of useful light with only a protective window between the LEDs and your subject.
- Four-Color Mixing
- The IS3's advanced four-color mixing ensures excellent skin tones and rich, accurate color rendition. And the IS3's wide 90° spread means the IS3 is up to the task of shooting with wide angle lenses or in 16x9 format.
- Built-in ZyLink
- Built-in ZyLink technology allows you to wirelessly link together multiple Zylights to create a soft LED source as large as you need. Zylights that are linked together act in concert as if they were one unified LED source, with adjustments made on one light changing all lights in the group.
- Engineered Tough
- Zylight's engineers have designed every Zylight to perform under the toughest of conditions.
- Fully Calibrated
- Zylights function like computers that make light. Every Zylight undergoes a detailed multi-point calibration at the factory, and the internal microprocessor continuously adjusts the output during use so you can set it and forget it.
- Tested & Certified
- Rest assured that the every Zylight is backed by solid engineering with multiple governmental approvals to prove it.
UPC: 899141001409 In the Box Zylight IS3 LED Light (Black) IS3 AC Adapter IS3 Yoke Mount Antenna Limited 2-Year Warranty User Manual PDF 204.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight IS3 LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZylight IS3 Specs | Rating | 70 fc (740 lux) @ 5 feet | | Color Range | 2,500-10,000K
+/- Green control | | Operating Voltage | 100-240 VAC, as supplied
24-48 VDC with optional battery | | Dimming | 100-0% | | Cable | 10', 120 VAC plug | | Mount | Kino-style 90° ball mount with 5/8" (16 mm) receiver | | Dimensions | 18 x 11 x 2" (45.7 x 28 x 5 cm) | | Weight | 13 lb (5.9 kg) | | | | Package Weight | 20.7 lb | | Box Dimensions (LxWxH) | 22.4 x 14.7 x 11.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
