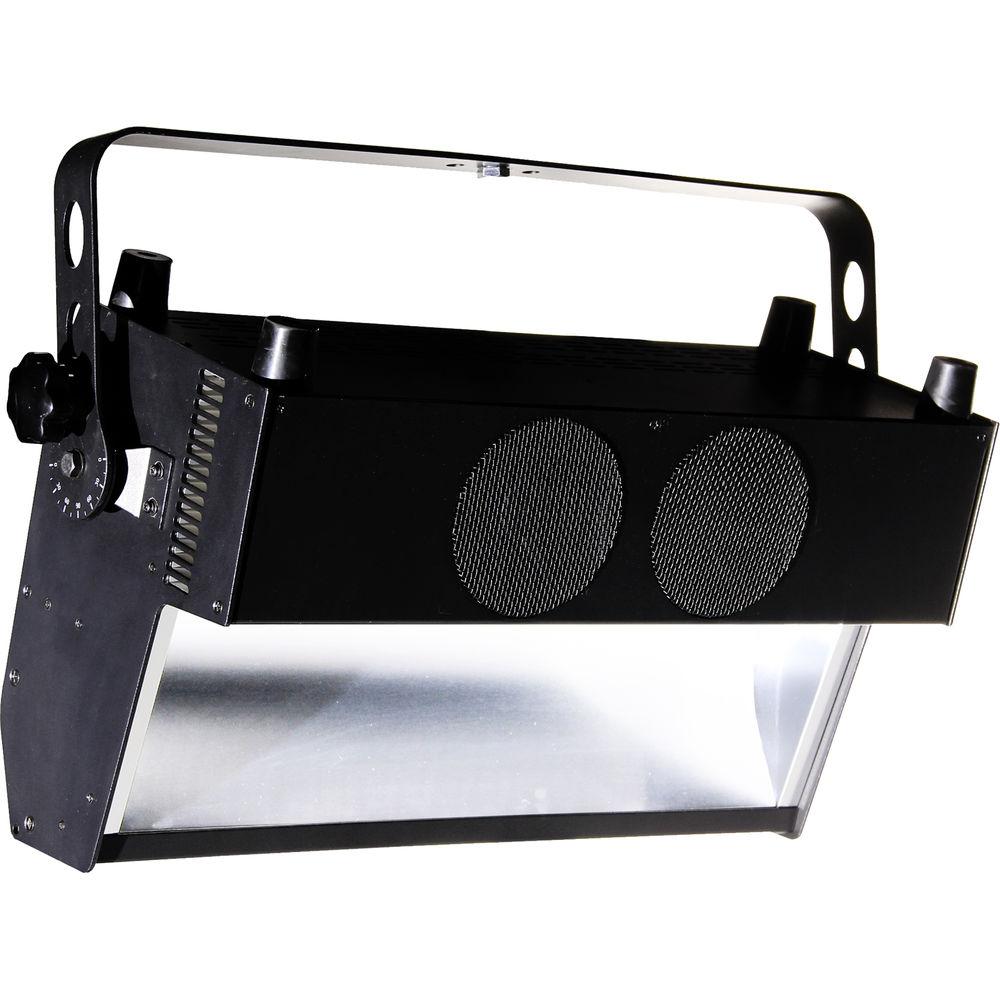

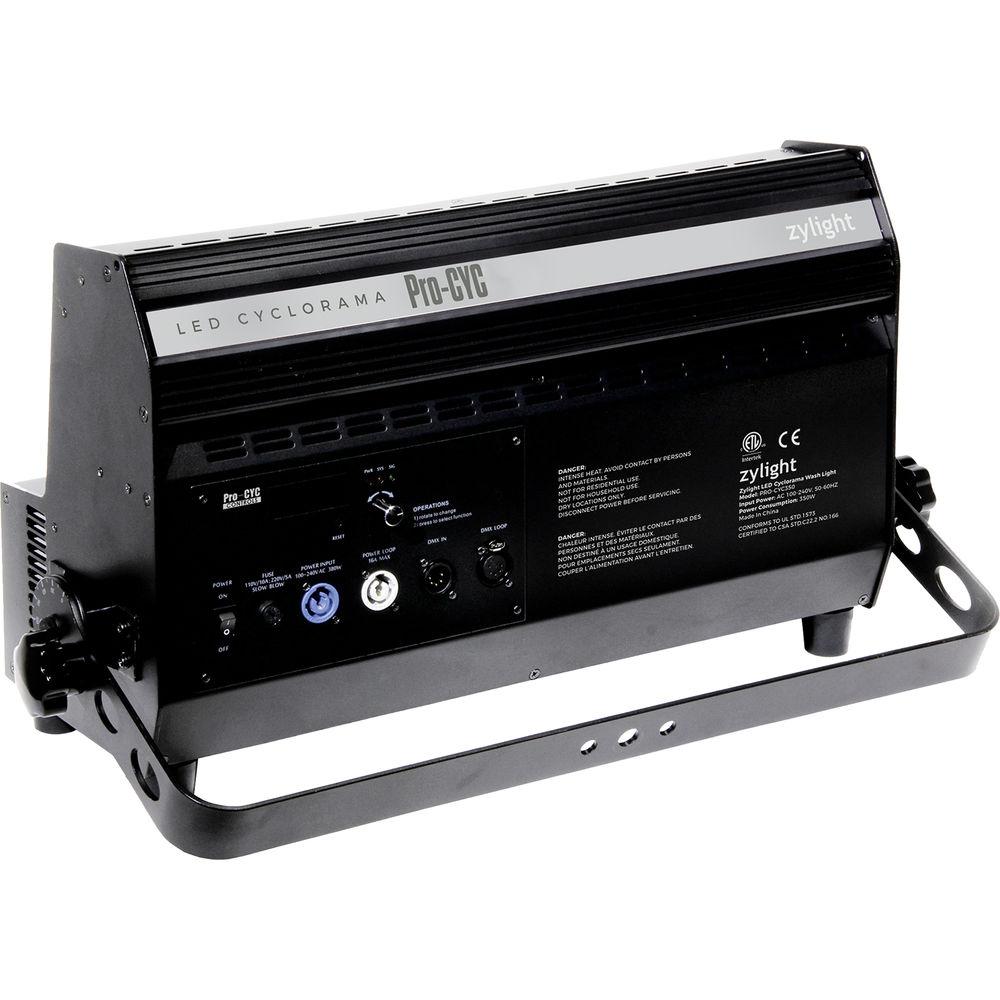

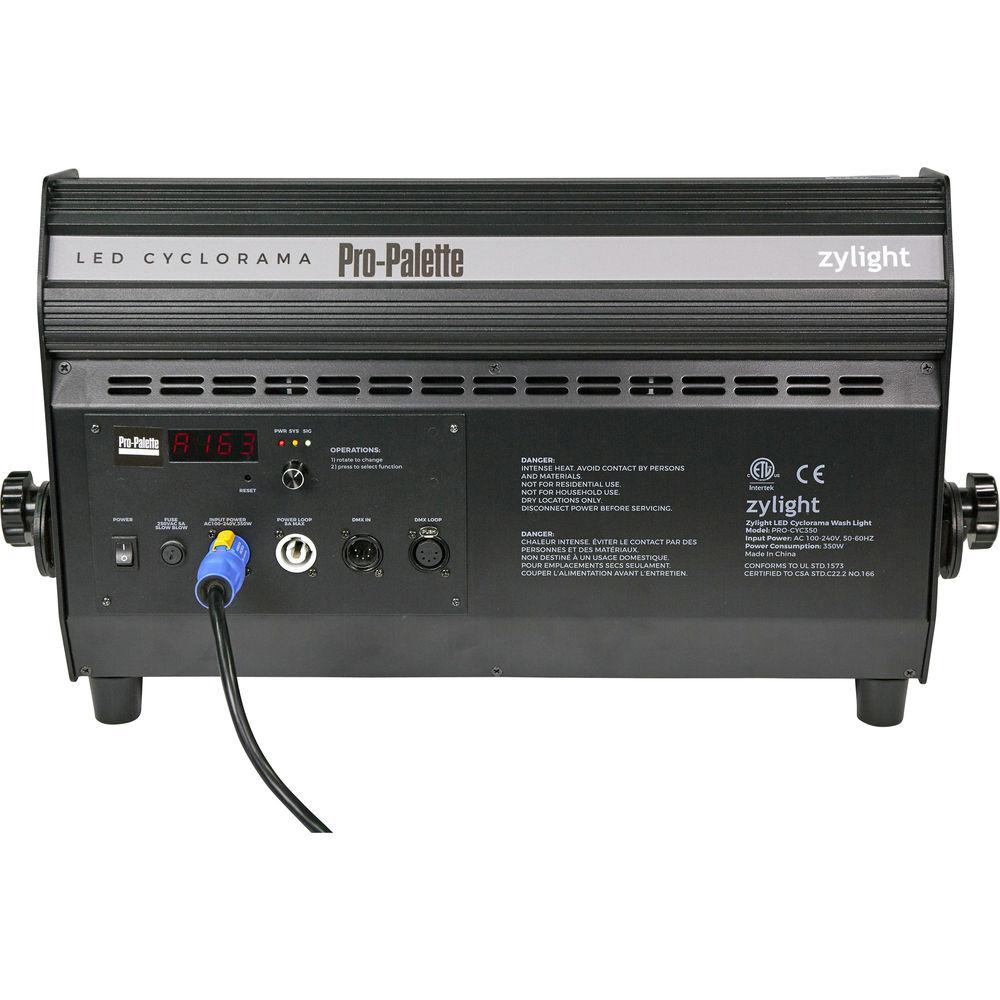

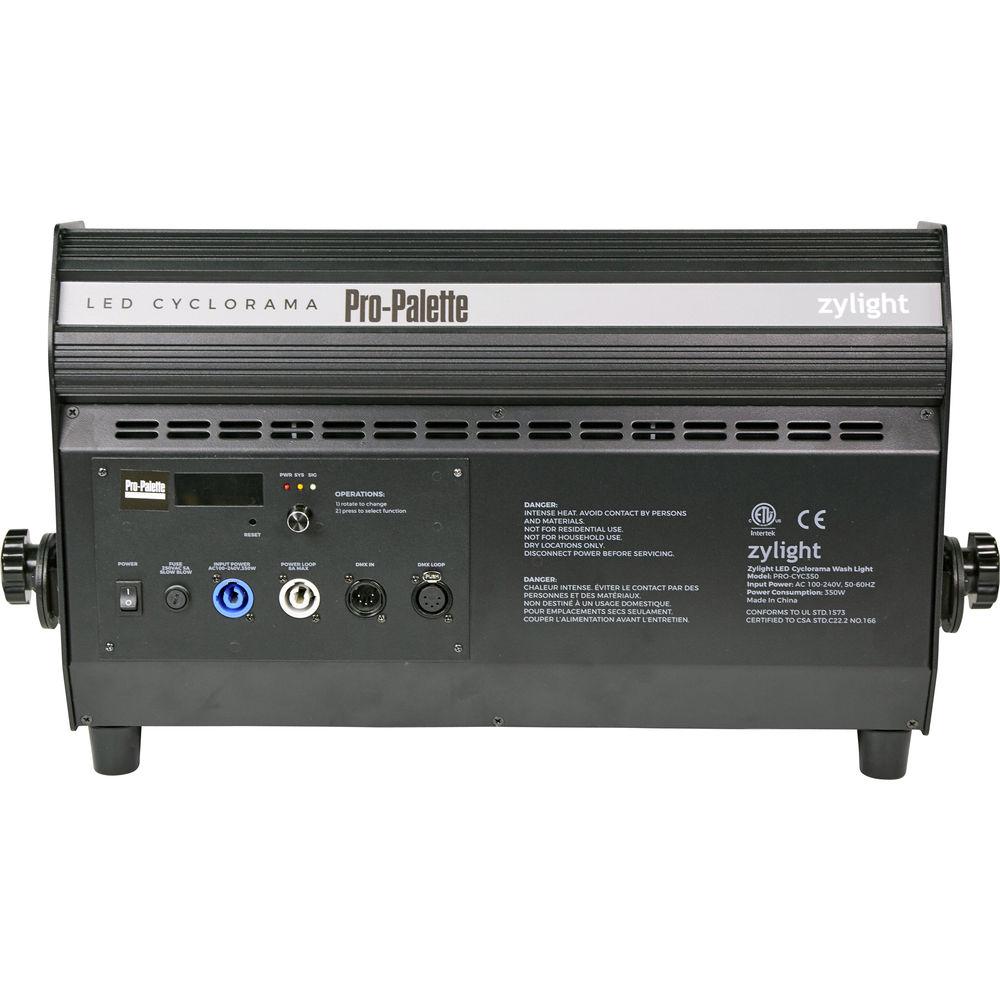

Product description Designed for television studios and theaters, the Zylight Pro-Palette 350W Asymmetric Color LED Cyclorama Light is a powerful yet energy-efficient fixture that produces a soft, even field of asymmetrical light. The fixture can change colors smoothly through DMX controls in a choice of RGBW (for a backdrop of multicolor mixes), or pure white light for a clean chroma key wash. The intuitive onboard control panel allows for the creation of millions of colors without gels or filters. Up to four Pro-Palette fixtures can be daisy-chained side by side to provide greater saturation of light. The Pro-Palette Color LED Cyclorama Light ships with a power cord. -
- RGBW (red, green, blue, white) LEDs
- Maximum output of 350W
- Smooth dimming: 0 to 100%, flicker-free
- Dual auto-cooling fans
- 100 to 240 VAC international power input
- DMX-512 and RDM-ready
- Lightweight aluminum and rigid steel housing
- Built for floor use or truss mount
- Daisy-chain up to four fixtures side-by-side for greater saturation

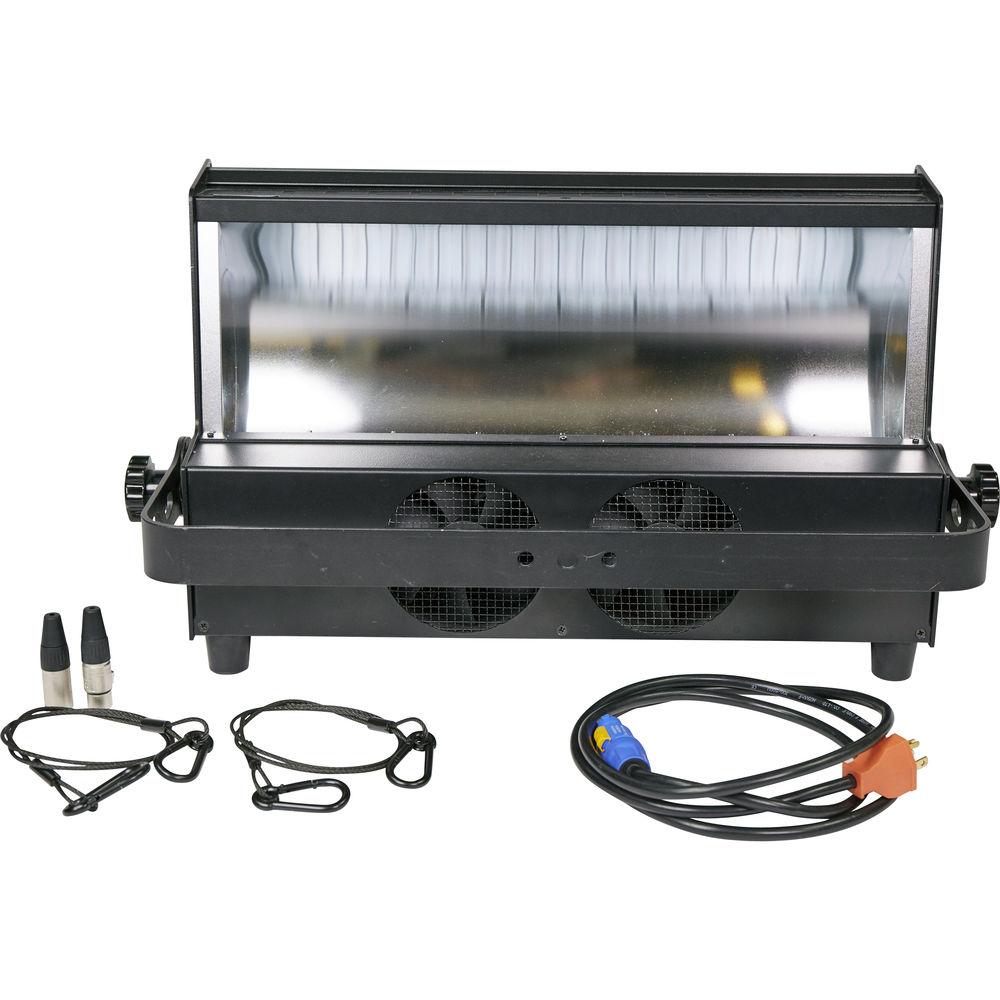

In the Box Zylight Pro-Palette 350W Asymmetric Color LED Cyclorama Light Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight Pro-Palette 350W Asymmetric Color LED Cyclorama Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZylight Pro-Palette Specs | Operational Details | Working Position: 0 to 180°, suitable for truss mount and floor use
Signal Input/Output: XLR 5-pin male/female connectors, USITT DMX-512A
DMX Channel: 4 (RGBW); 3 (HSI); 2 (effects mode); 2 (CCT mode)
Input DMX Signal Loss: Last scene hold
RDM: ANSI E1.20-2006 RDM
Dimming Range: 0 to 100%, 1:4096
Led Temperature: Built-in sensor, real-time monitoring
Cooling: Dual cooling fans, automatic control
LED Lifetime: ≥20,000 hours at 77°F / 25°C max | | Optics | Optics and Effect
Light Source: 128 high-power CREE LEDs (RGBW)
Beam Angle: 54° horizontal, 80° vertical, fixed angle
Beam Performance Ratio: 3.33:1
Distance to Cyclorama: 4.9 to 8.2' / 1.5 to 2.5 m
Color Control Modes: RGBW; HSI (hue, saturation, intensity); CCT (color temperature adjusting); Effect (built-in color macros)
Total Lumens: 4630 (HxW: 16 x 13' / 4.9 x 3.9 m)
Beam Angle: 73° | | Mechanical | Construction: Extruded aluminum alloy and steel plates
Paint/Finish: Epoxy-polyester powder paint

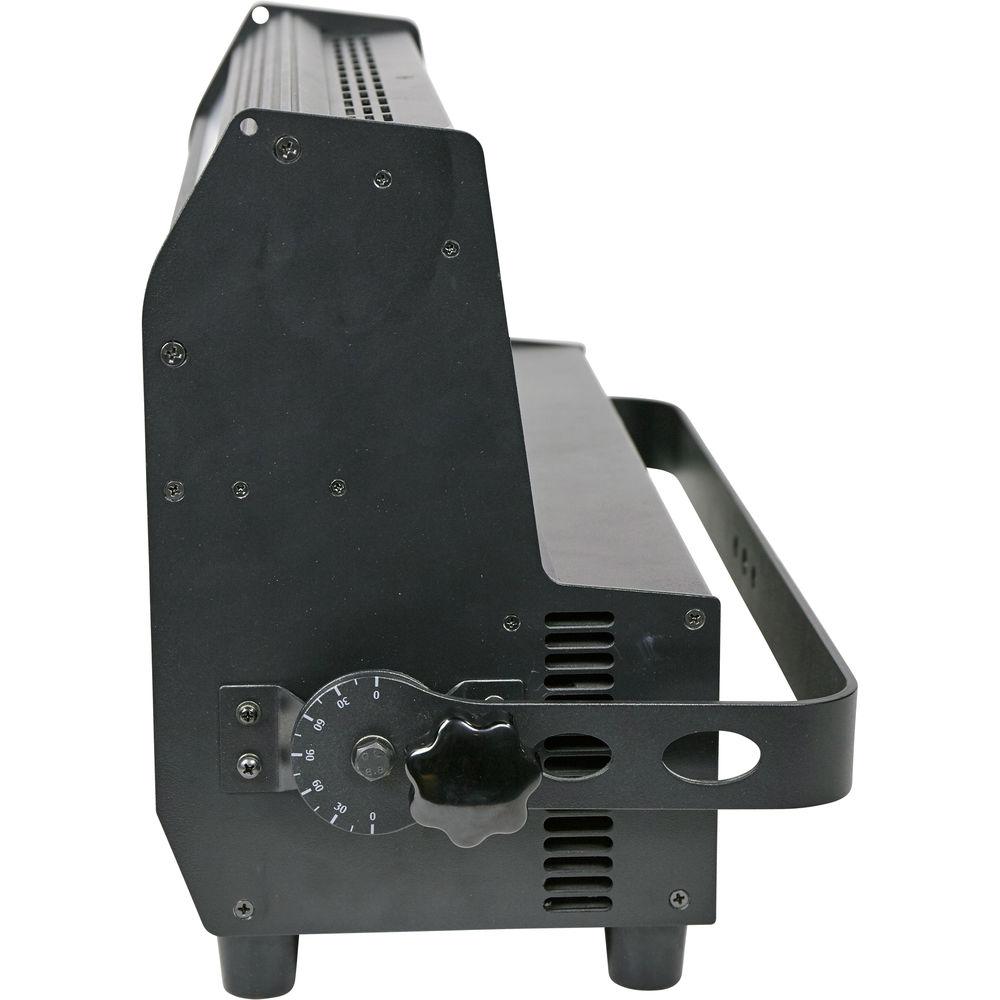

Mounting and Suspension: Steel stirrup with 0.5" / 12.0 mm center hole + DIN mounting
Floor Use: Four plastic feet at fixture bottom | | Noise Level | ≤35 dB at 3.3' / 1 m | | Installation | Indoor | | Operation Temperature | 32 to 104°F / 0 to 40°C | | Power | Power Input: 100 to 240 VAC single phase
Frequency/Current: 50/60 Hz – 1.5 A at 220 VAC
Power Consumption: 350 W at full power, 5 W in sleep mode

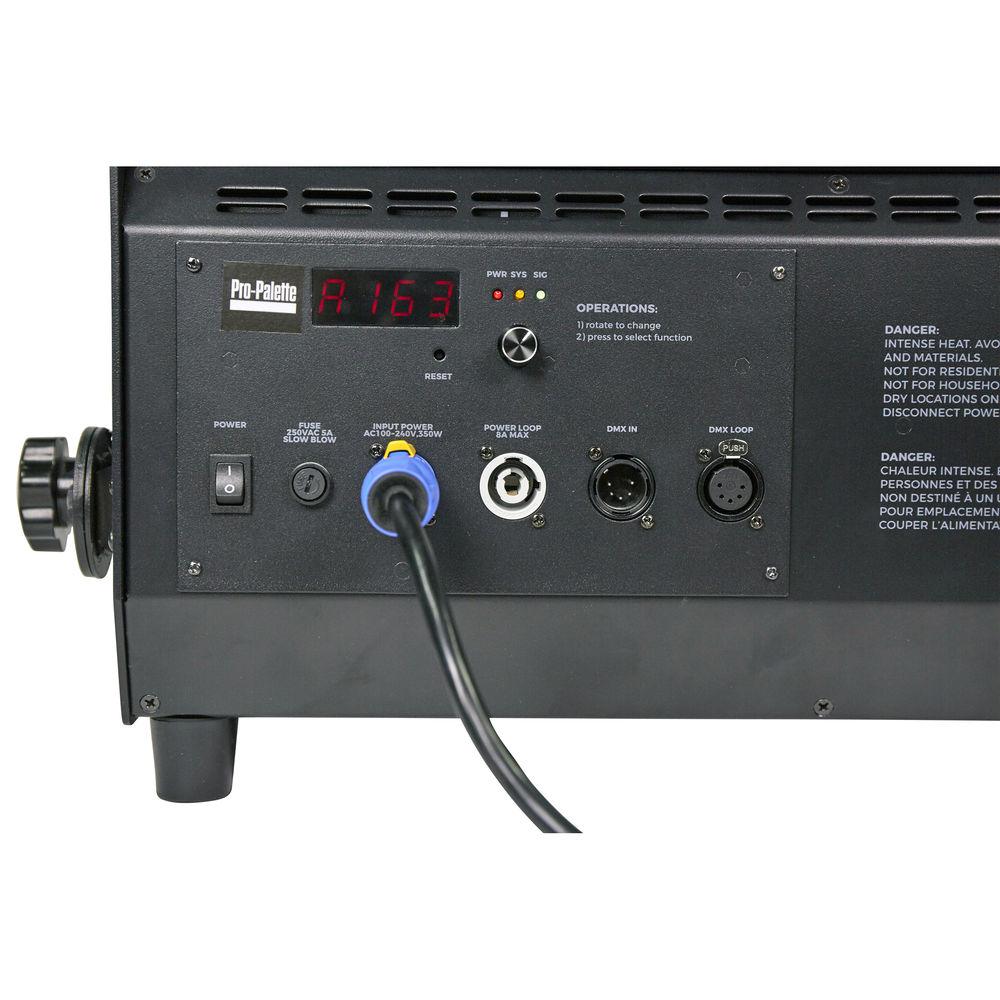

Power Input: powerCON, locking 3-pole connector, blue
Power Output: powerCON, locking 3-pole connector, white
Power Loss: Last scene hold
Cable: 6.6' / 2.0 m, 3 x 0.1" / 1.5 mm flexible cable
Standard Compliance: EN60598-2-17, CE marked | | Dimensions (W × H × D) | Without Yoke: 24.0 x 12.1 x 8.1" / 60.9 x 30.7 x 20.6 cm
With Yoke: 24.0 x 16.0 x 8.1" / 60.9 x 40.6 x 20.6 cm | | Weight | 28.0 lb / 12.7 kg |
