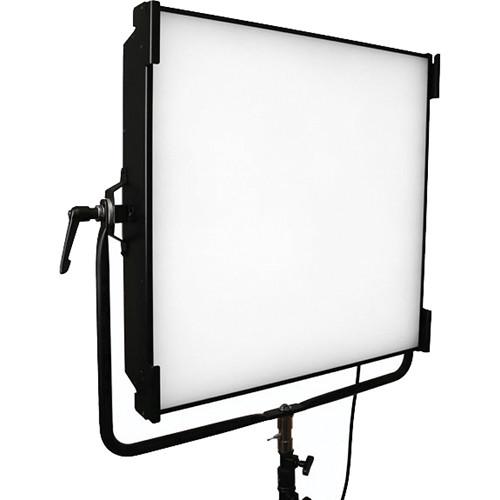

User Manual for Zylight Pro-Panel V2 2x2 Dual Color LED Panel Click to enlarge the picture
Contents of the user manual for the Zylight Pro-Panel V2 2x2 Dual Color
- Product category: LED Lights Zylight
- Brand: Zylight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zylight LED Lights
|
User manual for the Zylight Pro-Panel V2 2x2 Dual Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zylight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zylight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zylight product will considerably shorten its lifespan!
|
Product description The Pro-Panel V2 2x2 Dual Color LED Panel from Ushio is a 26.5 x 25.4 x 4.6" variable color temperature soft light for the cinematography, video broadcast, and professional photography market. The diffused softness of the Pro-Panel eliminates the harsh glare and multiple shadow effects typically associated with budget LED panel lights. The Pro-Panel V2 soft light offers all of the signature benefits of LED lighting such as cool operation, energy savings, and long life plus other outstanding features like flicker-free operation, 0-100% dimming and a wide variable color temperature range of 2700 to 6500K. - Improvements
-
- Up to 27% higher in light output
- 38% lighter in weight
- Built-in dimming and color temperature controls with on board digital display
- 5% Lower power consumption
- New grip handles for easier handling
- Upgraded yoke design for comfortable grip
- Center mount design is added
- 24 VDC battery input 3-Pin XLR
- Attributes
-
- Very wide 2700K tungsten to 6500K daylight variable range
- Continuous DMX512 dimming control from 0-100%
- 5-pin XLR In and Out
- Flicker-free DC driving system suitable for high speed frame rates
- Up to 95 CRI
- Adjustable yoke capable of hanging in studio or on portable stand mount. (Accepts 1/2" mounting hardware)
- Center mount option
- Onboard color and dimming control knobs plus two custom preset buttons (tungsten and daylight)
- Low power consumption
- Universal 90-240 VAC input range
- 110° Beam angle
- Certifications: UL, FCC, and CE
- 24 VDC battery input, 3-pin XLR
In the Box Zylight Pro-Panel V2 2x2 Dual Color LED Panel Aluminum Honeycomb Louver Gel Frame AC Remote Power Cable, 3- Prong (US/N.America) DMX Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight Pro-Panel V2 2x2 Dual Color LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZylight Pro-Panel V2 2x2 Specs | Light Source | LED | | Color Range | 2700 to 6500 K | | Rating | 100 W | | CRI | Up to 95 | | Beam Angle | 110° | | Control | DMX 512
Preset CCT button
Dial: dimming, CCT, address
Optional wireless remote control | | Dimming | 0-100% Local or DMX via 5-pin XLR | | Photometrics | Lumens at 3.2' (1.0 m), CRI: 90-94
6100 lumens @ 2700 K / 7000 lumens @ 6500 K
lux/fc @ Full power
2200 lux @ 2700 K / 2500 lux @ 6500 K
204 fc @ 2700 K / 232 fc @ 6500 K | | Mount | Adjustable yoke with center mount option | | Operating Voltage | 90 - 240 VAC, 50/60 Hz
20 to 30 VDC via 3-pin XLR battery input | | Power Consumption | 100 W | | Power Factor | Over Pf 0.9 (dimming max) | | Current | 0.5 to 1 Amp (AC) | | Certifications | UL, FCC, and CE | | Operating Conditions | Ambient temperature: -4 to 113°F (-20 to 45ºC)
Exterior surface temperature: under 158°F (70°C) | | Dimensions | 26.5 x 25.4 x 4.6" (673 x 646 x 117 mm) | | Weight | 18 lb (8.16 kg) |
