User Manual for Zylight Pro-Zoom Daylight LED Ellipsoidal Spotlight Click to enlarge the picture
Contents of the user manual for the Zylight Pro-Zoom Daylight LED Ellipsoidal Spotlight
- Product category: LED Lights Zylight
- Brand: Zylight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zylight LED Lights
 |
User manual for the Zylight Pro-Zoom Daylight LED Ellipsoidal Spotlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zylight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zylight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zylight product will considerably shorten its lifespan!
|

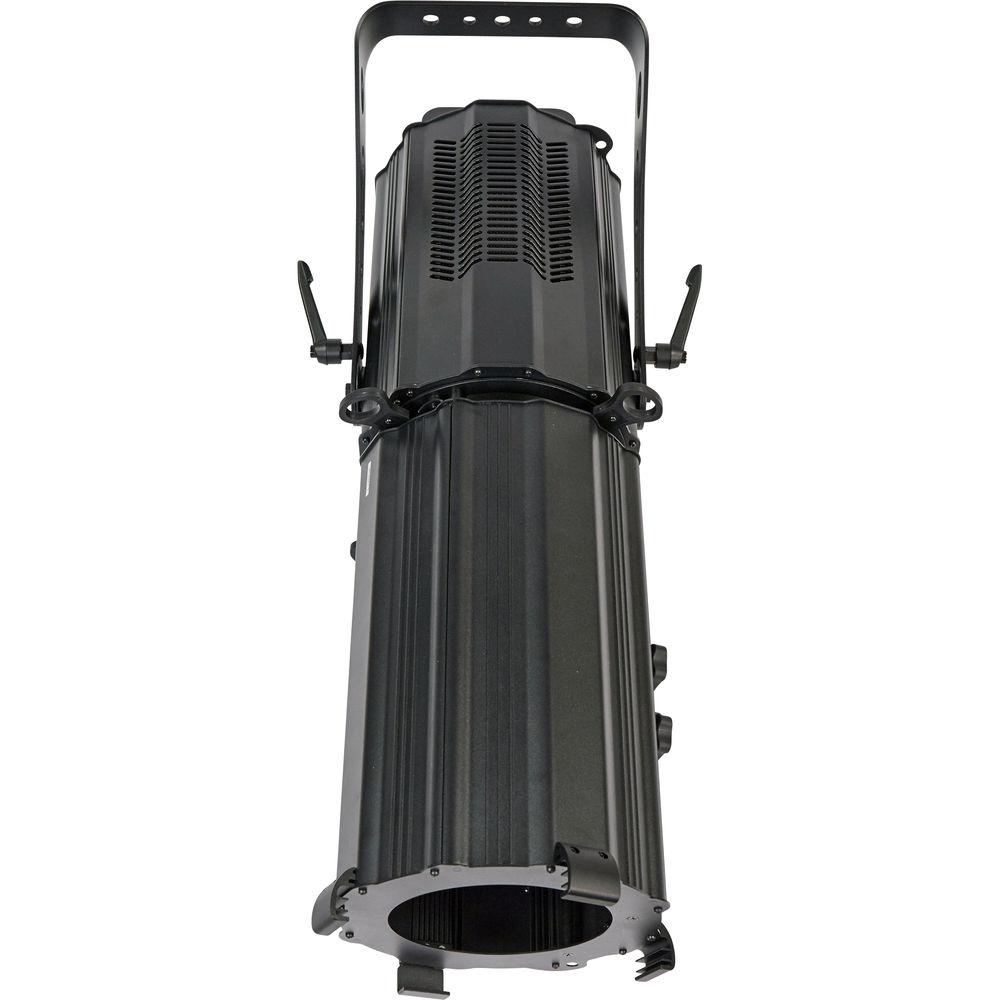

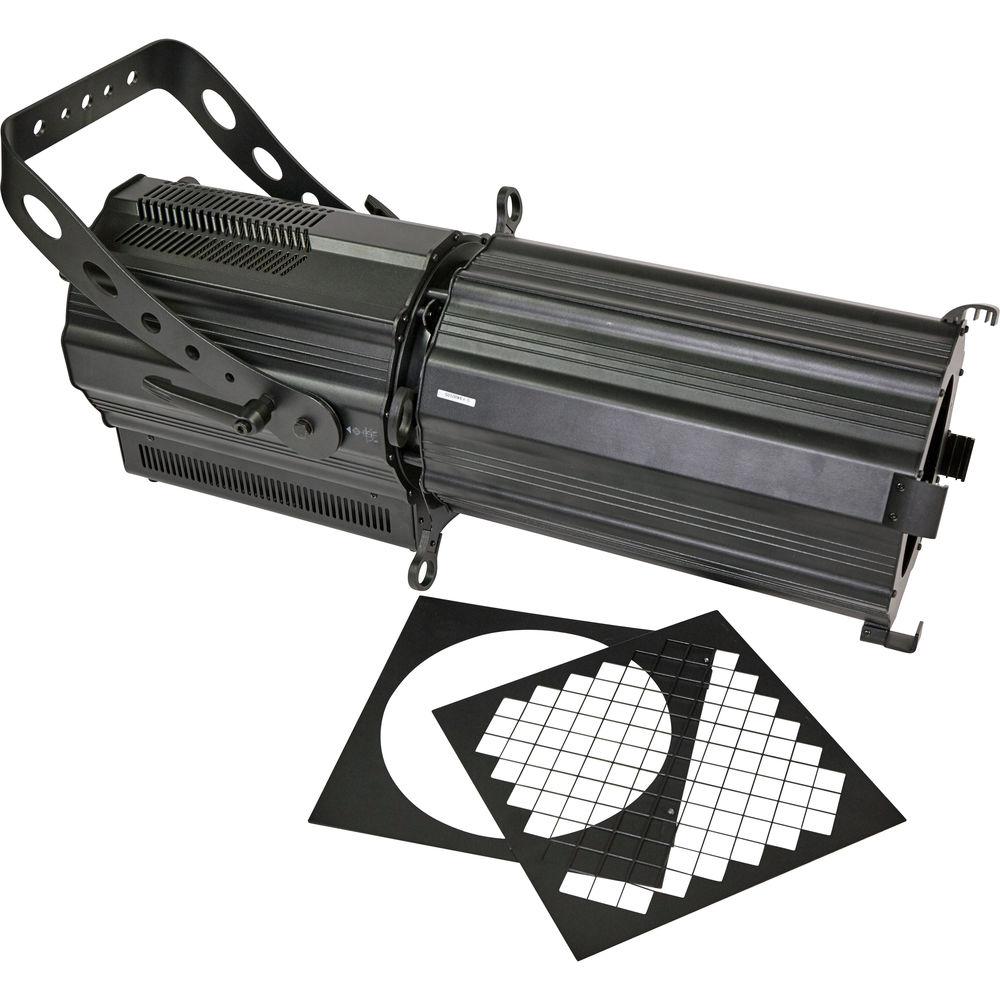

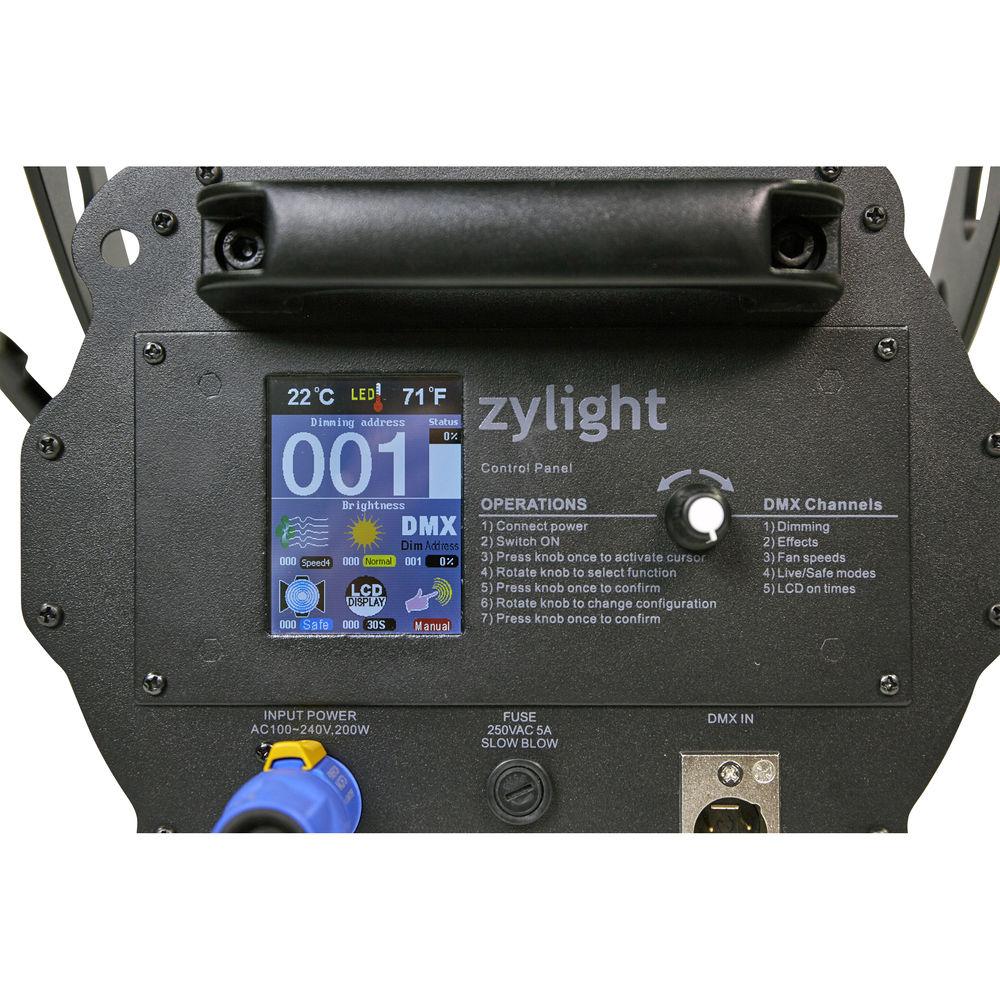

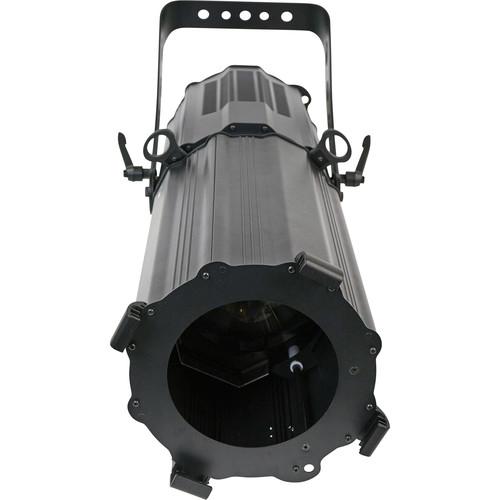

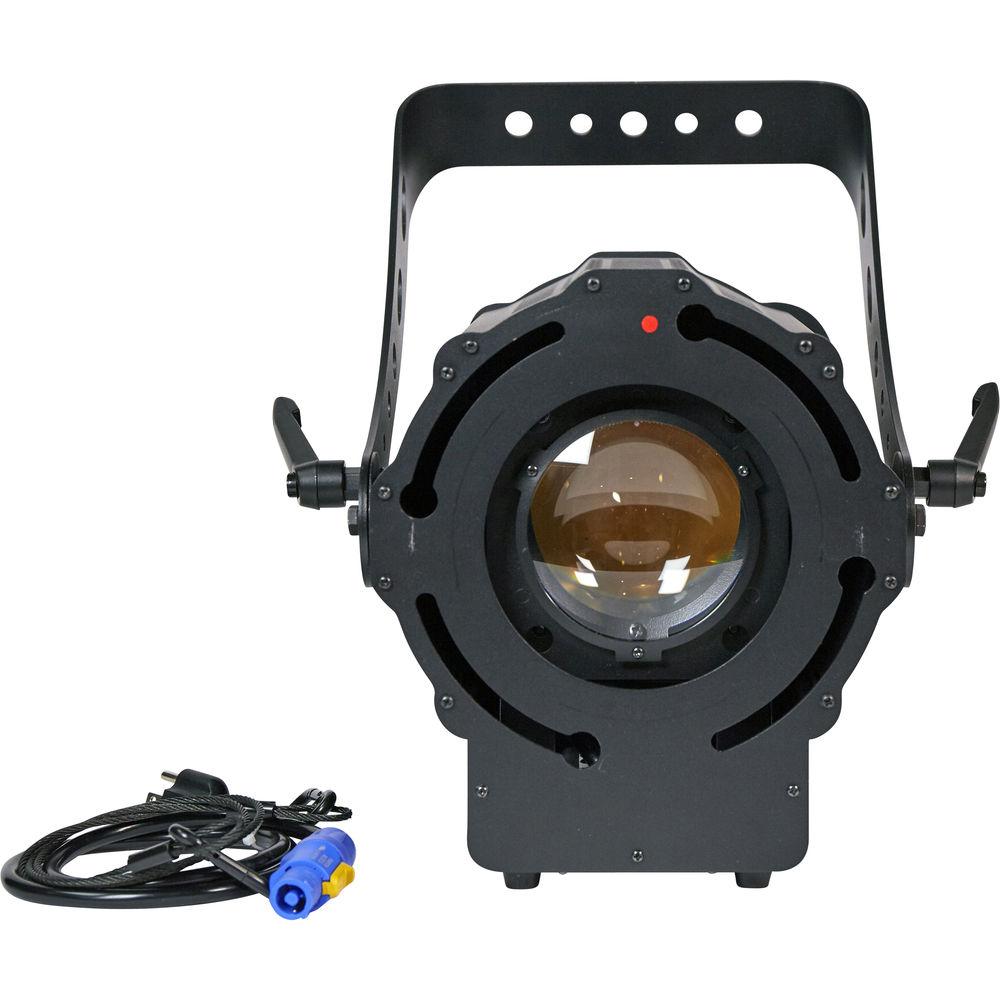

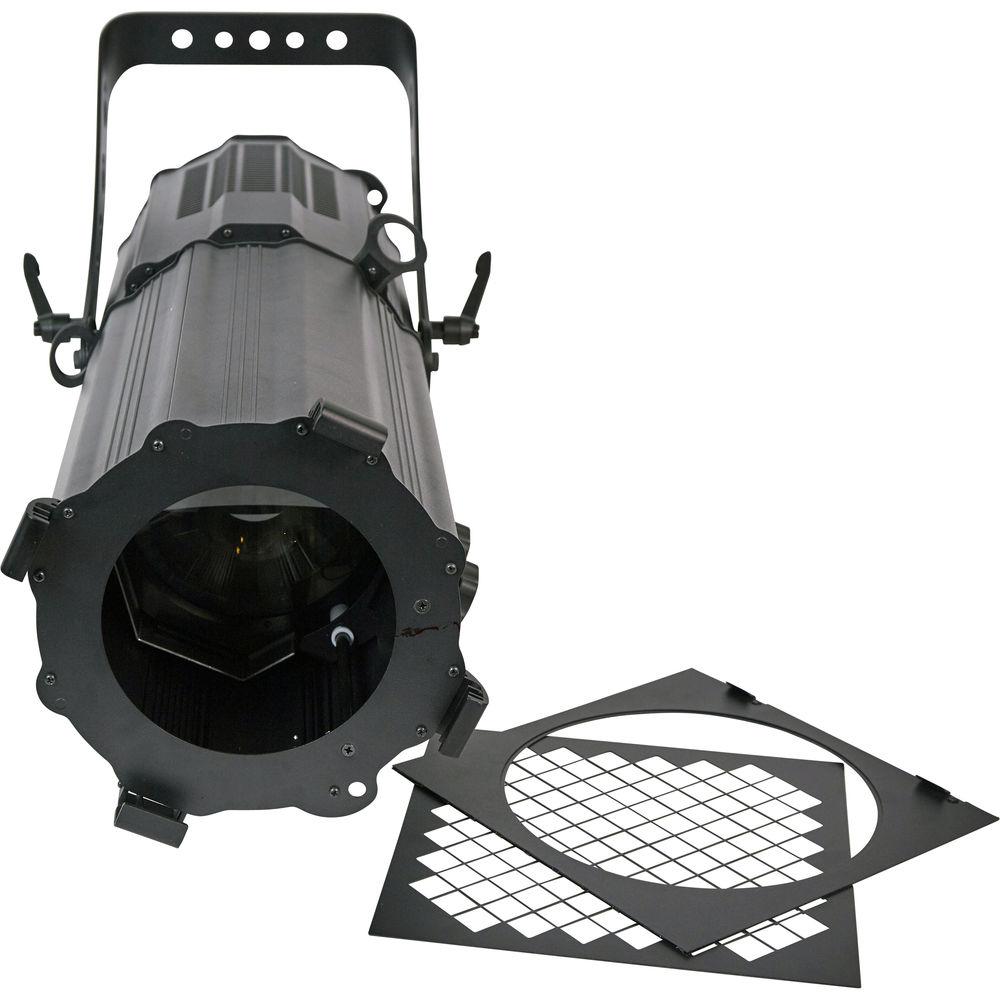

Product description Designed to light theaters, convention halls and other public venues, the aluminum-constructed 8-36 Degree Pro-Zoom Daylight LED Ellipsoidal Spotlight from Zylight has a color temperature of 5600K with a CRI of 92, an indicator of accurate rendering of color. The light runs economically, consuming just 227W of power, while its LED array outputs the equivalent of a 575W tungsten HPL lamp. Four-speed fan cooling allows for long periods of use and extends LED life to approximately 50,000 hours. The Pro-Zoom is dimmable from 0 to 100% locally on the fixture or remotely from a console via 5-channel DMX, an essential feature for theatrical lighting designs. Other features include a 50-degree rotating lens tube and a heat-protected gobo slot. The Pro-Zoom Daylight LED Ellipsoidal Spotlight can be used worldwide thanks to its 100 to 260 VAC power supply. In the Box Zylight Pro-Zoom Daylight LED Ellipsoidal Spotlight (8-36 Degrees) Color Frame Safe Guard Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zylight Pro-Zoom Daylight LED Ellipsoidal Spotlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZylight Pro-Zoom Specs | | | Beam Angle | 18 to 36° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 92 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | LCD | | Housing Material | Aluminum | | Photometrics | 18° at 5600K:
42.5 fc / 458 lux at 45.93' / 14 m
36° at 5600K:
13 fc / 140 lux at 42.65' / 13 m | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | Overall: 9.0 x 18.5 x 29.5" / 22.9 x 47.0 x 74.9 cm | | Fixture Weight | 33.29 lb / 15.1 kg (Including Yoke) | | | | Battery Plate | None | | Power Input Connector | powerCON | | Power Output Connector | powerCON | | | | Fixture Mount | None | | Accessory Mount | None | | | | Yoke Type | Hanging | | Tilt | 90
