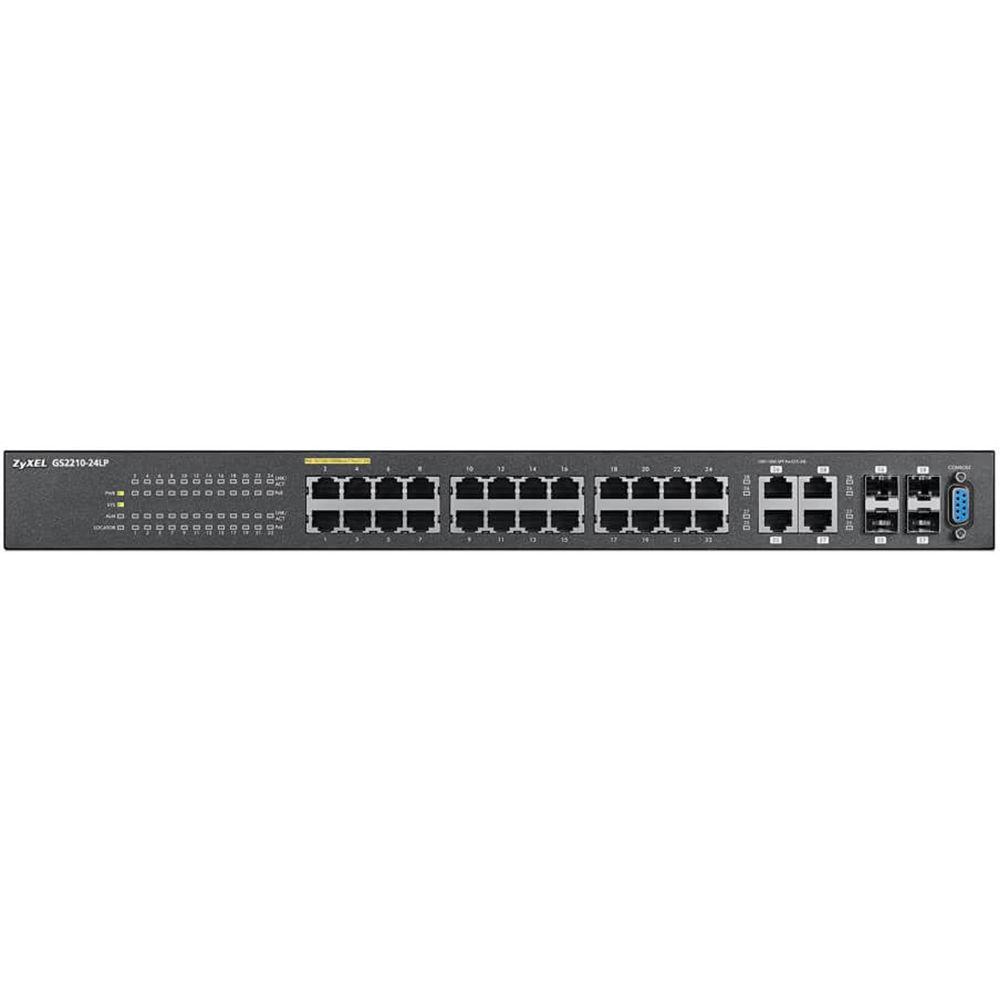

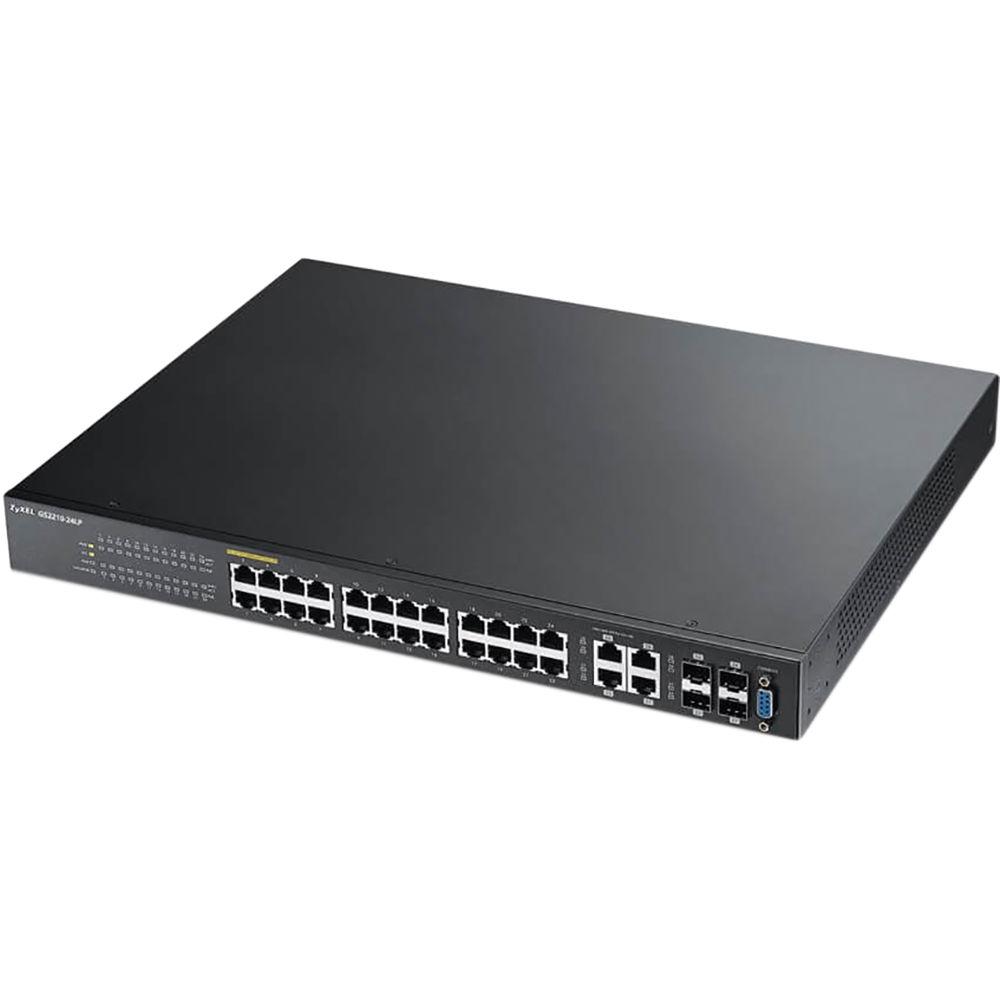

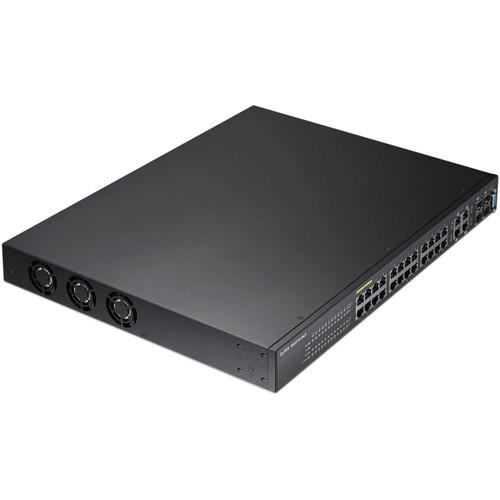

User Manual for ZyXEL 24-port GbE L2 Lite-PoE Switch with 4 GbE Combo Ports Click to enlarge the picture
Contents of the user manual for the ZyXEL 24-port GbE L2 Lite-PoE Switch
- Product category: Network Switches, Bridges & Hubs ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Switches, Bridges & Hubs
 |
User manual for the ZyXEL 24-port GbE L2 Lite-PoE Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|

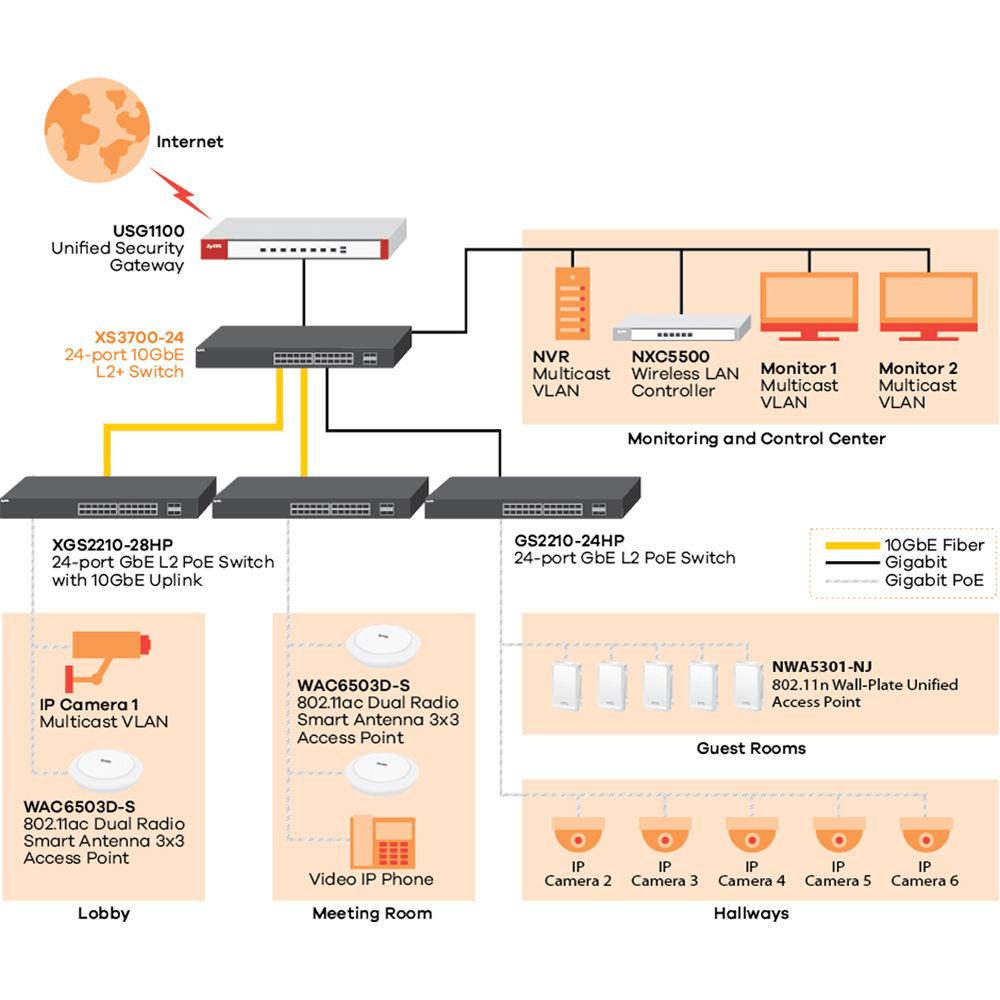

Product description Provided by third party: Zyxel GS2210 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
- Key Features
-
- Zyxel One Network experience
- High-powered Power over Ethernet
- High level network and access security
- Zyxel One Network experience
- Zyxel One Network is designed to simplify the configuration, management, and troubleshooting, allowing customers to focus on the business priorities. Zyxel One Network presents an easy-to-use tool, Zyxel One Network Utility, to realize speed network setup. Zyxel Smart Connect allows Zyxel networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling.
- High-powered Power over Ethernet

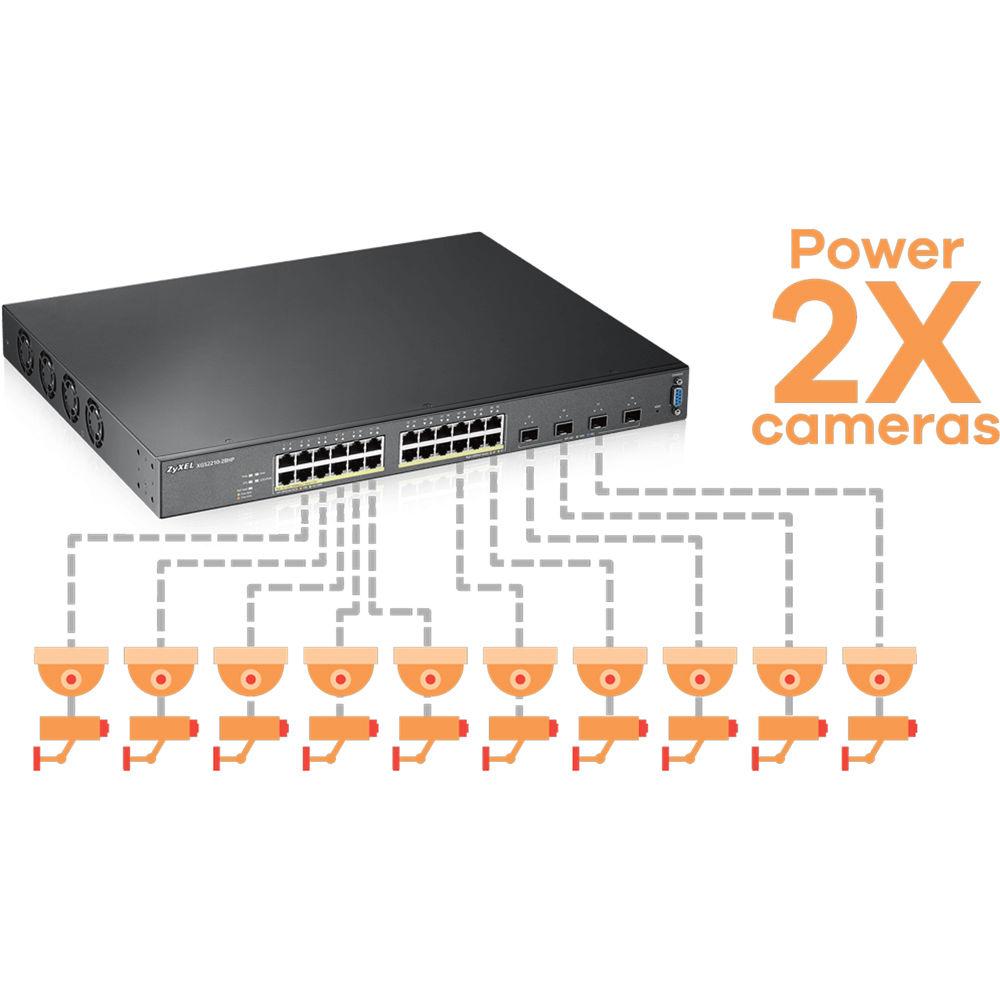

- The Zyxel GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.
- High level network and access security
- Zyxel GS2210 Series offers enhanced control and isolation for improved convergence of video, voice and data. Such advanced defense mechanisms as IP source guard, DHCP snooping, and ARP inspection can detect and block intentional network attacks. Combining multiple L2, L3 and L4 filtering mechanisms with such education - and hospitality friendly features as MAC freeze, port isolation and guest VLAN, the Zyxel GS2210 Series offers a high level of security, flexibility and control for diverse access layer deployments.
In the Box ZyXEL 24-port GbE L2 Lite-PoE Switch with 4 GbE Combo Ports (180W) Zyxel GS2210-24LP Rack mounting kit Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL 24-port GbE L2 Lite-PoE Switch with 4 GbE Combo Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL GS2210-24LP Specs | | | Device Type | Switch - 24 ports - managed - stackable | | Enclosure Type | Desktop, rack-mountable 1U | | Subtype | Gigabit Ethernet | | Ports | 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP | | Power Over Ethernet (PoE) | PoE+ | | PoE Budget | 180 W | | Performance | Switching capacity: 56 Gbps
Forwarding performance: 41.67 Mpps | | MAC Address Table Size | 16K entries | | Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3 | | Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI | | Encryption Algorithm | SSL | | Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) | | Features | Flow control, layer 2 switching, ARP support, VLAN support, IGMP snooping, Syslog support, traffic shaping, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, NTP server, IP-MAC binding, DHCP client, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), dual firmware images, Strict Priority Queuing (SPQ), loop prevention, port isolation, Class of Service (CoS), tagged VLAN, Generic VLAN Registration Protocol (GVRP), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, ErrDisable Recovery, ZyXEL Discovery Protocol (ZDP), ZyXEL One Network (ZON), IGMP filtering, IGMP throttling | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az | | Status Indicators | Power, system, link/activity | | | | Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W
4 x SFP
1 x serial (RS-232) DB-9

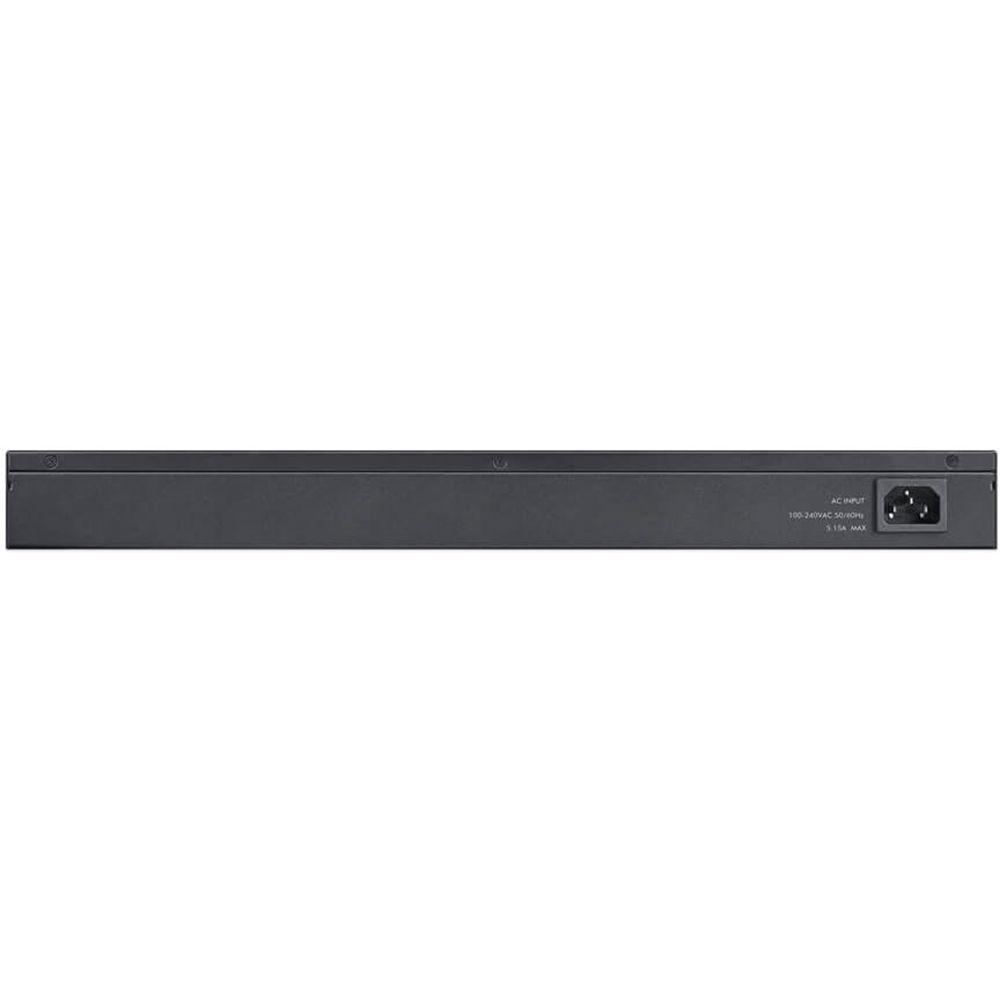

4 x 1000Base-T RJ-45 | | | | Power Device | Internal power supply | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 253.4 Watt | | | | Rack Mounting Kit | Included | | MTBF | 616,247.3 hours | | Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC | | | | Width | 17.3 in | | Depth | 13 in | | Height | 1.8 in | | Weight | 9.7 lbs | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | 32
