User Manual for ZyXEL 32-Port AC GbE SFP Layer 3 Managed Ethernet Switch with Four 10 GbE SFP and Four GbE SFP RJ45 Combo Ports

Click to enlarge the picture
ZyXEL 32-Port AC GbE SFP Layer 3 Managed Ethernet Switch with Four 10 GbE SFP and Four GbE SFP RJ45 Combo Ports Contents of the user manual for the ZyXEL 32-Port AC GbE SFP Layer
  • Product category: Network Switches, Bridges & Hubs ZyXEL
  • Brand: ZyXEL
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ZyXEL Network Switches, Bridges & Hubs

ZyXEL 32-Port AC GbE SFP Layer 3 Managed Ethernet Switch with Four 10 GbE SFP and Four GbE SFP RJ45 Combo Ports ZyXEL 32-Port AC GbE SFP Layer 3 Managed Ethernet Switch with Four 10 GbE SFP and Four GbE SFP RJ45 Combo Ports ZyXEL 32-Port AC GbE SFP Layer 3 Managed Ethernet Switch with Four 10 GbE SFP and Four GbE SFP RJ45 Combo Ports ZyXEL 32-Port AC GbE SFP Layer 3 Managed Ethernet Switch with Four 10 GbE SFP and Four GbE SFP RJ45 Combo Ports ZyXEL 32-Port AC GbE SFP Layer 3 Managed Ethernet Switch with Four 10 GbE SFP and Four GbE SFP RJ45 Combo Ports ZyXEL 32-Port AC GbE SFP Layer 3 Managed Ethernet Switch with Four 10 GbE SFP and Four GbE SFP RJ45 Combo Ports ZyXEL 32-Port AC GbE SFP Layer 3 Managed Ethernet Switch with Four 10 GbE SFP and Four GbE SFP RJ45 Combo Ports
User manual for the ZyXEL 32-Port AC GbE SFP Layer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ZyXEL product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!



Product description

Provided by third party: Bandwidth-intensive applications such as multimedia streaming, VoIP and video surveillance are used daily in business networks for more efficient workflows. However, the networks could be overloaded and that causes reduced business productivity. Deploying 10-Gigabit Ethernet ports at the aggregation layer to deal with bandwidth-intensive networks becomes the top choice of users such as hospitality venues and education institutions. Zyxel's brand Layer-3 stackable XGS4600 Switch Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements. The front panel with carbon fiber look brings a totally fresh look than traditional switches. Under the elegant hood, the XGS4600 Series not only features advanced L2 switching functionality, but also L3 routing capabilities for communications between networks.
    Key Features
    • High availability
    • Advanced L3 features
    • Flexible management and future-proof networks
    High availability
  • To implement fault-tolerant networks, the Zyxel XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. Four units or 112 Gigabit ports can be configured as a stack using optional directattach cables or transceivers to provide high bandwidth on the XGS4600 Series for more flexible management. The stacking topology under the ring architecture provides high redundancy in case one of the stacking links fail. The system can quickly recover through another stacking connection. The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
    Advanced L3 features

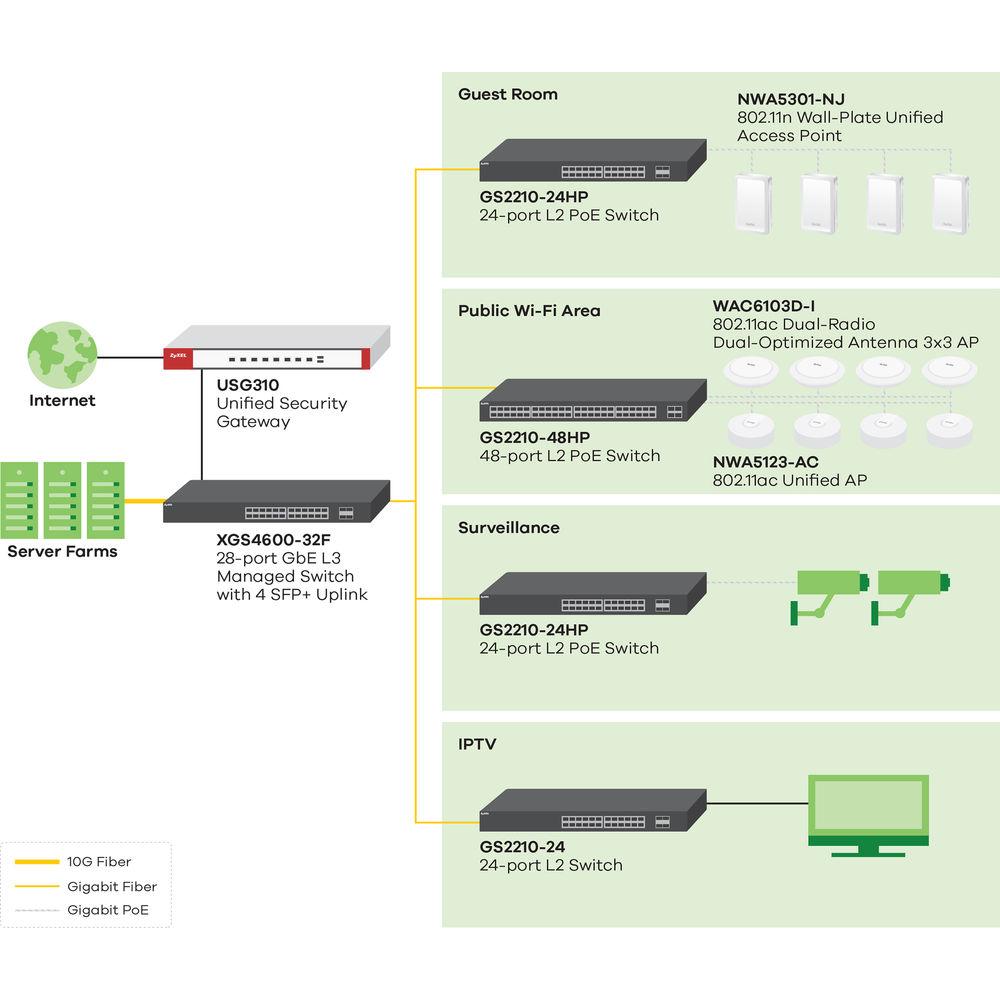

  • Hierarchical business networks become more complex because of the increased communication among subnets. The XGS4600 Series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks. In addition, the XGS4600 Series comes with full Layer-2 switching and Layer-3 routing capabilities if the system is working under the stacking mode. The stackable structure greatly enlarges network coverage as well as network resiliency that most enterprise networks require.
    Flexible management and future-proof networks
  • The XGS4600 Series can be managed via CLI which is consistent with Zyxel managed switches, while the intuitive Web-based GUI helps skilled network administrators to quickly become more productive. As the IP address scheme evolves to accommodate a growing number of network devices, the Zyxel XGS4600 Series assures businesses a smooth migration path from IPv4-based networks to a full IPv6 infrastructure for protection to the investments in future network upgrades.
In the Box ZyXEL 32-Port AC GbE SFP Layer 3+ Managed Ethernet Switch with Four 10 GbE SFP+ and Four GbE SFP/RJ45 Combo Ports

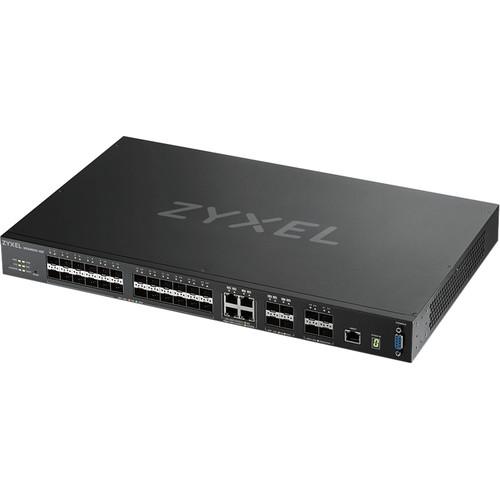

  • Zyxel XGS4600-32F
  • Rack mounting kit
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ZyXEL 32-Port AC GbE SFP Layer 3 Managed Ethernet Switch with Four 10 GbE SFP and Four GbE SFP RJ45 Combo Ports in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ZyXEL XGS4600-32F Specs

    Device Type Switch - 28 ports - L3 - managed - stackable
    Enclosure Type Rack-mountable 1U
    Subtype Gigabit Ethernet

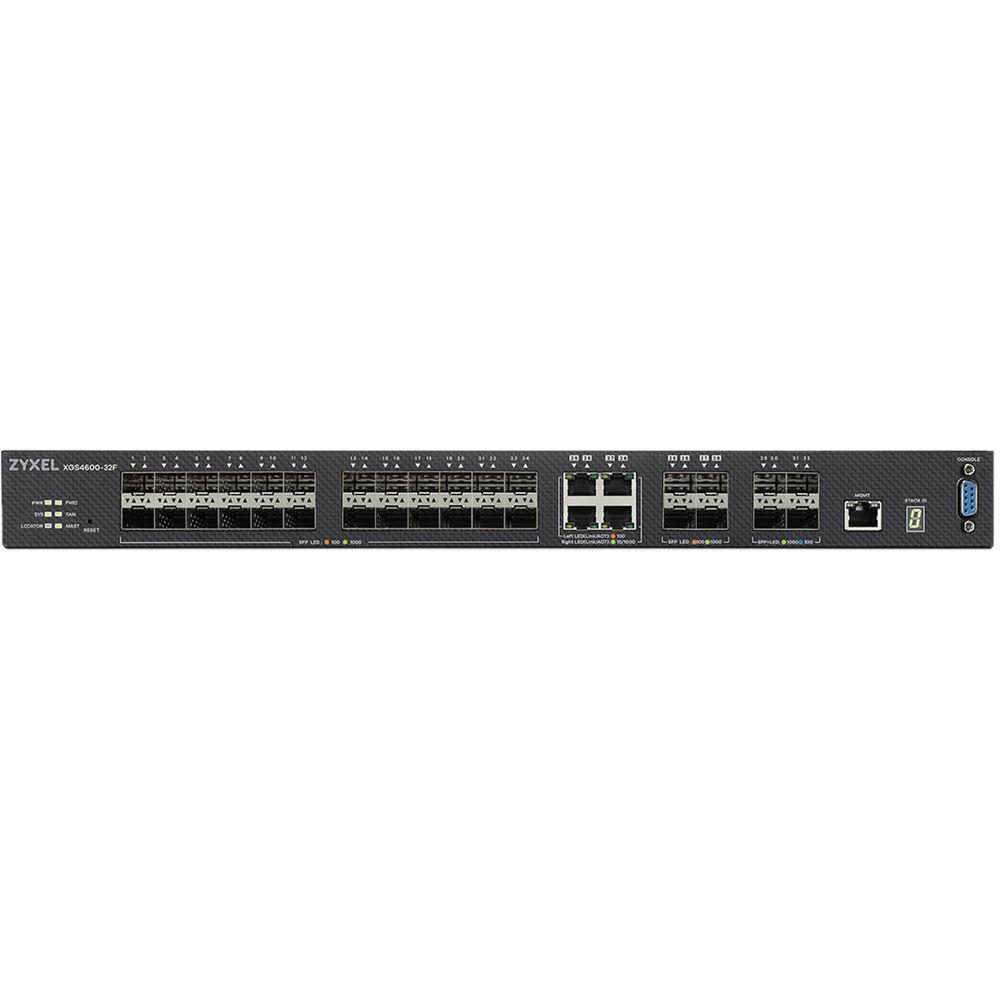

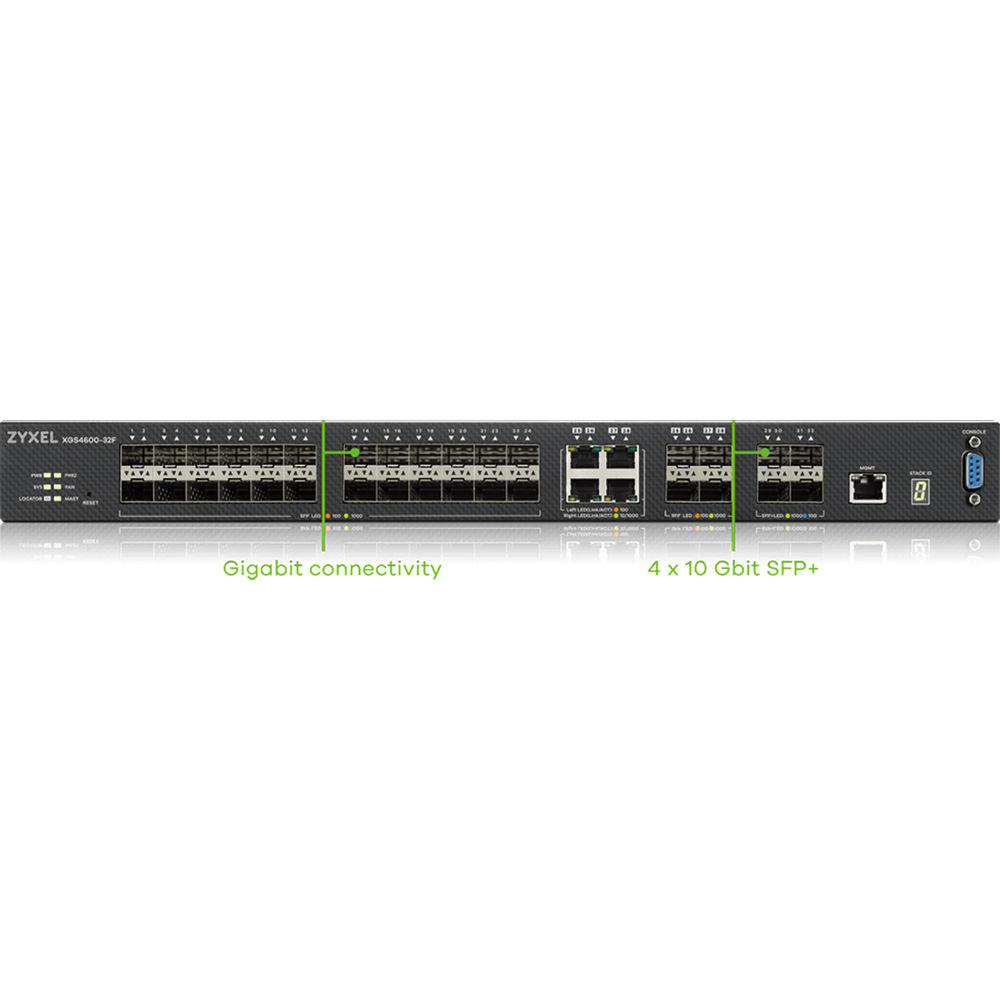

    Ports 24 x Gigabit SFP + 4 x combo Gigabit Ethernet/Gigabit SFP + 4 x 10 Gigabit SFP+
    Performance Switching capacity: 136 Gbps
    Forwarding performance: 101.1 Mpps
    Capacity IPv4 forwarding table entries: 8000
    IPv6 forwarding table entries: 4000
    Routing tables: 12000
    IP router interfaces: 256
    MAC Address Table Size 32K entries
    Routing Protocol OSPF, RIP, IGMP, DVMRP, VRRP, static IPv4 routing, static IPv6 routing, ECMP
    Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2
    Encryption Algorithm SSL, TLS
    Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
    Features Flow control, port mirroring, MAC address filtering, IPv6 support, IP address filtering, ZyXEL iStacking Technology, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Equal-Cost Multipath (ECMP), IPv4 support, DHCP relay, Class of Service (CoS), 4MB packet buffer, GARP VLAN Registration Protocol (GVRP), ErrDisable Recovery, ZyXEL One Network (ZON), CPU protection, IP source guard, ARP inspection, Network Timing Protocol (NTP), Loop Guard, Smart Connect, Guest VLAN
    Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3az
    RAM 1 GB
    Flash Memory 64 MB
    Interfaces 24 x 1000Base-X SFP
    4 x 1000Base-T RJ-45/SFP
    4 x 10Gbit LAN SFP+
    1 x serial (RS-232C) management

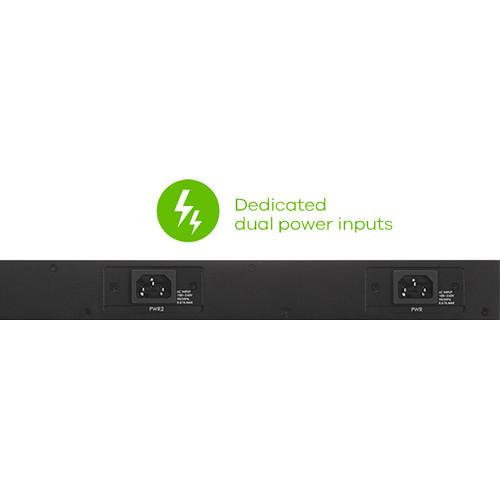

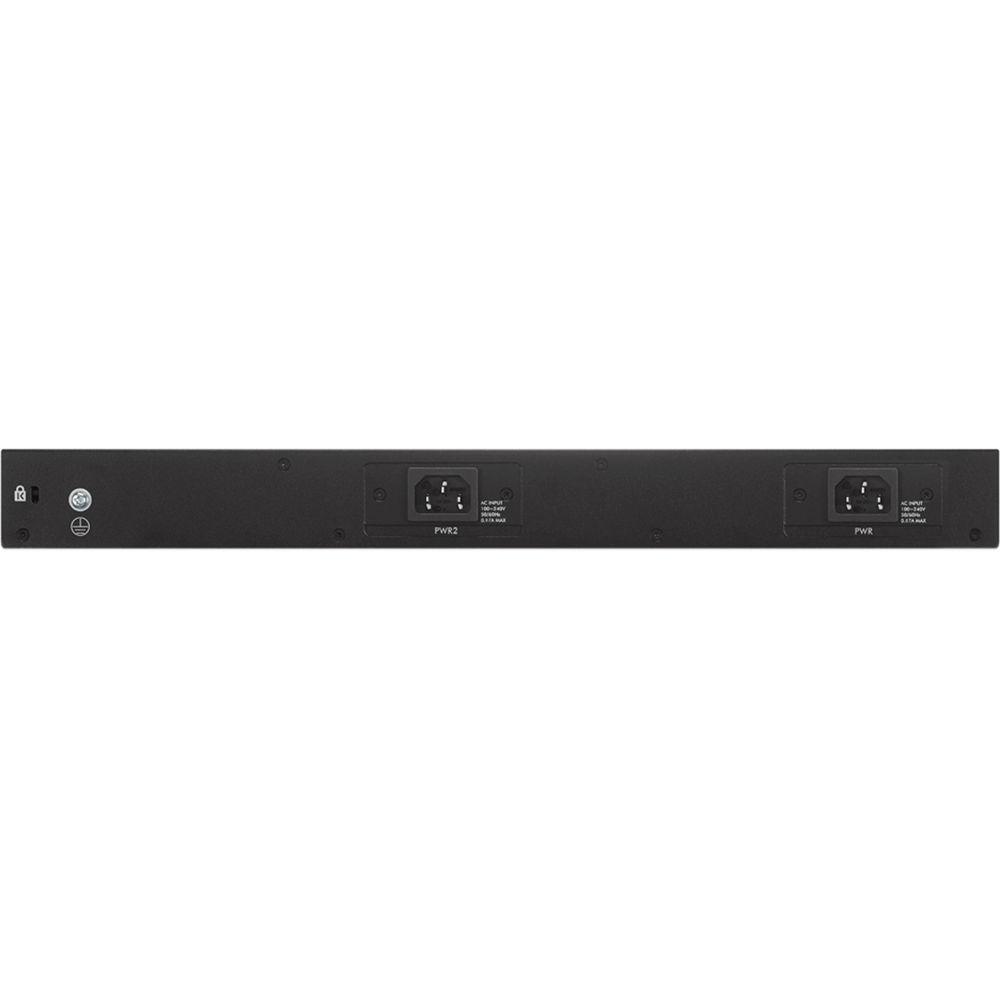

    Power Device Internal power supply
    Voltage Required AC 120/230 V (50/60 Hz)
    Power Consumption Operational 60.1 Watt
    Rack Mounting Kit Included
    MTBF 794,270.06 hours
    Compliant Standards IEC 60950-1, EN 60950-1, FCC Part 15 A, CE/EMC, ANSI/UL 60950-1
    Width 17.4 in
    Depth 10.6 in
    Height 1.7 in
    Weight 9.28 lbs
    Service & Support Limited warranty - lifetime
    Min Operating Temperature 32
