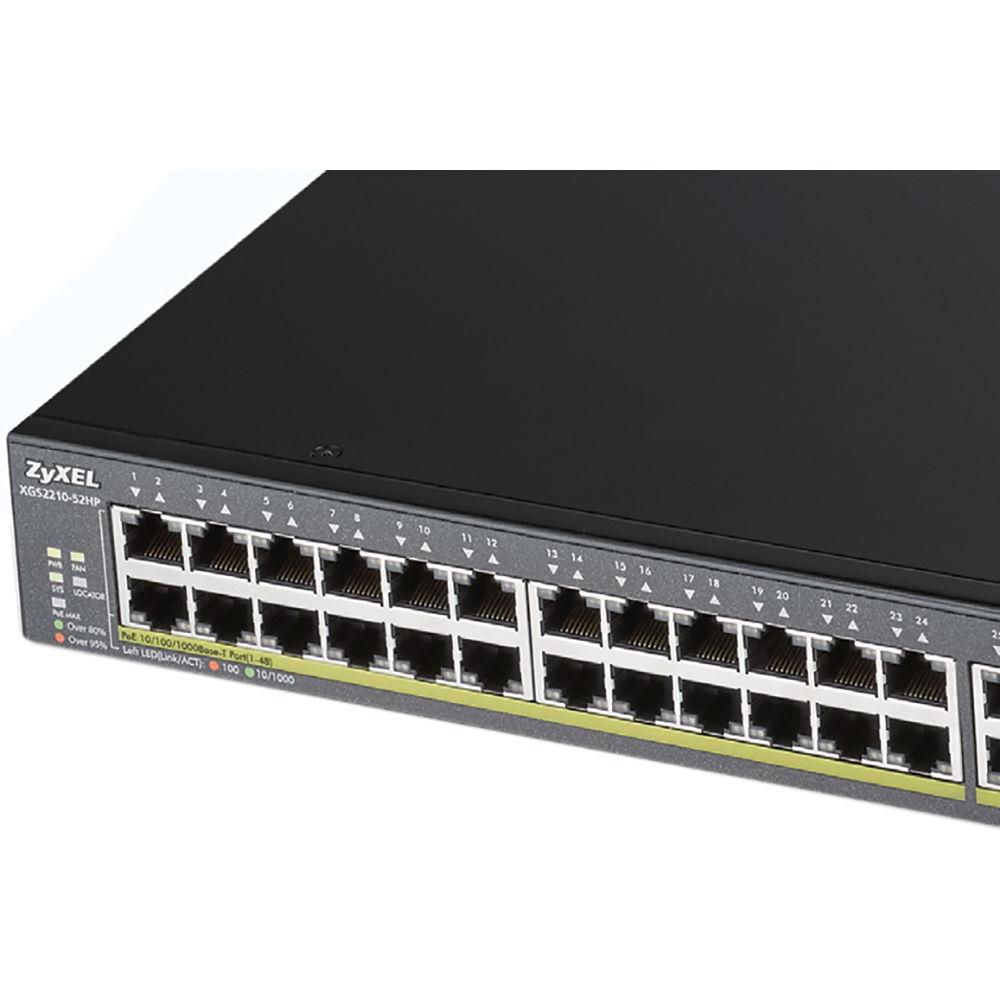

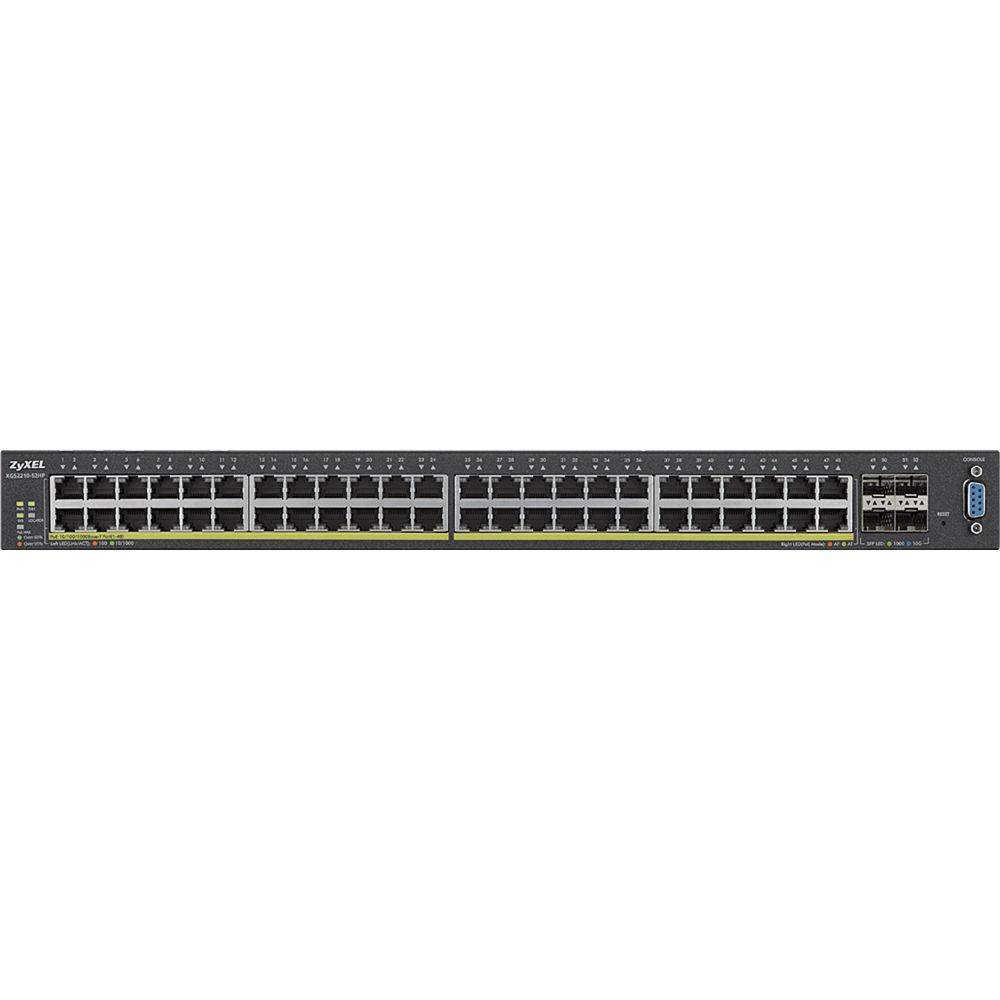

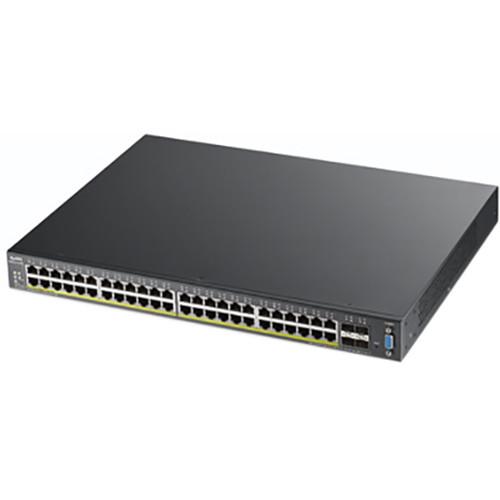

User Manual for ZyXEL 48-Port 100 1000 Mb s and 4-Port 10GbE SFP L2 PoE Switch with 10GbE Uplink Click to enlarge the picture
Contents of the user manual for the ZyXEL 48-Port 100 1000 Mb s
- Product category: Network Switches, Bridges & Hubs ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Switches, Bridges & Hubs
 |
User manual for the ZyXEL 48-Port 100 1000 Mb s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description Provided by third party: ZyXEL XGS2210 series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
The ZyXEL XGS2210 PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.
ZyXEL XGS2210 series offers enhanced control and isolation for improved convergence of video, voice and data. Such advanced defense mechanisms as IP source guard, DHCP snooping, and ARP inspection can detect and block intentional network attacks. Combining multiple L2, L3 and L4 filtering mechanisms with such education - and hospitality friendly features as MAC freeze, port isolation and guest VLAN, the ZyXEL XGS2210 series offers a high level of security, flexibility and control for diverse access layer deployments.
- Key Features
-
- Agile traffic control for converged networking applications
- High-powered Power over Ethernet (PoE)
- High level network and access security
- Agile traffic control for converged networking applications
- ZyXEL XGS2210 series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
- High-powered Power over Ethernet (PoE)
- The ZyXEL XGS2210 PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.
- High level network and access security
- ZyXEL XGS2210 series offers enhanced control and isolation for improved convergence of video, voice and data. Such advanced defense mechanisms as IP source guard, DHCP snooping, and ARP inspection can detect and block intentional network attacks. Combining multiple L2, L3 and L4 filtering mechanisms with such education - and hospitality friendly features as MAC freeze, port isolation and guest VLAN, the ZyXEL XGS2210 series offers a high level of security, flexibility and control for diverse access layer deployments.
UPC: 760559123499 In the Box ZyXEL 48-Port 100/1000 Mb/s and 4-Port 10GbE SFP+ L2 PoE Switch with 10GbE Uplink Zyxel XGS2210-52HP Rack mounting kit Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL 48-Port 100 1000 Mb s and 4-Port 10GbE SFP L2 PoE Switch with 10GbE Uplink in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL XGS2210-52HP Specs | | | Device Type | Switch - 52 ports - managed | | Enclosure Type | Rack-mountable 1U | | Subtype | Gigabit Ethernet | | Ports | 48 x 10/100/1000 (PoE) + 4 x 10 Gigabit SFP+ | | Power Over Ethernet (PoE) | PoE | | PoE Budget | 375 W | | Performance | Switching capacity: 176 Gbps
Forwarding performance: 130.9 Mpps | | Capacity | QoS hardware queues per port: 8 | | MAC Address Table Size | 16K entries | | Jumbo Frame Support | 9KB | | Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLD | | Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI | | Encryption Algorithm | SSL | | Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) | | Features | Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, URL filtering, IP address filtering, Multicast Storm Control, firmware upgradable, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, IPv4 support, DHCP relay, Port Security, IP-MAC binding, SNMP trap, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), dual firmware images, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), loop prevention, NTP time synchronization, port isolation, Class of Service (CoS), tagged VLAN, Generic VLAN Registration Protocol (GVRP), IGMP proxy, DiffServ Code Point (DSCP) support, 1.5MB packet buffer, ErrDisable Recovery, ZyXEL One Network (ZON), IGMP filtering, IGMP throttling, Protocol-based VLANs support, CPU protection, IP source guard, ARP inspection, Internet Control Message Protocol (ICMP), VLAN filtering | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az | | Status Indicators | Power, system, fan | | | | Interfaces | 48 x 1000Base-T RJ-45 PoE
4 x 10Gbit LAN SFP+
1 x serial (RS-232) management | | | | Power Device | Internal power supply | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 495 Watt | | | | Rack Mounting Kit | Included | | MTBF | 500,904 hours | | Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC | | | | Width | 17.3 in | | Depth | 13 in | | Height | 1.8 in | | Weight | 11.86 lbs | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | 32
