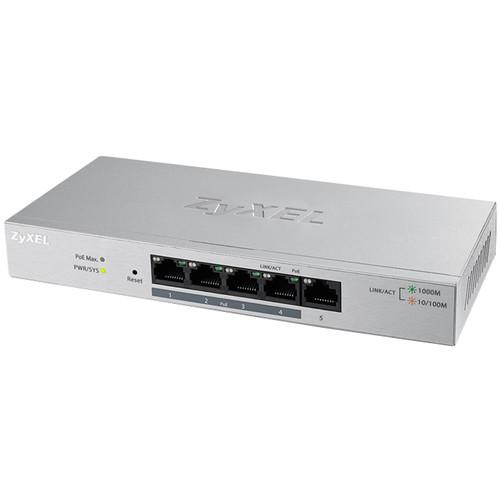

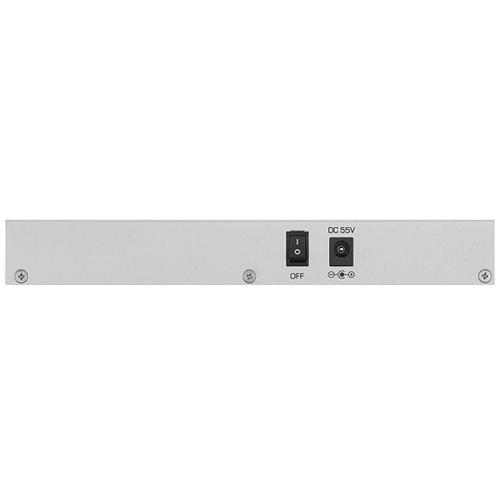

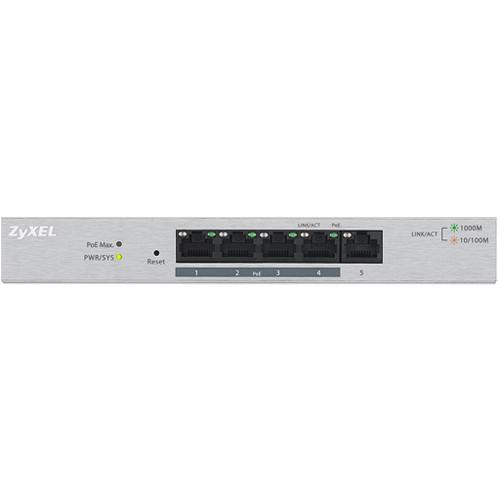

User Manual for ZyXEL 5-Port GbE Web-Managed PoE Switch Click to enlarge the picture
Contents of the user manual for the ZyXEL 5-Port GbE Web-Managed PoE Switch
- Product category: Network Switches, Bridges & Hubs ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Switches, Bridges & Hubs
 |
User manual for the ZyXEL 5-Port GbE Web-Managed PoE Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The ZyXEL GS1200 series Web Managed PoE Gigabit Switch is more than just a typical PoE switch. It comes with an easy-to-use Web configuration to prioritize, limit and/or protect network traffics. It has been designed specifically for customers who require simple control functions for office network management.
The simple control functions include dividing a network into one or more smaller groups for security and resource planning. The ZyXEL GS1200 series' configurable QoS feature also enables better traffic management.
The ZyXEL GS1200 series optimizes media traffic delivery by supporting IGMP Snooping v1/v2 and v3 which is compatible with configurable IGMP router port selection.
The ZyXEL GS1200 series is firmware-upgradable for better support, and configuration can be backed up and restored to the system as well.
- Key Features
-
- 4 Gigabit high-power PoE+ ports
- 60 watt total PoE budget
- Intuitive Web management
- Quality of Service for better traffic control
- Multicast IGMP snoopingv1/v2 and v3 compatible for streaming applications
- Virtual LAN for enhanced network security
- Smart features
- The ZyXEL GS1200 series Web Managed PoE Gigabit Switch provides simple control for better manageability. Unlike other advanced but complex managed switches, the ZyXEL GS1200 series is suitable for most users and provides an affordable solution with fundamental features including PoE, VLAN, QoS, IGMP snooping v1/v2 and v3 compatibility.
- Easy configuration
- The ZyXEL GS1200 series does not require any additional software. It is more visualized with an easy, friendly and intuitive Web GUI that helps configuration tasks to be completed in just simple clicks. It is much easier for small office users.
- PoE support
- The ZyXEL GS1200-5HP and GS1200-8HP deliver PoE capabilities of IEEE 802.3at (30 watts/per port with total PoE power budget 60 watts) to supply power to PoE-capable network devices such as wireless and Bluetooth APs, IP cameras and IP phones. Web GUI management enables you to monitor power status of each port and/or to reboot the network devices.
- Energy saving for IEEE 802.3az
- The ZyXEL GS1200 series built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffics and adjusts power consumptions dynamically to reduce power consumption during the low link utilization periods.
UPC: 760559125974 Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL 5-Port GbE Web-Managed PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL GS1200-5HP Specs | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2) | | | | Supported Protocols | Auto-MDIX/MDI
IGMP Snooping | | Queuing | Weighted Round Robin (WRR) | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 4K | | Multicast Groups | 20 | | | | Security Features | Storm Control | | | | Supported IEEE Standards | 802.1p, 802.1q, 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z | | | | Switching Bandwidth | 10 Gb/s | | Packet Buffer | 128 Kb | | | | Power Draw | 72.00 W (Active) | | PoE Power Budget | 60 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Certifications | RoHS, as per Manufacturer | | | | Indicator Lights | PoE, Power | | Dimensions | 7.6 x 3.3 x 1" / 19.3 x 8.4 x 2.5 cm | | Weight | 1 lb / 0 kg |
