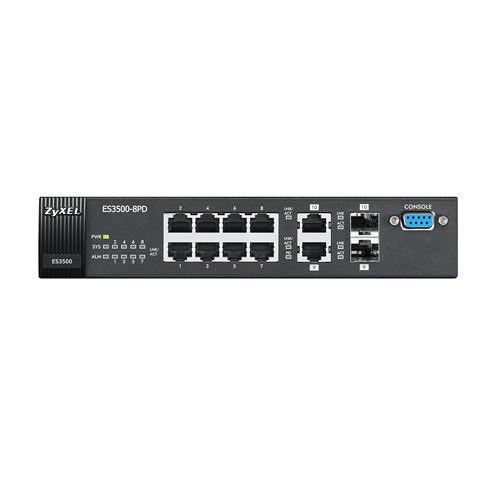

Product description The 8-Port Layer 2 FE Managed Switch with 2 x Dual Personality GbE Uplinks from ZyXEL is designed for small and medium-sized businesses (SMBs) to deliver valuable Ethernet services. This switch is an 8-port Fast Ethernet switch with a special Powered Device (PD) design, enabling it to be powered via an external power adapter or a PoE connection. With Gigabit SFP uplinks and robust access control functions, businesses can easily extend network topologies and fulfill different needs. The switch also supports IPv6 for trouble-free future network expansion. This switch offers a complete set of security features to protect user data while administrating network traffic. Its policy-based QoS optimizes multi-service quality and features a multilayer (L2/L3/L4) ACL suite of sophisticated policy-based control mechanisms, which can be used to help SMBs prevent abnormal or illegal access. The complete set of IPv6 host management benefits high-density Fast Ethernet deployments, making the switch perfectly suitable for both core and edge networks. The switch has high redundancy and resilient architecture with RSTP and port trunking. - Advanced Access Control Features for User Data Protection
- The switch offers a complete set of security features to protect user data while administrating network traffic. It features port security, 802.1X authentication, and RADIUS accounting to prevent unauthorized access and provide powerful access control for converged networks. In addition, it features a multilayer (L2/L3/L4) ACL suite of sophisticated policy-based control mechanisms, which can be used to help SMBs prevent abnormal or illegal access. Policies can be defined via a GUI or CLI to deny packets based on source and destination MAC addresses, IP addresses, or TCP/UDP ports.
- Dual-Speed SFP Uplinks for Reliable Connections in Distributed Deployments
- The switch is an ideal solution for SMBs that need to establish a converged network across long distances or multiple floors. It supports dual-speed (100/1000 Mb/s) SFP uplinks, providing more options in establishing fast and reliable connections in distributed and long distance deployments. Supporting Digital Diagnostics Monitoring Interface (DDMI), the switch allows administrators to easily detect packet loss from transceivers and aging cables to avoid unstable network service, lower maintenance overhead, and boost business productivity.
- Powered Device (PD) Design for Easy Deployment

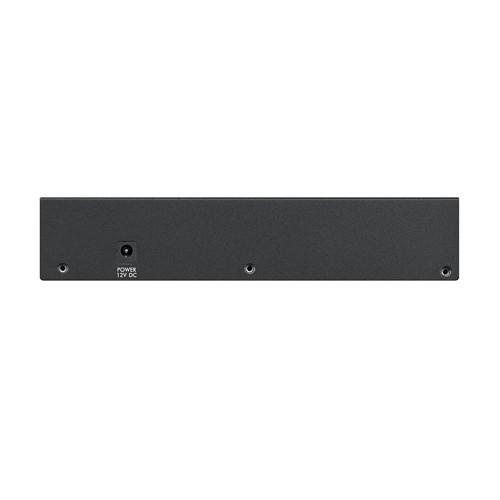

- The switch features a special powered device design, making it easy to install in places where power outlets are not available. You have the option of powering the switch with either the external power adapter or via a Power over Ethernet (PoE) connection, with the PoE input prioritized when both are available. The switch also comes in a fanless design that ensures silent operation in small or quiet office environments.
- Rich IPv6 Features for Future-Proof Network Expansion
- Designed to protect business investment, the switch features a complete set of IPv6 host management functions to guarantee smooth IPv4-to-IPv6 migration. This feature set benefits high-density Fast Ethernet deployments, making the switch perfectly suitable for both core and edge networks.
UPC: 760559120382 In the Box ZyXEL 8-Port Layer 2 FE Managed Switch with 2 x Dual Personality GbE Uplinks Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL 8-Port Layer 2 FE Managed Switch with 2 x Dual Personality GbE Uplinks in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL ES3500-8PD Specs | | | Ports | 8 x 10/100 Mb/s Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | Supported Protocols | IGMP Snooping
Link Aggregation
Port Mirroring | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 16K | | | | Security Features | Storm Control | | SNMP Support | 1, 2c, 3 | | | | RFC | RFC 1213
RFC 1493
RFC 1643
RFC 1757
RFC 2011
RFC 2012
RFC 2013
RFC 2233
RFC 2674
RFC 2925
RFC 4293
RFC 4292
RFC 4022
RFC 4113
RFC 2464
RFC 4291
RFC 4213
RFC 4884
RFC 1981
RFC 5905
RFC 4861 | | Supported IEEE Standards | 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 4.17 Mpps | | Switching Bandwidth | 5.6 Gb/s | | Priority Queues | 8 | | Packet Buffer | 320 Kb | | | | Power Draw | 9.5 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Certifications | RoHS, as per Manufacturer | | | | Dimensions | 8.4 x 4.8 x 1.6" / 21.5 x 12.3 x 4.2 cm | | Weight | 2 lb / 1 kg | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 11.0 x 10.0 x 3.5" |
