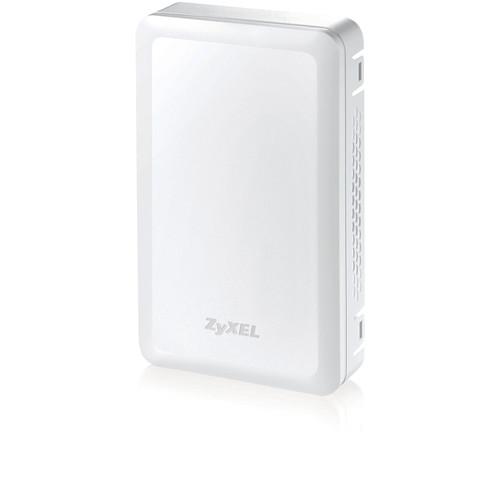

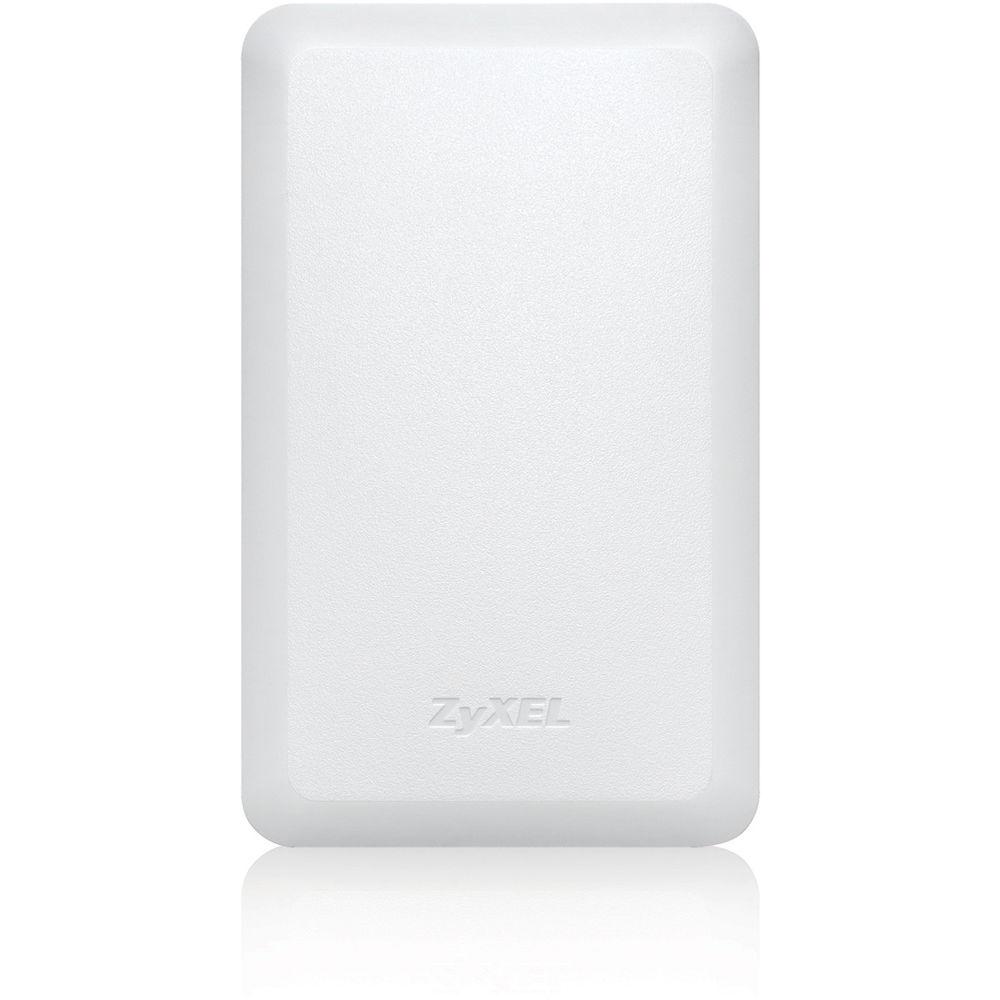

User Manual for ZyXEL 802.11 b g n Wall-Plate Unified Access Point Click to enlarge the picture
Contents of the user manual for the ZyXEL 802.11 b g n Wall-Plate
- Product category: Wireless Access Points ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Wireless Access Points
 |
User manual for the ZyXEL 802.11 b g n Wall-Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The 802.11 b/g/n Wall-Plate Unified Access Point from ZyXEL is designed to deploy high-quality in-room Wi-Fi coverage within various industries, including the hospitality industry. Using the mounting plate attachment, the access point can be installed to the majority of outlet boxes, while the strong mechanism prevents easy theft. The access point also comes with Ethernet punch-down interfaces that facilitate speedy device fitting to minimize business downtime.
Aiming for the relief of repetitive operations of deploying and managing a network, ZyXEL ONE Network is designed to simplify the configuration, management and troubleshooting while allowing you to focus on the business priorities. ZyXEL ONE Network presents an easy-to-use tool, ZyXEL ONE Network Utility (ZON Utility), to realize speed network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to be aware and recognize each other as it further facilitates the network maintenance via one-click remote functions such as factory reset or power cycling. ZyXEL ONE Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
The access point adopts 802.11n technology to provide bandwidths of up to 300 Mb/s. The implemented premium 11n features including maximum likelihood, allows the access point to eliminate dead spots in its area of coverage for the best network efficiency. In hotel environments today, most users use mobile devices to access the network. As the devices have lower signal power by nature to sustain longer battery life, APs are less likely to pick up data sent from the devices comparing to which come from laptops. The access point comes equipped with a well-placed high-gain antenna to maximize the RF pattern for optimized performances communicating with mobile devices. With all the advanced RF designs, the access point can significantly reduce complaints and increase satisfaction of users.

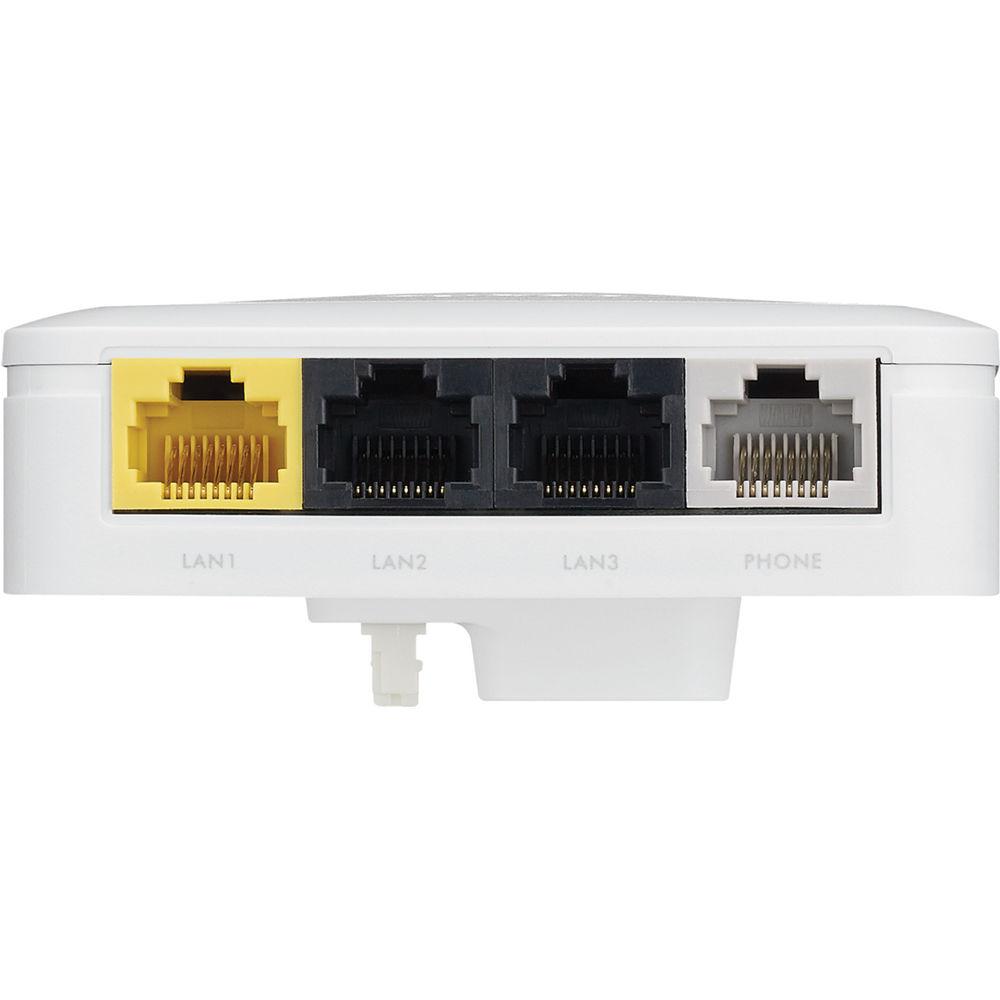

Nowadays, hotel provide guests with a range of services including phone, IPTV and network for home-like comfort. More than just a Wi-Fi AP serving high-speed networks, the access point has additional RJ-45, PoE and RJ-48 phone pass through ports to connect different kinds of devices such as PCs, fax machines, printers, set-top boxes and phones with ease. The PoE port enables deployment of Power Devices (PD) like VoIP phones without electric outlets and power cables. It fulfills all kind of connectivity requirements to provide adequate in-room services.

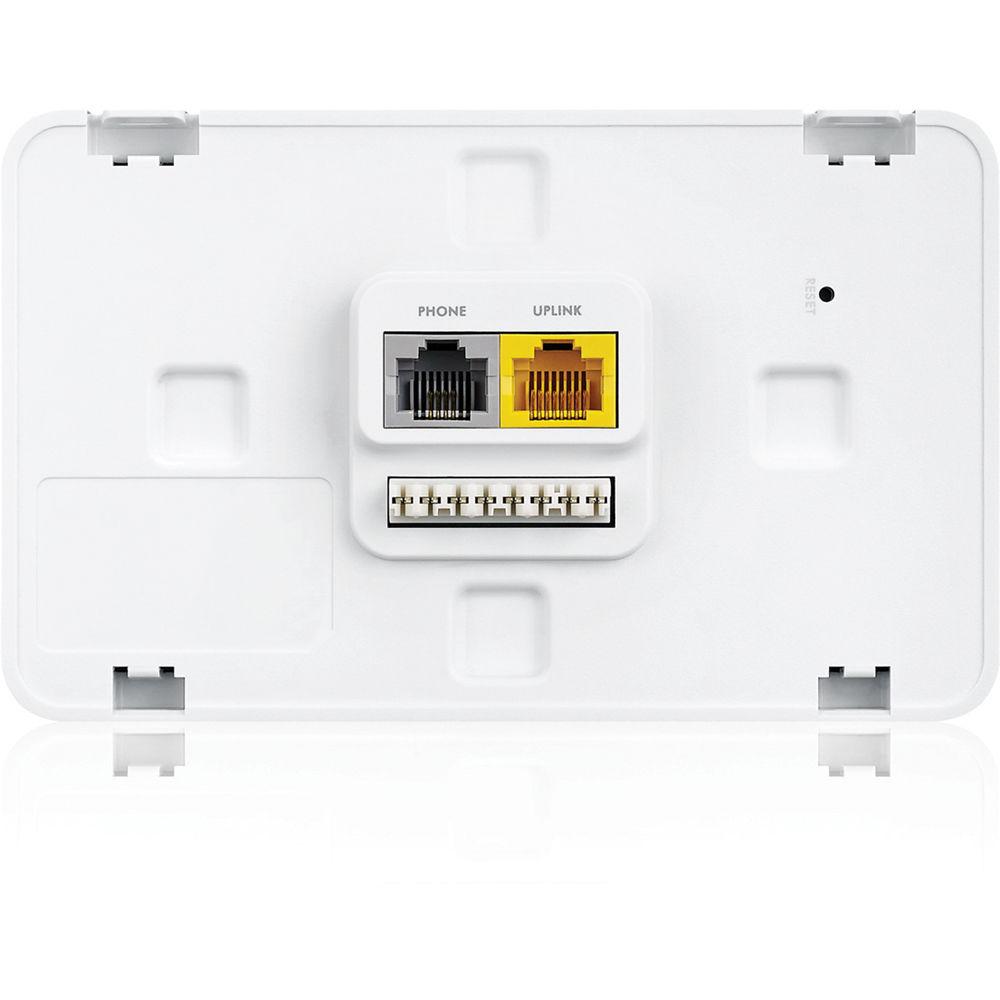

With experience and expertise in the hospitality industry for years, ZyXEL implemented several thoughtful designs in the access point. Its LED features a so-called "suppress mode" which stops blinking after system initialization is done, which gives the room guest a comfortable space with peace-of-mind. Moreover, the AP status can be checked with this LED indicator with a simple click of a button. To prevent leaking of personal data, layer-2 isolation can be enabled in the access point, so the users can only access shared services and peripherals such as hotel fax machines, and are blocked from reaching other devices used in the hotel. - Unique back panel design that fits the majority of outlet boxes worldwide
- Punch-down Ethernet interface for significantly reduced installation efforts
- 2.4 GHz 802.11n technology providing data rates of up to300 Mb/s
- High-gain antenna that optimizes Wi-Fi services for mobile devices
- Extending phone and IPTV services with integrated interfaces

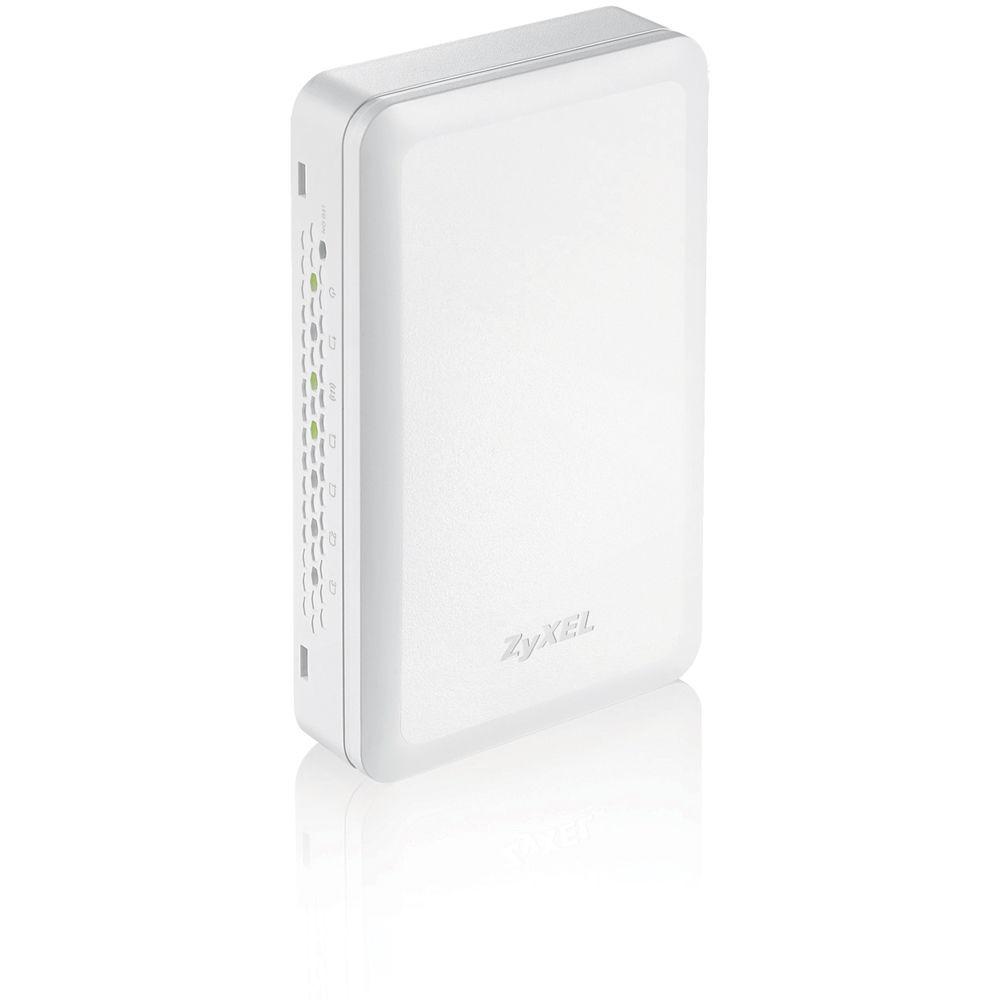

- LED suppress mode for comfortable room services
- Layer-2 isolation to secure personal data from leaking
UPC: 760559121211 In the Box ZyXEL 802.11 b/g/n Wall-Plate Unified Access Point Wall / Ceiling Mount Plate Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL 802.11 b g n Wall-Plate Unified Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ZyXEL 802.11 b g n Wall-Plate Unified Access Point can be downloaded in PDF format at the link stated below.
Technical parametersZyXEL NWA5301-NJ Specs | | | Wireless Frequency Bands | 2.4 GHz | | Antenna Gain | 5 dBi | | | | Ports | 2 x RJ48
4 x 10/100 Mb/s Ethernet (RJ45) | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 10 to 90% | | | | Dimensions | 3.4 x 5.4 x 1.5" / 8.5 x 13.8 x 37.4 cm | | Weight | 0.4 lb / 0.2 kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
