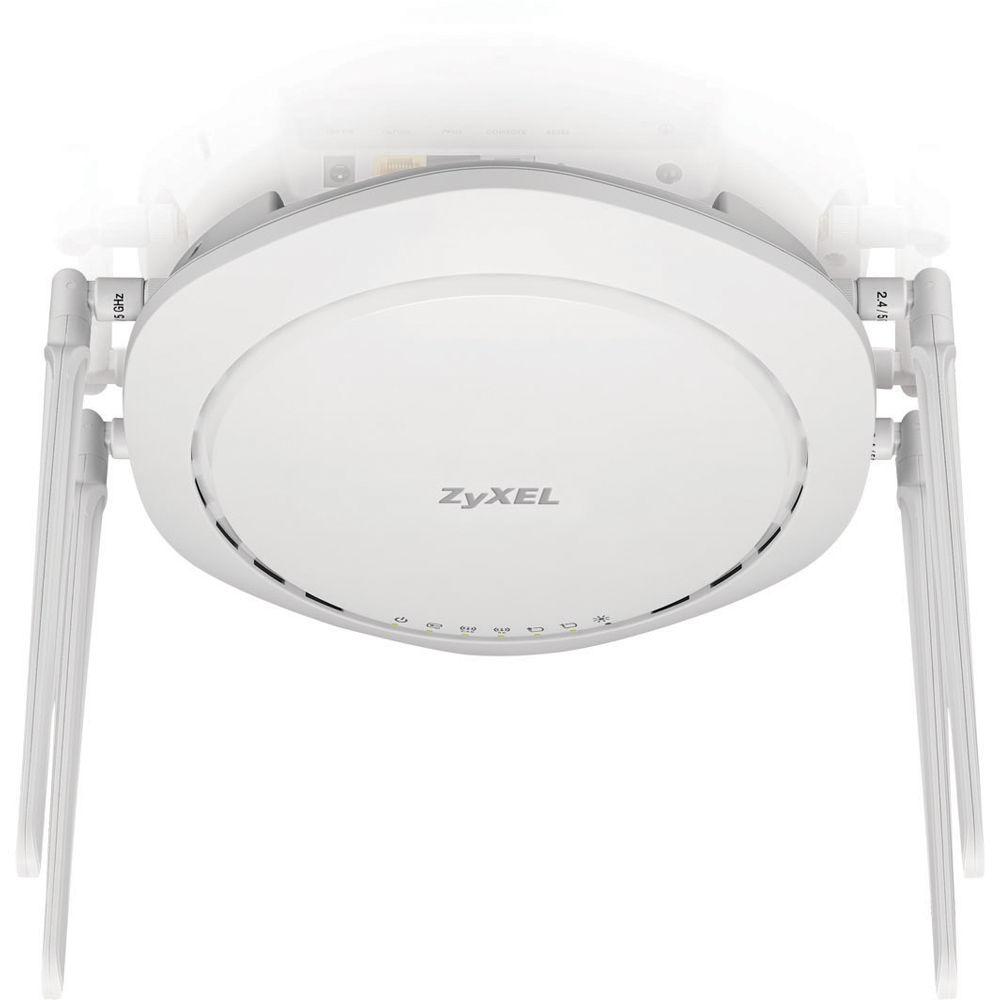

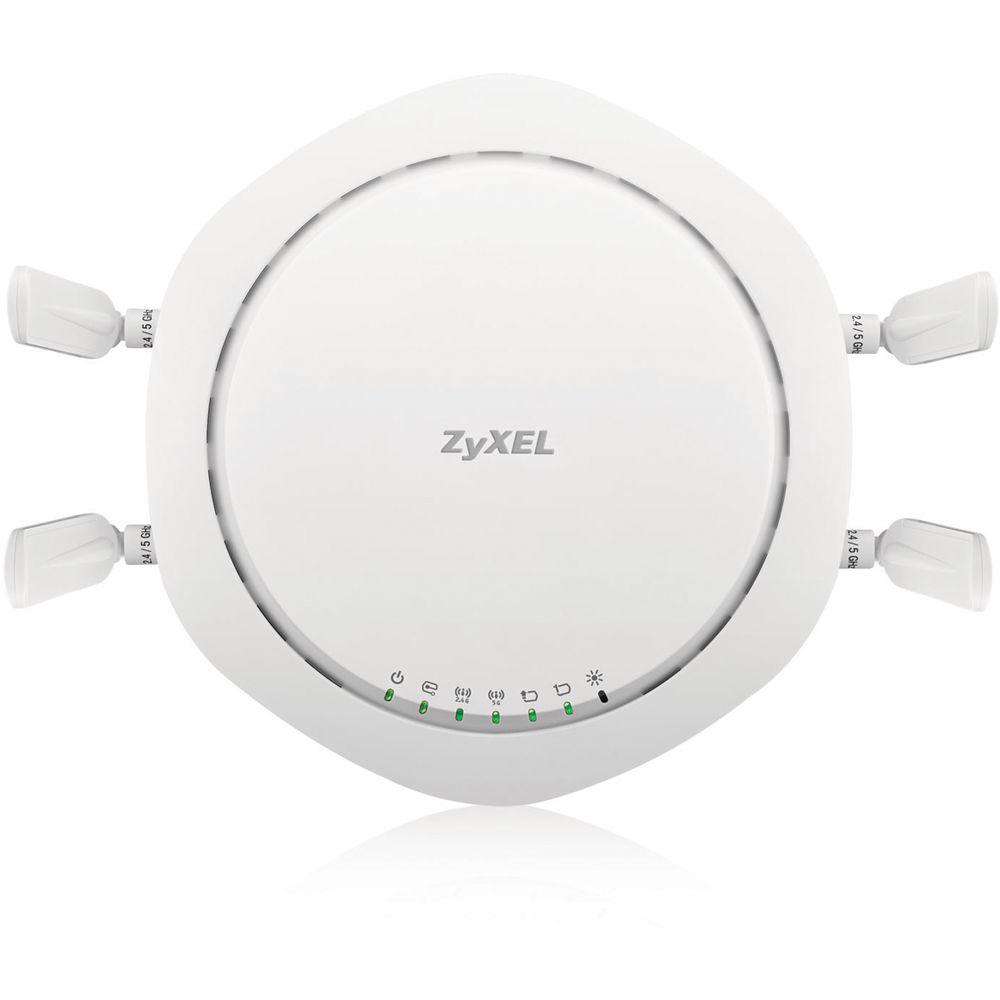

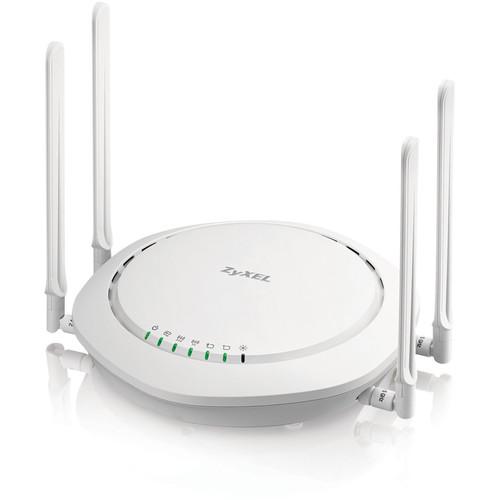

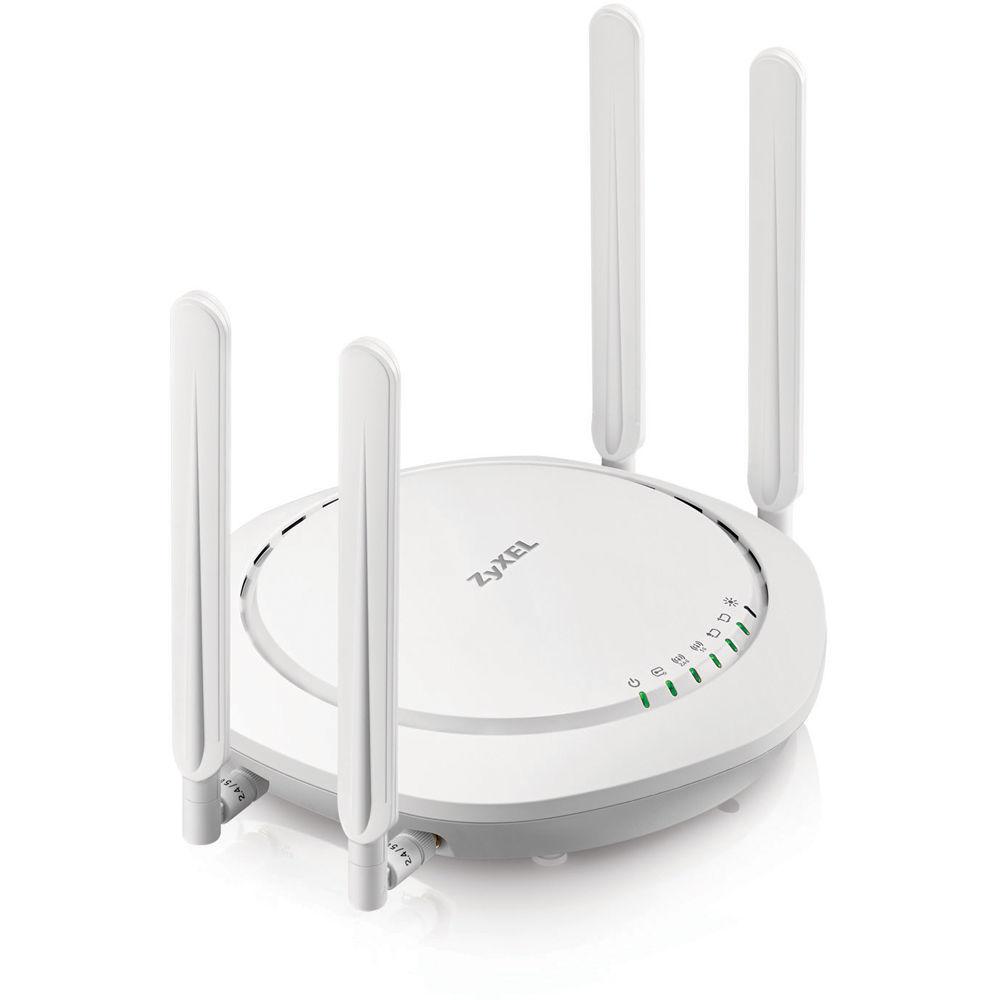

User Manual for ZyXEL 802.11ac Dual Radio External Antenna 2x2 Access Point Click to enlarge the picture
Contents of the user manual for the ZyXEL 802.11ac Dual Radio External Antenna
- Product category: Wireless Access Points ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Wireless Access Points
 |
User manual for the ZyXEL 802.11ac Dual Radio External Antenna contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The 802.11ac Dual Radio External Antenna 2x2 Access Point from ZyXEL delivers quality performance, thanks in part to its innovative Smart Antenna design. Featuring more than 700 optimized antenna patterns, the ZyXEL Smart Antenna continuously calculates the ideal physical-layer path for each individual client. This feature not only offers a suitable signal by shaping to various patterns, but it also mitigates interference from other wireless clients. The access point's quick capabilities make it ideal for delivering a high quality signal to interference-laden environments, such as conference rooms, airports, educational facilities and other high-density venues. And the access point's enhanced adaptability further simplifies one-to-one AP replacement.
In a Wi-Fi market crowded with 802.11ac APs, the access point stands out with regard to coverage due to its unique RF design. The AP's three-stream hardware configuration provides power of up to 30 dBm, while providing unequaled receive sensitivity as low as -102 dBm. The ZyXEL Smart Antenna doubles the access point's performance over conventional internal antennas and performs substantially better than legacy 802.11n APs.
ZyXEL APFlex eases installation by resolving the managed/standalone AP mode configuration, automatically integrating into the network environment with or without Dynamic Host Configuration Protocol (DHCP), eliminating the need for pre-installation preparation. Other helpful features include Dynamic Channel Selection (DCS) to avoid interference from co-channels and overlapping channels at initialization. In addition to software solutions, the access point simplifies installation through creative design features. For example, the universal and tool-less bracket design allows for flexible ceiling track mounting without the need for special tools. From software to hardware, the access point makes setup and operation quick and simple.
The access point ensures that users get the ideal overall network performance by utilizing load balancing and client steering. Load balancing allows administrators to set limits on network traffic and the number of clients associated with each AP. Client steering monitors the capabilities of each wireless client and steers them to the less congested band and better signal AP. When it comes to deployments in challenging cabling locations, wireless mesh networks help extend Wi-Fi coverage. ZyXEL's proprietary ZyMesh creates reliable and resilient mesh links instantly. Yet, the configuration is intuitive and centralized manageable on the NXC controller. ZyMesh improves network reliability through true wireless connectivity with the repeater APs selecting multiple routes to provide backup and failover for uninterrupted service. Together, these three technologies provide the access point with efficiency and reliability.
Aiming to relieve users from repetitive operations of deploying and managing a network, ZyXEL One Network is designed to simplify the configuration management and troubleshooting, while allowing users to focus on business priorities. ZyXEL One Network offers an easy-to-use tool, ZyXEL One Network Utility (ZON Utility), to realize speed network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to recognize one another and to further facilitate the network maintenance via one-click remote functions, such as factory reset or power cycling. ZyXEL One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway. - ZyXEL smart antenna provides enhanced performance anywhere
- Advanced IEEE 802.11ac delivers up to 1.75 Gb/s combined data rates
- Industry-leading receive sensitivity as low as -102 dBm
- APFlex, DCS and tool-less bracket design streamline deployment
- ZyXEL One Network is supported
UPC: 760559122881 In the Box ZyXEL 802.11ac Dual Radio External Antenna 2x2 Access Point External Antenna Ceiling Mount Plate Set of Mounting Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL 802.11ac Dual Radio External Antenna 2x2 Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL WAC6502D-E Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 4 | | MU-MIMO Support | 2 x 2 | | Sensitivity | -100 dBm | | Antenna Gain | 5 to 7 dBi | | Antenna Placement | External | | | | Supported IEEE Standards | 802.3at | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 10 to 90% | | | | Dimensions | 9.3 x 9 x 2.4" / 23.6 x 22.7 x 6.2 cm | | Weight | 1.9 lb / 0.8 kg |
