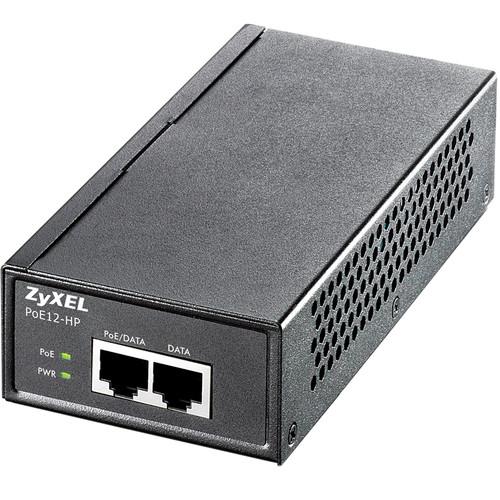

User Manual for ZyXEL 802.3af at PoE Injector Click to enlarge the picture
Contents of the user manual for the ZyXEL 802.3af at PoE Injector
- Product category: Power over Ethernet (PoE) ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Power over Ethernet (PoE)
|
User manual for the ZyXEL 802.3af at PoE Injector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The 802.3af/at PoE Injector from ZyXEL contains a single-port, which delivers both power and data to other PoE devices via a single CAT-5 Ethernet cable. The injector allows data transmission at 1000 Mb/s and delivers power of up to 30W. It's especially suitable for advanced powered devices (PD) like MIMO access points or pan-tilt-zoom cameras that consume relatively more power.
PoE is a standard-based technology that specifies how power is distributed along with data on standard Ethernet LAN cables. The standard specifies IEEE 802.3af providing up to 15.4W of power per device and IEEE 802.3at providing up to 30W per device. Complying with the IEEE 802.3af and IEEE 802.3at standards, the injector offers interoperability and compatibility with other standard-based PoE devices.
With PoE technology, the injector enables users to place devices such as wireless LAN APs, IP surveillance cameras and IP phones exactly where they are needed. Since the devices are directly powered through Ethernet cables, there is no need to have separate power supplies or install AC power sockets on ceilings or roof spaces.
The injector is easy to use and needs no configuration. Since only inbound and outbound cable plugs are required, the installation is very straightforward and can be performed by users without any prior experience with electrical wiring. - IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards compliant
- Install anywhere taking advantage of PoE technology
- Superior safety with overloading and short-circuit protection
UPC: 760559119522 In the Box ZyXEL 802.3af/at PoE Injector Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL 802.3af at PoE Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL POE12HP Specs | Ports | 1 x 10/100/1000BASE-T (Data), for connection to the passive hub or switch
1 x 10/100/1000BASE-T (Power/Data), for connection to the PoE devices (PD) | | Ethernet | IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Ethernet
IEEE 802.3ab 1000BASE-T | | PoE | IEEE 802.3at Power over Ethernet | | Safety | EN 60950-1, EU RoHS compliant, BSMI CNS14336-1 | | Emissions | FCC Part15 (Class B), CE EMC (Class B), BSMI CNS13438 | | Input Voltage | 100 - 240 VAC, 50/60 Hz, 1.5 A max | | Maximum Power Consumption | 33 W (30 W output for client devices) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10% to 95% (non-condensing) | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5% to 95% (non-condensing) | | Dimensions | 6.10 x 2.91 x 1.42" / 155 x 74 x 36 mm | | Weight | 13.9 oz / 396 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.1 x 6.1 x 2.8" |
