User Manual for ZyXEL AC2100 Dual-Band Wireless Gigabit Access Point Range Extender Click to enlarge the picture
Contents of the user manual for the ZyXEL AC2100 Dual-Band Wireless Gigabit Access
- Product category: Wireless Access Points ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Wireless Access Points
 |
User manual for the ZyXEL AC2100 Dual-Band Wireless Gigabit Access contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|

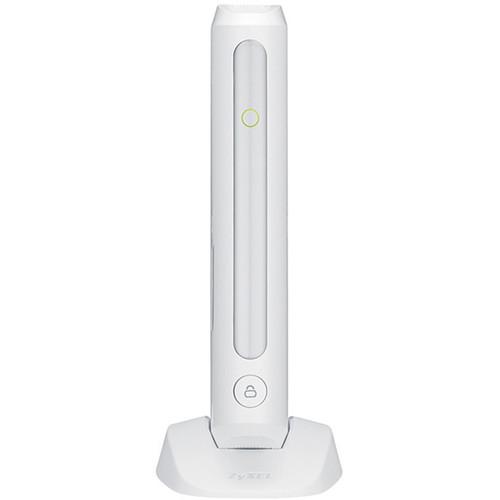

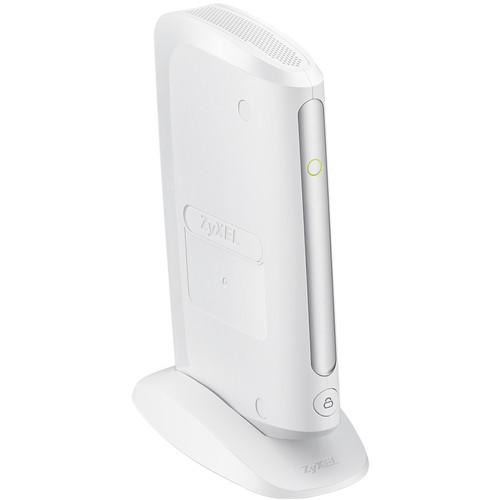

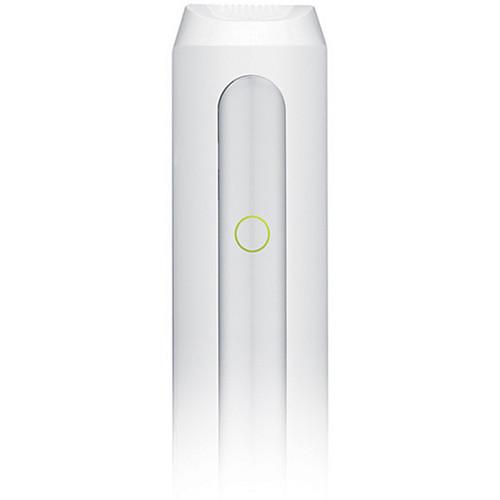

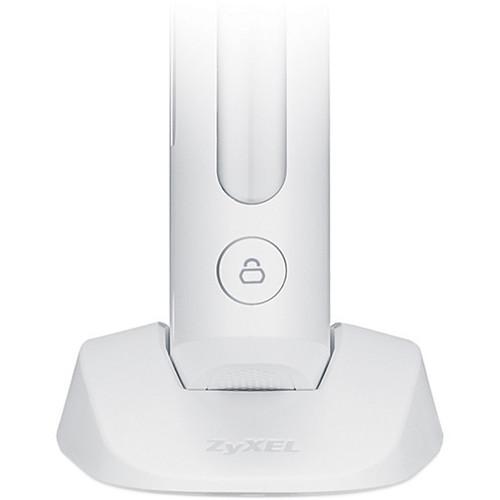

Product description The AC2100 Dual-Band Wireless Gigabit Access Point/Range Extender from ZyXEL works as an access point, a Wi-Fi extender, or a wireless client. You can simply select the mode needed for your network environment using eaZy123 setup wizard and enjoy the high-speed network instantly. - Works as an Access Point, Repeater or Client
-
- Adds wireless speeds of up to 2100 Mb/s with reliable Gigabit Ethernet connection to different floor or rooms
- Extends 802.11ac wireless coverage from your existing 802.11ac router
- Provides Internet connection to your media devices wirelessly from the router
- Prioritizes Wireless Performances
-
- Provides the latest 802.11ac dual-band wireless technology, with which you can instantly enjoy 2.4 GHz/5 GHz wireless connectivity for daily use
- Range mode maximizes your Wi-Fi coverage
- Speed mode boosts speedy 5 GHz connection for video streaming and throughput-intensive applications
- Design
-

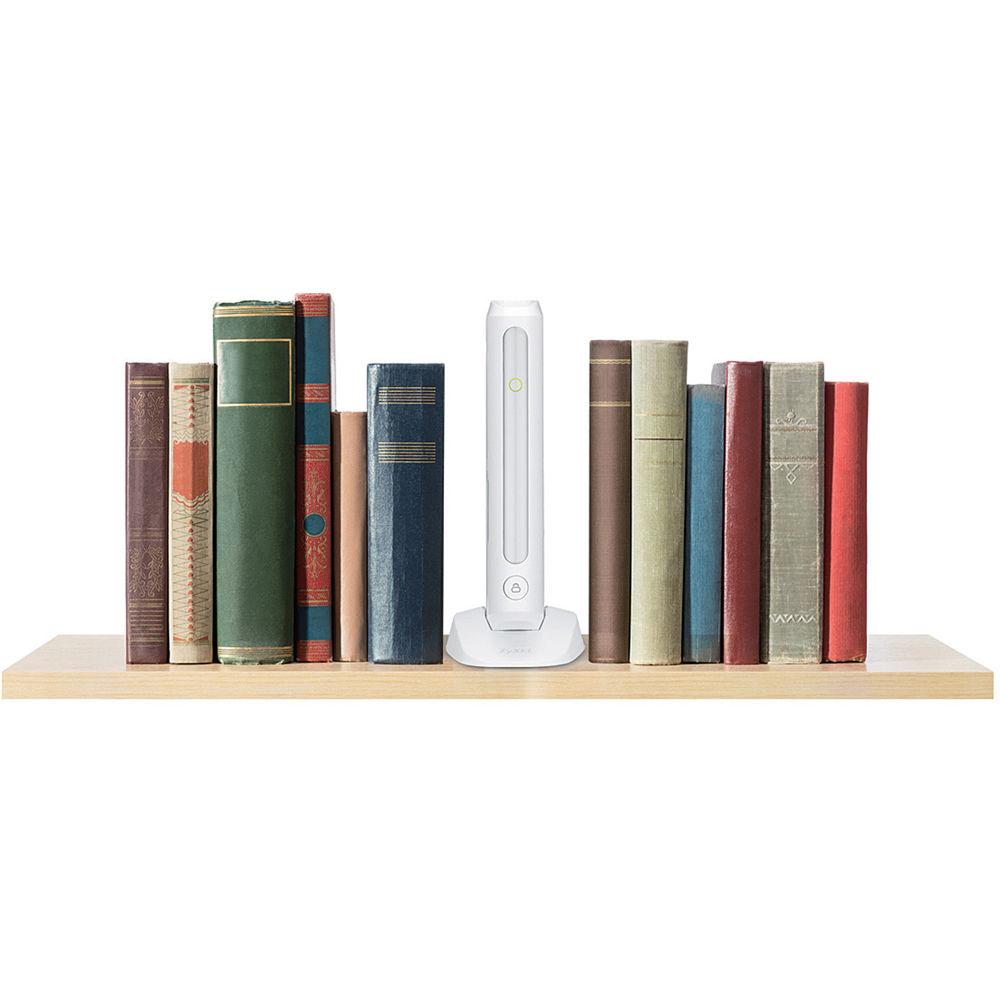

- It fits into shelves like a book, sits on the desk beside the telephone, or stands next to the ultra-thin TV
- Gigabit Ethernet Maximizes Wired Performance
-
- With four Gigabit Ethernet ports, this router has been designed for reliable, high-performance video streaming with higher speeds
- Device makes it easy to connect multiple wired devices like smart TV, laptop, game console, or NAS
- ONE Connect to Discover Home Connectivity and Activity
-
- With the ZyXEL ONE Connect, you can easily configure network settings from your router to network devices connected and manage them easily with ONE Connect app installed
UPC: 760559123956 In the Box ZyXEL AC2100 Dual-Band Wireless Gigabit Access Point/Range Extender Power Adapter Ethernet Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL AC2100 Dual-Band Wireless Gigabit Access Point Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL ARMOR X1 Specs | | | Wireless Standards | 802.11 b/g/n 2.4 GHz
802.11 a/n/ac 5 GHz | | Wireless Speed | Transmit:
300 Mb/s for 2.4 GHz
1733 Mb/s for 5 GHz
Receive:
300 Mb/s for 2.4 GHz
1733 Mb/s for 5 GHz | | Wireless Security | WPA/WPA2-PSK and WEP for 2.4 GHz
WPA/WPA2-PSK for 5 GHz | | Wireless Features | - Repeater/AP/Client mode
- Wi-Fi Protected Setup (WPS)
- Wi-Fi Multimedia (WMM)
- Auto channel selection
- Hidden SSID
- Wireless output power management

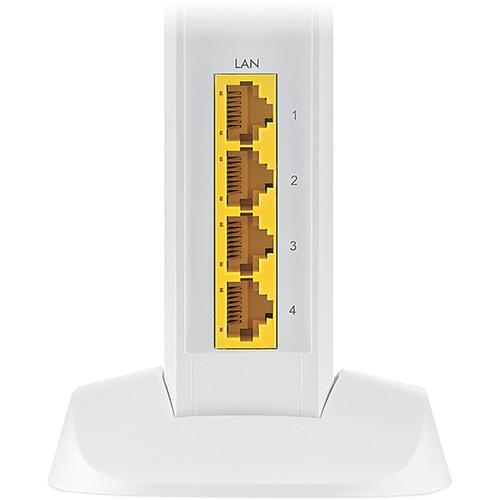

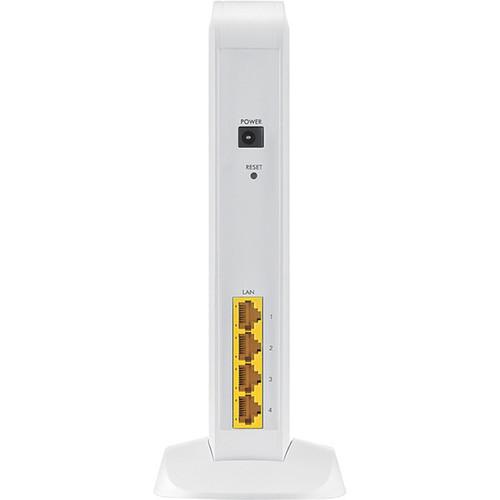

| | | | LAN | Four 10/100/1000 Mb/s Ethernet RJ-45 ports with auto MDI/MDIX support | | Button | WPS button
Reset button | | LED Indicator | Color LED (power, WPS, and Wi-Fi quality) | | Antenna | Two 2.4 GHz internal antennas
Four 5 GHz internal antennas | | Power Consumption | 10.2 W maximum | | | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -22 to 158°F / -30 to 70°C | | Humidity | Operating: 10 to 90% (Non-condensing)
Humidity: 10 to 95% (Non-condensing) | | | | Dimensions | 1.5 x 5.3 x 8.6" / 3.7 x 13 x 22 cm | | Weight | 13.9 oz / 396 g |
