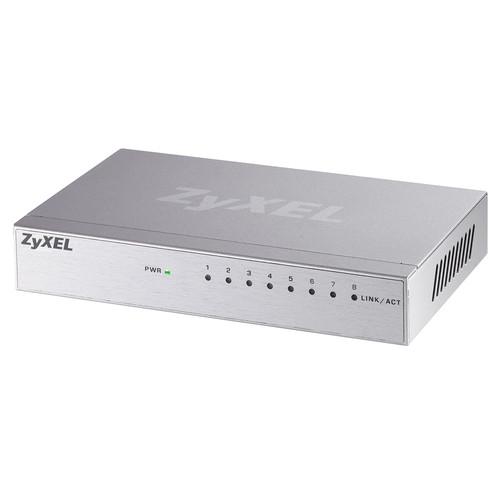

User Manual for ZyXEL GS108B 8-Port Desktop Gigabit Ethernet Switch Click to enlarge the picture
Contents of the user manual for the ZyXEL GS108B 8-Port Desktop Gigabit Ethernet
- Product category: Network Switches, Bridges & Hubs ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Switches, Bridges & Hubs
|
User manual for the ZyXEL GS108B 8-Port Desktop Gigabit Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The GS108B 8-Port Desktop Gigabit Ethernet Switch from ZyXEL is a compact Gigabit network expansion switch. Gigabit Ethernet boosts speed up to 10 times faster than Fast Ethernet. With the non-blocking switching fabric in full-duplex mode, the maximum speeds can reach up to 2000 Mb/s per port. It connects network counterparts with the highest possible network speed and activates duplex mode automatically. This switch automatically adjusts power consumption by detecting the number of active, connected networks and the cable length. With loop detection support for stable network connections, the switch is compliant with the IEEE 802.3az Energy Efficient Ethernet standard that provides power-saving benefits without compromising performance. - Gigabit Ethernet
- This desktop switch is designed for reliable high-performance networks with speeds 10 times faster than Fast Ethernet connections. With the non-blocking switching fabric in full-duplex mode, the maximum speed it can reach up to is 2000 Mb/s per port, while the store-and-forward service brings low latency and error-free packet delivering.
- Easy to Connect Multiple Devices
- This desktop switch with plug-and-play capability and the Nway auto-negotiation function connects network components with the highest possible network speed and activates duplex mode automatically. You can easily connect networked devices such as PCs, network storages, and print servers to the network without any manual configuration.
- IEEE 802.3az Energy Efficient Ethernet Standard
- The switch is compliant with IEEE 802.3az Energy Efficient Ethernet standard that provides power-saving benefits without compromising performance. It automatically reduces power usage when it detects any shut down network device or inactive link. The power consumption gets adjusted according to the number of active network devices. It can also detect the length of connected Ethernet cables and adjusts power usage accordingly. The shorter the Ethernet cable, the less power it consumes.
In the Box ZyXEL GS108B 8-Port Desktop Gigabit Ethernet Switch Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL GS108B 8-Port Desktop Gigabit Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL GS108B Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.1p, 802.3, 802.3 N, 802.3ab, 802.3az, 802.3u, 802.3x | | | | Switching Bandwidth | 16 Gb/s (Non-Blocking) | | Packet Buffer | 128 Kb | | | | Power Draw | 3.17 W (Active) | | DC Input Power | 5 VDC at 1 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 95% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 10 to 95% | | | | Indicator Lights | Link/Activity | | Dimensions | 6.1 x 3.3 x 1" / 15.4 x 8.5 x 2.6 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.7 x 4.4 x 3.7" |
