User Manual for ZyXEL GS1100 16-Port Gigabit Rackmountable Unmanaged Switch Click to enlarge the picture
Contents of the user manual for the ZyXEL GS1100 16-Port Gigabit Rackmountable Unmanaged
- Product category: Network Switches, Bridges & Hubs ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Switches, Bridges & Hubs
 |
User manual for the ZyXEL GS1100 16-Port Gigabit Rackmountable Unmanaged contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|

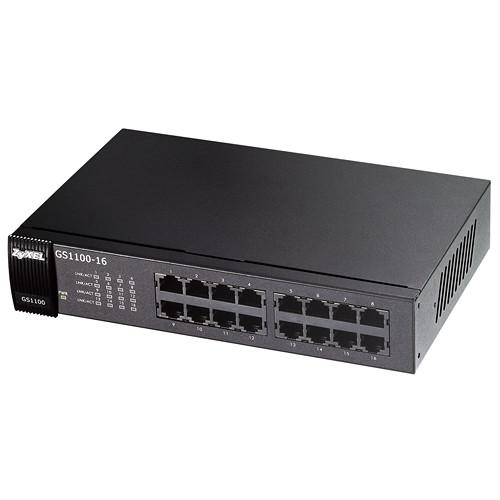

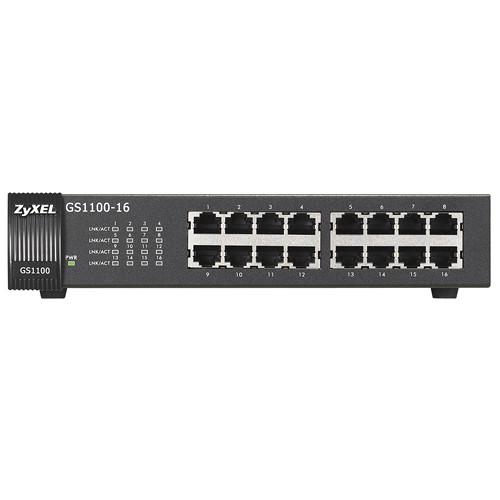

Product description The GS1100 16-Port Gigabit Rackmountable Unmanaged Switch from ZyXEL is designed to deliver a solution that requires no switch management for office environments demanding fanless silent operation and green technology. It provides plug-and-play simplicity for high-bandwidth connectivity. The switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds. It supports non-blocking wire-speed transmission and is IEEE 802.3az compliant.. The Auto MDI/MDI-X feature eliminates the need for crossover cables when connecting to another switch or hub. In addition, the Auto-negotiation feature senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance. It also supports jumbo frames of up to 9KB for extra large transfers. - IEEE Energy Efficient Ethernet (EEE) Compliance
- The switch offers environmental efficiency with Gigabit Ethernet speeds critical for next-generation network applications. It complies with the IEEE 802.3az standard by providing power-saving functions to reduce energy consumption.
- Inactive Link Detection
- The power usage adjustment feature automatically reduces power usage when any shutdown network device or inactive link is detected. In other words, power consumption of the switch can be adjusted according to the link status or the number of active network devices when possible.
- Cable Length Detection
- The device is equipped with this green feature which can automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.
- Fanless Design
- The switch is a perfect solution for small business and SOHO office deployments with fanless design that ensures quiet operation in small office spaces.
- Desktop Gigabit Solution
- The switch comprises of unmanaged Gigabit switches that provide an inexpensive desktop Gigabit solution for significant performance boost. In addition, it offers copper lines and comes in a desktop, wall-mountable, or rack-mountable enclosure design. The flexible connection options enable the switches to easily fit different applications and environments. The switch is an ideal solution for bandwidth intensive applications, such as high-resolution photo transmission, video/audio streaming, and downloading as well as server farm connections.
- Power-Packed Delivery
- With the non-blocking switching architecture, the switch filters and forwards packets at wire speed for maximum throughput. Features such as Address learning and aging as well as 802.3x flow control adjust traffic congestion and ensure reliable data transmission. The switch also supports jumbo frames of up to 9KB for extra large transfers.
- Easy Installation
- The switch offers plug-and-play connectivity and easy installation. The Auto MDI/MDI-X feature eliminates the need for crossover cables when connecting to another switch or hub; the Auto-negotiation feature senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.
UPC: 760559118990 In the Box ZyXEL GS1100 16-Port Gigabit Rackmountable Unmanaged Switch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL GS1100 16-Port Gigabit Rackmountable Unmanaged Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

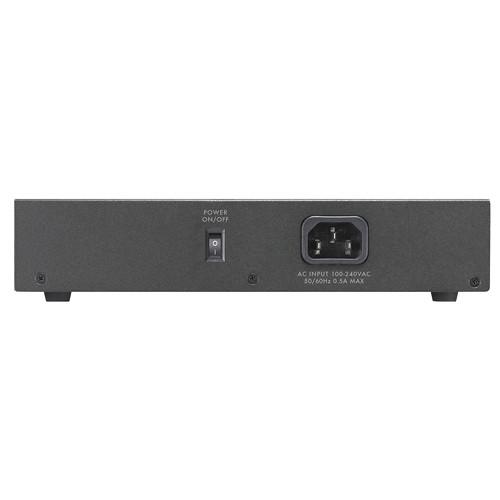

Technical parametersZyXEL GS1100-16 Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3az, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 23.8 Mpps | | Switching Bandwidth | 32 Gb/s | | Packet Buffer | 256 Kb | | | | Power Draw | 8.5 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 95% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Certifications | RoHS, as per Manufacturer | | | | Dimensions | 8.4 x 5.2 x 1.6" / 21.5 x 13.3 x 4.2 cm | | Weight | 2 lb / 1 kg | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 13.0 x 9.0 x 3.0" |
