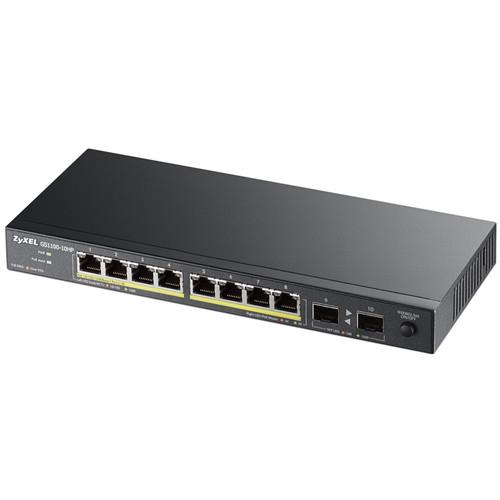

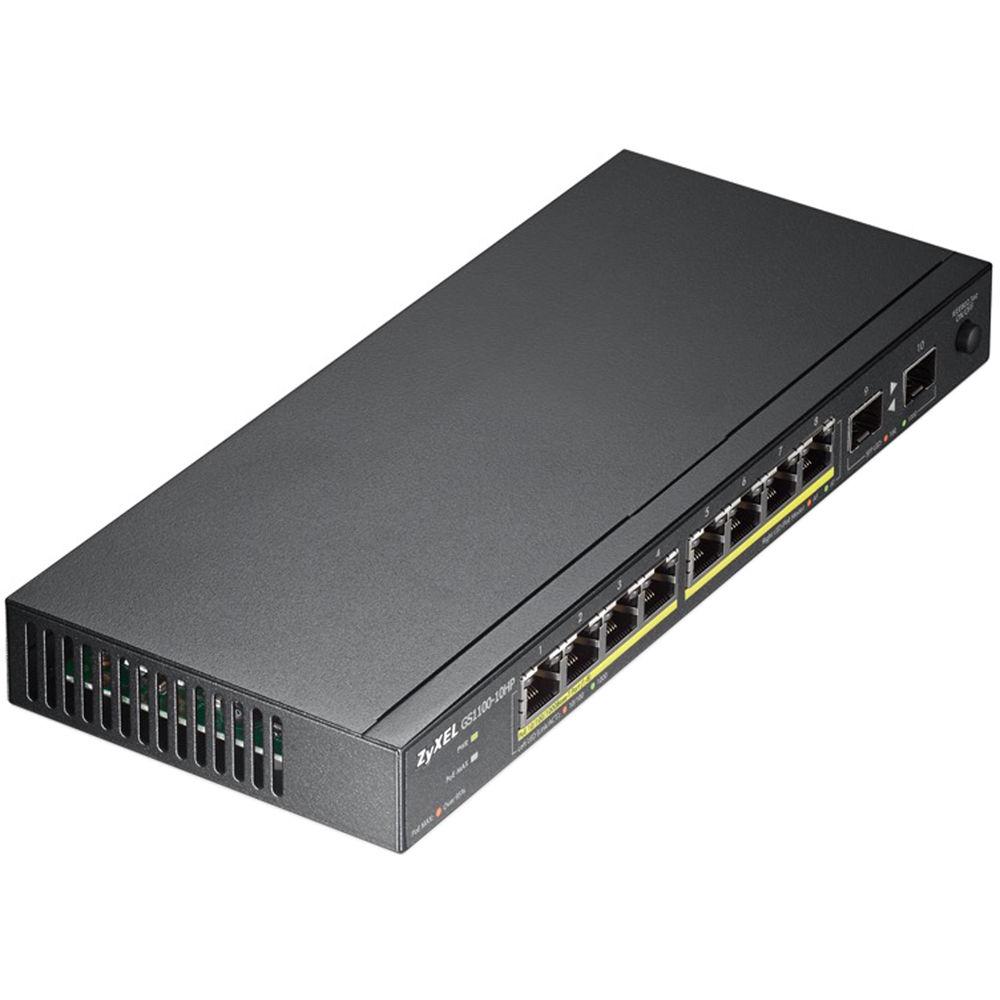

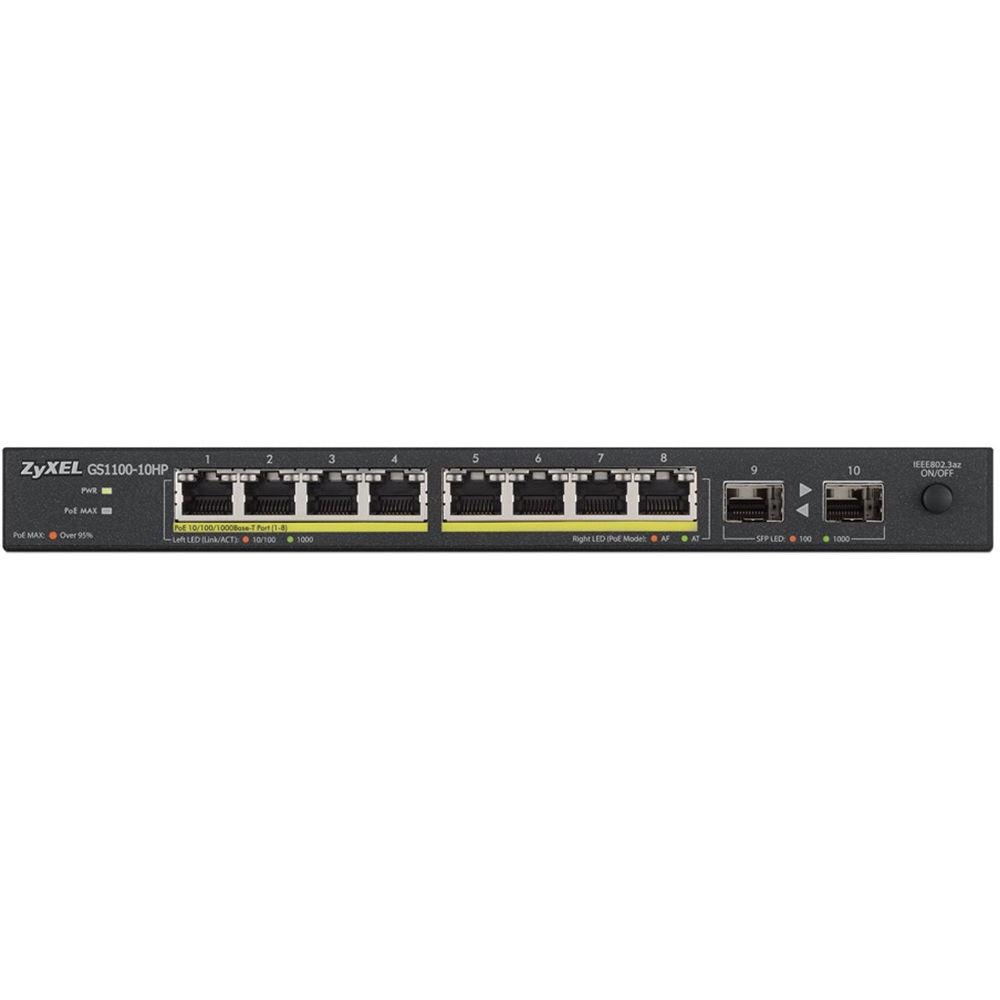

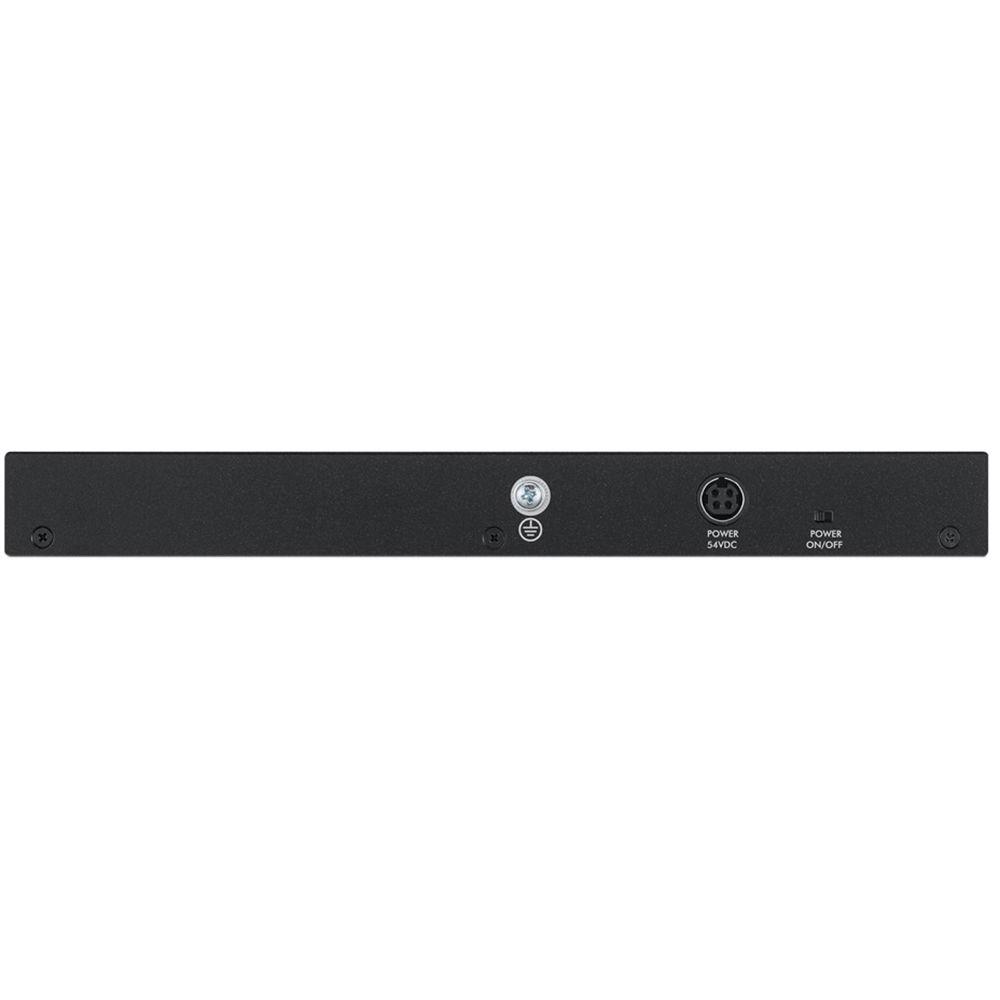

User Manual for ZyXEL GS1100 8-Port GbE Unmanaged PoE Switch with GbE Uplink Click to enlarge the picture
Contents of the user manual for the ZyXEL GS1100 8-Port GbE Unmanaged PoE
- Product category: Network Switches, Bridges & Hubs ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Switches, Bridges & Hubs
 |
User manual for the ZyXEL GS1100 8-Port GbE Unmanaged PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description Provided by third party: The ZyXEL GS1100 series is the optimal solution for instant Gigabit connectivity in office environments demanding silent operation and better energy efficiency. With power-saving functions, Gigabit Ethernet and a fanless design, the GS1100 series provides Plug and Play simplicity for high-bandwidth network applications. The GS1100 series not only offers Gigabit Ethernet connectivity for advanced network applications, but also power-saving functions for better energy efficiency. Capable of dynamically adjusting power output according to traffic, active links and cable length, the GS1100 series can reduce energy consumption.
- Key Features
-
- Non-blocking, wire-speed transmission
- Auto MDI / MDI-X support
- Fanless design for silent operation
- Jumbo frame support
- Green networking
- The GS1100 series not only offers Gigabit Ethernet connectivity for advanced network applications, but also power-saving functions for better energy efficiency. Capable of dynamically adjusting power output according to traffic, active links and cable length, the GS1100 series can reduce energy consumption.
- Fanless design
- The complete GS1100 series comes in a fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model was specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
- Gigabit to the desktop
- The ZyXEL GS1100 series offers small offices optimal 8 / 10 / 16 / 24-port Gigabit connectivity. Additionally, the GS1100-10HP model is equipped with 2 extra SFP slots, supporting dual rate that enables fiber optic connections for long-distance deployments. With Gigabit network performance, the GS1100 series is the ideal solution for bandwidth-intensive applications such as high-resolution photo transmission, video / audio streaming and server farm connections.
- Freedom of installation via PoE
- The GS1100-10HP supports the PoE Plus standard to ease the installation of network devices in challenging spaces such as ceilings or walls. The low power supply per port allows the GS1100-10HP to power PoE-enabled WLAN APs, VoIP phones and IP surveillance cameras through cables without extra power adapters. This feature helps enterprises reduce installation time and cost when there are many such devices on the network. The GS1100-10HP has been designed with eight full PoE Plus ports, which makes it an ideal connectivity solution for high-density powered device deployments. In addition, the extra two SFP links on GS1100-10HP also easily extend networks to remote locations such as branch offices and warehouses for small- and medium-size businesses.
UPC: 760559123444 Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL GS1100 8-Port GbE Unmanaged PoE Switch with GbE Uplink in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL GS1100-10HP Specs | | | Device Type | Switch - 10 ports - unmanaged | | Enclosure Type | Desktop | | Subtype | Gigabit Ethernet | | Ports | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP | | Power Over Ethernet (PoE) | PoE+ | | PoE Budget | 130 W | | Performance | Switching capacity: 20 Gbps
Forwarding performance: 14.88 Mpps | | MAC Address Table Size | 8K entries | | Jumbo Frame Support | 9KB | | Features | Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, fanless, Energy Efficient Ethernet, 256KB packet buffer, Class of Service (CoS) | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az | | | | Interfaces | 8 x 1000Base-T RJ-45 PoE+
2 x SFP | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 156.1 Watt | | | | MTBF | 1,000,070 hours | | Compliant Standards | FCC Class B certified, C-Tick Class B, RoHS, EN 60950-1, BSMI CNS 13438, BSMI CNS 14336-1 | | | | Width | 9.8 in | | Depth | 4.1 in | | Height | 1.1 in | | Weight | 25.75 oz | | | | Min Operating Temperature | 32
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
