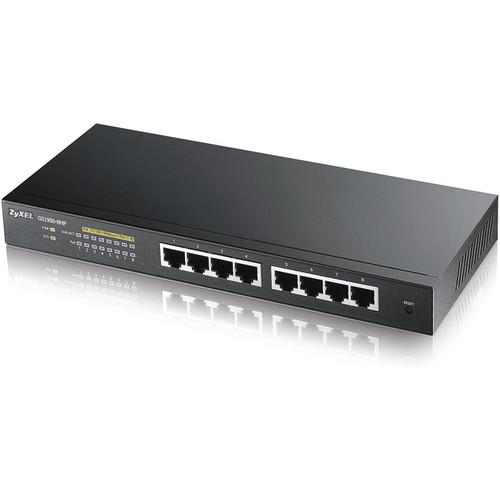

User Manual for ZyXEL GS1900 Series 8-Port GbE Smart Managed PoE Switch Click to enlarge the picture
Contents of the user manual for the ZyXEL GS1900 Series 8-Port GbE Smart
- Product category: Network Switches, Bridges & Hubs ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Switches, Bridges & Hubs
 |
User manual for the ZyXEL GS1900 Series 8-Port GbE Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The GS1900 Series 8-Port GbE Smart Managed PoE Switch from ZyXEL features 8 10/100/1000BASE-T PoE ports. The integrated setup wizard makes configuring and managing devices within the network simple and easy. Once configured, you benefit from a 16 Gbps switching capacity, 11.9 Mbps forwarding rate, an 8K MAC address table, 525 KB packet buffer, and 9K jumbo frame. The GS1900-8HP features IEEE 802.3at PoE and provides 8 PoE ports with up to 30W of power per port which allows you to extend network deployment, especially for high-powered devices such as Wi-Fi APs, IP cams and IP phones. - Versatility and Flexibility for Different Needs
- The GS1900-8HP features multiple deployment methods to fulfill the needs for small offices and meeting room environments. It's now quick and effortless to enjoy the high-speed business network applications without a hitch.
- ZyXEL ONE Network Experience
- Aiming for relieving customers from repetitive operations of deploying and managing a network, ZyXEL ONE Network is designed to simplify the configuration, management, and troubleshooting, allowing customers to focus on the business priorities. ZyXEL ONE Network presents an easy-to-use tool, ZyXEL ONE Network Utility (ZON Utility), that allows for a speedy network setup.
- Simple, Intuitive Setup Wizard
- For small businesses that want to manage their infrastructure in advance, the ZyXEL GS1900-8HP comes with a friendly built-in Web-based browser for simple configuration and management. Moreover, the friendly step-by-step intuitive wizard helps avoiding multiple complicated configuration pages for quick set up with few clicks in the matter of minutes. The ZyXEL Series offers four common steps and combines them into a quick and easy setup wizard in order to guide you through start-up, VLAN, Guest, or VLAN to QoS setting. This is designed to save deployment time and efforts, and to ease the process for non-IT staff.
- Avoiding Network Errors with Easy Management
- The ZyXEL GS1900-8HP is equipped with advanced management features to make the network stable and secure. The loop protection prevents network flooding, and the dual images are designed to provide a backup FW if one crashes. The storm control features are designed to ensure network efficiency, and the friendly On/Off DoS allows you to enable/disable with simple click, instead of opening several setup pages. The SSL ensures the management frames are well encrypted when the device is accessed. The GS1900-8HP provides network error prevention features and integrated network security for reduced risk and improved data streaming.
- Energy Saving for IEEE 802.3az
- The built-in IEEE 802.3az Energy Efficient Ethernet (EEE) and more ZyXEL innovative green features of ZyXEL GS1900-8HP can reduce energy consumption of Ethernet devices through multiple intelligent ways.
- Intelligence to Power More Devices
- ZyXEL's Intelligent PoE feature provides two PoE supply modes: classification mode and consumption mode. Especially in consumption mode, the GS1900-8HP reserves the actual required power automatically, and allows you to set power feeding priorities on different ports in order to optimize the usage of the power resource. This function allows for an increased number of devices that can be connected, and delivers a better ROI for the business. In addition, the GS1900-8HP supports the IEEE 802.3at standard on all ports.
UPC: 760559120993 In the Box ZyXEL GS1900 Series 8-Port GbE Smart Managed PoE Switch Power Cord Power Adapter Wall Mount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL GS1900 Series 8-Port GbE Smart Managed PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL GS1900-8HP Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 1) | | | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 8K | | | | Forwarding Rate | 11.9 Mpps | | Switching Bandwidth | 16 Gb/s | | Packet Buffer | 525 Kb | | | | Power Draw | 90.00 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 70 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 95% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Noise Level | 0.0 dB | | | | Cooling System | Passive | | Mean Time Between Failures (MTBF) | 533,086 Hours | | Dimensions | 9.8 x 4.1 x 1.1" / 25 x 10.4 x 2.7 cm | | Weight | 2 lb / 1 kg | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 11.89 x 8.898 x 2.598" |
