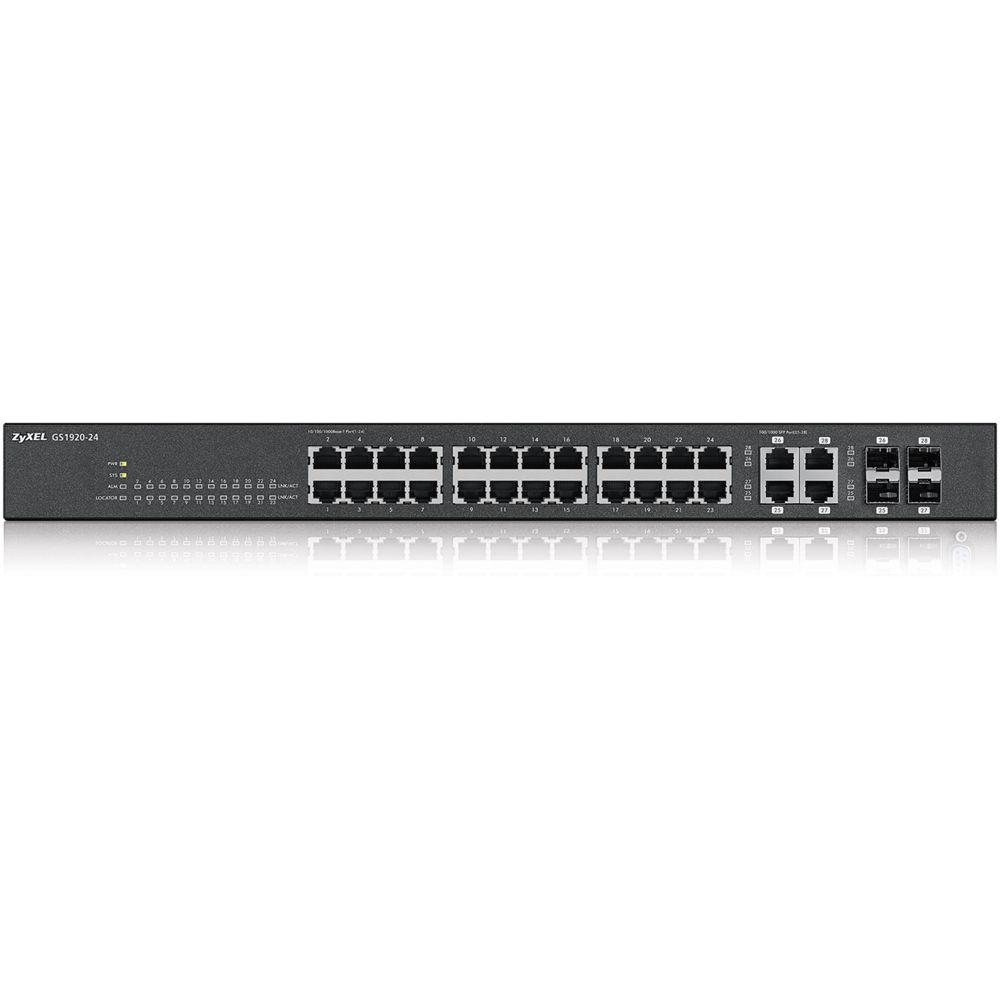

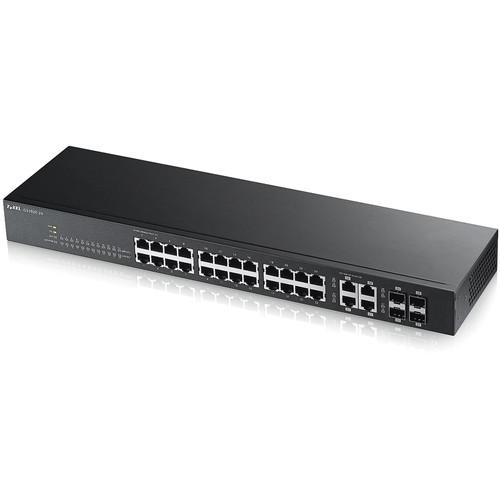

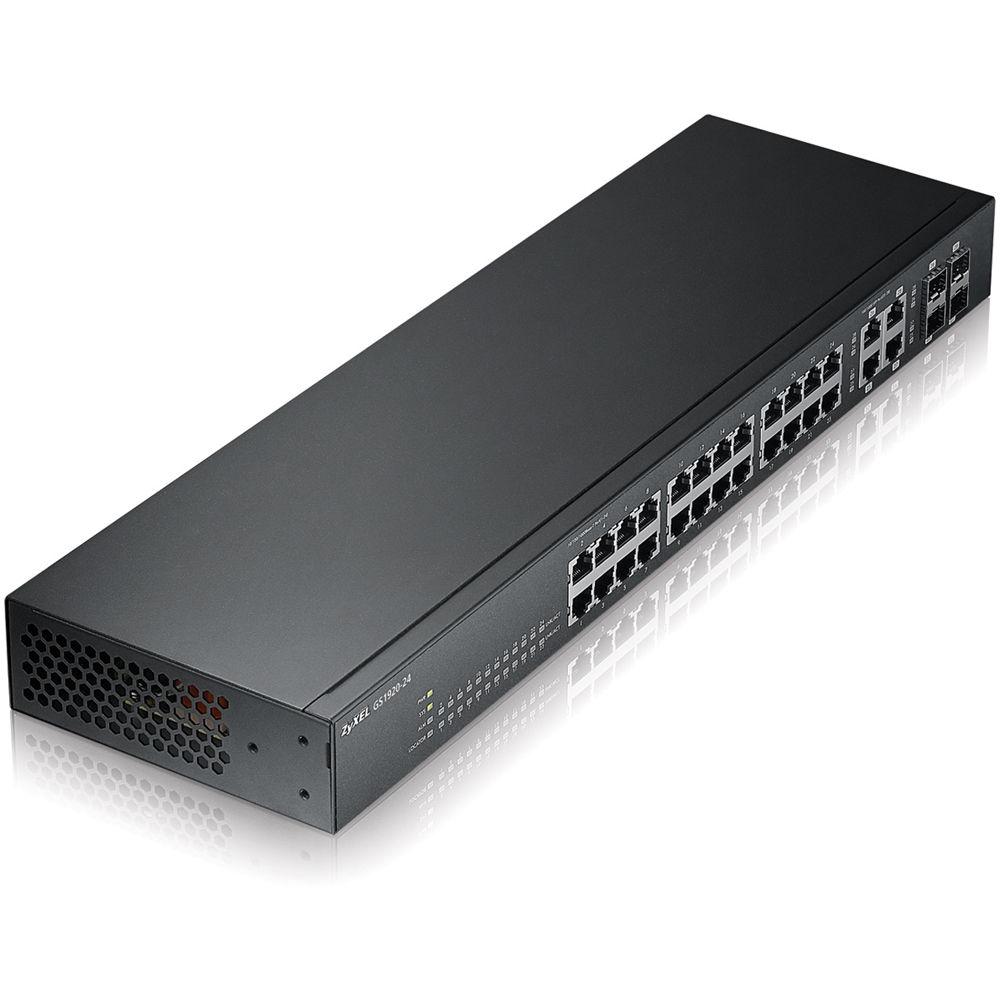

Product description Attach a variety of devices including access points, IP cameras, and more to the GS1920-24 24-Port GbE Smart Managed Switch from ZyXEL. With 24 Gigabit Ethernet ports and 4 Gigabit SFP/RJ-45 combo ports this switch supports a variety of networking devices. The four SFP ports are designed to support a variety of connection options including SONET, gigabit Ethernet, Fibre Channel, and more.
The GS1920-24 features a 56 Gbps switching capacity to ensure the switch can handle a large amount of data quickly and efficiently while the 16 K MAC address table allows you to store a large number of MAC addresses. Additionally, the GS1920-24 comes equipped with features designed to guard against network disruptions including Loop Guard, IP Source Guard, and dual firmware imaging. - ZyXEL ONE Network Experience
- Aimed at relieving customers from repetitive operations of deploying and managing a network, ZyXEL ONE Network is designed to simplify the configuration, management, and troubleshooting, allowing customers to focus on the business priorities. ZyXEL ONE Network presents an easy-to-use tool, ZyXEL ONE Network Utility (ZON Utility), to speed up network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. ZyXEL ONE Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
- Robust Network Availability
- Network disruptions are a frequent source of headaches for small to medium-sized businesses. Whether outages are caused by internal errors or outside attack, this ZyXEL GS1920-24 switch protects users from network disruptions and ensures uninterrupted connectivity through several key features. Loop Guard helps networks avoid service disruptions caused by switching loops, and IP Source Guard (IPSG) shields your network from MAC spoof and ARP spoof attacks. Additionally, attacks such as BPDU, ARP and IGMP can target network facilities. However, CPU protection guarantees that a network continues to operate, even while under attack. Furthermore, dual firmware image and configuration features improve network reliability and availability.
- Access Protection to Secure the Network
- The ZyXEL GS1920-24 switch provides efficient allocation of network resources while ensuring comprehensive access protection, along with simple and secure network control. Not only does the GS1920-24 switch support 802.1X authentication with RADIUS, it can monitor, filter and police all traffic between clients within the same subnet, creating an even higher degree of security.
UPC: 760559121389 In the Box ZyXEL GS1920-24 24-Port GbE Smart Managed Switch Power Cord Rack Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL GS1920-24 24-Port GbE Smart Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL GS1920-24 Specs | | | Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
4 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | MAC Address Table Size | 16K | | | | Forwarding Rate | 41.67 Mpps | | Switching Bandwidth | 56 Gb/s | | Packet Buffer | 1.5 MB | | | | Power Draw | 27.2 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 10 to 95% | | | | Mean Time Between Failures (MTBF) | 211,623 Hours | | Dimensions | 17.4 x 5.2 x 1.7" / 44.1 x 13.1 x 4.4 cm | | Weight | 5 lb / 2 kg | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 21.8 x 9.5 x 3.2" |
