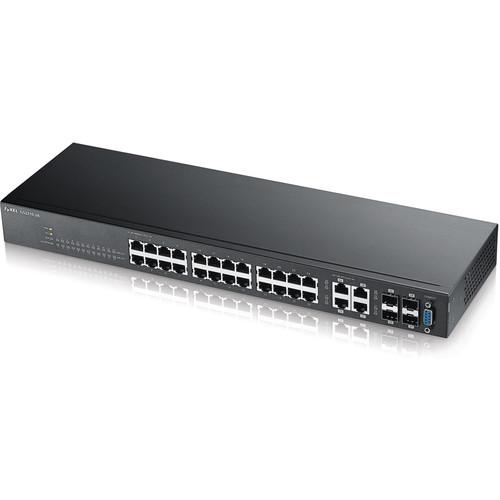

User Manual for ZyXEL GS2210 Series 24-Port GbE L2 Ethernet Switch Click to enlarge the picture
Contents of the user manual for the ZyXEL GS2210 Series 24-Port GbE L2
- Product category: Network Switches, Bridges & Hubs ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Switches, Bridges & Hubs
|
User manual for the ZyXEL GS2210 Series 24-Port GbE L2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The GS2210 Series 24-Port GbE L2 Ethernet Switch from ZyXEL features advanced and intelligent Power over Ethernet (PoE) functions that simplify and lower the cost of PoE deployments such as IP telephony, WLAN and IP surveillance. The switch supports the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30W of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge. The intelligent PoE technology used in the switch can automatically detect the power requirements of each PoE device and supply only what is needed, minimizing overall power consumption while maximizing the number of devices the switch can power.
Equipped with an extensive array of access security, traffic security and network storm protection features, the switch offers enhanced control and isolation for improved convergence of video, voice and data. Such advanced defense mechanisms as IP source guard, DHCP snooping and ARP inspection can detect and block intentional network attacks. The CPU protection function ensures normal switch operation by preventing malicious traffic from trying to shut down the switch. Combining multiple L2, L3 and L4 filtering mechanisms with such education and hospitality-friendly features as MAC freeze, port isolation and guest VLAN, the switch offers a high level of security, flexibility and control for diverse access layer deployments.
Full IPv6 support together with features including auto-configuration, duplicate address prevention, dual-stack (IPv4 and IPv6) and neighbor discovery, the switch helps businesses and organizations stay ahead and get ready for future IPv6 networks. - Fully managed Layer 2 switching solution
- High power budget of 375W / 24 - 48HP and 180W / 8HP
- L2 multicast, IGMP snooping, MVR and voice VLAN for convergence
- Enhanced network protection with IP source guard, DHCP snooping, ARP inspection, CPU protection
- L2, L3 and L4 filtering, MAC freeze, port isolation, guest VLAN for improved isolation and access control
- ZyXEL One Network supported
UPC: 760559121433 In the Box ZyXEL GS2210 Series 24-Port GbE L2 Ethernet Switch Power Cord Console Cable Rack Mounting Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL GS2210 Series 24-Port GbE L2 Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL GS2210-24P Specs | | | Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
4 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | MAC Address Table Size | 16K | | | | Forwarding Rate | 41.67 Mpps | | Switching Bandwidth | 56 Gb/s | | Packet Buffer | 1.5 MB | | | | Power Draw | 25.9 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 95% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 10 to 95% | | Noise Level | 0.0 dB | | | | Cooling System | Passive | | Mean Time Between Failures (MTBF) | 211,623 Hours | | Dimensions | 17.4 x 5.2 x 1.7" / 44.1 x 13.1 x 4.4 cm | | Weight | 8 lb / 3 kg |
