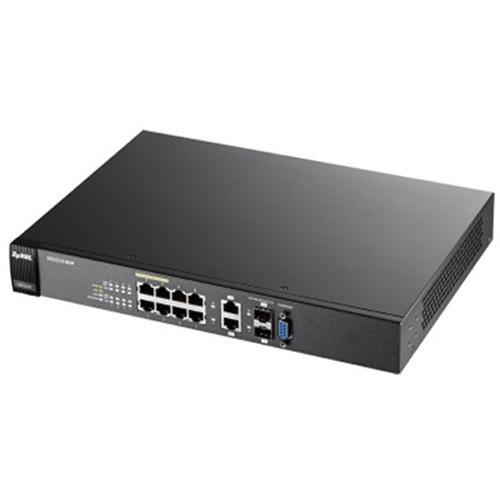

User Manual for ZyXEL GS2210 Series 8-Port Gigabit PoE Managed Switch Click to enlarge the picture
Contents of the user manual for the ZyXEL GS2210 Series 8-Port Gigabit PoE
- Product category: Network Switches, Bridges & Hubs ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Switches, Bridges & Hubs
|
User manual for the ZyXEL GS2210 Series 8-Port Gigabit PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The GS2210 Series 8-Port Gigabit PoE Managed Switch from ZyXEL is a fully featured Layer 2 Gigabit access switch with 8 x 100/1000 Mbps PoE ports and 2 x Gigabit combo (SFP/RJ45) ports ideal for voice, video, and data networking. Once configured, it'll provide a 20 Gbps switching capacity, a 15Mpps forwarding rate, a 1.5 Mb packet buffer, and a 16K MAC address table. Furthermore, this model complies with the IEEE 802.3af PoE and 802.3at PoE Plus standards and provides a 180W PoE power budget. Combined with agile traffic control, network isolation, and high level network and access security, it'll be able to handle your network traffic safely and efficiently. - Agile Traffic Control
- With support for L2 multicast and IGMP snooping, the GS2210 Series can handle large IPTV deployments efficiently by directing multicast traffic to subscribers only. The Multicast VLAN Registration (MVR) function ensures network security by allowing a single multicast VLAN to be shared in the network while subscribers remain in separate VLANS. For voice, it uses OUI to detect compliant IP phones and assigns the traffic to a dedicated voice VLAN with appropriate QoS prioritization.
- Intelligent and High-Powered Power over Ethernet (PoE)
- This series of L2 PoE switches support IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced powered devices such as 802.11ac wireless APs and video IP phones. By enabling "Consumption Mode", the switch will automatically detect the power consumption of each device and supply only the amount required thereby minimizing unused power.
- High Level Network and Access Security
- The ZyXEL GS2210 Series is equipped with an extensive array of access security, traffic security, and network storm protection features that offer enhanced control and isolation for improved voice, video, and data. It includes IP source guard, DHCP snooping, and ARP inspection that can detect and block intentional network attacks. Furthermore, CPU protection prevents malicious traffic from trying to shut down the switch.
- Future-Proof Connectivity
- The ZyXEL GS2210 Series helps businesses and organizations prepare for IPv6 networks with full IPv6 support and features including auto-configuration, duplicate address prevention, dual-stack (IPv4 and IPv6), and neighbor discovery.
- ZyXEL ONE Network Experience
- Aiming for relieving customers from repetitive operations of deploying and managing a network, ZyXEL ONE Network is designed to simplify the configuration, management, and troubleshooting, allowing customers to focus on the business priorities. ZyXEL ONE Network presents an easy-to-use tool, ZyXEL ONE Network Utility (ZON Utility) that allows for a speedy network setup.
UPC: 760559121754 In the Box ZyXEL GS2210 Series 8-Port Gigabit PoE Managed Switch Power Cord Rack Mounting Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL GS2210 Series 8-Port Gigabit PoE Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL GS2210-8HP Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 1)
2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | Layer Services Supported | Layer 2 Support | | MAC Address Table Size | 16K | | | | Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 15 Mpps | | Switching Bandwidth | 20 Gb/s | | Packet Buffer | 1.5 MB | | | | Power Draw | 229.1 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 180 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 95% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 10 to 90% | | Noise Level | 53.2 dB | | Certifications | RoHS, as per Manufacturer | | | | Mean Time Between Failures (MTBF) | 1,155,719 Hours | | Dimensions | 13 x 9.1 x 1.7" / 33 x 23.1 x 4.4 cm | | Weight | 6 lb / 3 kg |
