User Manual for ZyXEL NAP203 802.11ac Wireless Dual-Band Cloud Managed Access Point Click to enlarge the picture
Contents of the user manual for the ZyXEL NAP203 802.11ac Wireless Dual-Band Cloud
- Product category: Wireless Access Points ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Wireless Access Points
 |
User manual for the ZyXEL NAP203 802.11ac Wireless Dual-Band Cloud contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|

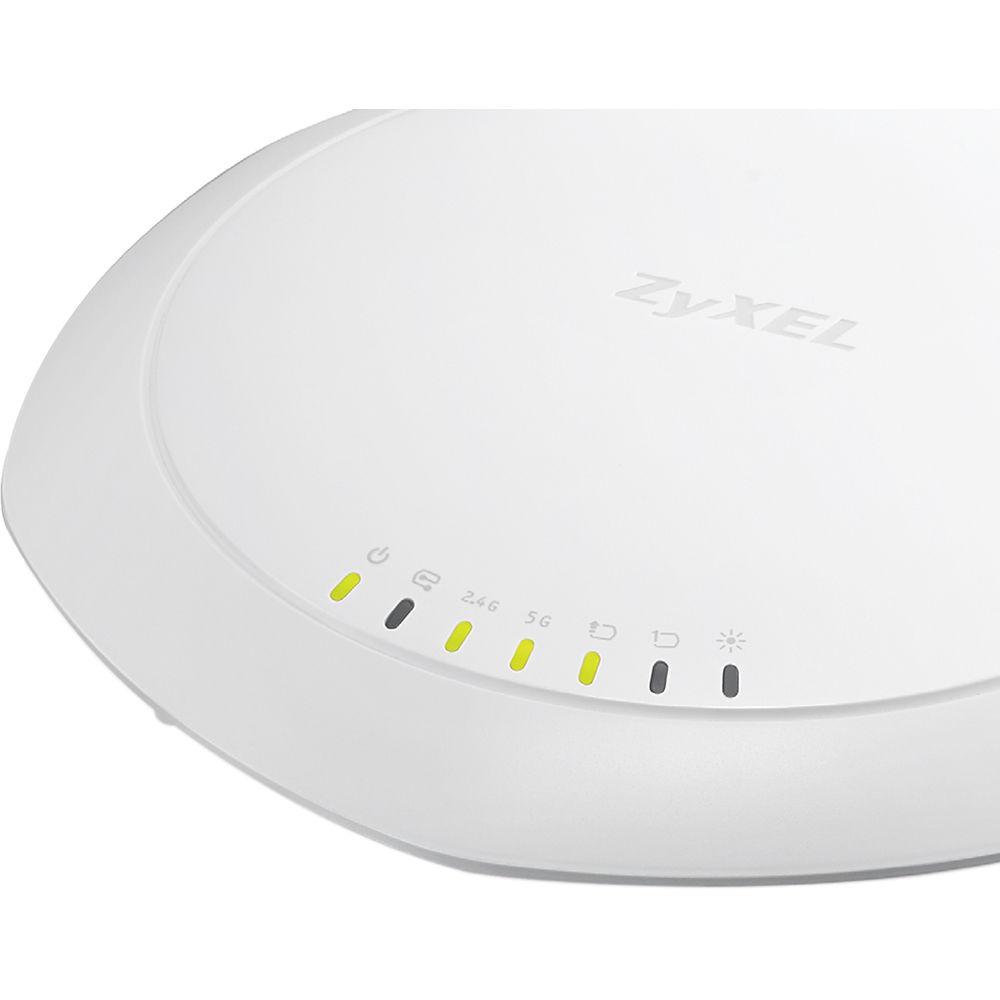

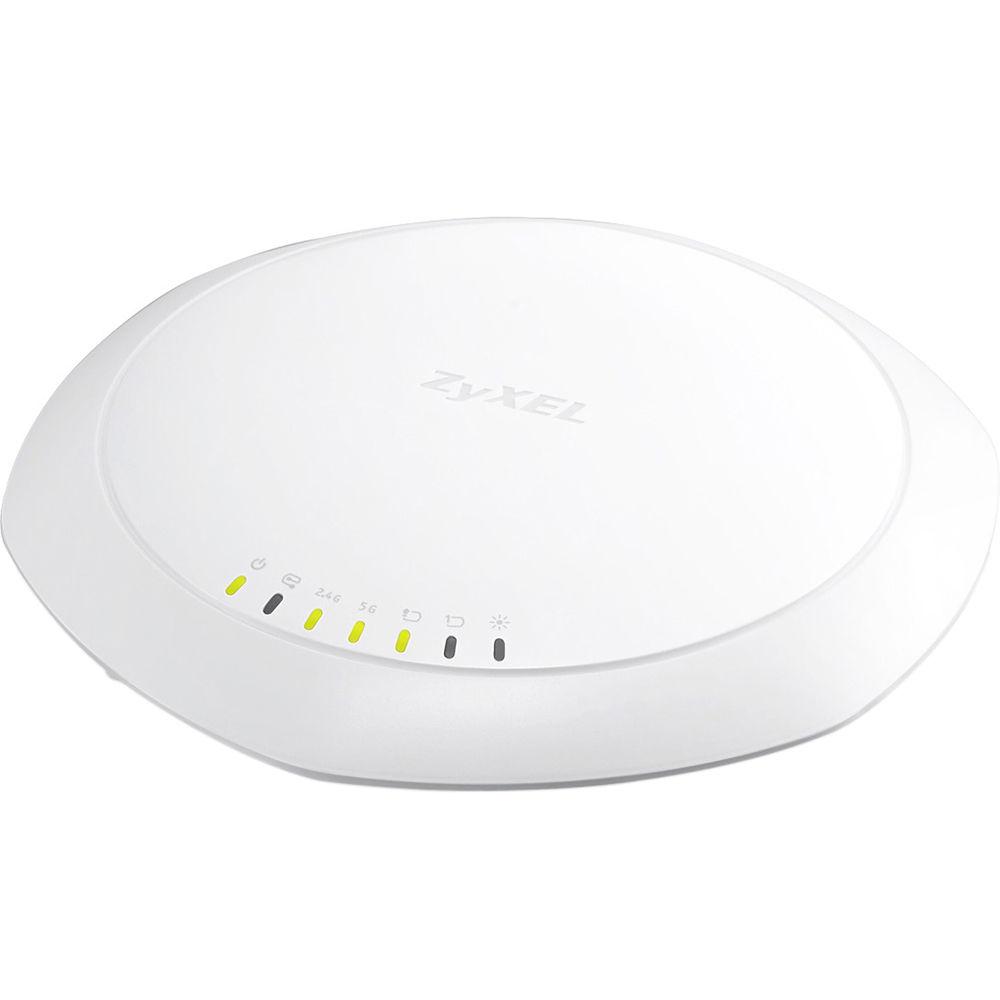

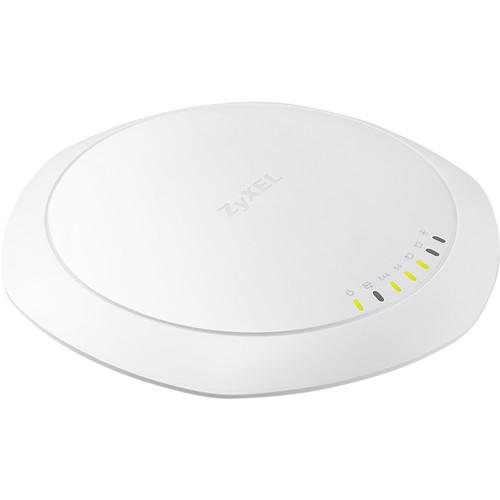

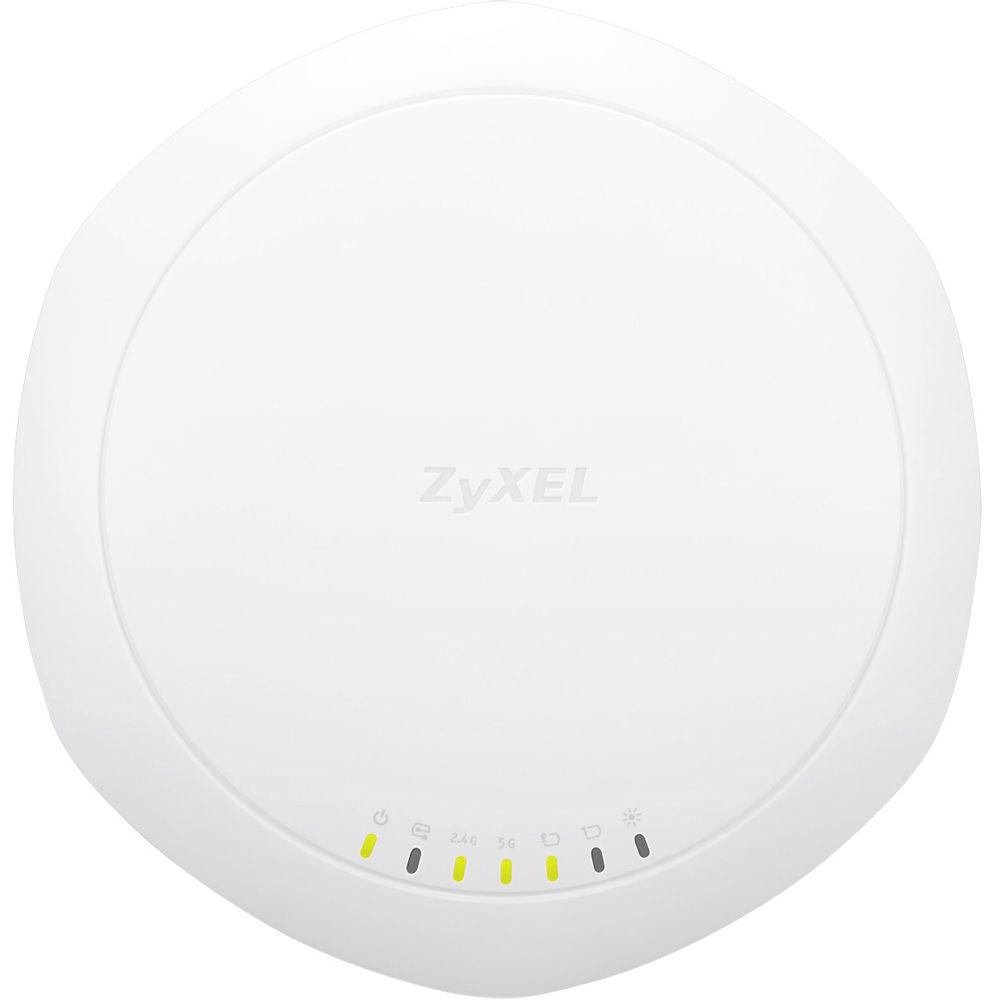

Product description With access to the Zyxel Nebula cloud, the NAP203 802.11ac Wireless Dual-Band Cloud Managed Access Point from Zyxel can practically configure itself once the installation process is complete. Once configured, this wireless access point can be managed using the intuitive Nebula cloud management application making it easy to manage multiple access points from a single user interface.
The NAP203 Cloud Managed Access Point supports the 802.11ac Wi-Fi standard and features a 3x3 antenna configuration with MIMO connectivity supporting wireless data transfer rates of up to 950 Mbps. With support for dual-band connectivity, users have the option to connect to the less-congested 5 GHz frequency for data-intensive tasks such as streaming multimedia content, downloading large files, and more. In addition to enhanced network performance, the NAP203 offers improved network security with support for WPA, WPA2, WEP, MAC filtering, RADIUS authentication, and more. - Zero Touch Deployments

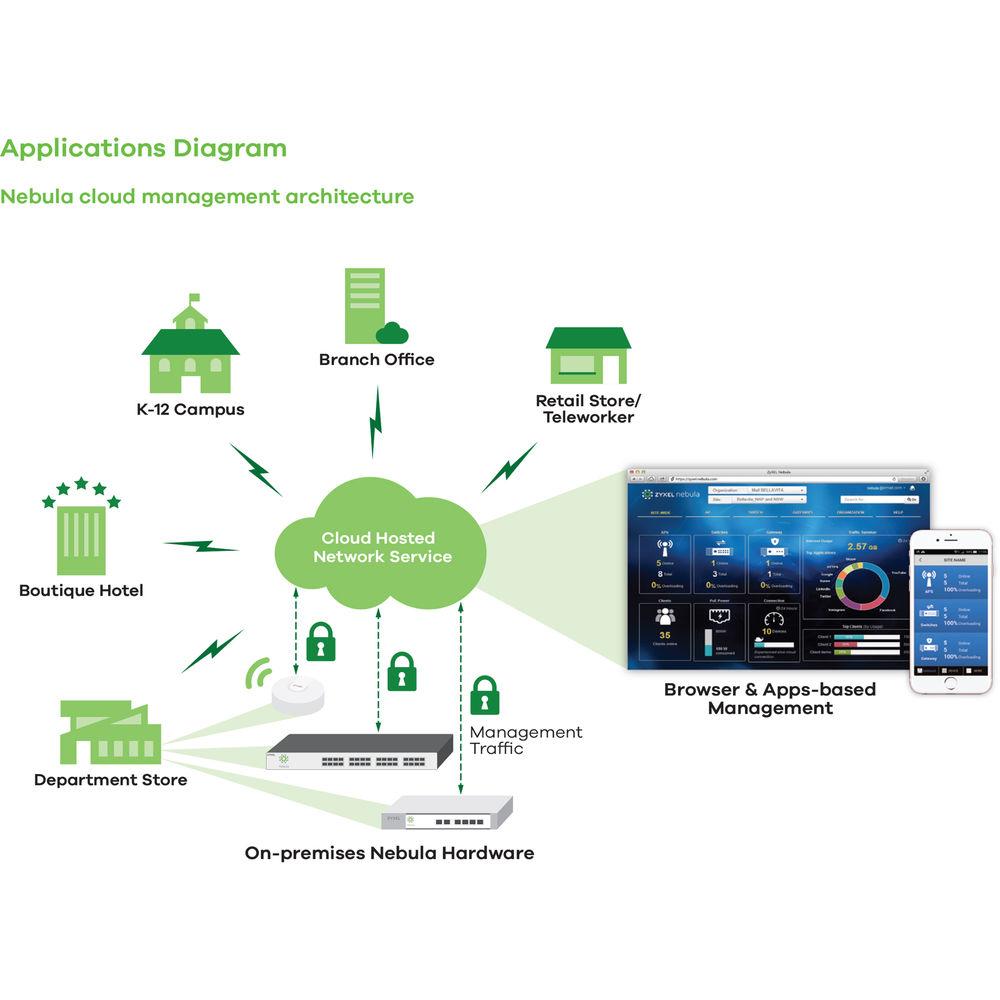

- The Zyxel Nebula Access Points auto-configure themselves after installation, and then automatically connect to the Nebula cloud, so auto-configuration, provision, monitoring and diagnostics can be performed anytime, anywhere that even non-IT professionals can handle these easily.

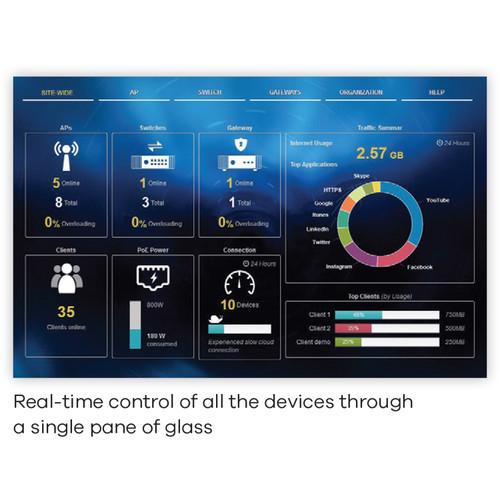

- Single Pane of Glass Management

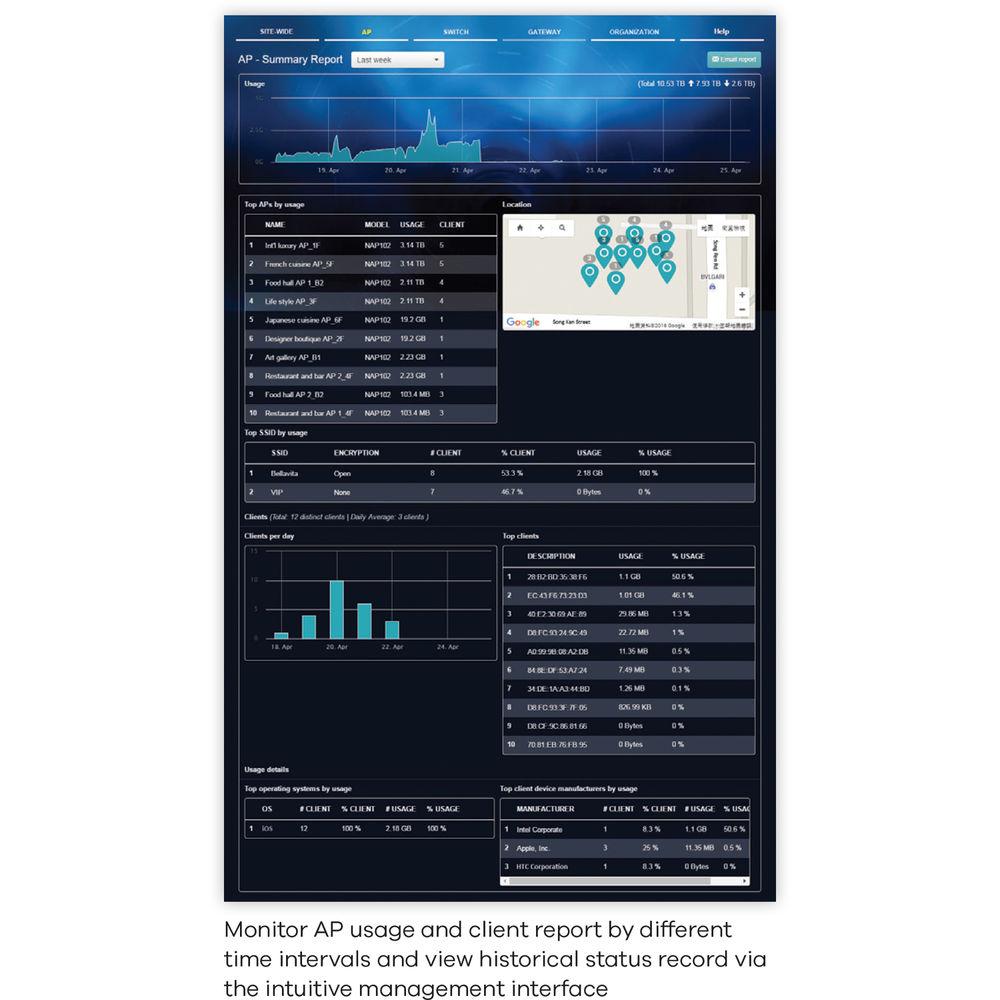

- Every Nebula access point is managed through the cloud, with the intuitive management interface that enables administrators to control all the distributed access points under a single pane of glass quickly, even without training.
- Enhanced Performance

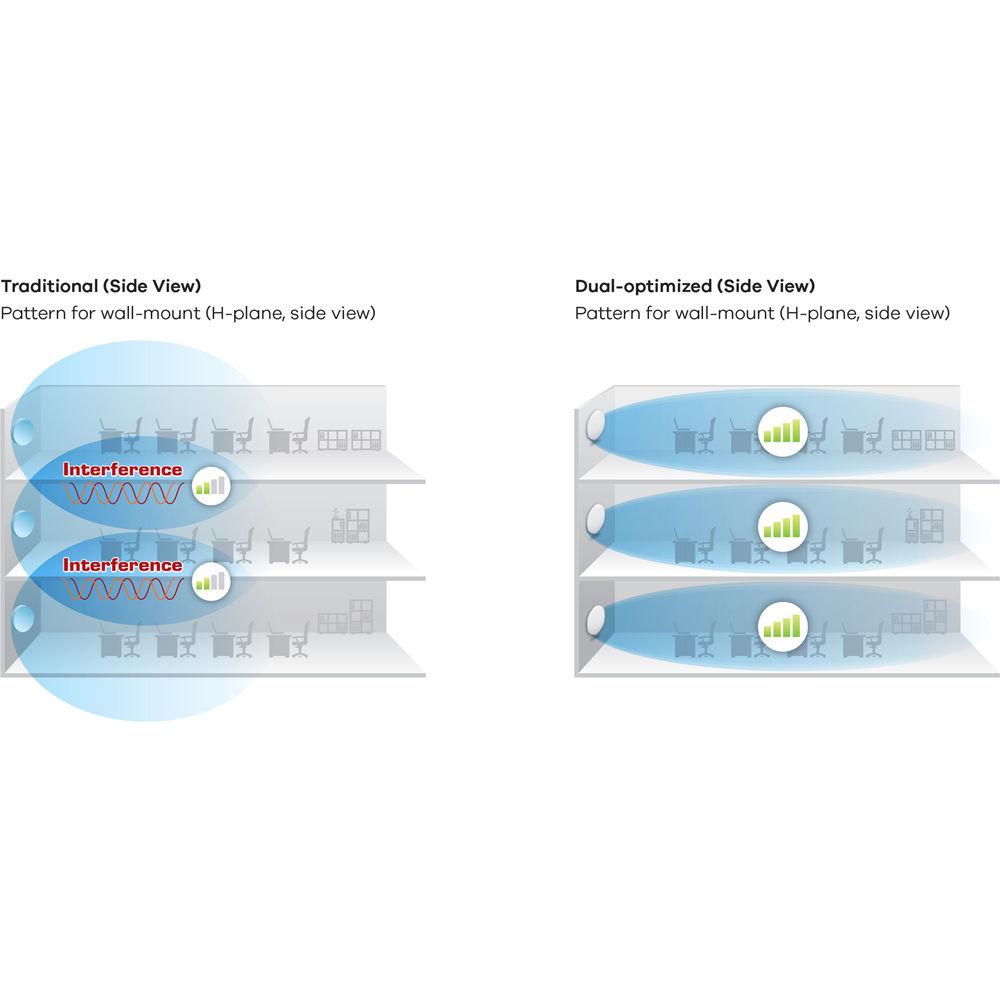

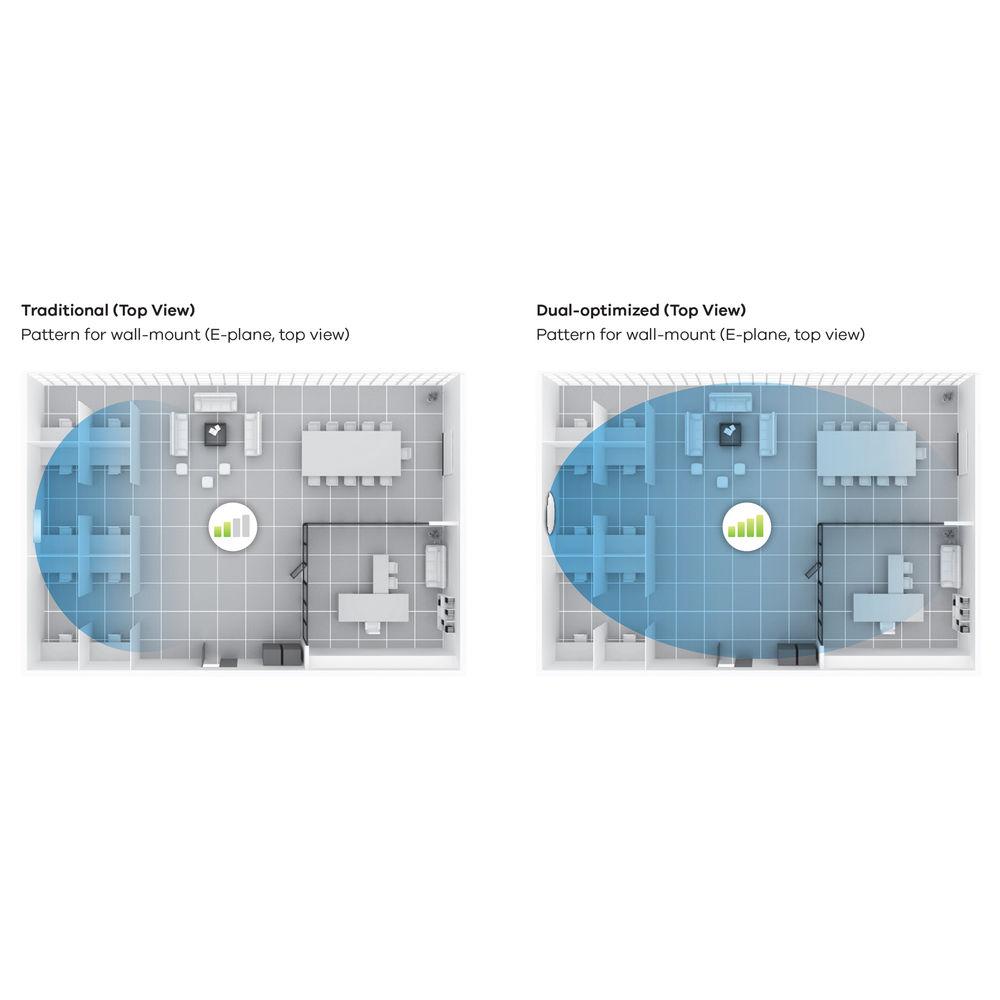

- Every Zyxel Nebula access point is completely cloud managed; the comprehensive portfolio offers different product options to fit various needs of deploying networks. To provide premium performance with greater capacity and more coverage, the Zyxel Nebula access points are built with innovative antenna technology such as Smart Antenna and Dual-optimized Antenna. The advanced antenna design adapts to different scenarios and handles a variety of tough deployments, including high-capacity, high-performance and interference-laden environments.
- Improved Wireless Experience
- Comprehensive wireless features such as Dynamic Channel Selection (DCS), Load Balancing, and Smart Client Steering provide more stable, reliable, and faster connections so the Zyxel Nebula access point can deliver a more optimized wireless experience to users.
- Enterprise Security
- In terms of network security, the Zyxel Nebula APs include powerful security features for privacy, authentication and data-encryption protection. The Zyxel Nebula APs implement the NETCONF protocol, which is considered as the most suitable protocol for cloud networking, to ensure all data traffic between the cloud and devices is exchanged using secure transports.
In the Box ZyXEL NAP203 802.11ac Wireless Dual-Band Cloud Managed Access Point Wall / Ceiling Mount Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL NAP203 802.11ac Wireless Dual-Band Cloud Managed Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL NAP203 Specs | RF Specifications | 802.11n/ac
3x3 Multiple-Input Multiple-Output (MIMO) with three spatial streams
Maximal Ratio Combining (MRC)
20-, 40- and 80-MHz channels
Packet Aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
Cyclic Delay Diversity (CSD) support
Maximum Likelihood Demodulation (MLD) support
Low Density Parity Check (LDPC) support
Antenna System
Dual-optimized internal antenna
Antenna Gain
Ceiling: 2.4 GHz 3 dBi; 5 GHz 4 dBi
Wall: 2.4 GHz 4 dBi; 5 GHz 5 dBi
Data Rate
802.11a/g: 1, 2, 5.5, 6, 9,11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n: Up to 450 Mbps in MCS23 (40 MHz)
802.11ac: Up to 1300 Mbps in MCS9 (80 MHz)
Receive Sensitivity
Min. Rx sensitivity up to -102 dBm | | WLAN | WLAN Maximum Throughput
Up to 900 Mbps
Wireless Security
WEP
WPA/WPA2-PSK
WPA/WPA2-Enterprise
Multiple EAP types
IEEE802.1X
MAC filtering
Layer-2 isolation
RADIUS authentication
More encryption supported and captive portal
Network
VLANs
DHCP Client
QoS (PG)
WMM
WMM Power Save

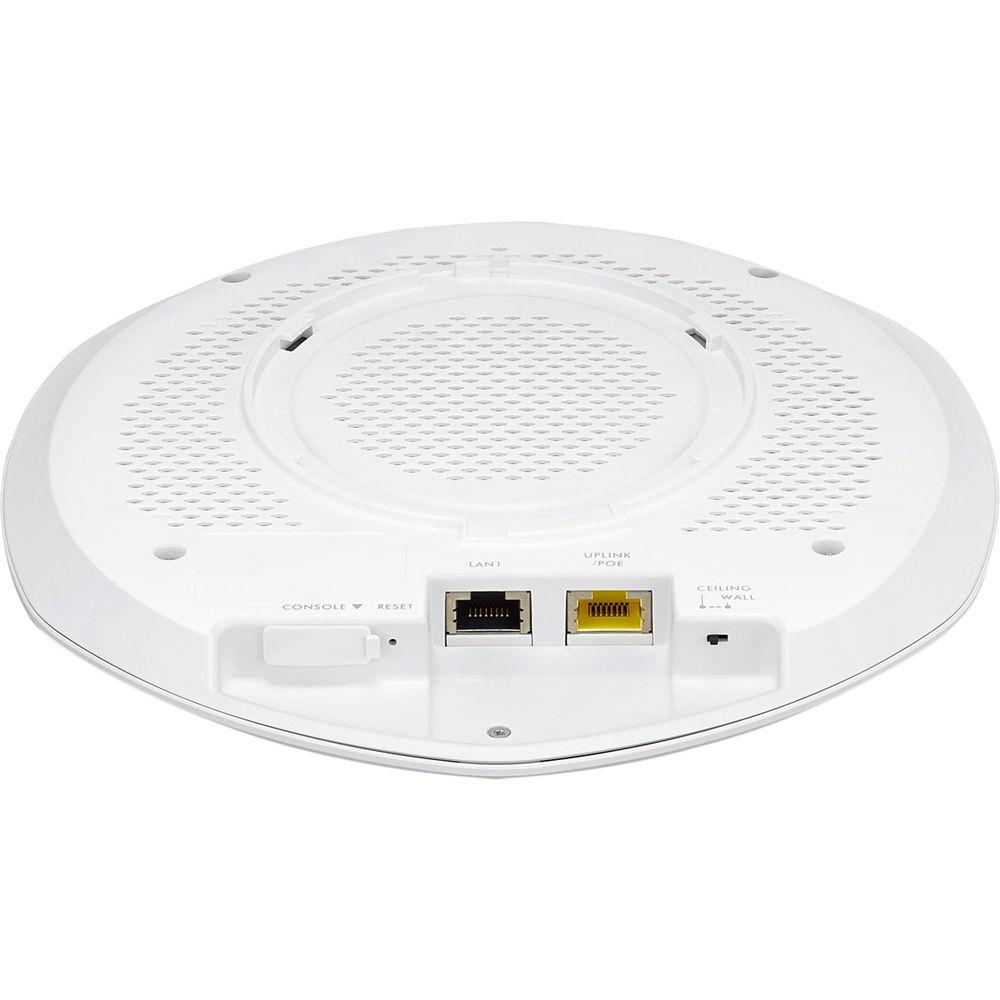

DiffServ Marking | | Physical Interfaces | LAN Ports
2
Console Port
4-Pin Serial
PoE Power Draw
12.48 W (802.3at PoE)
Input Power
802.3at PoE only (no DC jack) | | Standard Compliance | Ethernet
IEEE 802.3
IEEE 802.3u
IEEE 802.11ab
IEEE 802.3au
IEEE 802.3az
IEEE 802.3at
PoE
IEEE 802.3at
WLAN
802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16-QAM, 64-QAM
802.11a: BPSK, QPSK, 16-QAM, 64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 64-QAM, 256-QAM | | Certifications | Radio
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
EN60601-1-2
BSMI CNS13438
Safety
EN 60950-1
IEC 60950-1
BSMI CNS14336-1 | | Temperature & Humidity | Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-40 to 158°F / -30 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
10 to 90% non-condensing | | Dimensions | 8.03 x 7.55 x 1.37" / 203.9 x 191.7 x 34.7 mm | | Weight | 0.98 lb / 445 g |
