User Manual for ZyXEL NAS520 2-Bay Personal Cloud Storage Server Click to enlarge the picture
Contents of the user manual for the ZyXEL NAS520 2-Bay Personal Cloud Storage
- Product category: NAS Enclosures ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL NAS Enclosures
 |
User manual for the ZyXEL NAS520 2-Bay Personal Cloud Storage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|

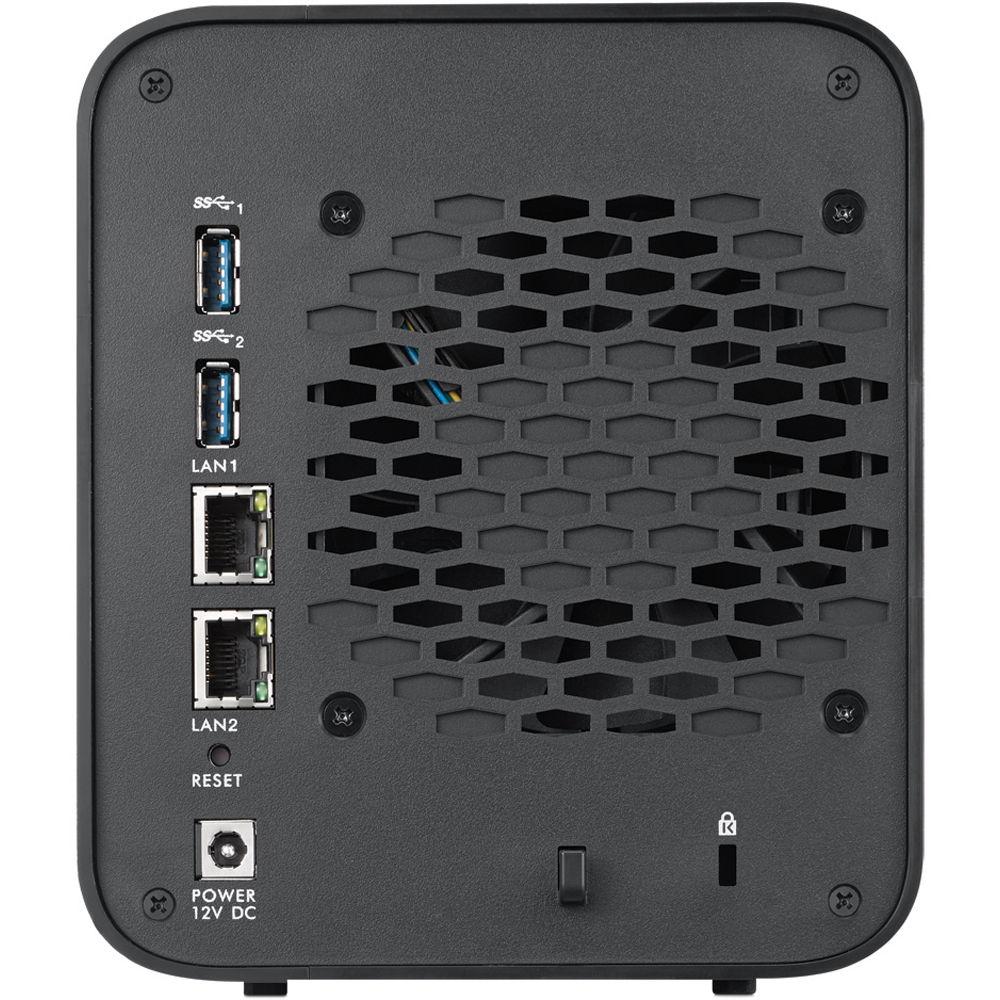

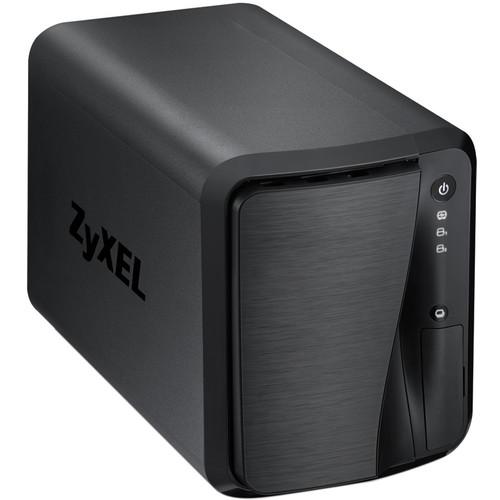

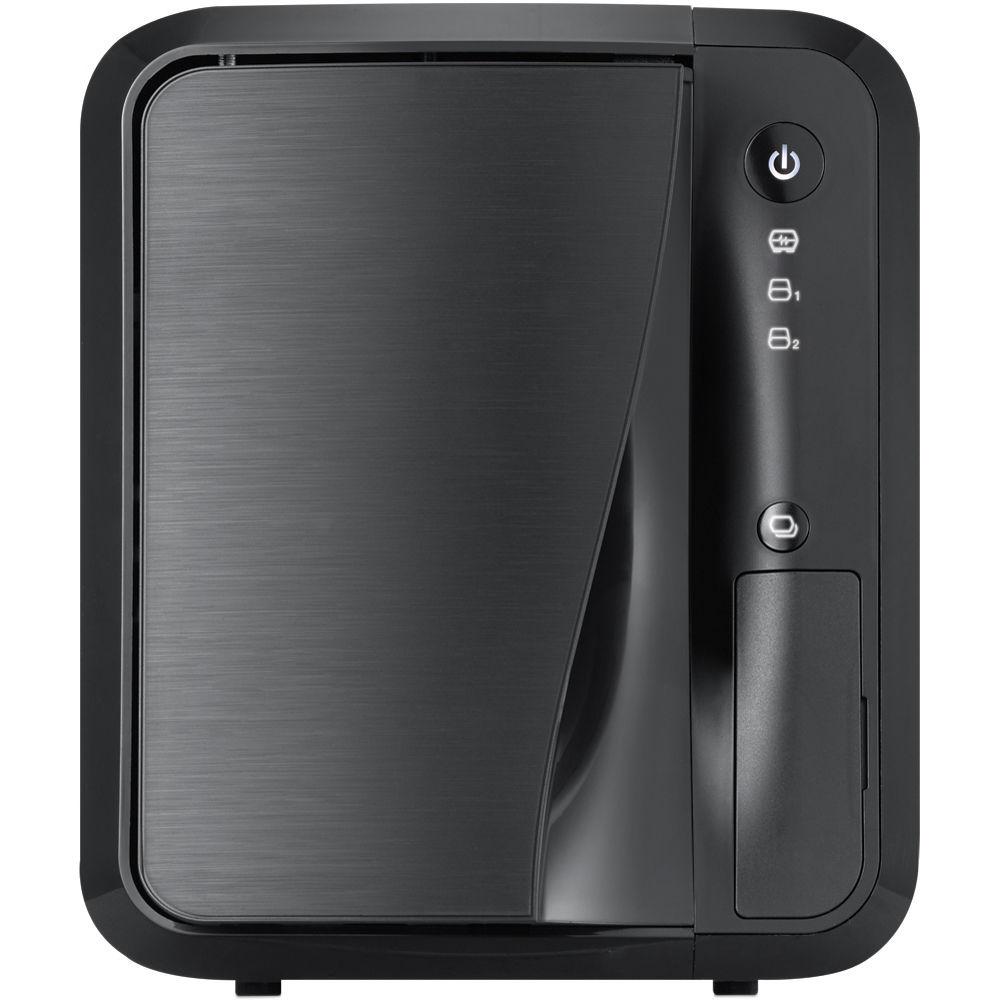

Product description The ZyXEL NAS520 2-Bay Personal Cloud Storage Server offers two drive bays along with access to the myZyxelCloud website, so you can build your own private cloud. The two hot-swap bays have a tool-less design and can accommodate SSDs and hard drives with a 2.5" or 3.5" form factor. Once drives are installed, you can configure your drives for performance or data redundancy with RAID 1 or 0 modes. You can also set them as a JBOD array. The NAS520 is powered using a 1.2 GHz FreeScale FS1024 dual-core processor with 1GB of DDR3 RAM and features read speeds of up to 106 MB/s and write speeds of up to 85 MB/s. It connects to your network via two Gigabit Ethernet ports, which support link aggregation to help deliver increased network transfer speeds. Other notable connections include three USB 3.0 ports for transferring content from external storage drives. There's also a card slot that supports SDXC memory cards. - Performance
- The Zyxel NAS520 is equipped with a 1.2 GHz dual-core processor and link aggregation, which utilizes both Ethernet ports to provide up to 106 MB/s read and above 85 MB/s in write.
- Hot-Swap Support
- The hot-swapping feature enables quick hard drive replacement without shutting down or interruption while the system is in operation.
- Tool-Free Design
- You can install your drives to the included trays without tools.
- Cloud
- You can create a personal cloud and access all your digital contents away from your home on your favorite mobile device with myZyxelCloud, which is a free Dynamic Domain Name system from Zyxel.
- Cooling
- The quiet 90mm fan cools down the drives inside for better protection from heat damage.
- Simple Set Up
- App center is provided to help you install and update apps.
UPC: 760559123734 In the Box ZyXEL NAS520 2-Bay Personal Cloud Storage Server Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL NAS520 2-Bay Personal Cloud Storage Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL NAS520 Specs | | | Network Protocol | CIFS/SMB for Windows
NFS for Linux/Unix
AFP for Mac
DHCP client
PPPoE
Network Time Protocol (NTP) | | Web Server | WebDAV
FTP server
phpMyAdmin/MySQL/PHP
RSS client & server
Print server (CIFS)
Remote Access Support (DyDNS) | | Network Management | User & group management
Package Management for setting up applications | | Network Security | Support HTTPS and FTPES (FTP over explicit TLS/SSL)
Encrypted NAS to NAS remote replication
Encrypted NAS to external disk archive backup | | Backup Support | One-touch copy/sync button for external USB/SD-capable devices backup
Backup planner: Instant/Scheduled backup, NAS to NAS synchronization/archive backup, Rsync, and NAS to external USB hard disk backup
Dropbox, Memopal, ownCloud, and NetDrive support
Apple Time Machine support | | Download / Upload Support | Auto-download from FTP/HTTP/P2P download service
Scheduled download
Auto-upload photos and videos to YouTube/Flickr/FTP server | | File System Support | Internal HDD: EXT4
External HDD: NTFS, EXT2, EXT3, EXT4, FAT32, HFS+, exFAT | | System Management | JBOD, RAID 0/1
Online firmware upgrade
Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.)
iSCSI | | Power Control | Internal disk hibernation support
Scheduled power on/off/reboot
Wake-on-LAN support
System automatically resume after power outage
APC USB UPS monitoring and auto shutdown | | Thermal Management | Smart fan speed control
High temperature alert/buzzer
Auto shutdown while high temperature | | Minimum System Requirements | Windows XP onward
Mac OS X 10.5 onward
Browsers: IE 11+, Firefox 20+, Google Chrome 37, Safari 5+ | | | | Processor | 1.2 GHz FreeScale FS1024 dual-core | | Memory | 1 GB DDR3 | | Drive Bays | 2 x 2.5"/3.5" SATA II | | Networking | 2 x Gigabit Ethernet | | Interfaces | 3 x USB 3.0 | | Card Slot | SDXC | | Buttons | Power, Copy/Sync, Reset | | Power Consumption | 28.5 W (8.8 W spin down) | | Voltage Input | 100 to 240 VAC, 50/60 Hz | | Power Output | 12 VDC, 5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 10 to 95% | | Storage Humidity | 10 to 95% | | | | Certification | Safety: CE LVD, BSMI
EMC: CE, FCC class B, C-Tick, BSMI
Others: DLNA 1.5, UPnP | | Dimensions (W x D x H) | 5.5 x 8.7 x 6.3" / 140 x 220 x 160 mm | | Weight | 3.4 lb / 1.5 kg |
