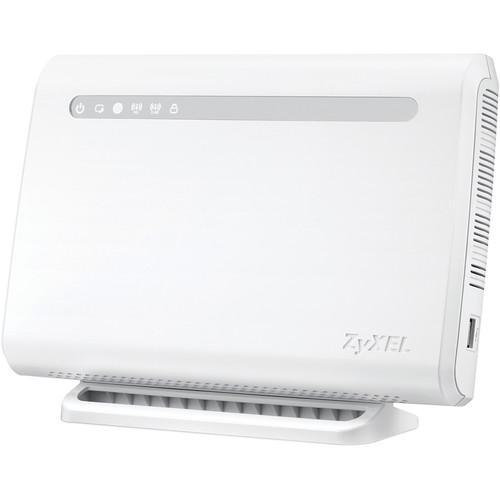

User Manual for ZyXEL NBG6815 AC2200 MU-MIMO Dual-Band Wireless Gigabit Router Click to enlarge the picture
Contents of the user manual for the ZyXEL NBG6815 AC2200 MU-MIMO Dual-Band Wireless
- Product category: Wireless Routers ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Wireless Routers
|
User manual for the ZyXEL NBG6815 AC2200 MU-MIMO Dual-Band Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description With built-in MU-MIMO technology, the NBG6815 AC2200 MU-MIMO Dual-Band Wireless Gigabit Router from ZyXEL offers multiple data streams providing data transfer rates of up to 2200 Mbps. In addition to MU-MIMO technology, this router supports the 802.11a/b/g/n/ac networking standards and operates on both the 2.4 GHz and 5 GHz frequencies. Setup and configuration of this ZyXEL router is simple thanks to the mobile-friendly setup wizard that guides you through the entire setup process. ZyXEL even offers a free mobile application from which users can configure settings and manage other aspects of the network while on-the-go. If a wired connection is needed, the NBG6815 comes equipped with four Gigabit Ethernet ports as well as two USB 2.0 ports to connect devices like USB hard drives to the network. Once configured, ZyXEL's StreamBoost technology helps to manage network bandwidth to ensure applications such as video streaming, online gaming, and other bandwidth intensive tasks receive the necessary network resources to operate smoothly. - MU-MIMO Performance
- The MU-MIMO 802.11ac technology is perfect for busy environments: it doubles Wi-Fi performance of Single User MIMO (SU-MIMO) in venues where concurrent wireless access activities are intensive.
- Easy Setup
- The mobile-friendly setup wizard guides you through the home network setup process in 3 simple steps.
- ZyXEL ONE Connect Mobile App
- With the ZyXEL ONE Connect app you can easily configure network settings from your router to connected network devices.
- Easily Monitor Usage
- The Usage Monitor allows you to view the home network bandwidth consumed by applications or clients. You can set a warning threshold for Internet plan utilization to receive a system message once the limit is reached.
- StreamBoost Technology
- The ZyXEL NBG6815 allocates the right amount of bandwidth to each networked devices automatically with StreamBoost technology. Play an intense online multiplayer game, watch high-definition streamed movies, browse your social networks, download a large file and more - all at the same time without experiencing any performance drop.
UPC: 760559123833 In the Box ZyXEL NBG6815 AC2200 MU-MIMO Dual-Band Wireless Gigabit Router Power Adapter Ethernet Cable Limited 2-Year Warranty Brochure PDF 4.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL NBG6815 AC2200 MU-MIMO Dual-Band Wireless Gigabit Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL NBG6815 Specs | | | WLAN Mode | 802.11ac | | Supported Protocols | IPv6 | | Antenna Placement | Internal | | | | Ports | 1 x Ethernet (RJ45) (Uplink)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 480 Mb/s USB Type-A | | USB Sharing Support | Yes | | | | Throughput | 2.4 GHz: 450 Mb/s
5 GHz: 1733 Mb/s | | | | Guest Network Support | Yes | | Wireless Security | WPA, WPA2 | | | | RAM | 256 MB | | Processor | 700 MHz | | | | DC Input Power | 12 VDC at 3 A | | Power Consumption | 30 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 10 to 95% | | | | Dimensions | 10.25 x 7.17 x 3.2" / 260.4 x 182 x 81.2 mm | | Weight | 1.3 lb / 578.0 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 12.7 x 8.0 x 4.2" |
