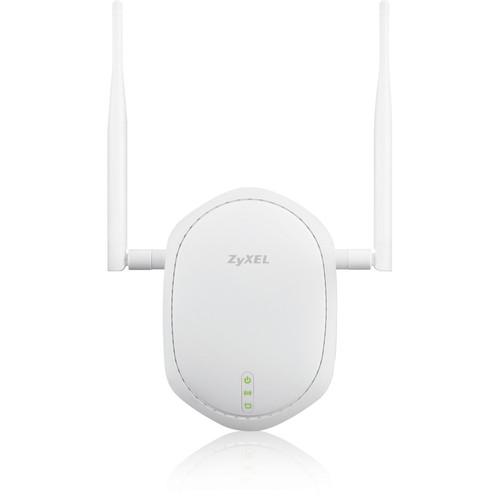

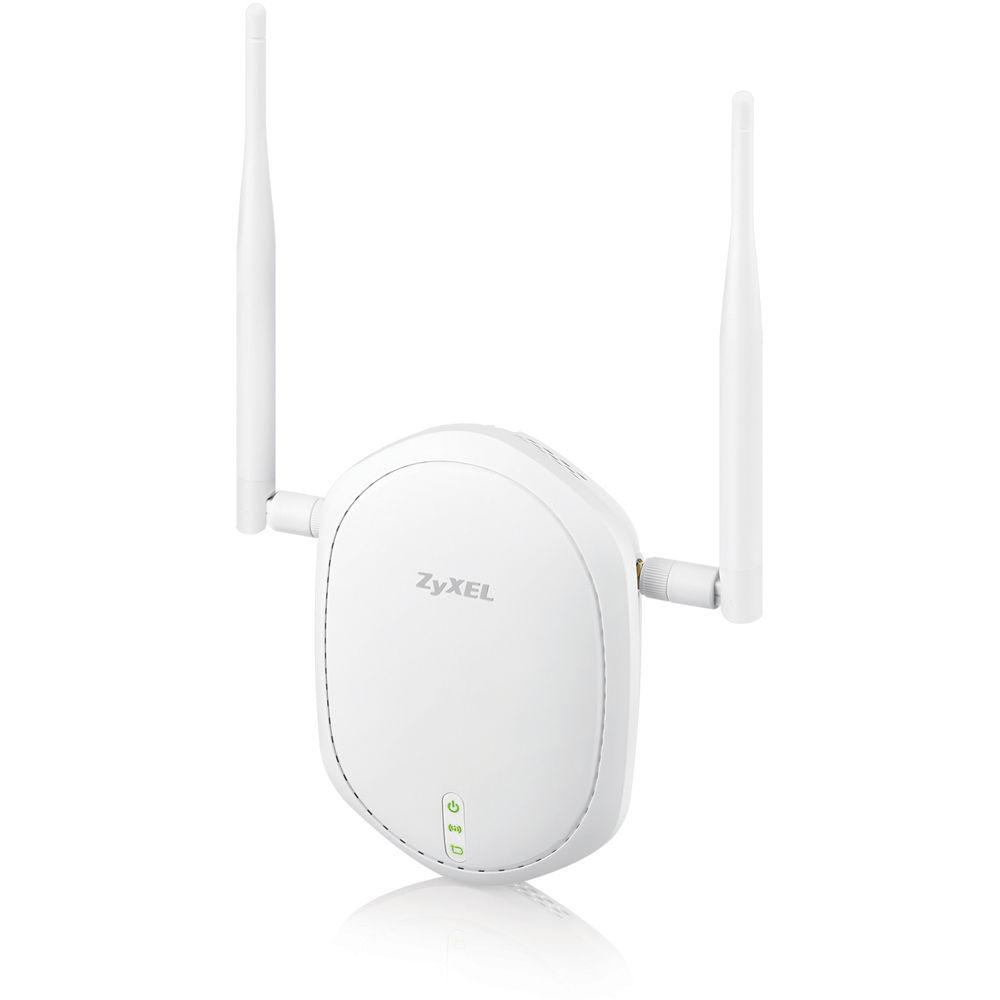

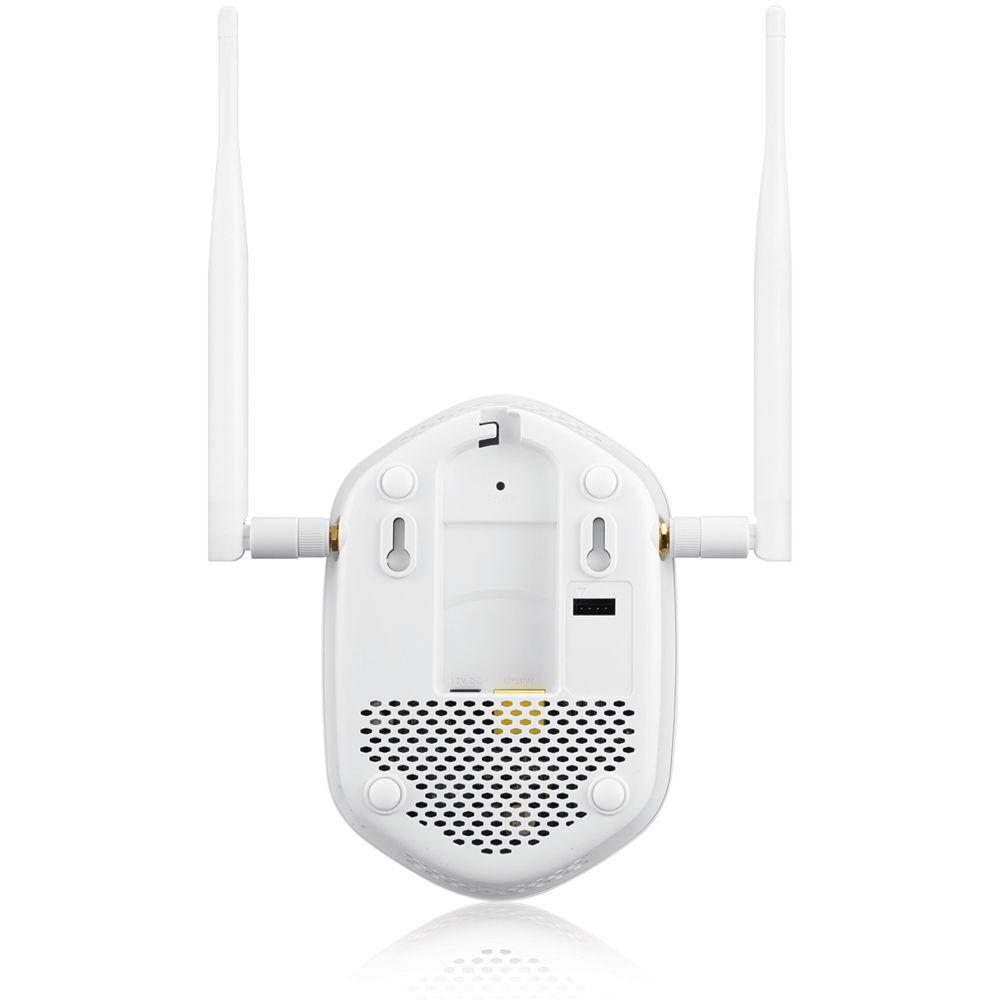

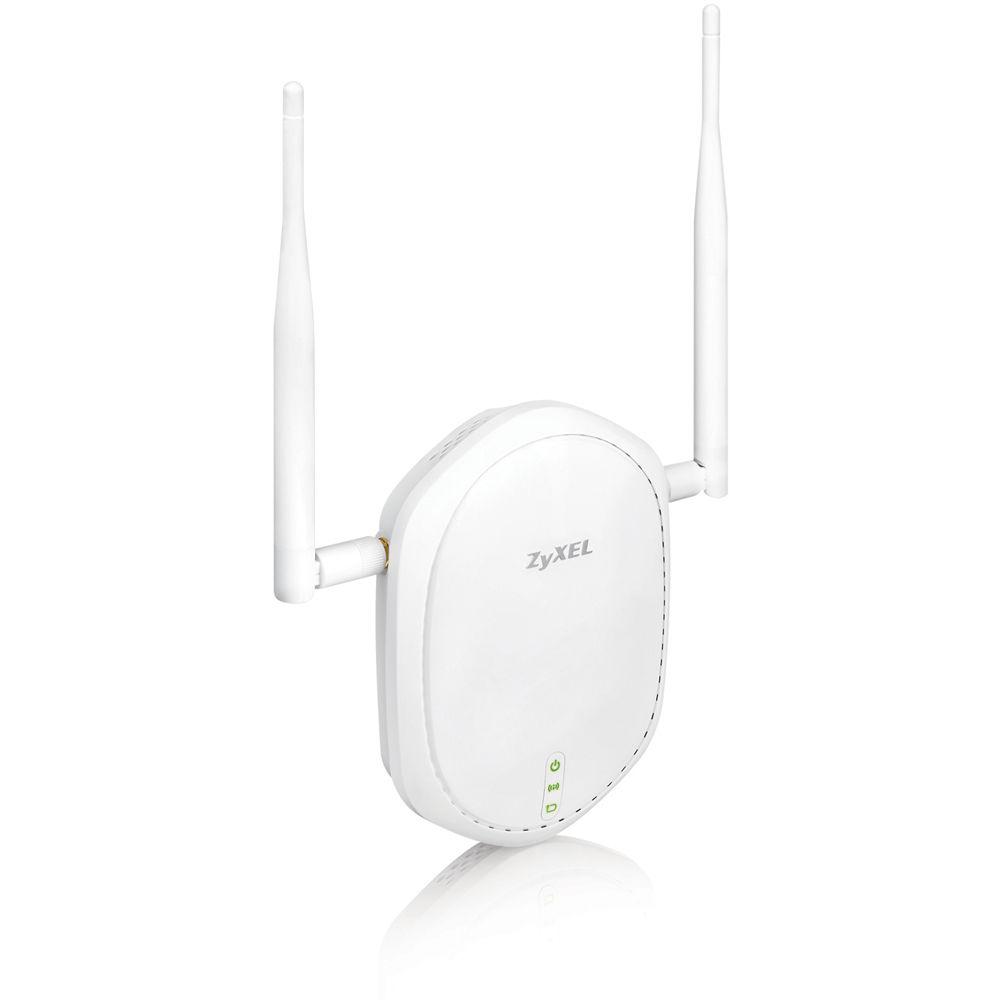

User Manual for ZyXEL NWA1100-NH 802.11 b g n Long Range PoE Access Point Click to enlarge the picture
Contents of the user manual for the ZyXEL NWA1100-NH 802.11 b g n
- Product category: Wireless Access Points ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Wireless Access Points
 |
User manual for the ZyXEL NWA1100-NH 802.11 b g n contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The NWA1100-NH 802.11 b/g/n Long Range PoE Access Point from ZyXEL features high output power and antenna gain to optimize wireless coverage and signal quality. There are also advanced management options, such as ZON Utility and ZAC, to relieve tiresome configuration tasks for maximum access points. These features also allow your networking equipment to be aware of and recognize each other, facilitating one-click network maintenance. The router's boosted output power improves throughput for extended coverage, allowing you to deploy a standard number of APs and receive high-quality coverage. The NWA1100-NH is compliant with the 802.3af standard, consuming power levels of less than 15W for an eco-friendly design. It also utilizes latency switches, minimizing the need to change your wired infrastructure for new equipment setups. The NWA1100-NH router offers a wide variety of ways to verify Wi-Fi clients, enabling you to keep unauthorized users from connecting to the network or taking network resources. General - High output power of up to 28 dBm delivers extended coverage
- Two external antennas with high 5 dBi gain optimized for mobile devices
- Fast 802.11n Wi-Fi with speed up to 300 Mbps improves transmission of large files or videos
- Easy deployment through client mode or repeater AP and IEEE 802.3af
- ZON Utility and ZAC minimize repetitive configuration processes and efforts
- Certified WPA2 Enterprise, access management and user traffic control for strict network protection
802.11n - 2x2 multiple-input multiple-output (MIMO) with two spatial streams
- Maximal Ratio Combining (MRC)
- PHY data rates up to 300 Mbps
- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
- Cyclic Delay diversity (CSD) support
- Maximum Likelihood Demodulation (MLD) support
- Low Density Parity Check (LDPC) support
UPC: 760559121617 In the Box ZyXEL NWA1100-NH 802.11 b/g/n Long Range PoE Access Point Limited 2-Year Warranty Brochure PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL NWA1100-NH 802.11 b g n Long Range PoE Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL NWA1100-NH Specs | | | Wireless Frequency Bands | 2.4 GHz | | Number of Antennas | 2 | | WLAN Mode | 802.11n | | Sensitivity | -87 to -92 dBm | | Transmit Power | 18 to 28 dBm | | Supported Protocols | IPv6
WMM
SNMPv1
SNMPv2c
SNMPv3 | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE | | | | Wireless Security | WEP, WPA | | | | Max SSIDs Supported | 8 | | Throughput | 110 Mb/s | | | | Supported IEEE Standards | 802.11i, 802.1x, 802.3, 802.3af, 802.3az, 802.3u | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.3 A | | DC Input Power | 12 VDC at 1 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 10 to 90% | | | | Dimensions | 6 x 4.3 x 1.5" / 15.3 x 11 x 3.8 cm | | Weight | 0.5 lb / 0.2 kg |
