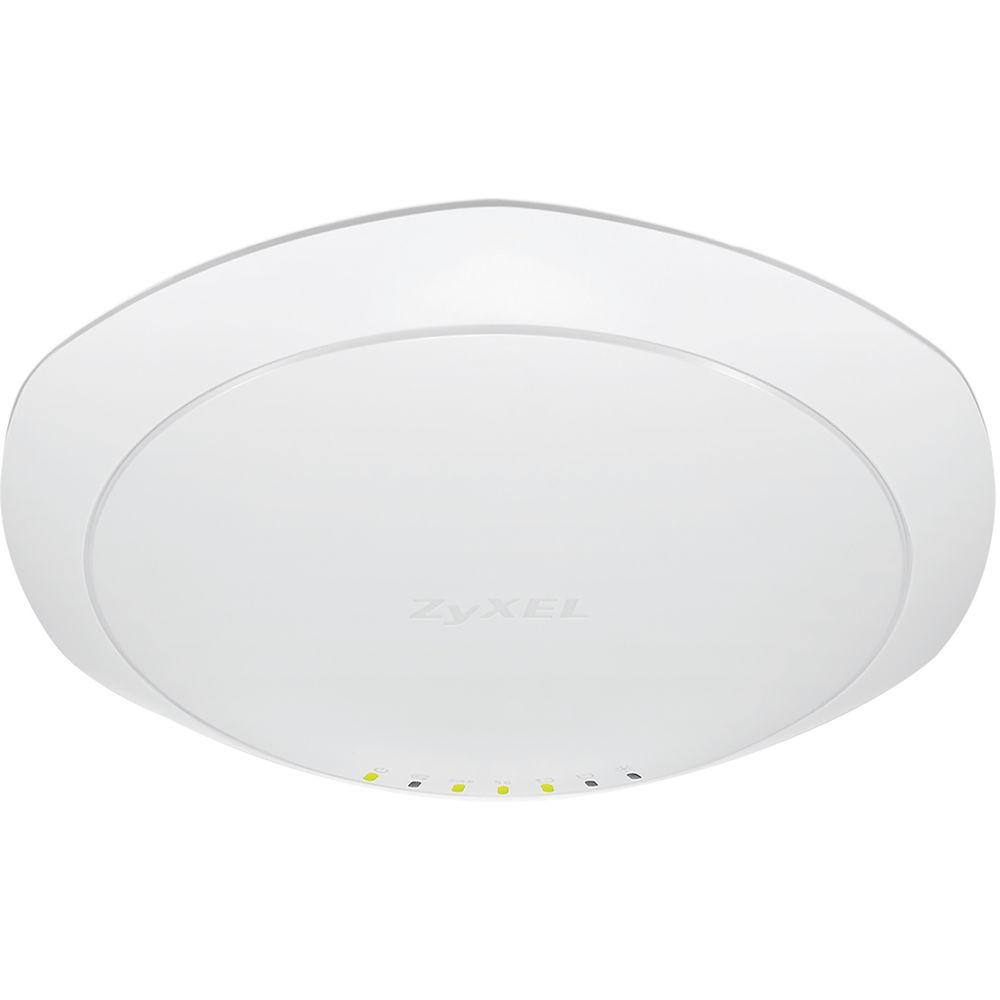

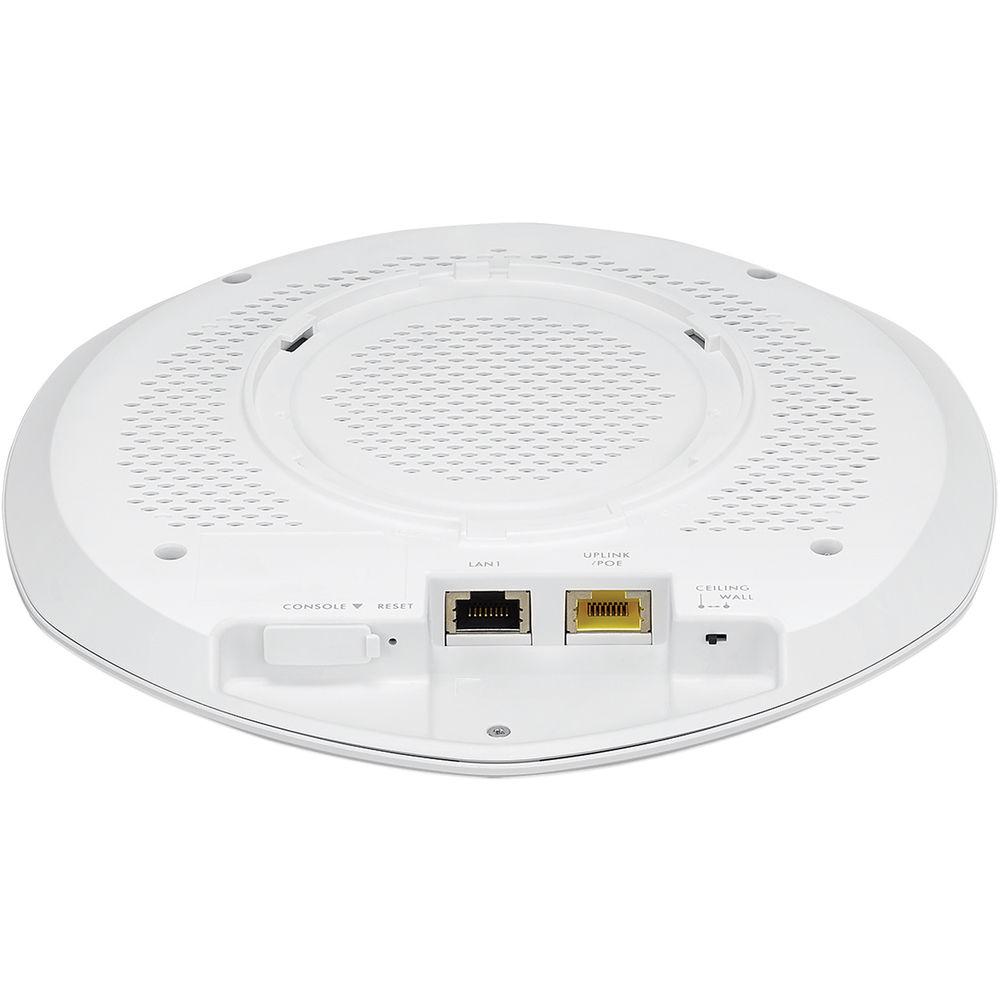

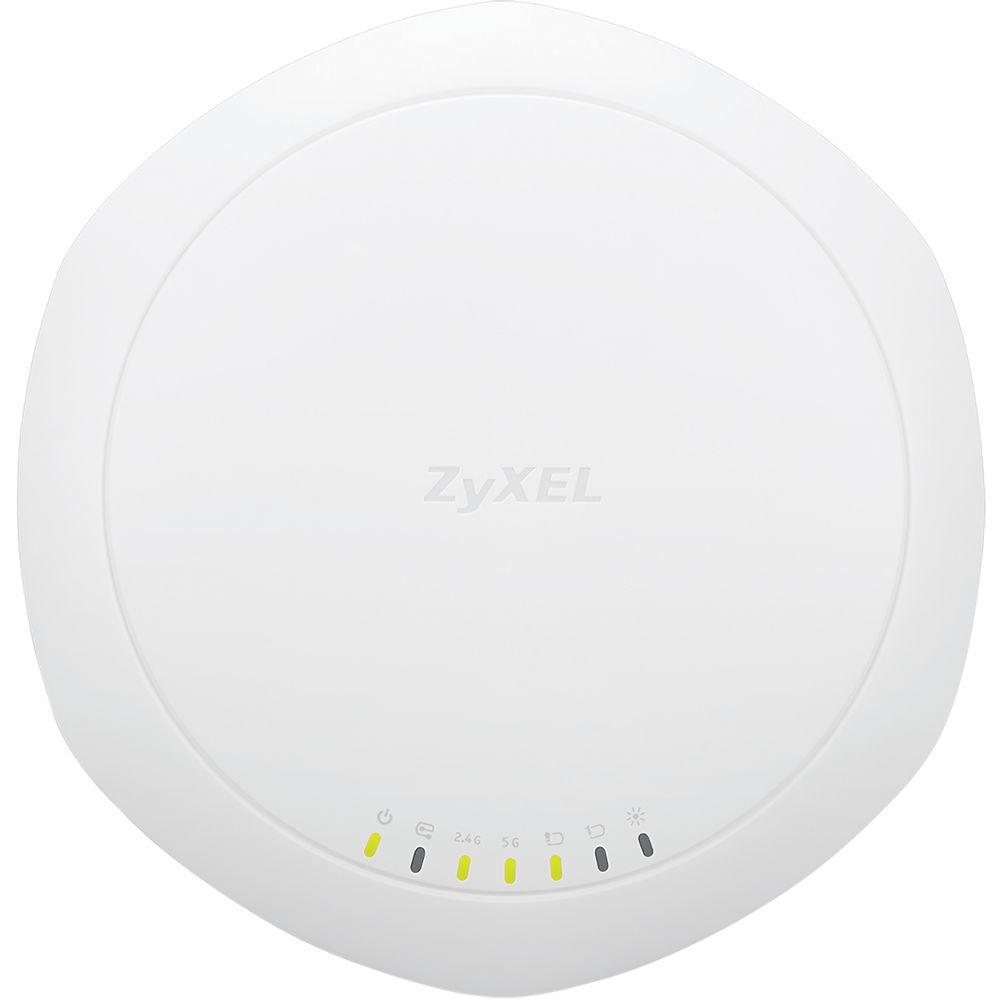

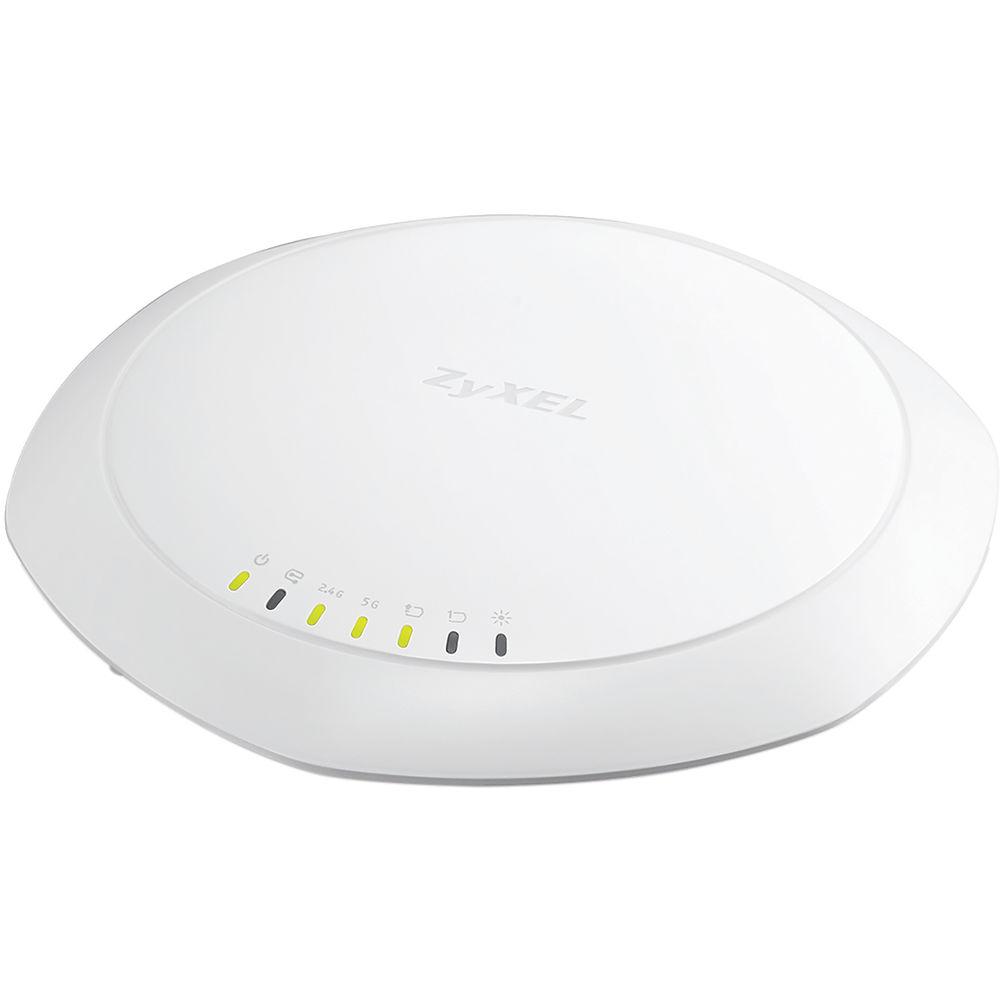

Product description Designed for home or office use, the NWA1123-AC PRO 802.11ac Wireless Dual-Band PoE Access Point from Zyxel offers enhanced performance and improved coverage. This access point supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies with data transfer rates of up to 1750 Mbps. These enhanced data transfer rates are backed up by 3x3 MIMO technology offering three separate data streams. Additionally, the built-in antennas offer enhanced reception with antenna gain of up to 5 dBi. If a wired connection is needed, the NWA1123-AC PRO access point also comes equipped with dual 802.3at PoE-compliant Gigabit Ethernet ports.
Once installed, this Zyxel access point offers a wide range of network features designed to simplify network management and streamline workflows. Built-in load balancing ensures all users receive optimal network performance as this access point is designed to limit the number of clients associated with each AP. The Zyxel One Network utility is designed to simplify network management including maintenance, power cycling devices, and more. Installation has also been simplified thanks to controller-less deployment. Simply plug the access point into an existing network and it automatically acquires an IP address, thus streamlining the setup process. - Enhanced Interior Wi-Fi Performance
- The NWA1123-AC PRO's ultraslim 3x3 dual-optimized antenna can deliver two different patterns for ceiling- or wall-mount deployment. That frees the AP from being limited to ceiling mounts while maintaining reliable connectivity without causing extra interference.
The Zyxel NWA1123-AC PRO is constructed with non-toxic casing materials, making it safe to install in plenum areas, as it doesn't release hazardous vapor emissions in case of fire. This is a life-critical issue, particularly when deploying in public venues such as offices, hotels and schools. - Improved User Experience
- The NWA1123-AC PRO features an optimized antenna and RF design that create a thoroughly enhanced Wi-Fi experience via a combination of improved software and hardware. Additional improvements to the NWA1123-AC PRO include dynamic channel selection (DCS) and load balancing. DCS avoids interference from co-channel and channel overlapping at initialization, while load balancing allows administrators to easily limit the number of clients associated with each AP. These advanced functions ensure that users can enjoy a stable wireless networking experience over the ideal Wi-Fi channel on the optimal AP.
- Zyxel One Network Experience
- Zyxel One Network is designed to simplify the configuration, management, and troubleshooting, allowing customers to focus on the business priorities. Zyxel One Network presents an easy-to-use tool, Zyxel One Network Utility (ZON Utility), to speed up the network setup process. Zyxel Smart Connect allows Zyxel networking equipment to recognize each other and further facilitate network maintenance via one-click remote functions such as factory reset or power cycling. Zyxel One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
- Stand-Alone Operation
- Along with support for stand-alone operating mode, the Zyxel NWA1123-AC PRO PoE access point also provides repeater/root-AP mode compatibility with Zyxel's Unified Pro Series and Unified Series APs. By taking advantage of these features, users can extend wireless connectivity to challenging locations without the bother of troublesome cabling.
The NWA1123-AC PRO is an ideal solution for small businesses through an array of useful features designed for business deployments, including multiple SSID and solid Wi-Fi security provided by WPA2 Enterprise and Layer-2 isolation. All of these practical enhancements coupled with high-performance RF design make the Zyxel NWA1123-AC PRO the best solution for creating flexible Wi-Fi networks for smaller-scale enterprises. - Controller-less Deployment
- The NWA1123-AC PRO introduces streamlined controller-less deployment with Zyxel Access Point Configurator (ZAC). Just install the AP wherever desired and the device will automatically acquire an IP address. ZAC will take over the multiple-AP configuration and help to complete firmware upgrades and profile backups when needed in three easy steps, significantly reducing time and effort.
Once the configuration has been completed, the NWA1123-AC PRO is able to operate autonomously without additional maintenance via computer or special management tool. The administrator can easily monitor status using any available SNMP tool, making management simple enough for even networking novices to handle. - Dual-Optimized Antenna
- The unprecedented Dual-Optimized Antenna is an adjustable internal antenna with "just fit" pattern options optimized for wall- or ceiling-mount that the installation technician can instantly change the antenna pattern simply via the physical antenna switch without booting the device. Administrators can also use their know-how to perform granular signal optimization according to the floor plan remotely via software configuration. This added flexibility allows the NWA1123-AC PRO to suit wall- or ceiling-mount deployment without the hassles of antenna accessory selection and signal coverage adjustment.
UPC: 760559124519 In the Box ZyXEL NWA1123-AC PRO 802.11ac Wireless Dual-Band PoE Access Point PoE Injector Ethernet Cable Wall / Ceiling Mount Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL NWA1123-AC PRO 802.11ac Wireless Dual-Band PoE Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL NWA1123-ACPRO Specs | RF Specifications | Supported Data Rate
802.11n: up to 450 Mbps in MCS15 (40 MHz)
802.11ac: up to 1300 Mbps in MCS9 (80 MHz)
802.11 Specifications
3x3 Multiple-Input Multiple-Output (MIMO) with three spatial streams
Maximal Ratio Combining (MRC)
20-, 40- and 80-MHz channels
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
Cyclic Delay diversity (CSD) support
Maximum Likelihood Demodulation (MLD) support
Low Density Parity Check (LDPC) support
Antenna Gain
3T3R MIMO
- Ceiling: 3 dBi
- Wall: 4 dBi
3T3R MIMO
- Ceiling: 4 dBi
- Wall: 5 dBi
Receive Sensitivity
Min. Rx sensitivity to -102 dBm | | LAN | Number of 10/100/1000M LAN
2
PoE Power Draw
12.48 W (802.3at PoE) | | WLAN | Security and Privacy
WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM
WMM
802.1X
MAC filtering
L2 Isolation
RADIUS authentication
Number of Multiple SSID
16
Network
IPv6 support
VLANs
DHCP client | | Standards Compliance | Ethernet
IEEE 802.3
IEEE 802.3u
IEEE 802.11ab
IEEE 802.3au
IEEE 802.3az
IEEE 802.3at
WLAN
Input: 100-240 VAC - 50
802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16-QAM, 64-QAM
802.11a: BPSK, QPSK, 16-QAM, 64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 64-QAM, 256-QAM | | Other Specifications | Plenum Rating
Yes
Power Supply
802.3at PoE only (No DC jack)
MTBF (hr)
1,005,235
Zon Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
- IP configuration
- IP renew
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
- One-click quick association with Zyxel AP Configurator (ZAC)
ZAC
Batch AP configuration
Batch AP firmware upgrade
Batch AP profile backup
Standalone AP Mode
Yes
CLI
Yes, SSH
SNMP
Yes | | Certifications | Radio
FCC part 15C
FCC part 15E
ETSI EN 300 328
EN 301 893
LP0002
EMC
FCC part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
BSMI CNS13438
Safety
EN 60950-1
IEC 60950-1
BSMI CNS14336-1 | | Temperature & Humidity | Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
10 to 90% non-condensing | | Dimensions | 8.03 x 7.55 x 1.37" / 203.9 x 191.7 x 34.7 mm | | Weight | 0.98 lb / 445 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 9.4 x 9.3 x 3.9" |
