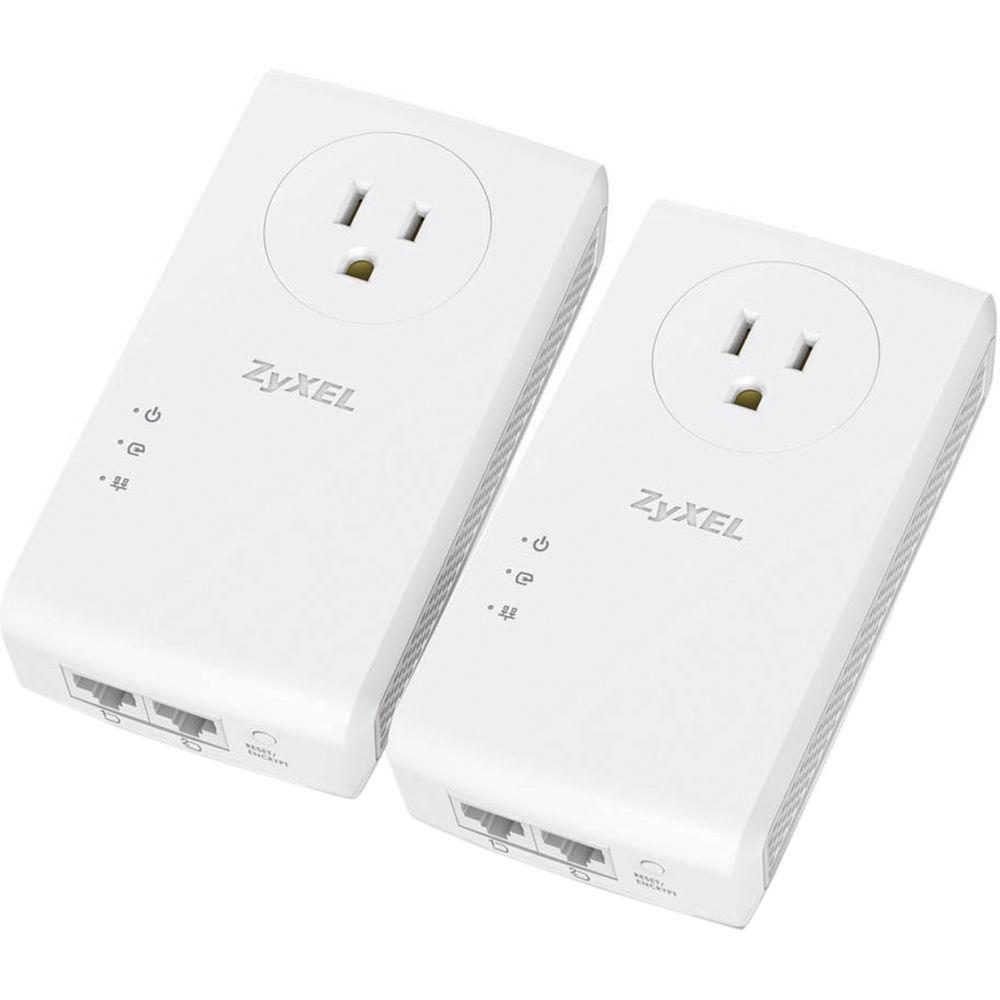

User Manual for ZyXEL PLA5456KIT AV2000 HomePlug AV2 Pass-Thru Powerline 2-Port Gigabit Ethernet Adapter Click to enlarge the picture
Contents of the user manual for the ZyXEL PLA5456KIT AV2000 HomePlug AV2 Pass-Thru
- Product category: Powerline Networking ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Powerline Networking
 |
User manual for the ZyXEL PLA5456KIT AV2000 HomePlug AV2 Pass-Thru contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description Quickly and easily expand the reach of your current network with the 2-pack of PLA5456KIT AV2000 HomePlug AV2 Pass-Thru Powerline 2-Port Gigabit Ethernet Adapter from ZyXEL. Each of these HomePlug AV2 compatible adapters features a single electrical plug and two Gigabit Ethernet ports. Simply plug one adapter into an outlet near your Internet source (cable modem or router), and plug the other adapter into an outlet where you want to expand your Internet connectivity to. Once installed these plug-and-play adapters can be synced with the push of a button and you can begin transferring data at speeds of up to 1800 Mbps. These enhanced data transfer rates make it possible to stream 4K content, transfer large files, play online games, and more. Each adapter also comes equipped with a pass-through design keeping the plug free to be used as an outlet while the adapter is in use. - Fast and Reliable Network Connection
- Just connect one ZyXEL PLA5456 to your Internet sharing router or gateway, connect another ZyXEL PLA5456 to a device that needs Internet connection, push their sync buttons, and you have up to 1800 Mbps of 128-bit encrypted Powerline network data transfer rate going through your powerline(s).
- 4K Video Streaming & 2 Gigabit Ethernet Ports per Adapter
- Empowered with HomePlug AV2 and MIMO technologies, the ZyXEL PLA5456 is giving the same networking performance in real world usage as being connected directly to the router or switch. With 2 gigabit Ethernet ports, user can easily hook up the ZyXEL PLA5456 not only for only one Internet application but also enjoy multiple Internet radio, big TV and Netflix 4K streaming simultaneously.
- Easy Setup and Stable Internet Speeds
- The ZyXEL PLA5456 is easy to hook up and use. Just plug in the adapters and you'll instantly have a hardwired connection virtually anywhere in your home without having to run a physical wire there.
- Convenient Pass-Through Design
- The ZyXEL PLA5456 doesn't block power outlets but offers a pass-through outlet instead, which allows you to keep the existing powered devices connected. The embedded noise filter eliminates nearly all static from connected electronics to further improve network quality.
- ZyXEL ONE Connect
- Sync Wi-Fi settings to the wireless extender to have one wireless network. Detect additional powerline devices within your network.
UPC: 760559123772 In the Box ZyXEL PLA5456KIT AV2000 HomePlug AV2 Pass-Thru Powerline 2-Port Gigabit Ethernet Adapter (2-Pack) 2 x Powerline Adapters 2 x Ethernet Cables Limited 2-Year Warranty Brochure PDF 2.3mbxseqzywydyczvcfxtqdsbddwdsuuttxyxdc Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL PLA5456KIT AV2000 HomePlug AV2 Pass-Thru Powerline 2-Port Gigabit Ethernet Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL PLA5456KIT Specs | Maximum Data Rate | 1800 Mb/s | | Number of Ethernet Ports | 2 | | Ethernet Standards | IEEE 1901 | | Ethernet Speed | 10/100/1000 Mb/s | | Powerline Technology | HomePlug AV, HomePlug AV2 | | Powerline Frequency Band | 2 to 86 MHz | | Protocol | CSMA/CA | | Modulation Technology | QAM, BPSK, QPSK, OFDM, ROBO Carrier | | Maximum Networking Distance | 984' / 300 m | | Encryption | 128-Bit AES | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Active Power Consumption | 6 W | | Operating System Support | Windows | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Storage Humidity | 10 to 95% | | Dimensions (W x H x D) | 5.3 x 2.8 x 1.5" / 133.5 x 71.0 x 38.6 mm | | Weight | 8.0 oz / 226.0 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 9.2 x 7.4 x 3.8" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
