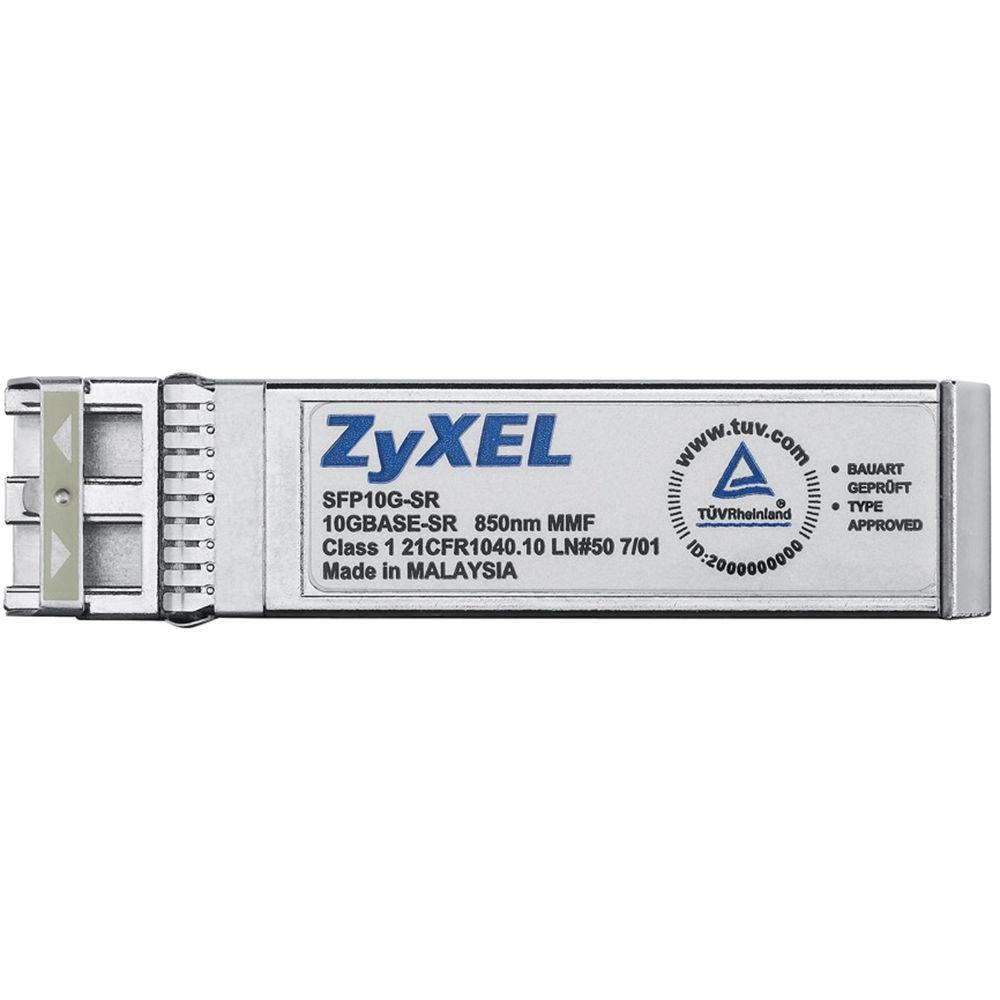

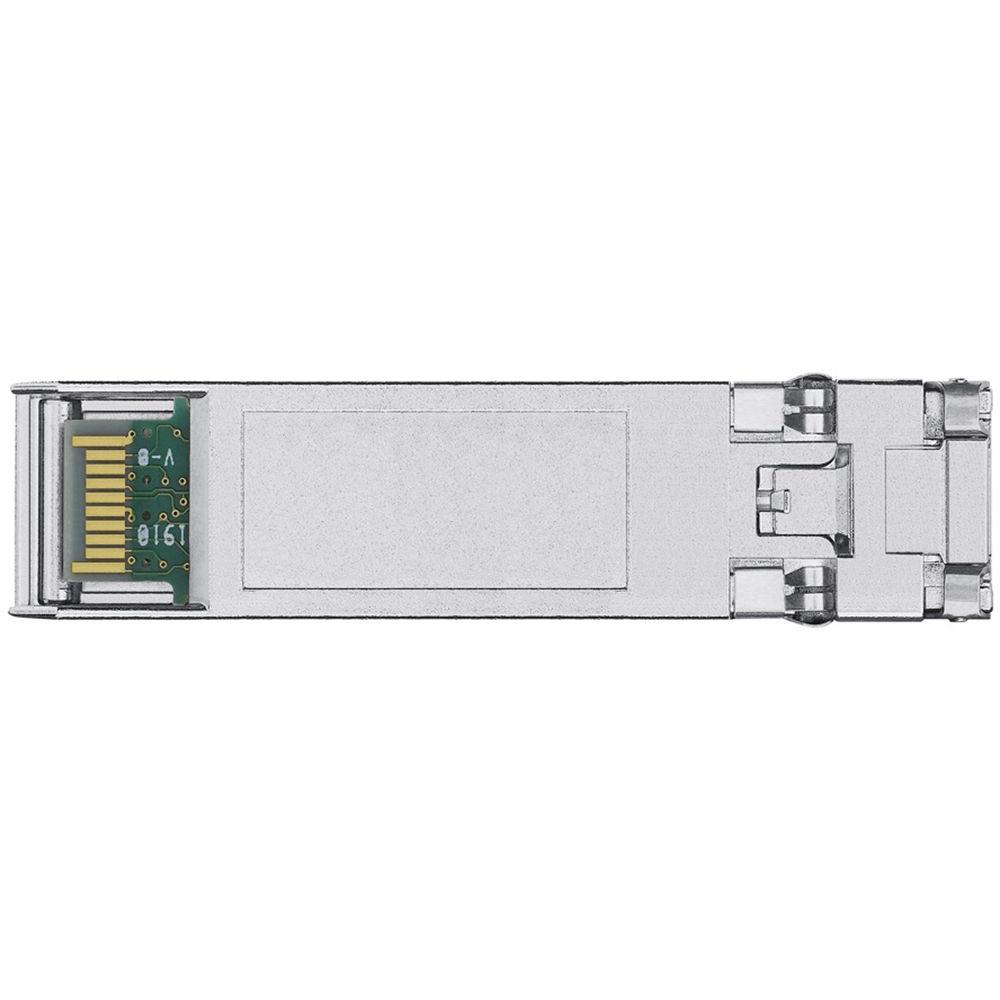

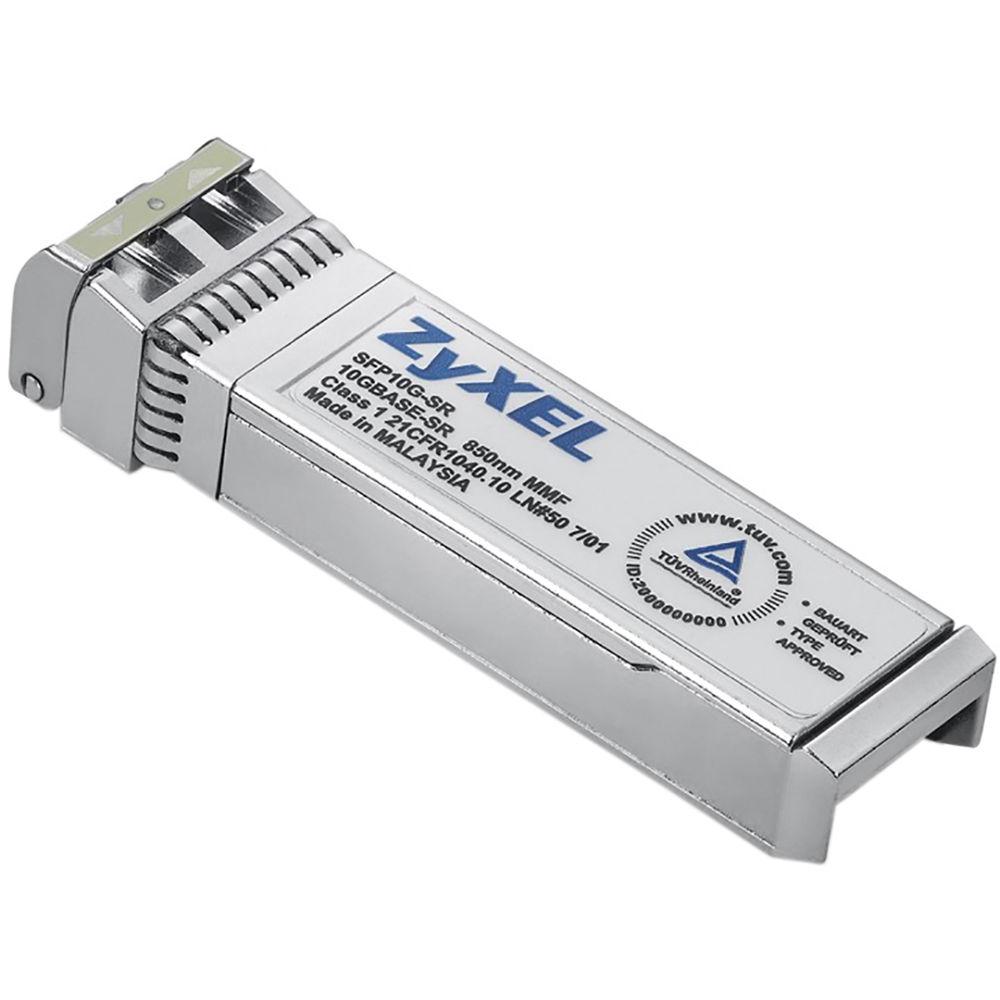

User Manual for ZyXEL SFP 10G 850nm SR MMF Optical Transceiver Click to enlarge the picture
Contents of the user manual for the ZyXEL SFP 10G 850nm SR MMF
- Product category: Network Transceivers ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Transceivers
 |
User manual for the ZyXEL SFP 10G 850nm SR MMF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description Provided by third party: The ZyXEL transceiver family follows industry standards to assure compatibility with switches from other manufacturers without barrier set by proprietary technologies.
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
- Key Features
-
- Standard-based design assures compatibility
- Hot-swappable design facilitates network maintenance
- Bi-directional transceivers maximizes usage of existing fiber plant
- Supporting Digital Diagnostics Monitoring Interface (DDMI) SFP enhances management capability
- Standard-based design assures compatibility
- The ZyXEL transceiver family follows industry standards to assure compatibility with switches from other manufacturers without barrier set by proprietary technologies.
- Hot-swappable design facilitates network maintenance
- Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
- Bi-directional transceivers maximizes usage of existing fiber plant
- Traditional fiber optic networking requires two strands of fiber to accomplish communications, in which one strand is reserved for sending signals, while the other is for receiving. On the other hand, bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber by using two separate optical wavelengths: one receives and the other transmits signals. Transmission capacity can be expanded immediately without additional cost laying fiber.
- Supporting Digital Diagnostics Monitoring Interface (DDMI) SFP enhances management capability
- The enhanced digital interface enables a real time link to be established between the switch and the SFP transceiver. This enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals.
UPC: 760559120719 Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL SFP 10G 850nm SR MMF Optical Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL SFP10GSR Specs | | | Device Type | SFP+ transceiver module | | Form Factor | Plug-in module | | | | Connectivity Technology | Wired | | Cabling type | 10GBase-SR | | Data Link Protocol | 10 GigE | | Data Transfer Rate | 10 Gbps | | Optical Wave Length | 850 nm | | Max Transfer Distance | 984 ft | | Features | Hot swap module replacement, Digital Diagnostics Monitoring Interface (DDMI) | | | | Interfaces | 1 x Ethernet 10GBase-SR - LC multi-mode x 2 | | | | Compliant Standards | TUV, Laser Class 1, FCC CFR21 Part 1040, FDA, MSA | | | | Width | 0.9 in | | Depth | 3.1 in | | Height | 0.5 in | | Weight | 0.71 oz | | | | Min Operating Temperature | 32
