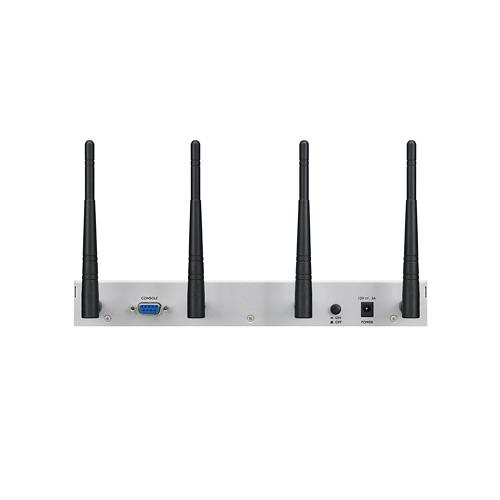

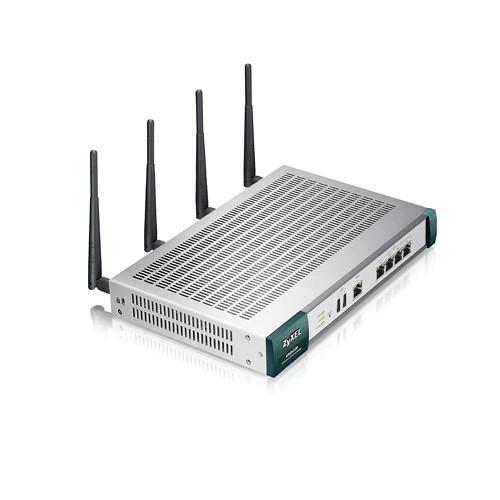

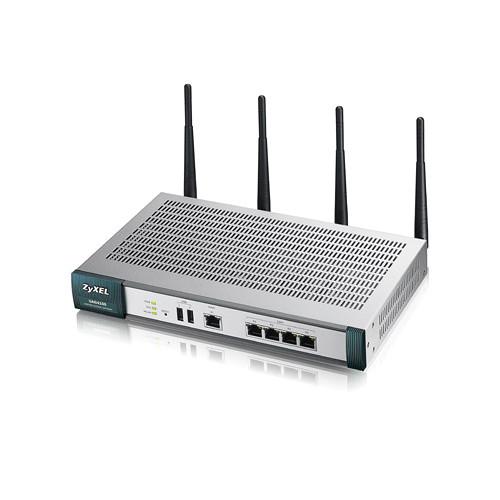

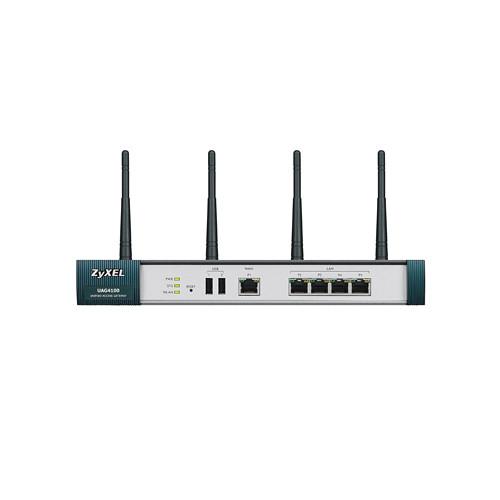

User Manual for ZyXEL UAG4100 Dual-Band Wireless-N Unified Access Gateway Click to enlarge the picture
Contents of the user manual for the ZyXEL UAG4100 Dual-Band Wireless-N Unified Access
- Product category: Wireless Routers ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Wireless Routers
 |
User manual for the ZyXEL UAG4100 Dual-Band Wireless-N Unified Access contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The UAG4100 Dual-Band Wireless-N Unified Access Gateway from ZyXEL is designed for hospitality businesses. In addition to account management, billing, and data retention capabilities, this device offers features such as 802.11 a/b/g/n dual-radio Wi-Fi and a built-in WLAN controller to deliver better scalability, capacity, and performance. The built-in WLAN controller can manage up to 8 access points by default, and 16 access points via license upgrade, which makes the UAG4100 suitable for multi-room network deployments in smaller accommodation facilities like small hotels, hostels, or B&Bs (bread and breakfast). The gateway's high performance hardware architecture can support 200 concurrent logins by default, and up to 300 concurrent logins via license upgrade. It also offers granular bandwidth management capabilities to enforce equal bandwidth sharing, avoid bandwidth abuse, and provide the service quality necessary to increase customer loyalty and attract new customers. This unified access gateway is designed with advanced billing, user authentication, and access control features that help hospitality businesses manage guest accounts, block unauthorized access, and generate revenue with their Internet services. It gives hospitality businesses the flexibility to offer Wi-Fi access as a free service, a tiered service (premium when a purchase is made), or a paid service, depending on the preferred business model. Featuring a built-in account generator and a Web-based authentication portal, the UAG4100 helps hospitality businesses provide controlled network access to hundreds of guests with ease. Simply by entering the provided account information in the captive portal, guests can get secure wired or wireless access to the Internet in a matter of seconds. Additionally, the UAG4100 supports external RADIUS servers and external portal page redirection for added deployment flexibility. Hospitality businesses can create up to 10 pre-paid billing plans with this unified access gateway. Billing plans can be customized with varying bandwidth speeds, service duration, and level of payment. The SP350E Service Gateway Printer can be paired with the UAG4100. It enables one-click billing and account generation, which offers easy operation for staff members and smooth services flows in hotel lobbies, conference rooms, waiting areas and busy restaurants and cafés. The UAG4100 supports SMS ticketing with ViaNett to provide improved convenience for both the business owner and the customer. With built-in support for SMS ticketing, the UAG4100 allows business owners to send Internet account and billing information directly to the customer's mobile phone, without needing to invest in an independent SMS ticketing system. The UAG4100 Unified Access Gateway can help hospitality businesses meet the challenges of regulatory compliance. Deployed with a syslog server, the UAG4100 can automatically record user account information, MAC addresses, source and destination IPs, data volume and protocol type for government auditing, if required. - Networking
-
- Universal Plug and play (UPnP)
- IP Plug and Play (iPnP)
- NAT/PAT
- Static routing and policy routing
- DHCP client/server/relay
- HTTP proxy support
- SMTP redirection
- VPN 1-to-1 mapping
- VPN pass-through
- WAN client: Static, DHCP, PPPoE, PPTP
- Tagged VLAN (802.1Q)
- DDNS
- Security
-
- 64/128-bit WEP data encryption
- WPA-PSK TKIP data encryption (Wi-Fi certified)
- WPA2-PSK AES data encryption (Wi-Fi certified)
- WPA/WPA2-enterprise
- Stateful packet inspection firewall
- L2 isolation
- User-aware security policy
- SSL login page
- Session limit
- IP pass-through (white list)
- AAA & Billing
-
- User agreement login
- Web-based authentication
- External RADIUS support
- Secondary RADIUS server support
- Built-In Billing System: Time-to-finish and Accumulation accounting modes
- 10 customizable billing profiles
- Built-in Account Generator: 50 static accounts and 2000 dynamic accounts
- Multiple logins with pre-configured accounts
- Bandwidth management (per account)
- Credit card billing via PayPal
- Thermal printer support (up to 10)
- SMS ticketing support with ViaNett
- Marketing
-
- Advertisement link
- Walled garden
- Login page redirection
- Portal page
- Customizable login page
- Customizable information window
- Customizable user agreement page
- System Management
-
- Administrator access: WAN and LAN
- Web Management (HTTP/HTTPS)
- Secure administrator IP address
- SNMP v2c (MIB-II)
- Configuration backup and restoration
- Role-based administration (Admin, guest operator)
- Command line interface (console/web console/SSH)
- Monitoring and Reporting
-
- Email log
- Syslog: Account, IP, MAC, traffic & protocol (data retention)
- Session list
- Account list
- Billing report
- DHCP client list
UPC: 760559120658 In the Box ZyXEL UAG4100 Dual-Band Wireless-N Unified Access Gateway Power Adapter Rack Mounting Kit 4 x Antenna Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL UAG4100 Dual-Band Wireless-N Unified Access Gateway in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL UAG4100 Specs | | | Number of Antennas | 4 | | WLAN Mode | 802.11n | | Sensitivity | -68 to -90 dBm | | Transmit Power | 12 to 23 dBm | | | | Ports | 1 x Ethernet (RJ45) (Uplink)
4 x Ethernet (RJ45)
2 x 480 Mb/s USB Type-A | | | | Throughput | 2.4 GHz: 187 Mb/s
5 GHz: 190 Mb/s | | | | Wireless Security | WEP, WPA, WPA2 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 10 to 90% | | | | Dimensions | 10.7 x 6.7 x 1.4" / 27.2 x 17.1 x 3.6 cm | | Weight | 3.2 lb / 1.5 kg | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 16.7 x 9.9 x 2.9" |
