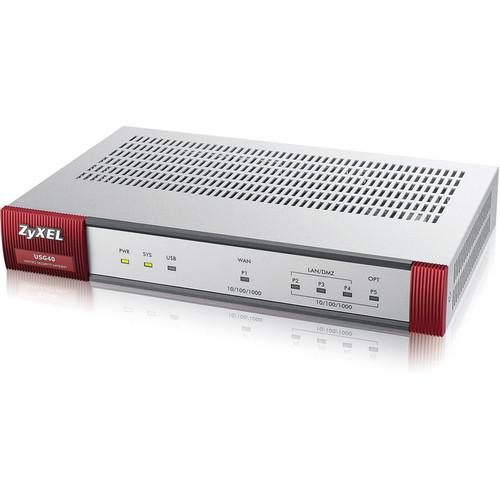

User Manual for ZyXEL USG40-NB Performance Series Unified Security Gateway Click to enlarge the picture
Contents of the user manual for the ZyXEL USG40-NB Performance Series Unified Security
- Product category: Firewalls & Security Devices ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Firewalls & Security Devices
|
User manual for the ZyXEL USG40-NB Performance Series Unified Security contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description Designed to protect users and businesses against a variety of network initiated threats, the USG40-NB Performance Series Unified Security Gateway from ZyXel utilizes Next Generation Firewall (NGFW) technology to ward off malware, regulate applications, and much more. In addition to basic firewall protection, this gateway is designed to support VPN connectivity with a VPN throughput of up to 100 Mbps and SPI firewall throughput of up to 400 Mbps. Other VPN features include L2TP over IPSec and SSL VPN simplifying the process of configuring and managing extensive VPN networks.
With a fanless design the USG40 is not only quiet, it helps to prevent dirt and debris from entering the unit. On the outside of the gateway you will find three Gigabit LAN and a single Gigabit WAN connector allowing multiple Ethernet enabled devices to connect directly to the network. In addition to Ethernet connectivity this gateway also features a single USB port designed to support USB modems to provide failover support should the initial network connection go down. - Single Point of Management
- Designed for businesses with limited IT resources, the USG helps you connect, protect, and manage with reduced complexity. The unified security policy design offers easy, unified, and streamlined management of all the security features, while the integrated WLAN controller provides centralized management of up to 10 APs. All this is integrated into a single solution, making it easy for users to manage VPN, wireless and security all from one device.
- Security
- It delivers enterprise-grade Next Generation Firewall security. It provides deep, extensive protection, and effective control of Web applications such as Facebook, Google Apps, and Netflix with such anti-malware protection mechanisms as firewall, antivirus, anti-spam, content filtering, IDP, and application intelligence.
- Unified Security Policy
- Unified security policy offers object-based management and a unified configuration interface for firewall and all security-related policies. You can easily apply all policy criteria to every UTM feature, reduce configuration time, and get streamlined policy management.
- Robust VPN
- The gateway supports high-throughput IPSec, L2TP over IPSec, and SSL VPN for a wide range of site-to-client and site-to-site VPN deployments. Reinforced with the advanced SHA-2 encryption, it provides secure VPN for business communications.
- Fanless
- It features a robust fanless design to prevent dirt and dust from entering operating environments to cause potentially catastrophic failures. The fanless design offers zero-noise cooling and non-overheating features to ensure silent operation in small or quiet office environments.
- Integrated WLAN Controller
- The integrated WLAN controller supports CAPWAP, and enables centralized authentication and access management of multiple APs in the network. The USG can manage two APs by default, and up to ten APs with license upgrade.
- Intrusion Detection and Prevention
- ZyXEL's IDP system uses Deep Packet Inspection (DPI) technology that can scan multiple layers and protocols to inspect vulnerabilities invisible to simple port and protocol-based firewalls. ZyXEL's IDP eliminates false positives with a database of malware signatures and provides effective protection against intrusions from unknown back doors.
- Dual-WAN and Mobile Broadband
- It provides high Internet uptime with dual-WAN and mobile broadband support. The dual-WAN works with two Ethernet WAN connections for active-active load balancing or active-passive failover. Comprehensive mobile broadband USB modems are also supported for WAN backup.
- VPN Application
- The branch offices, partners, and home users can deploy USG ZyWALLs for site-to-site IPSec VPN connections. Branch offices can additionally deploy IPSec VPN HA (load-balancing and failover) for an always-online VPN connectivity. Remote users can securely access company resources with their computers or smartphones via SSL, IPSec, and L2TP over IPSec VPN. The headquarter USG/ZyWALL can also establish an IPSec VPN connection with Microsoft Azure for secured access to a variety of cloud-based applications.
UPC: 760559121280 In the Box ZyXEL USG40-NB Performance Series Unified Security Gateway (Hardware Only) 1 x Power Adapter 1 x DB9 to RJ-45 Cable for Console Connection Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL USG40-NB Performance Series Unified Security Gateway in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL USG40-NB Specs | Ports | 3 x LAN/DMZ (RJ-45) 1 x WAN (RJ-45) 1 x OPT (RJ-45) 1 x USB 1 x Console | AP Controller Version | 1.0 | Managed AP Number | Default: 2 Maximum: 10 | Power Input | 12 VDC, 2.0 A maximum | Power Consumption | 14.0 W maximum | Certifications | EMC: FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), and BSMI Safety: LVD (EN60950-1), BSMI | MTBF | 414,329.4 hours | | SPI Firewall Throughput | 400 Mb/s | VPN Throughput | 100 Mb/s | IDP Throughput | 55 Mb/s | AV Throughput | 50 Mb/s | UTM Throughput (AV and IDP) | 50 Mb/s | Unlimited User Licenses | Yes | TCP Concurrent Sessions | Maximum: 20,000 | Concurrent IPsec VPN Tunnels | 10 | New TCP Session Rate | 3,000 | Concurrent SSL VPN Users | 7 | SSL VPN User Number | 2 | Customizable Zones | Yes | IPv6 Support | Yes | VLAN Interface | 8 | | Firewall | ICSA-certified firewall (certification in progress) Routing and transparent (bridge) modes Stateful packet inspection User-aware policy enforcement SIP/H.323 NAT traversal ALG support for customized ports Protocol anomaly detection and protection Traffic anomaly detection and protection Flooding detection and protection DoS/DDoS protection | IPv6 Support | IPv6 Ready gold logo (certification in progress) Dual stack IPv4 tunneling (6rd and 6 to 4 transition tunnel) IPv6 addressing DNS DHCPv6 Bridge VLAN PPPoE Static routing Policy routing Session control Firewall and ADP IPSec VPN Intrusion Detection and Prevention (IDP) Application intelligence and optimization Content filtering Anti-virus, anti-malware Anti-spam | IPsec VPN | ICSA-certified IPSec VPN (certification in progress) Encryption: AES (256-bit), 3DES and DES Authentication: SHA-2 (512-bit), SHA-1 and MD5 Key management: manual key, IKEv1 and IKEv2 with EAP Perfect forward secrecy (DH groups) support 1, 2, 5 IPSec NAT traversal Dead peer detection and relay detection PKI (X.509) certificate support VPN concentrator Simple wizard support VPN auto-reconnection VPN High Availability (HA): Load-balancing and failover L2TP over IPSec GRE and GRE over IPSec NAT over IPSec ZyXEL VPN client provisioning | SSL VPN Throughput | Supports Windows and Mac OS X Supports full tunnel mode Supports 2-step authentication Customizable user portal | Intrusion Detection and Prevention | Routing and transparent (bridge) mode Signature-based and behavior-based scanning Automatic signature updates Customizable protection profile Customized signatures supported | Unified Security Policy | Unified policy management interface Supported UTM features: anti-virus, antispam, IDP, content filtering, application intelligence, firewall (ACL) 3-Tier Configuration: Object-based, profile based, policy-based Policy Criteria: Zone, source, and destination IP address, user, time | WLAN Management | ZyXEL AP Controller (APC) 1.0 compliant Client RSSI threshold to prevent sticky clients IEEE 802.1x authentication Captive portal Web authentication Customizable captive portal page RADIUS authentication Wi-Fi Multimedia (WMM) wireless QoS CAPWAP discovery protocol | Mobile Broadband | WAN connection failover via 3G and 4G* USB modems Auto fallback when primary WAN recovers | Networking | Routing mode, bridge mode, and hybrid mode Ethernet and PPPoE NAT and PAT VLAN tagging (802.1Q) Virtual interface (alias interface) Policy-based routing (user-aware) Policy-based NAT (SNAT) Dynamic routing (RIPv1/v2 and OSPF) DHCP client/server/relay Dynamic DNS support WLAN trunk for more than 2 ports Per host session limit Guaranteed bandwidth Maximum bandwidth Priority-bandwidth utilization Bandwidth limit per user Bandwidth limit per IP | Authentication | Local user database Microsoft Windows Active Directory integration External LDAP/RADIUS user database XAUTH, IKEv2 with EAP VPN authentication Web-based authentication Forced user authentication (transparent authentication) IP-MAC address binding SSO (Single Sign-On) support | System Management | Role-based administration Multiple administrator logins Multi-lingual Web GUI (HTTPS and HTTP) Command line interface (console, Web console, SSH, and TELNET) SNMP v2c (MIB-II) System configuration rollback Firmware upgrade via FTP, FTP-TLS, and Web GUI Dual firmware images | Logging and Monitoring | Comprehensive local logging Syslog (to up to 4 servers) Email alerts (to up to 2 servers) Real-time traffic monitoring Built-in daily report Advanced reporting with Vantage Report | VPN, Management and Reporting | Managed APs: Add 8 APs SecuExtender SSL VPN Client: Add 5 clients IPSec VPN Client: For 1/5/10/50 clients Vantage Report: For 1/5/25/100 devices | | Compatibility | Access Point NWA5120 Series (Unified Access Point) NWA5121-NI NWA5121-N NWA5123-NI
NWA5000 Series (Managed Access Point) NWA5160N NWA5560-N NWA5550-N
NWA3000-N Series (Unified Pro Access Point) NWA3160-N NWA3560-N NWA3550-N Functions central management, auto provisioning, and local bridge data forwarding | Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: -22 to 158°F (-30 to 70°C) | Humidity | Operating: 10 to 90% (non-condensing) Storage: 10 to 90% (non-condensing) | Dimensions (W x H x D) | 8.50 x 1.30 x 5.63" (216.00 x 33.00 x 143.00 mm) | Weight | 1.96 lb (0.89 kg) | | Package Weight | 3.6 lb | Box Dimensions (LxWxH) | 15.0 x 8.6 x 3.1" |
