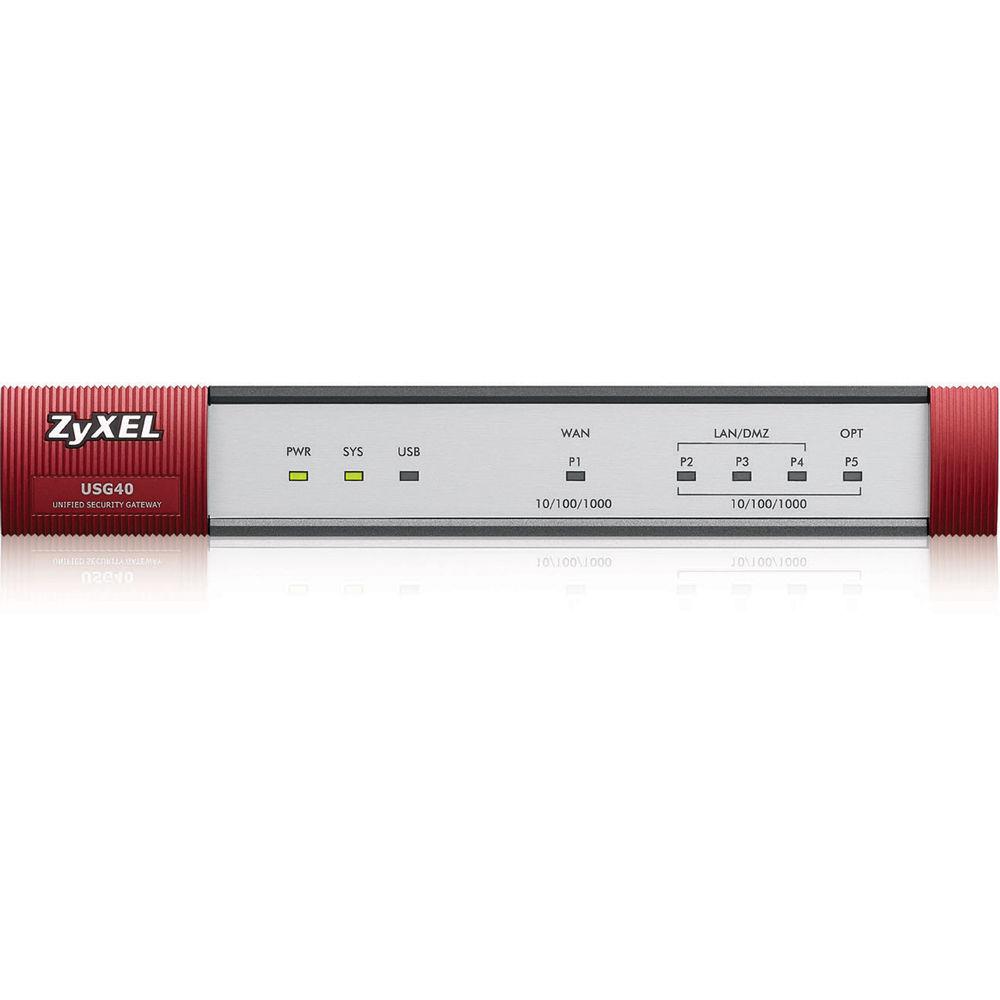

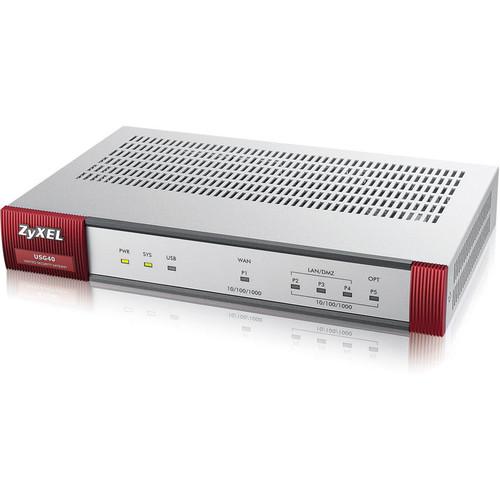

Product description With a firewall throughput of up to 400 Mbps and a comprehensive suite of security features, the USG40 Performance Series Unified Security Gateway from ZyXel is an all encompassing small office networking solution. In addition to enhanced firewall throughput, this security gateway is capable of handling up to up to 20,000 concurrent TCP sessions while supporting between 1 and 10 users. Users can connect to the network via this gateway wirelessly as the USG40 supports 802.11b/g/n Wi-Fi as well as wired connectivity through any one of the five Gigabit Ethernet ports. Alongside the Ethernet ports lies a single USB port designed for dual-WAN and mobile broadband connectivity. - Single Point of Management
- Designed specifically for businesses with limited IT resources, the ZyXEL USG performance series helps you connect, protect, and manage with reduced complexity. The unified security policy design offers easy, unified, and streamlined management of all the security features, while the integrated WLAN controller provides centralized management of up to 10 APs. All this is integrated into a single solution, making it easy for users to manage VPN, wireless and security all from one device.
- Security
- It delivers enterprise-grade Next Generation Firewall security. It provides deep, extensive protection, and effective control of Web applications such as Facebook, Google Apps, and Netflix with such anti-malware protection mechanisms as firewall, antivirus, anti-spam, content-filtering, IDP, and application intelligence.
- Unified Security Policy
- Unified security policy offers object-based management and a unified configuration interface for firewall and all security-related policies. You can easily apply all policy criteria to every UTM feature, reduce configuration time, and get a streamlined policy management.
- Antivirus
- Powered by Kaspersky SafeStream II gateway antivirus, ZyXEL USGs provide comprehensive and real-time protection against malware threats before they enter the network. The gateway can identify and block over 650,000 viruses right at the gate and provide high-speed scanning with stream-based virus scanning technology.
- Anti-Spam
- With a cloud-based IP reputation system, ZyXEL anti-spam can deliver accurate, zero-hour spam outbreak protection by analyzing up to the minute sender reputation data from highly diverse traffic sources. It can detect spam outbreaks in the first few minutes of emergence regardless of spam language or format.
- Robust VPN
- The gateway supports high-throughput IPSec, L2TP over IPSec, and SSL VPN for a wide range of site-to-client and site-to-site VPN deployments. Reinforced with the advanced SHA-2 encryption, it provides secure VPN for business communications.
- Fanless
- It features a robust fanless design to prevent dirt and dust from entering operating environments to cause potentially catastrophic failures. The fanless design offers zero-noise cooling and non-overheating features to ensure silent operation in small or quiet office environments.
- Integrated WLAN Controller
- The integrated WLAN controller supports CAPWAP, and enables centralized authentication and access management of multiple APs in the network. The ZyXEL USG can manage two APs by default, and up to ten APs with license upgrade.
- Application Intelligence
- The gateway can identify, categorize and control over 3,000 social, gaming, productivity, and other Web applications and behaviors. You can prioritize productive applications, throttle acceptable ones, and block unproductive applications to boost productivity and prevent bandwidth abuse.
- Intrusion Detection and Prevention
- ZyXEL's IDP system uses Deep Packet Inspection (DPI) technology that can scan multiple layers and protocols to inspect vulnerabilities invisible to simple port and protocol-based firewalls. ZyXEL's IDP eliminates false positives with a database of malware signatures and provides effective protection against intrusions from unknown back doors.
- Content Filtering
- ZyXEL content filtering helps screen access to websites that are not business related or malicious. With a massive, cloud-based database of over 140 billion URLs that are continuously analyzed and tracked, ZyXEL provides highly accurate, broad, and instant protection against malicious Web content.
- Dual-WAN and Mobile Broadband
- It provides high Internet uptime with dual-WAN and mobile broadband support. The dual-WAN works with two Ethernet WAN connections for active-active load balancing or active-passive failover. Comprehensive mobile broadband USB modems are also supported for WAN backup.
- VPN Application
- The branch offices, partners, and home users can deploy ZyXEL USG ZyWALLs for site-to-site IPSec VPN connections. Branch offices can additionally deploy IPSec VPN HA (load balancing and failover) for always online VPN connectivity. Remote users can securely access company resources with their computers or smartphones via SSL, IPSec, and L2TP over IPSec VPN. The headquarter USG/ZyWALL can also establish an IPSec VPN connection with Microsoft Azure for secured access to a variety of cloud-based applications.
UPC: 760559121488 In the Box ZyXEL USG40 Performance Series Unified Security Gateway Power Adapter DB9 to RJ-45 Cable for Console Connection Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL USG40 Performance Series Unified Security Gateway in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

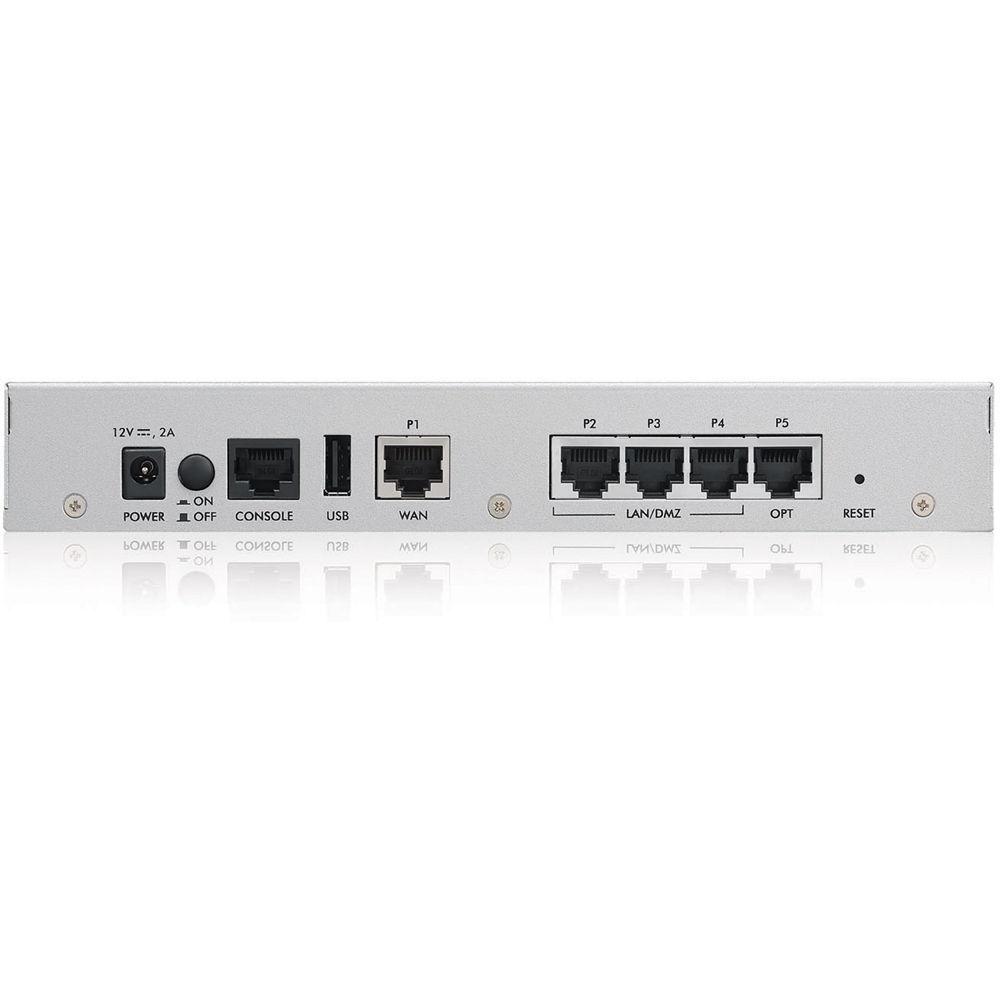

Technical parametersZyXEL USG40 Specs | Ports | 3 x LAN/DMZ (RJ-45) 1 x WAN (RJ-45) 1 x OPT (RJ-45) 1 x USB 1 x Console | AP Controller Version | 1.0 | Managed AP Number | Default: 2 Maximum: 10 | Power Input | 12 VDC, 2.0 A maximum | Power Consumption | 14.0 W maximum | Certifications | EMC: FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), and BSMI Safety: LVD (EN60950-1), BSMI | MTBF | 414,329.4 hours | | SPI Firewall Throughput | 400 Mb/s | VPN Throughput | 100 Mb/s | IDP Throughput | 55 Mb/s | AV Throughput | 50 Mb/s | UTM Throughput (AV and IDP) | 50 Mb/s | Unlimited User Licenses | Yes | TCP Concurrent Sessions | 20,000 maximum | Concurrent IPsec VPN Tunnels | 10 | New TCP Session Rate | 3,000 | Concurrent SSL VPN Users | 7 | SSL VPN User Number | 2 | Customizable Zones | Yes | IPv6 Support | Yes | VLAN Interface | 8 | | Firewall | ICSA-certified firewall (certification in progress) Routing and transparent (bridge) modes Stateful packet inspection User-aware policy enforcement SIP/H.323 NAT traversal ALG support for customized ports Protocol anomaly detection and protection Traffic anomaly detection and protection Flooding detection and protection DoS/DDoS protection | IPv6 Support | IPv6 Ready gold logo (certification in progress) Dual stack IPv4 tunneling (6rd and 6 to 4 transition tunnel) IPv6 addressing DNS DHCPv6 Bridge VLAN PPPoE Static routing Policy routing Session control Firewall and ADP IPSec VPN Intrusion Detection and Prevention (IDP) Application intelligence and optimization Content filtering Anti-virus, anti-malware Anti-spam | IPsec VPN | ICSA-certified IPSec VPN (certification in progress) Encryption: AES (256-bit), 3DES and DES Authentication: SHA-2 (512-bit), SHA-1 and MD5 Key management: manual key, IKEv1 and IKEv2 with EAP Perfect forward secrecy (DH groups) support 1, 2, 5 IPSec NAT traversal Dead peer detection and relay detection PKI (X.509) certificate support VPN concentrator Simple wizard support VPN auto-reconnection VPN High Availability (HA): Load-balancing and failover L2TP over IPSec GRE and GRE over IPSec NAT over IPSec ZyXEL VPN client provisioning | SSL VPN Throughput | Supports Windows and Mac OS X Supports full tunnel mode Supports 2-step authentication Customizable user portal | Intrusion Detection and Prevention | Routing and transparent (bridge) mode Signature-based and behavior-based scanning Automatic signature updates Customizable protection profile Customized signatures supported | Application Intelligence and Optimization | Granular control over the most important applications Identifies and controls over 3,000 applications and behaviors Supports over 15 application categories Application bandwidth management Supports user authentication Real-time statistics and reports | Antivirus | Supports Kaspersky anti-virus signatures Identifies and blocks over 650,000 viruses Stream-based anti-virus engine HTTP, FTP, SMTP, POP3, and IMAP4 protocol support Automatic signature updates No file size limitation | Anti-Spam | Transparent mail interception via SMTP and POP3 protocols Configurable POP3 and SMTP ports Sender-based IP reputation filter Recurrent Pattern Detection (RPD) technology Zero-hour virus outbreak protection X-Header support Blacklist and whitelist support Supports DNSBL checking Spam tag support Statistics report | Content Filtering | Social media filtering Malicious Website filtering URL blocking and keyword blocking Blacklist and whitelist support Blocks java applets, cookies and ActiveX Dynamic, cloud-based URL filtering database Unlimited user license support Customizable warning messages and redirection URL | Unified Security Policy | Unified policy management interface Supported UTM features: anti-virus, antispam, IDP, content filtering, application intelligence, firewall (ACL) 3-Tier Configuration: Object-based, profile based, policy-based Policy Criteria: Zone, source, and destination IP address, user, time | WLAN Management | ZyXEL AP Controller (APC) 1.0 compliant Client RSSI threshold to prevent sticky clients IEEE 802.1x authentication Captive portal Web authentication Customizable captive portal page RADIUS authentication Wi-Fi Multimedia (WMM) wireless QoS CAPWAP discovery protocol | Mobile Broadband | WAN connection failover via 3G and 4G* USB modems Auto fallback when primary WAN recovers *4G USB modem support available in future firmware upgrades | Networking | Routing mode, bridge mode, and hybrid mode Ethernet and PPPoE NAT and PAT VLAN tagging (802.1Q) Virtual interface (alias interface) Policy-based routing (user-aware) Policy-based NAT (SNAT) Dynamic routing (RIPv1/v2 and OSPF) DHCP client/server/relay Dynamic DNS support WLAN trunk for more than 2 ports Per host session limit Guaranteed bandwidth Maximum bandwidth Priority-bandwidth utilization Bandwidth limit per user Bandwidth limit per IP | Authentication | Local user database Microsoft Windows Active Directory integration External LDAP/RADIUS user database XAUTH, IKEv2 with EAP VPN authentication Web-based authentication Forced user authentication (transparent authentication) IP-MAC address binding SSO (Single Sign-On) support | System Management | Role-based administration Multiple administrator logins Multi-lingual Web GUI (HTTPS and HTTP) Command line interface (console, Web console, SSH, and TELNET) SNMP v2c (MIB-II) System configuration rollback Firmware upgrade via FTP, FTP-TLS, and Web GUI Dual firmware images | Logging and Monitoring | Comprehensive local logging Syslog (to up to 4 servers) Email alerts (to up to 2 servers) Real-time traffic monitoring Built-in daily report Advanced reporting with Vantage Report | VPN, Management and Reporting | Managed APs: Add 8 APs SecuExtender SSL VPN Client: Add 5 clients IPSec VPN Client: For 1/5/10/50 clients Vantage Report: For 1/5/25/100 devices | | Antivirus | Kaspersky: 1-year | Application Intelligence and IDP | 1-year | Content Filtering | 1-year | Anti-Spam | 1-year | | Compatibility | Access Point NWA5120 Series (Unified Access Point) NWA5121-NI NWA5121-N NWA5123-NI
NWA5000 Series (Managed Access Point) NWA5160N NWA5560-N NWA5550-N
NWA3000-N Series (Unified Pro Access Point) NWA3160-N NWA3560-N NWA3550-N Functions central management, auto provisioning, and local bridge data forwarding | Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: -22 to 158°F (-30 to 70°C) | Humidity | Operating: 10 to 90% (non-condensing) Storage: 10 to 90% (non-condensing) | Dimensions (W x H x D) | 8.50 x 1.30 x 5.63" (216.00 x 33.00 x 143.00 mm) | Weight | 1.96 lb (0.89 kg) | | Package Weight | 3.6 lb | Box Dimensions (LxWxH) | 14.9 x 8.5 x 3.1" |
