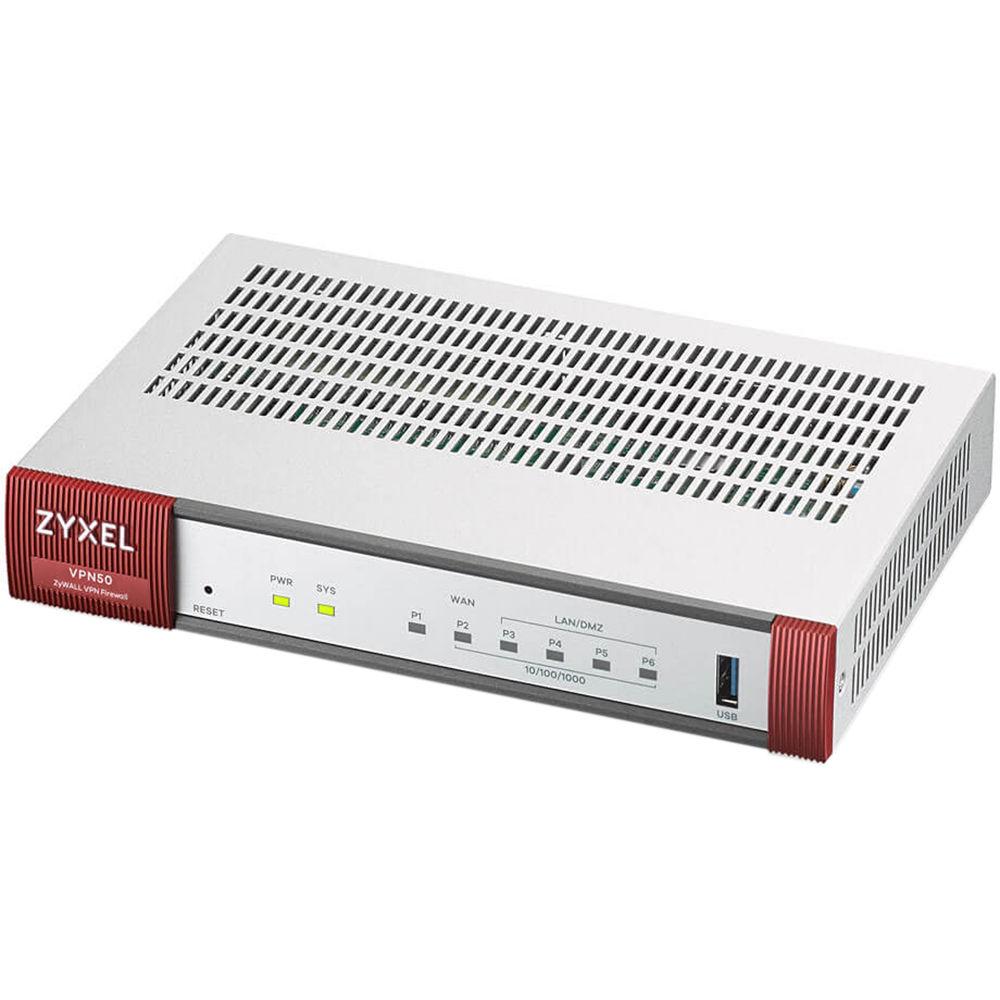

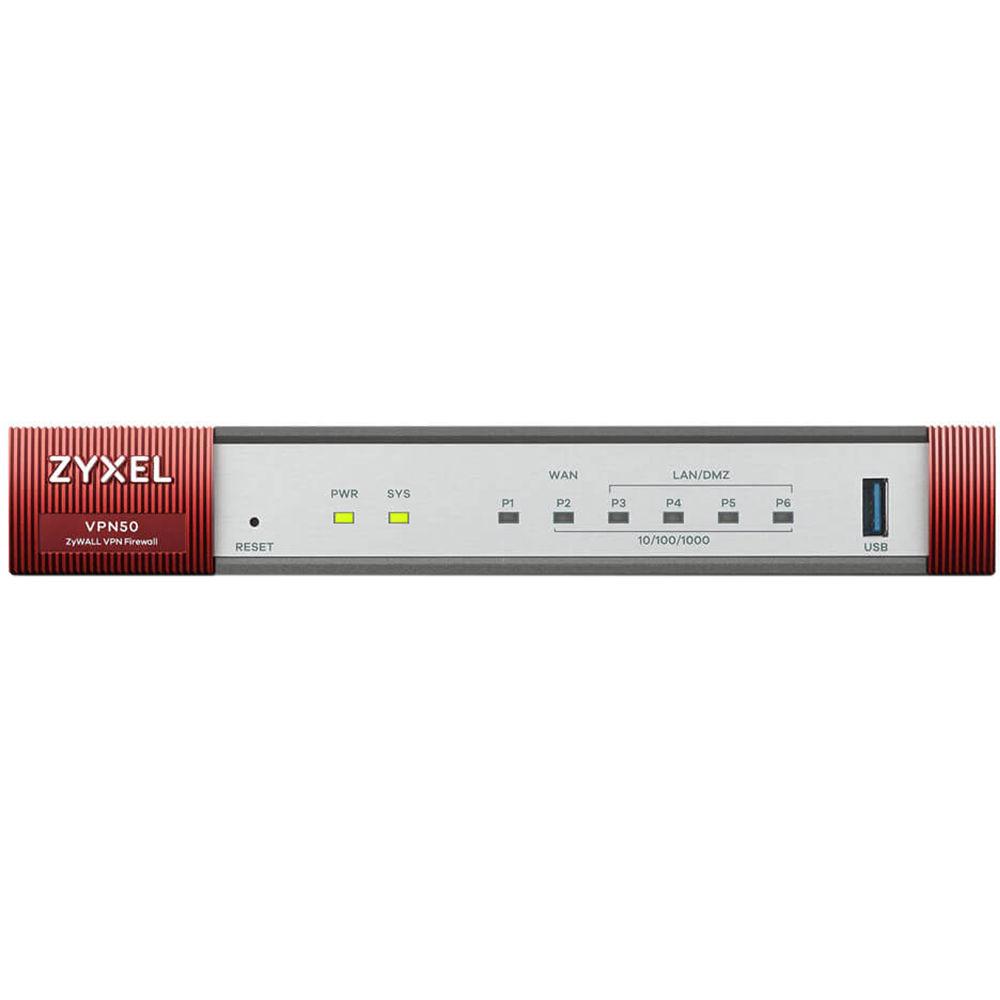

User Manual for ZyXEL VPN50 ZyWALL SPI Firewall Click to enlarge the picture
Contents of the user manual for the ZyXEL VPN50 ZyWALL SPI Firewall
- Product category: Firewalls & Security Devices ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Firewalls & Security Devices
 |
User manual for the ZyXEL VPN50 ZyWALL SPI Firewall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description Connect across multiple platforms with the VPN50 ZyWALL SPI Firewall from ZyXel. This intuitive firewall solution is designed with the enterprise user in mind. Expand your firewall to cover remote sites and multiple VPNs all while protecting your network from a variety of threats. Utilize various highly secure VPN applications including support for Amazon Virtual Private Cloud, efficient VPN tunneling, load balancing, and stronger VPN algorithms to enhance workflows while maintaining security. Deployment has also been simplified, thanks to SecuDeployer which includes specially designed provisioning services covering up to 50 remote gateways.

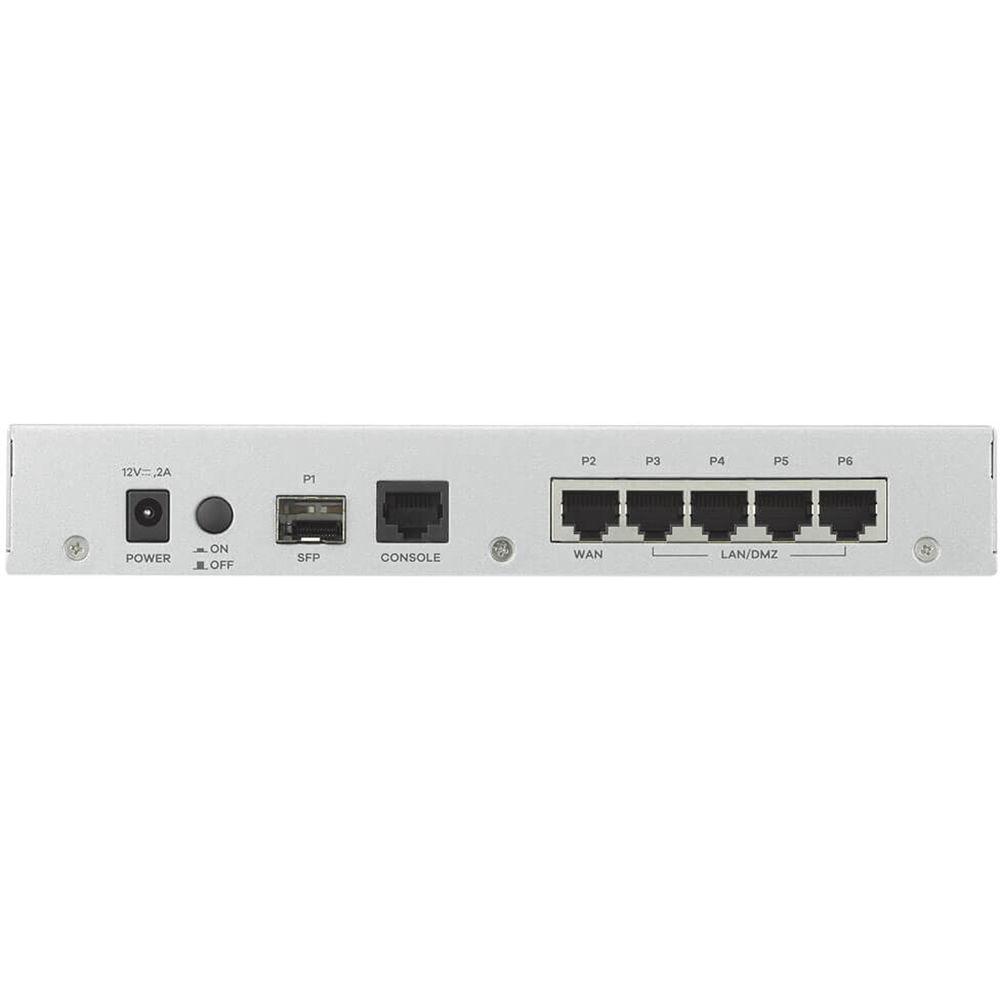

The VPN50 Firewall comes equipped with four LAN ports, a single WAN port, and a single SFP port. Additional ports include a single USB 3.0 port and one RJ45 console port for easy device management. The VPN50 features a firewall throughput of up to 800 Mb/s, VPN throughput of up to 150 Mb/s, support for up to 400,000 concurrent TCP sessions, and 8 VLAN interfaces. Additional features include one year of content filtering, one year of Geo Enforcer, EZ Mode functionality, and support for both Amazon VPC and Facebook Wi-Fi. - High Secure VPN Applications
- This ZyWALL VPN firewall provides comprehensive types of VPN connectivity for your business and supports Amazon Virtual Private Cloud (AWS VPC). Moreover, this business-grade ZyWALL VPN firewall comes equipped with the IPSec VPN hardware engine for high efficiency VPN tunnel and VPN load balance/failover with a stronger VPN algorithm (IKEv2 & SHA-2) that ensures the VPN reliability and security for business communications.
- Easy VPN Deployment with SecuDeployer
- The ZyWALL VPN50 firewall comes with a specifically designed provisioning service, SecuDeployer, supporting up to 50 remote gateways in just a few steps without extra software or appliance installation. In addition, the SecuDeployer service has an integrated user-friendly interface for easy VPN provisions to remote offices/sites, and it also supports VPN monitoring for high-efficiency VPN management.
- Non-Stop Service
- The ZyWALL VPN50 firewall delivers high-performance network security to help businesses satisfy the demand for always-on communications. For mission-critical deployments, the ZyWALL VPN Series firewall features provide active-passive device High-Availability (HA) service to support device or connection failover.
The ZyWALL VPN Series firewall features multi-WAN load balancing/failover and a comprehensive mobile broadband USB modem support list for WAN backup operations. The ZyWALL VPN Series firewall also supports IPSec load balancing and failover, providing additional resilience for mission-critical VPN failover with VTI Interface deployments. - Comprehensive Connectivity
- The ZyWALL VPN firewall integrates with Facebook Wi-Fi to help small shops, stores, and restaurants not only provide customers with easy internet connectivity, but also increase the popularity of your business on Facebook.
The ZyWALL VPN firewall combining AP Controller technology enables users to manage APs from a centralized user interface. Businesses can deploy or expand a managed Wi-Fi network with minimal effort. - Subscription Services
- This Zyxel VPN firewall provides a complete feature set to fit different business requirements as well as to enable the maximum performance for security, hotspot, and connectivity. Comprehensive network modularity also empowers IT professionals to customize the system to meet their individual needs.
- Hybrid VPN Application
- High-speed, high-security communications between local servers, remote devices and cloud-hosted applications with deployments of the ZyWALL VPN Series.
Secure, reliable VPN connectivity with IPSec VPN load balancing and failover features delivers high-availability services for exceptional uptime.
Easy-to-use, secure remote access via SSL, IPSec and L2TP over IPSec VPN.
The headquarter ZyWALL Series can also establish an IPSec VPN connection with Amazon VPC for secured access to leverage the benefits of cloud-base and to expend on premise networks that extend into the cloud center. - Managed Application Security Services
- Branch offices, small and medium business, as well as IT administrators can deploy Zyxel VPN firewalls to establish VPN connections among Managed Service Providers (MSPs) that improve services levels, minimize end-user service downtime and relieve network maintenance efforts.
SecuDeployer turns your firewall into a provision server, quick and easy to deploy up to 50 remote devices.
Retailers and chain stores such as healthcare, banking, and branch offices can deploy ZyWALL VPN Firewalls over secure connections (IPSec VPN) for business transactions. - Connectivity for Hospitability Services
- The ZyWALL VPN Firewall with managed AP provides Hospitality businesses and SMB with a range of network access privileges such as free, paid access or social login.
Hospitality businesses can deploy ZyWALL VPN with Hotspot Management features that provide secure network services such as advanced billing for flexible free and tiered Wi-Fi services while retaining the internet usage record to comply with local regulations. In the Box ZyXEL VPN50 ZyWALL SPI Firewall (800 Mb/s) Power Adapter RJ45 - RS-232 Cable for Console Connection Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL VPN50 ZyWALL SPI Firewall in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL VPN50 Specs | Interface | 4 x LAN/DMZ
1 x WAN
1 x SFP | | USB Ports | 1 x USB 3.0 port | | Console Port | Yes (RJ45) | | Rack Mountable | No | | System Performance | SPI Firewall Throughput (Mb/s)
800
VPN Throughput (Mb/s)
150
Max. TCP Concurrent Sessions
400,000
Max. Concurrent IPSec VPN Tunnels
50
Concurrent SSL VPN Users (Default/Max.)
10/50
VLAN Interface
8
Concurrent Device Logins (Default/Max.)
64 | | WLAN Management | Managed AP Number (Default/Max.)
4/36 | | Power | Power Input
12 VDC, 2.0 A max.
Max. Power Consumption (watts)
12
Heat Dissipation (BTU/hr)
40.92 | | MTBF | 44,000 hours | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-22 to 158°F / -30 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
10 to 90% non-condensing | | Certifications | EMC
FCC Part 15 (Class B), IC, CE EMC (Class B), RCM, BSMI
Safety
BSMI, UL | | Dimensions | 8.50 x 5.63 x 1.30" / 216 x 143 x 33 mm | | Weight | 1.94 lb / 0.88 kg | | | | Package Weight | 3.165 lb | | Box Dimensions (LxWxH) | 11.0 x 7.5 x 3.9" |
