User Manual for ZyXEL WAC5302D-S Wireless-AC1200 Dual-Band Access Point Click to enlarge the picture
Contents of the user manual for the ZyXEL WAC5302D-S Wireless-AC1200 Dual-Band Access Point
- Product category: Wireless Access Points ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Wireless Access Points
 |
User manual for the ZyXEL WAC5302D-S Wireless-AC1200 Dual-Band Access Point contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|

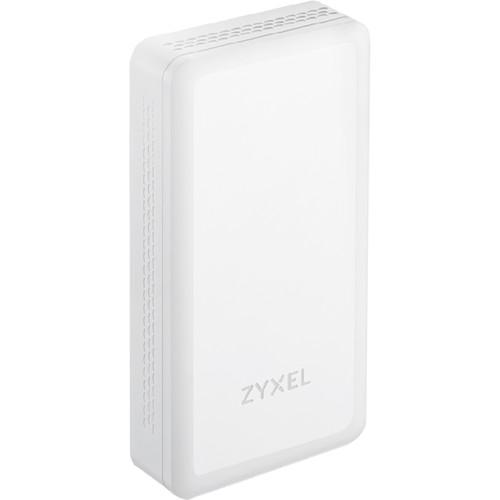

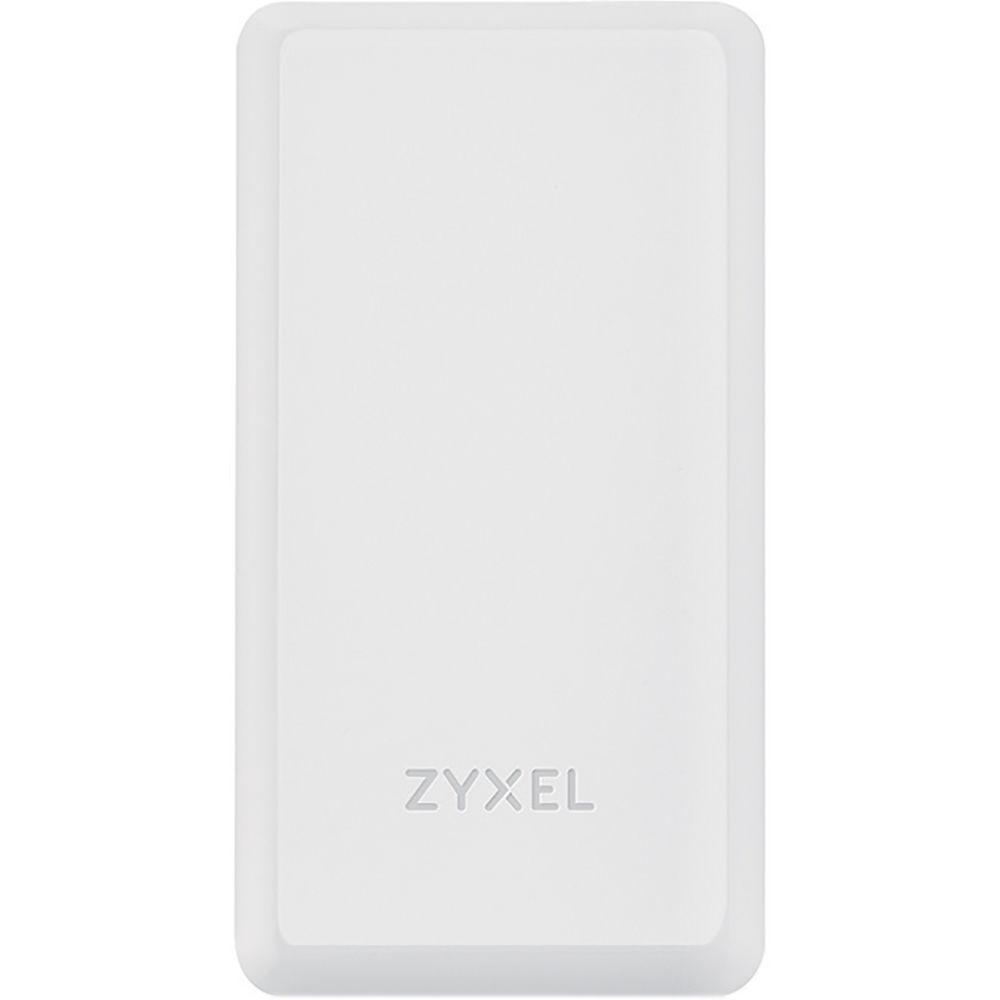

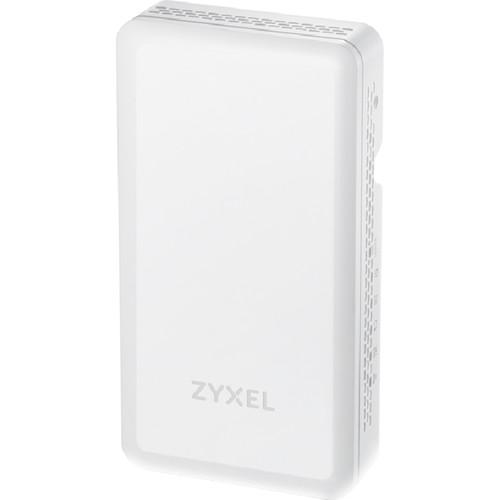

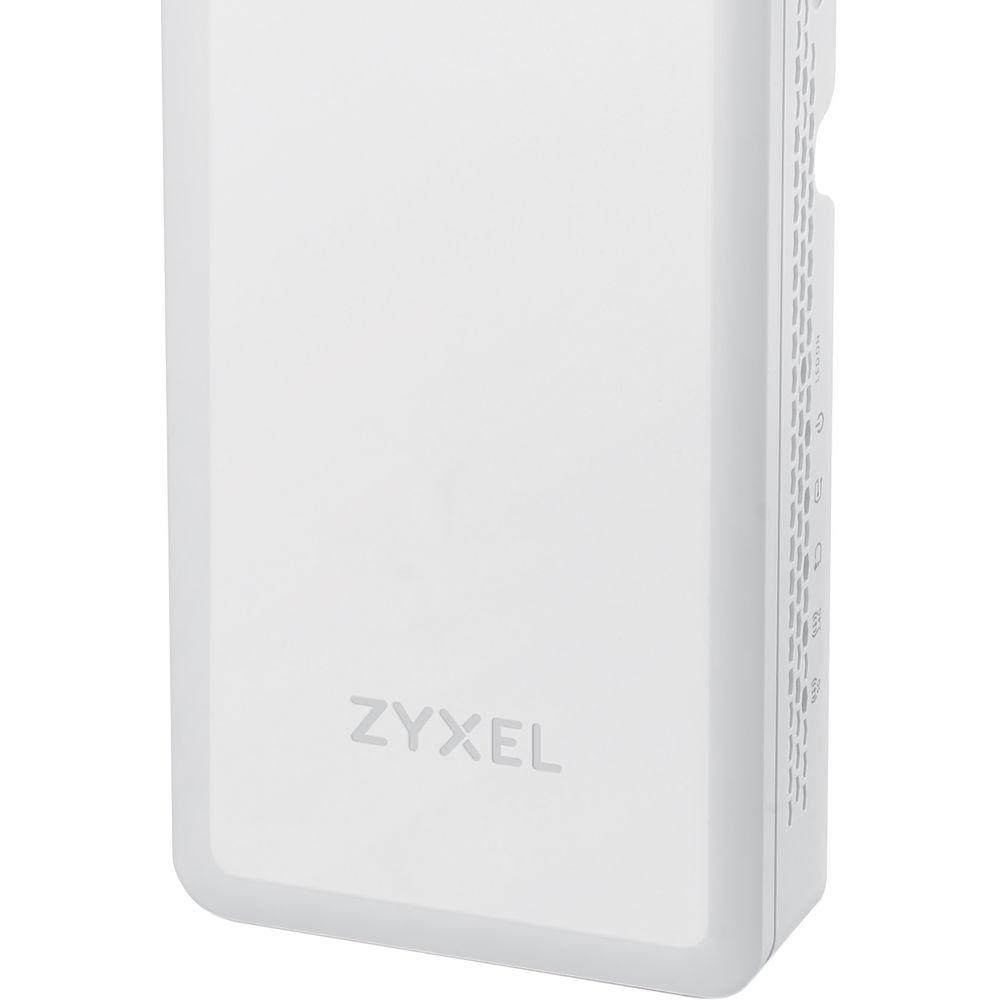

Product description Offer both wireless and wired network access to your guests with the WAC5302D-S Wireless-AC1200 Dual-Band Access Point from Zyxel. This wireless access point supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 1166 Mbps. In addition to wireless connectivity, this access point comes equipped with three Gigabit Ethernet LAN ports to ensure Ethernet enabled devices have a reliable, wired connection.
Installation is simple as this discrete AP can be placed virtually anywhere, and with 803.at and 802.3af PoE support the device can be powered directly from the network. Once installed, the access point supports up to 16 SSIDs making it easy to configure multiple network names to a single unit. Additionally, this AP offers enhanced wireless security using WEP, WPA, and WPA2 encryption as well as MAC filtering, Layer-2 isolation, and more. Zyxel even includes their own ZON management utility with this AP offering a host of features including IP configuration, IP renew, device reboot, firmware upgrade, password configuration, and more. - Versatile Mounting Options

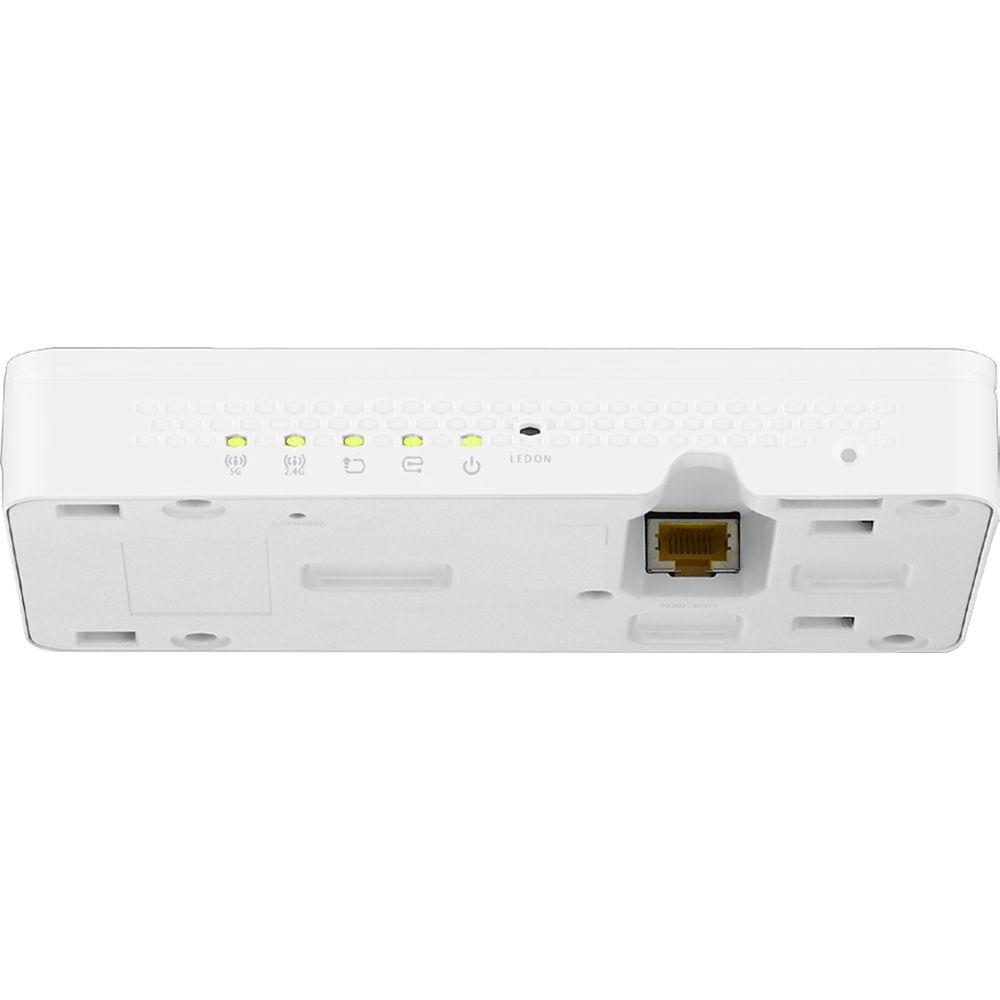

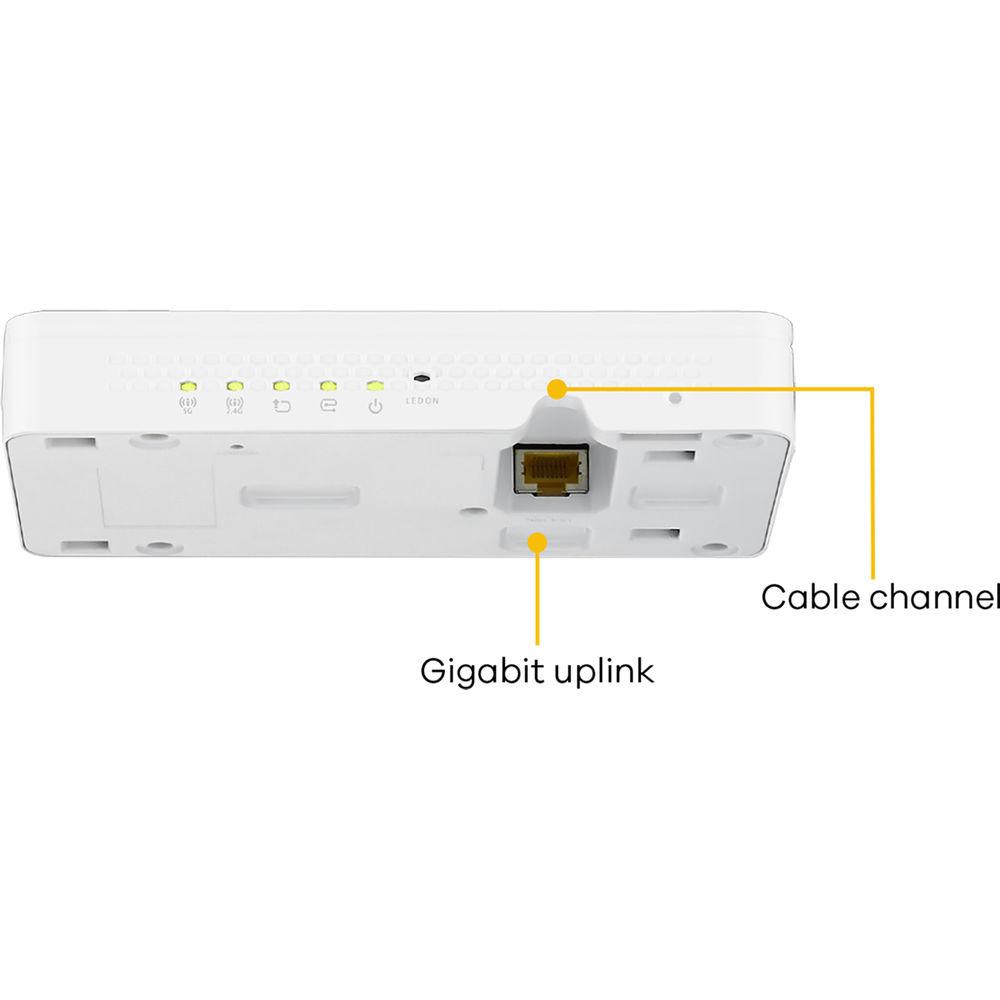

- The Zyxel WAC5302D-S' low profile and versatile mounting design make for easy installation in a variety of locations. For the best aesthetics, the Ethernet cable and coaxial cable can run out from the cable channel that keeps WAC5302D-S slim and fit in a limited space.
- High-Speed Wi-Fi

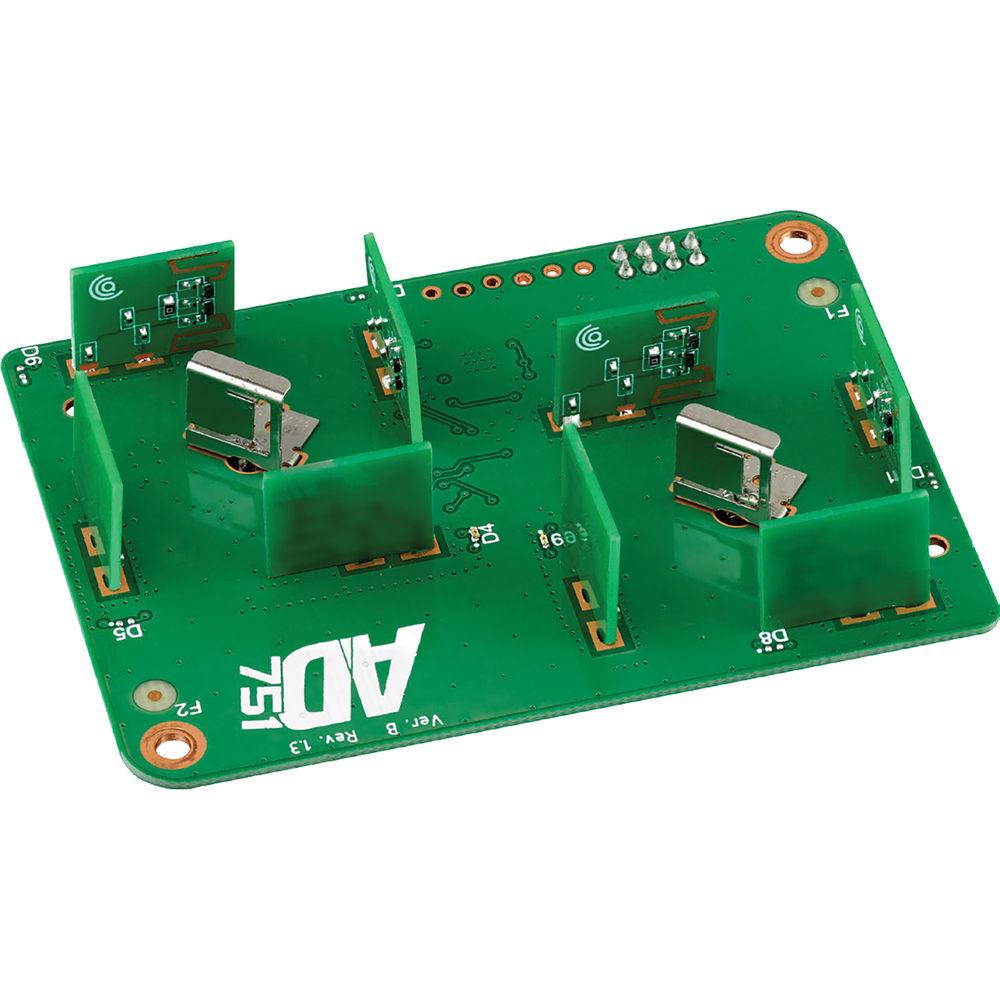

- Designed for hotel guest rooms, the Zyxel WAC5302D-S features smart antenna and beamforming to dynamically change the signal direction to provide superb performance for each individual client. The Zyxel smart antenna is designed to mitigate interference from neighboring APs next door wherever it is mounted.
- Extended Services

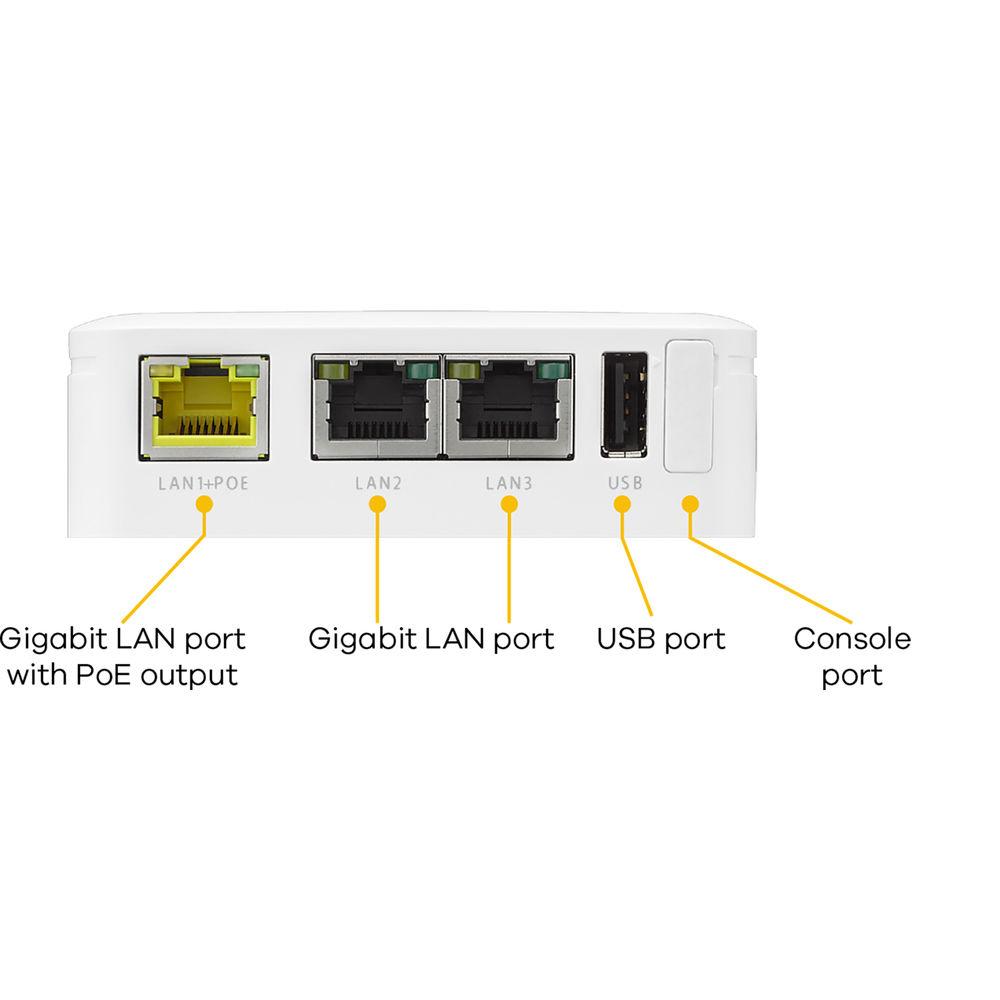

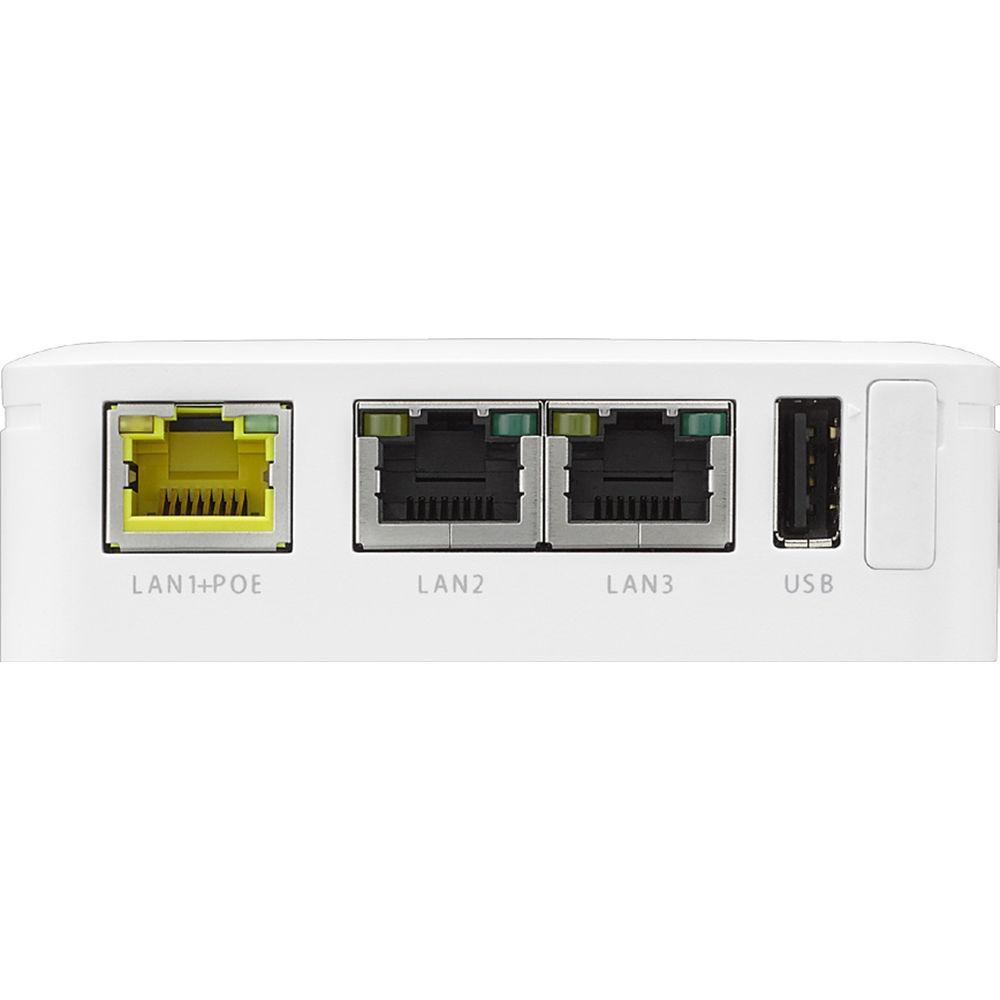

- More than just a Wi-Fi AP serving high-speed networks, the Zyxel WAC5302D-S has three local Gigabit Ethernet ports to securely attach wired devices while one of these ports supplies PoE power to the attached devices without the need for electric outlets and power cables.
- Zyxel One Network Experience
- Zyxel one network presents an easy-to-use tool, Zyxel one network Utility (ZON Utility), to realize speed network setup. Zyxel Smart Connect allows Zyxel networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. Zyxel One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
UPC: 760559124106 In the Box ZyXEL WAC5302D-S Wireless-AC1200 Dual-Band Access Point Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL WAC5302D-S Wireless-AC1200 Dual-Band Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL WAC5302D-S Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | MU-MIMO Support | 2 x 2 | | WLAN Mode | 802.11ac | | Sensitivity | -98 dBm | | Antenna Gain | 5 dBi | | Transmit Power | 17 to 19 dBm | | Supported Protocols | WMM | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE
3 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Wireless Security | WEP, WPA | | | | Max SSIDs Supported | 16 | | Throughput | 2.4 GHz: 300 Mb/s
5 GHz: 866 Mb/s | | | | Supported IEEE Standards | 802.11i, 802.1x | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 10 to 90% | | | | Dimensions | 3.5 x 6.7 x 1.1" / 9 x 17 x 2.9 cm | | Weight | 0.7 lb / 0.3 kg | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.5 x 4.7 x 2.2" |
