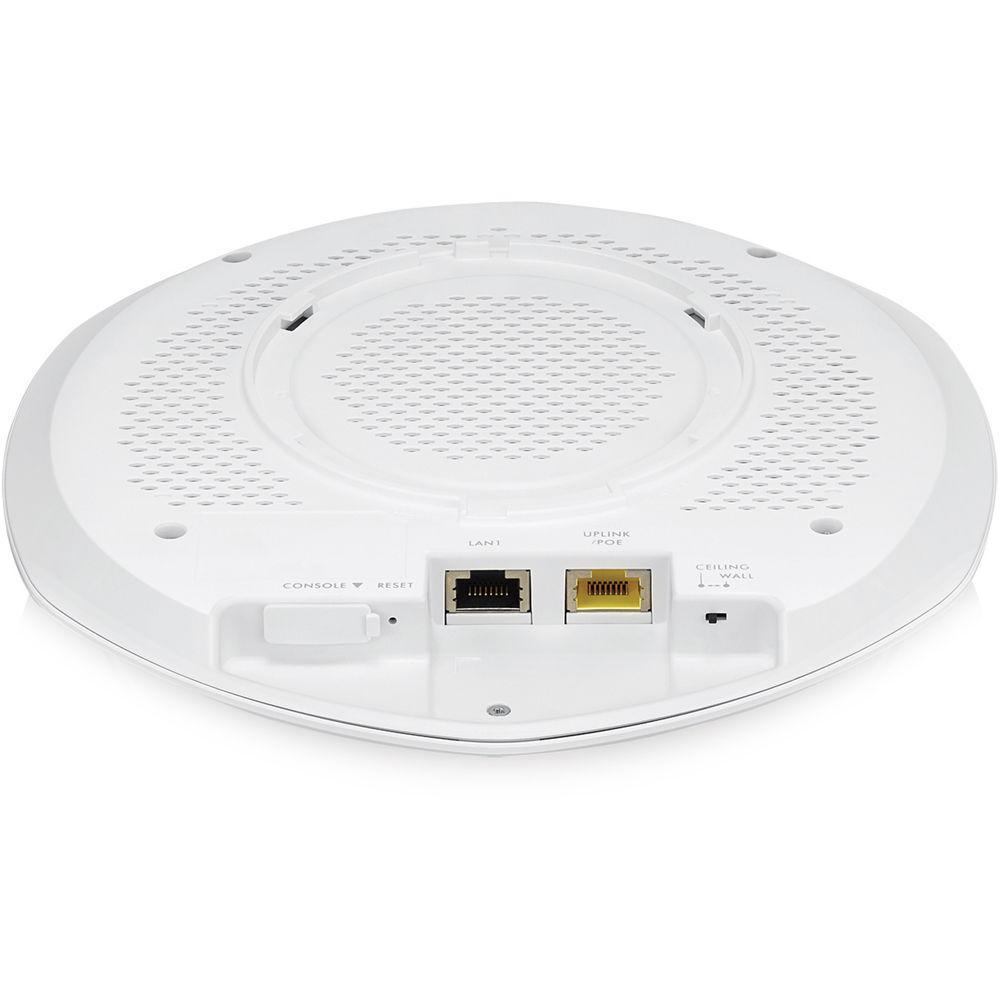

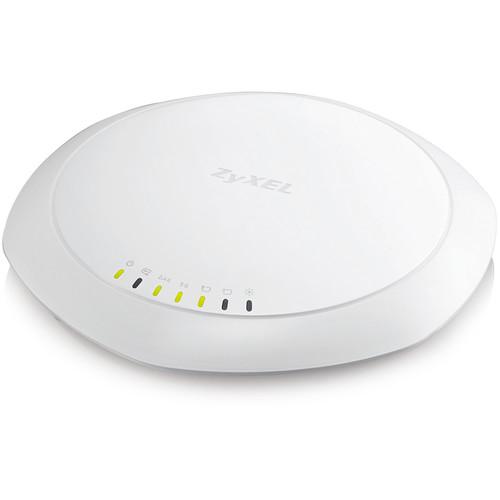

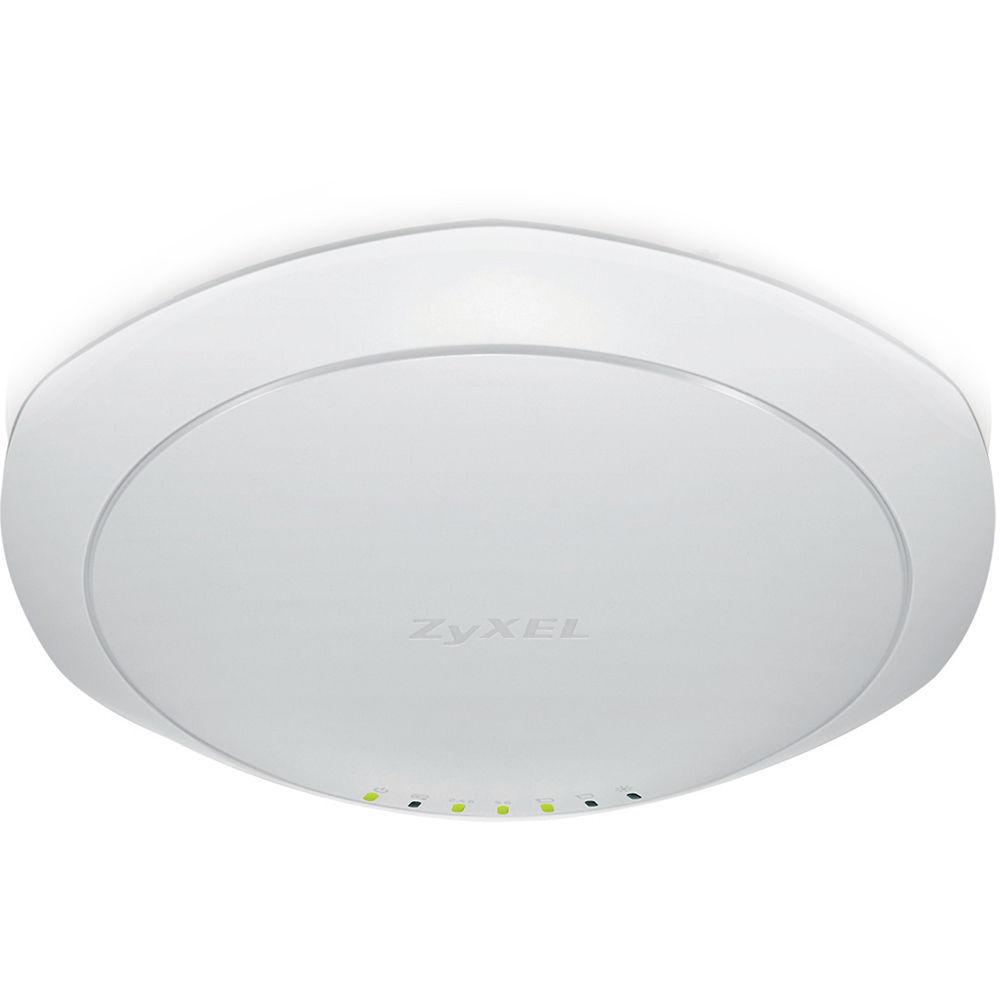

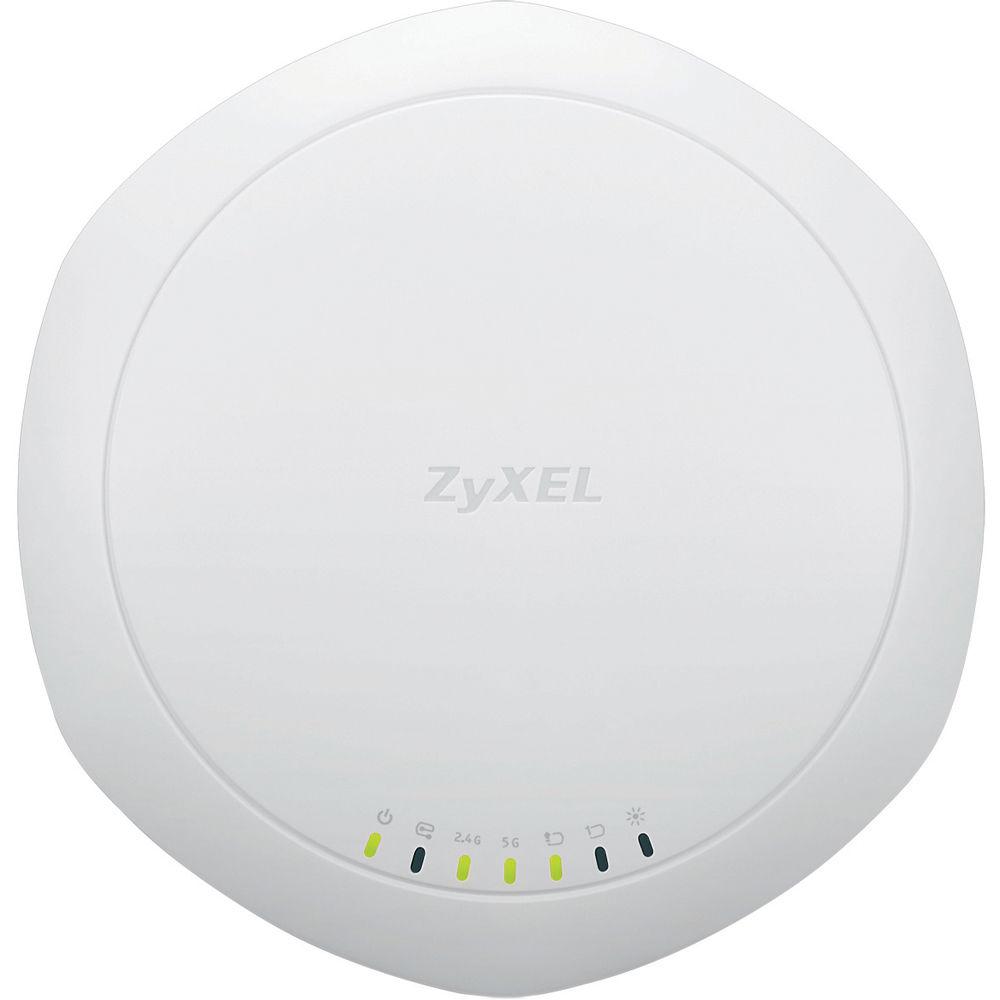

User Manual for ZyXEL WAC6103D-I 802.11ac Dual Radio Dual-optimized Antenna 3x3 Access Point Click to enlarge the picture
Contents of the user manual for the ZyXEL WAC6103D-I 802.11ac Dual Radio Dual-optimized
- Product category: Wireless Access Points ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Wireless Access Points
 |
User manual for the ZyXEL WAC6103D-I 802.11ac Dual Radio Dual-optimized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The ZyXEL WAC6103D-I 802.11ac Dual Radio Dual-optimized Antenna 3x3 Access Point is a 3-stream 802.11ac Wi-Fi AP featuring ultra-fast speeds of up to 1.75 Gb/s with dual optimized antenna design. Via the adjustable antenna setting, it provides improved signal coverage suitable for either ceiling-mount or wall-mount deployments.The access point features APFlex to simplify managed/standalone AP mode configuration to integrate with network environments automatically and to eliminate the need for pre-installed preparations. Also, the ZWO (ZyXEL Wireless Optimizer) Utility allows IT managers to perform AP planning, coverage detection, and wireless health management centrally.To streamline the management process, the NWA5120-AC access point comes with the ZyXEL One Network (ZON) utility, allowing administrators to assign IP addresses to multiple APs through just one platform. Administrators can avoid the hassle logging into each AP to change the default IP addresses before physical installation.The ZyXEL One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. The One Network comes with the ZyXEL One Network Utility (ZON Utility) for speedy network setup. The Smart Connect allows ZyXEL networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. The One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to gateway.To deliver optimized wireless experience for users, the access point features DCS (Dynamic Channel Selection), Load Balancing, and Smart Client Steering. The DCS (Dynamic Channel Selection) avoids interference from co-channel and channel overlapping at initialization, while Load Balancing enables administrators to set limits on the number of clients associated with each AP. Furthermore, Smart Client steering features Band Select, Signal Threshold, and Band Balancing for stable, reliable wireless connections. Band Select and Signal Threshold monitor the capabilities of each wireless client and steer them to the less-congested band and the AP with better signal. Band Balancing detects dual-radio clients and distributes clients across 2.4 GHz and 5 GHz bands on AP. WPA2 Enterprise - The WAC6103D-I features a WPA2 enterprise protection and supports a wide range of Extensible Authentication Protocol (EAP) types. It can be seamlessly integrated with deployed corporate RADIUS servers.
ZyXEL APFlex - The APFlex includes Zero-touch AP mode changing and Automatic IP configuration functions. The Zero-touch AP mode setting detects if there is an existing ZyXEL controller and to choose stand-alone or managed mode accordingly. The Automatic IP configuration removes manual configuration and allows the AP to set itself to fixed or dynamic IP address automatically. With these two features, IT administrators can skip the two critical settings that had to be handled manually on legacy products and focus to more critical configuration tasks instead.
ZyXEL Wireless Optimizer - The Wireless Optimizer (ZWO) provides a powerful tool for centralized management covering initial planning, adjustment during deployment and after-sale maintenance of an AP network. Architects can simulate AP deployment on a map displaying the number of APs needed. During deployment, ZWO will also map actual signal coverage for architects to adjust their AP locations or configurations. After-sale, network administrators can access key performance details from ZWO, including channel in use, transmit retry rate and frame error rate, as well as the devices on the environment map. ZWO's user-friendly presentation saves time and facilitates quick response to the network problems.
Wireless Layer-2 Isolation - The Layer-2 isolation protects private networks among client users, allowing users to access their shared devices without entering the rest of a private network for enhanced security. In addition, the intra-BSS blocking prevents different Wi-Fi clients associated with the same AP from seeing each other and each other's data.
ZyMesh - The Wireless Mesh is an array of access points automatically forming dynamic wireless links. Built on this foundation of mesh networking, ZyMesh is ZyXEL's proprietary protocol for creating wireless mesh links for easy configuration, optimized management, and enhanced reliability.
ZyXEL AP Configurator - While deploying a number of APs, repetitive configuration of each unit takes time and effort. The ZyXEL AP Configurator (ZAC) builds templates that allow users to copy one profile to several APs, allowing batch firmware upgrades and profile backups in three easy steps to significantly reduce configuration time and effort.
RF Frame - The WAC6103D-I isolates RF circuits by solid shielding frames. Thus, electromagnetic interference (EMI) is mitigated, while RF performance is enhanced as well.
Solid Capacitor for Longevity - All-solid capacitor design improves the overall shelf life of the access point. No more exploding capacitors that fail the AP, so better stability and reliability can be expected.
802.11n/ac - 3x3 Multiple-Input Multiple-Output (MIMO) with three spatial streams
- Maximal Ratio Combining (MRC)
- 20-, 40- and 80 MHz channels
- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
- CSD (Cyclic Delay diversity) support
- MLD (Maximum Likehood Demodulation) support
- LDPC (Low Density Parity Check) support
UPC: 760559123505 In the Box ZyXEL WAC6103D-I 802.11ac Dual Radio Dual-optimized Antenna 3x3 Access Point Wall/Ceiling Mount Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL WAC6103D-I 802.11ac Dual Radio Dual-optimized Antenna 3x3 Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL WAC6103D-I Specs | Wireless Frequency | 2.4 and 5 GHz | | Radio | 2 | | Frequency Band | 2.4 GHz (IEEE 802.11 b/g/n)
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
Taiwan (TW): 2.412 to 2.462 GHz
5 GHz (IEEE 802.11 a/n/ac)
USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Taiwan (TW): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz | | Transmit Output Power | FCC 11b/g: 27 dBm
FCC 11g/n: 26 dBm
FCC 11a: 27 dBm
FCC 11n/a (ac): 27 dBm
EU 11b/g: 18 dBm
EU 11g/n: 18 dBm
EU 11a: 22 dBm
EU 11n/a (ac): 24 dBm | | Antenna | Dual-optimized internal antenna | | Antenna Gain | Ceiling: 2.4 GHz 3 dBi; 5 GHz 4 dBi
Wall: 2.4 GHz 4 dBi; 5 GHz 5 dBi | | Supported Data Rates | 802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mb/s
802.11n: up to 450 Mb/s in MCS15 (40 MHz)
802.11ac: up to 1300 Mb/s in MCS9 (80 MHz) | | Receive Sensitivity | Minimum Rx sensitivity to -102 dBm | | Interfaces | Number of 10/100/1000M LAN: 2 x switch ports
Console Port: 4-Pin serial
PoE
PoE Power Draw: 12.48 W (802.3at PoE) | | WLAN Features | WLAN Maximum Throughput: Up to 900 Mb/s
Mesh AP (By License)
Mesh AP for multiple SSID with VLAN (through tunnel mode) | | Wireless Security | WEP
WPA/WPA2-PSK
WPA/WPA2-Enterprise
WMM
WLAN access control list
EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM
IEEE 802.1X
Number of SSID: 16
Web Authentication
MAC filtering
Layer-2 isolation
RADIUS authentication
Microsoft AD authentication
LDAP authentication
MAC authentication
Rogue AP detection
Rogue AP containment | | Network | WMM
WMM power save
DiffServ marking | | Management | ZON Utility
Discovery of ZyXEL switches, APs and gateways
Centralized and batch configurations
IP configuration
Device reboot
Firmware upgrade
IP renew
Device locating
Password configuration
Device factory reset
Web GUI access
One-click quick association with ZyXEL
AP Configurator (ZAC)
Discover neighboring devices
Smart Connect: One-click remote management access to the neighboring ZyXEL devices
ZyXEL AP Configurator
Batch AP configuration
Batch AP firmware upgrade
Batch AP profile backup
ZyXEL Wireless Optimizer
Wi-Fi AP planning
Wi-Fi coverage detection
Wireless health management
Standalone AP mode
Managed AP mode
CLI
Web UI
SNMP: v2c/v3 | | Plenum Rated | Yes | | Input Power | 802.3at PoE only (No DC jack) | | MTBF | 1,005,235 hours | | Standard Compliance | Ethernet
IEEE 802.3
IEEE 802.3u
IEEE 802.11ab
IEEE 802.3au
IEEE 802.3az
IEEE 802.3at
PoE: IEEE 802.3at
WLAN: 802.11b: DBPSK, DQPSK, CCK, 802.11g: BPSK, QPSK, 16-QAM, 64-QAM, 802.11a: BPSK, QPSK, 16-QAM, 64-QAM, 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM | | Certifications | Radio: FCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC: FCC part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety: EN 60950-1, IEC 60950-1, BSMI CNS14336-1 | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Humidity | 10 to 90% (non-condensing) | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage humidity | 10 to 90% (non-condensing) | | Dimensions (W x D x H) | 8.03 x 7.55 x 1.37" / 203.9 x 191.7 x 34.7 mm | | Weight | 0.98 lb / 0.44 kg |
