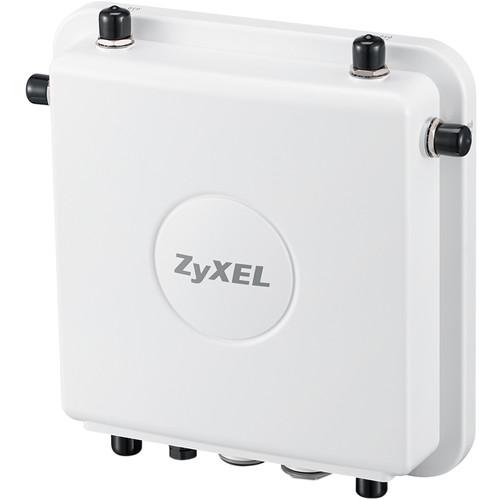

User Manual for ZyXEL WAC6553D-E 802.11ac Dual Radio External Antenna 3x3 Outdoor Access Point Click to enlarge the picture
Contents of the user manual for the ZyXEL WAC6553D-E 802.11ac Dual Radio External
- Product category: Wireless Access Points ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Wireless Access Points
|
User manual for the ZyXEL WAC6553D-E 802.11ac Dual Radio External contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The WAC6553D-E 802.11ac Dual Radio External Antenna 3x3 Outdoor Access Point from ZyXEL offers more than 700 optimized signal patterns. The ZyXEL smart antenna continuously calculates the suitable physical-layer path for each individual client. This feature not only provides the signal by shaping to various patterns, it also mitigates interference from other wireless clients.The access point smart antenna allows you to migrate from wireless n to wireless ac without re-configuring or adding additional APs to a network. The smart antenna adjusts wireless patterns, doubling performance with stronger signals to increase sensitivity and improve interference resistance. In addition, advanced Wi-Fi features load balancing and smart-client steering that ensure a smooth, consistent, and uninterrupted wireless access experience.
With the ZyXEL APFlex feature, the access point is easy to install. While deploying large groups of access points with AP controllers in place, APFlex enables streamline and hassle-free installation, simple switching between Managed/Standalone AP modes and automatic integration of APs into the network environment. When operating, DCS (Dynamic Channel Selection) balances the AP channels to reduce signal interference. Furthermore, the universal bracket allows for flexible ceiling track mounting in three simple steps, eliminating the need for tools. The bracket width adjusts to fit a variety of ceiling track configurations, adapting to any building’s structure. - ZyXEL Smart Antenna
- The ZyXEL smart antenna continuously applies an algorithm to provide the signal. The smart antenna mitigates RF interference over more than 700 optimized patterns for each individual client. Even in high-density environments like airports, classrooms, and other crowded venues, the smart antenna delivers remarkable performance.
- Tool-less Installation
- The WAC6553D-E features a mounting bracket design that makes installation easy. Mounting can be completed in just three simple steps without the need for tools. The adjustable-width of bracket is suitable for a wide range of ceiling track configurations.
- ZyXEL APFlex
- ZyXEL APFlex includes zero-touch AP mode changing and automatic IP configuration, allowing IT administrators to skip these two repetitive non-value pre-configurations, and focus more on critical configuration tasks.
- ZyXEL Wireless Optimizer
- ZWO (ZyXEL Wireless Optimizer) is a software tool that simplifies initial AP planning, adjustment during deployment, and after-sale maintenance of a wireless network.
- WPA2 Enterprise
- Certified with industrial-strength WPA2 enterprise protection and support for a wide range of EAP (Extensible Authentication Protocol) types. Access Points can be seamlessly integrated with deployed corporate RADIUS servers.
- Wireless L2 Isolation
- The wireless Layer-2 isolation protects private networks among client users by allowing you to access the shared devices without entering the rest of a private network for enhanced security. In addition, intra-BSS blocking prevents different Wi-Fi clients associated with the same AP from seeing each other and each other's data.
- ZON Utility
- ZON (ZyXEL One Network) utility allows administrators to assign IP addresses to multiple access points through just one platform. Administrators can avoid the complication of logging onto each AP to change the default IP addresses before physical installation.
- ZyMESH
- Wireless Mesh is an array of access points automatically forming dynamic wireless links. Built on this foundation of mesh networking, ZyMesh is ZyXEL's proprietary protocol for creating wireless mesh links for easy configuration, optimized management, and enhanced reliability.
- ZyXEL AP Configurator
- ZAC (ZyXEL AP Configurator) builds templates that allow users to copy one profile to several access points, allowing batch firmware upgrades and profile backups, significantly reducing configuration time and effort.
In the Box ZyXEL WAC6553D-E 802.11ac Dual Radio External Antenna 3x3 Outdoor Access Point Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL WAC6553D-E 802.11ac Dual Radio External Antenna 3x3 Outdoor Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL WAC6553D-E Specs | Support Data Type | 802.11n: Up to 450 Mb/s in MCS23 (40 MHz)
802.11ac: Up to 1300 Mb/s in MCS9 (80 MHz) | | Antenna | 6 N-type connectors The antenna is not embedded and external antennas are sold separately. | | MIMO | 802.11n/ac Premium Feature
3x3 I/O w/ 3 spatial streams | | Receive Sensitivity | Minimum receiver sensitivity up to -102 dBm | | WLAN | Maximum throughput up to 900 Mb/s
802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16-QAM, 64-QAM 802.11a: BPSK, QPSK, 16-QAM, 64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM | | Security | Supported WEP, WPA/WPA2-Enterprise, WMM (Wi-Fi certified) ,multiple EAP types, IEEE802.1X, MAC filtering, Layer-2 isolation , RADIUS authentication and more encryption supported when working with ZyXEL NXC controller series | | Network | Support IPv6, VLANs, DHCP Client | | QoS | WMM, WMM power save, DiffServ marking | | Interfaces | 2 x gigabit port
1 x RJ45 serial console port
Support 802.3at PoE for full functional operation | | Input Power | DC Input: 12 VDC, 2 A
PoE: 802.3at compliant | | Ethernet | IEEE 802.3
IEEE 802.3u
IEEE 802.11ab
IEEE 802.3au
IEEE 802.3az
IEEE 802.3at | | PoE | IEEE 802.3at | | Certifications | Radio: FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC: FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety: EN 60950-1, IEC 60950-1, BSMI CNS14336-1 | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | Operating & Storage: 10 to 95% (non-condensing) | | Weather Resistant | IP66 enclosures with embedded heater for harsh weather | | Dimensions | 10 x 10.1 x 2.4" / 25 x 25.6 x 6.1 cm | | Weight | 3.77 lb / 1.71 kg |
