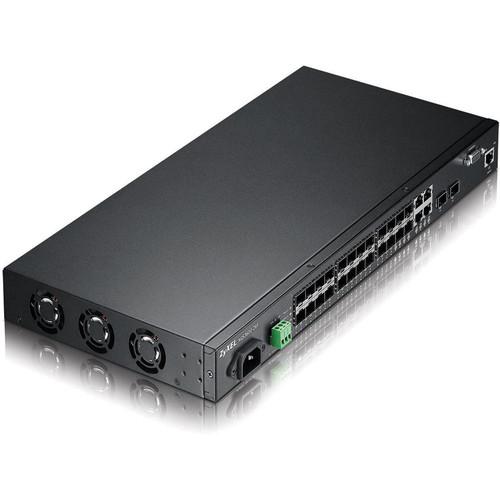

User Manual for ZyXEL XGS3600 Series 24-Port GbE Layer 2 Switcher with Four GbE Combo Ports and Two 10G Fiber Ports Click to enlarge the picture
Contents of the user manual for the ZyXEL XGS3600 Series 24-Port GbE Layer
- Product category: Network Switches, Bridges & Hubs ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Switches, Bridges & Hubs
|
User manual for the ZyXEL XGS3600 Series 24-Port GbE Layer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description Provided by third party: The ZyXEL XGS3600/MGS3600 Series are Telco-class Layer 2 Carrier Ethernet switches ideal for Ethernet service aggregation and extension. The Series meet all IEEE 802.3/u/x/z/ab/ae standards and are an excellent solution that provides an ideal combination of affordability with capabilities for Carrier Access networking which include: IEEE 802.3ah MAC Layer OAM; IEEE 802.1ag Ethernet CFM, ITU-T Y.1731 Ethernet OAM Performance Monitoring; ITU-T G.8031 Ethernet Linear Protection and ITU-T G.8032 Ethernet Ring Protection Switching. UPC: 760559121594 In the Box ZyXEL XGS3600 Series 24-Port GbE Layer 2 Switcher with Four GbE Combo Ports and Two 10G Fiber Ports Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL XGS3600 Series 24-Port GbE Layer 2 Switcher with Four GbE Combo Ports and Two 10G Fiber Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL XGS3600-26F Specs | | | Total Number of Network Ports | 26 | | Token Ring Port | No | | LRE Port | No | | Uplink Port | No | | Bypass | No | | Modular | No | | Management Port | Yes | | USB | No | | Stack Port | No | | Number of Network (RJ-45) Ports | 4 | | Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot
24 x Gigabit Ethernet Expansion Slot
4 x Gigabit Ethernet Network | | | | Media Type Supported | Optical Fiber
Twisted Pair | | Ethernet Technology | 10 Gigabit Ethernet
Gigabit Ethernet | | Network Technology | 10/100/1000Base-T
1000Base-X
10GBase-X | | | | Number of Total Expansion Slots | 26 | | Expansion Slot Type | SFP
SFP+ | | Shared SFP Slot | Yes | | Number of SFP Slots | 24 | | Number of SFP+ Slots | 2 | | | | Manageable | Yes | | Management | - VLAN
- Telnet
- DHCP
- SNMP v1, v2c, v3
- RMON
- SysLog
- MIB
- Web Based Management
- Management Access Policy Control
| | | | PoE (RJ-45) Port | No | | Input Voltage | 120 V AC
230 V AC | | Power Source | AC Adapter | | | | Form Factor | Desktop | | Height | 1.7" | | Width | 17.4" | | Depth | 8.3" | | Weight (Approximate) | 6.83 lb | | | | Certifications & Standards | IEEE Standards:
- 802.3
- 802.3u
- 802.ab
- 802.3z
- 802.3ae
- 802.3x
- 802.1d
- 802.1w
- 802.1s
- 802.1p
- 802.1Q
- 802.1X
- 802.3ad
- 802.3ah
- 802.1ag
| | Environmentally Friendly | Yes | | Environmental Certification | RoHS |
