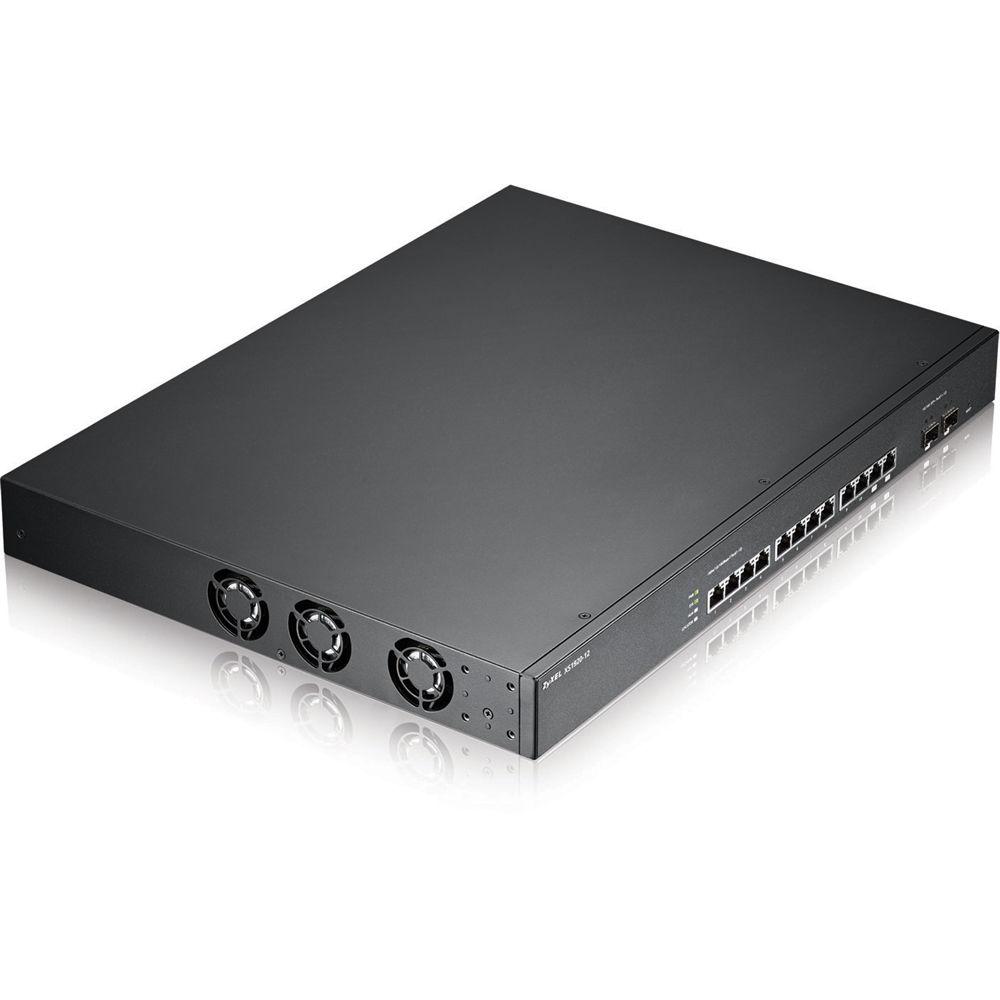

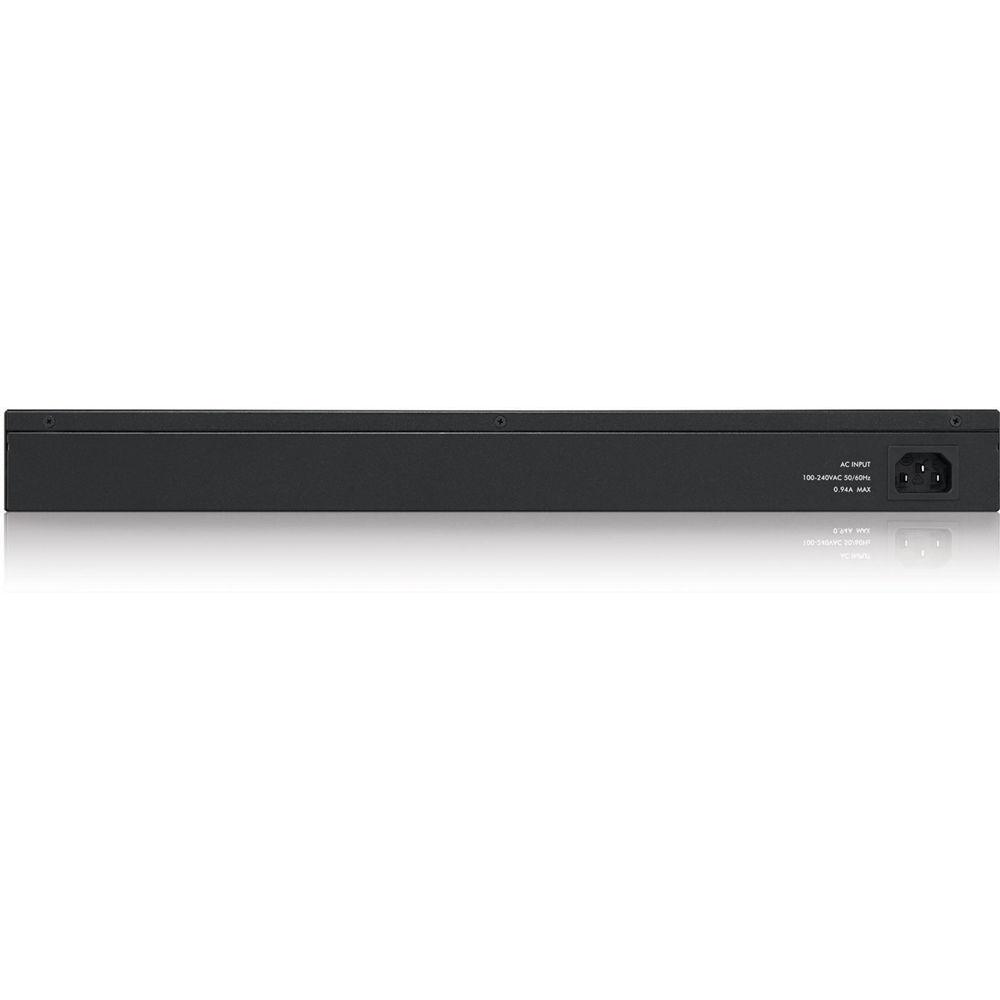

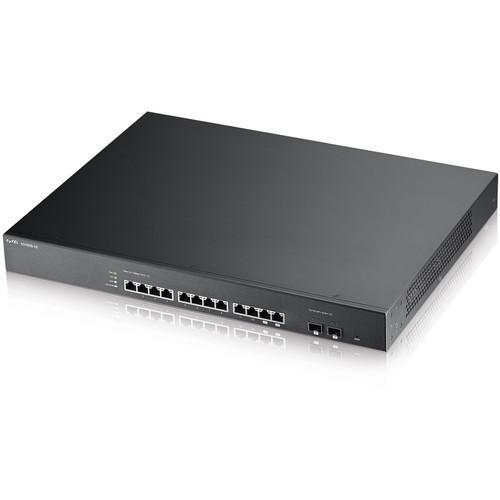

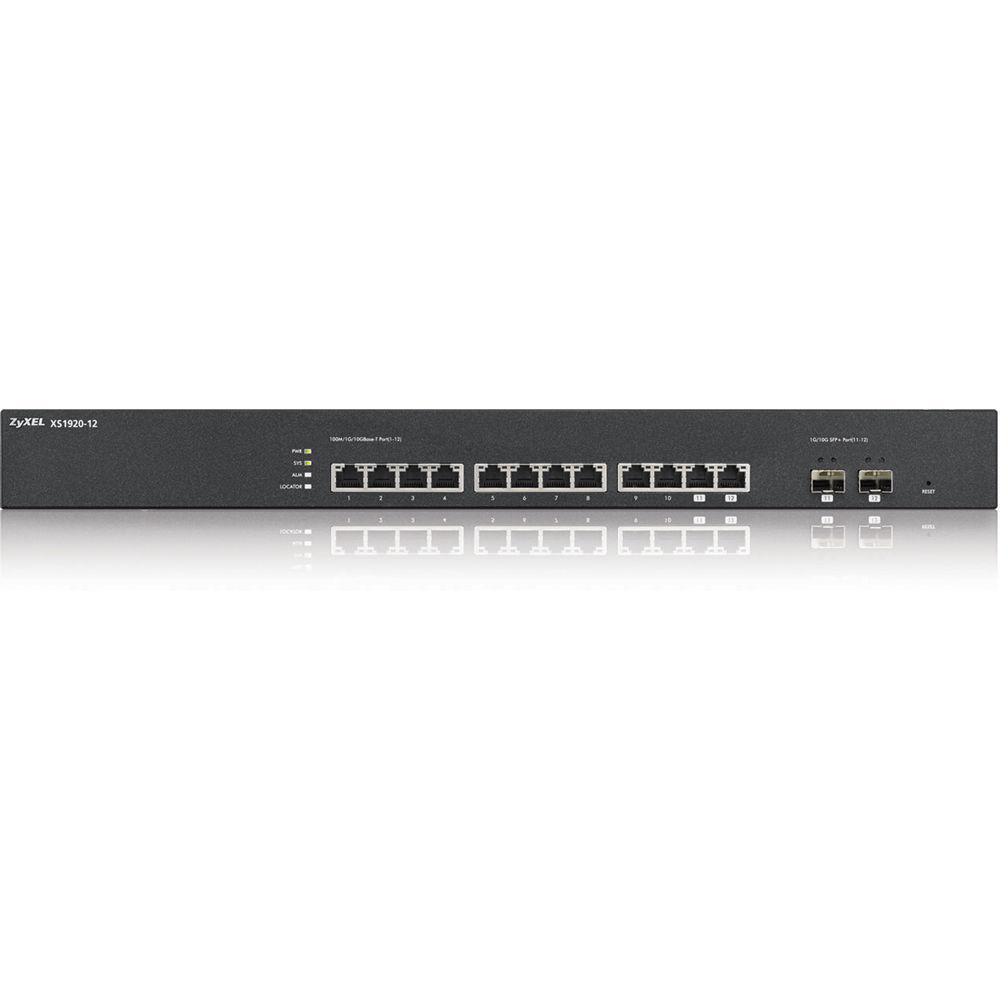

User Manual for ZyXEL XS1920-12 12-Port 10GbE Smart Managed Switcher Click to enlarge the picture
Contents of the user manual for the ZyXEL XS1920-12 12-Port 10GbE Smart Managed
- Product category: Network Switches, Bridges & Hubs ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Network Switches, Bridges & Hubs
 |
User manual for the ZyXEL XS1920-12 12-Port 10GbE Smart Managed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description Provided by third party: In today's rapidly changing world of cloud-based products and services, it can be difficult for large enterprises, as well as small and medium-sized businesses (SMBs) to decide how to best handle increased data and the demands of applications like VoIP, video streaming and IP surveillance. In this environment, networks need to be simultaneously faster and more reliable, as well as easy to set up and maintain. To help meet these challenges, ZyXEL has introduced the XS1920-12, a 10GbE smart switch for SMB that economically upgrades any network to high-speed 10GbE bandwidth. UPC: 760559121648 In the Box ZyXEL XS1920-12 12-Port 10GbE Smart Managed Switcher 12-Port 10GbE Smart Managed Switch Power Cord Rack Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL XS1920-12 12-Port 10GbE Smart Managed Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL XS1920-12 Specs | | | Total Number of Network Ports | 12 | | Token Ring Port | No | | LRE Port | No | | Bypass | No | | Modular | No | | Management Port | No | | USB | No | | Stack Port | No | | Number of Network (RJ-45) Ports | 12 | | Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Network
2 x 10 Gigabit Ethernet Expansion Slot | | | | Media Type Supported | Twisted Pair | | Ethernet Technology | 10 Gigabit Ethernet | | Network Technology | 10GBase-T
10GBase-X | | | | Number of Total Expansion Slots | 2 | | Expansion Slot Type | SFP | | Shared SFP Slot | Yes | | Number of SFP Slots | 2 | | | | Manageable | Yes | | Management | - MIB
- SNMP v1, v2c, v3
- SNMP Trap Group
- RMON (1, 2, 3, 9)
- Syslog
- DHCP
| | | | PoE (RJ-45) Port | No | | Input Voltage | 120 V AC
230 V AC | | Power Source | Power Supply | | | | Form Factor | Rack-mountable | | Height | 1.8" | | Width | 17.3" | | Depth | 13" | | Weight (Approximate) | 9.27 lb | | | | Certifications & Standards | Standard Compliance:
- IEEE 802.3z 1000BASE-X
- IEEE 802.3ab 1000BASE-T Ethernet
- IEEE 802.3an 10G BASE-T Ethernet
- IEEE 802.3ae 10 Gbit/s Ethernet over fiber
- IEEE 802.3az EEE
- IEEE 802.3x flow control
- IEEE 802.3ad LACP aggregation
- IEEE 802.1AB LLDP/LLDP-MED
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
- IEEE 802.1Q VLAN Tagging
- IEEE 802.1p Class of Service (CoS) Prioritization
- IEEE 802.1X port authentication
Safety:EMC:
- FCC Part 15 (Class A)
- CE EMC (Class A)
- BSMI ENC
| | Environmentally Friendly | Yes | | Environmental Certification | RoHS | | | | Package Weight | 13.3 lb | | Box Dimensions (LxWxH) | 22.8 x 17.6 x 3.8" |
