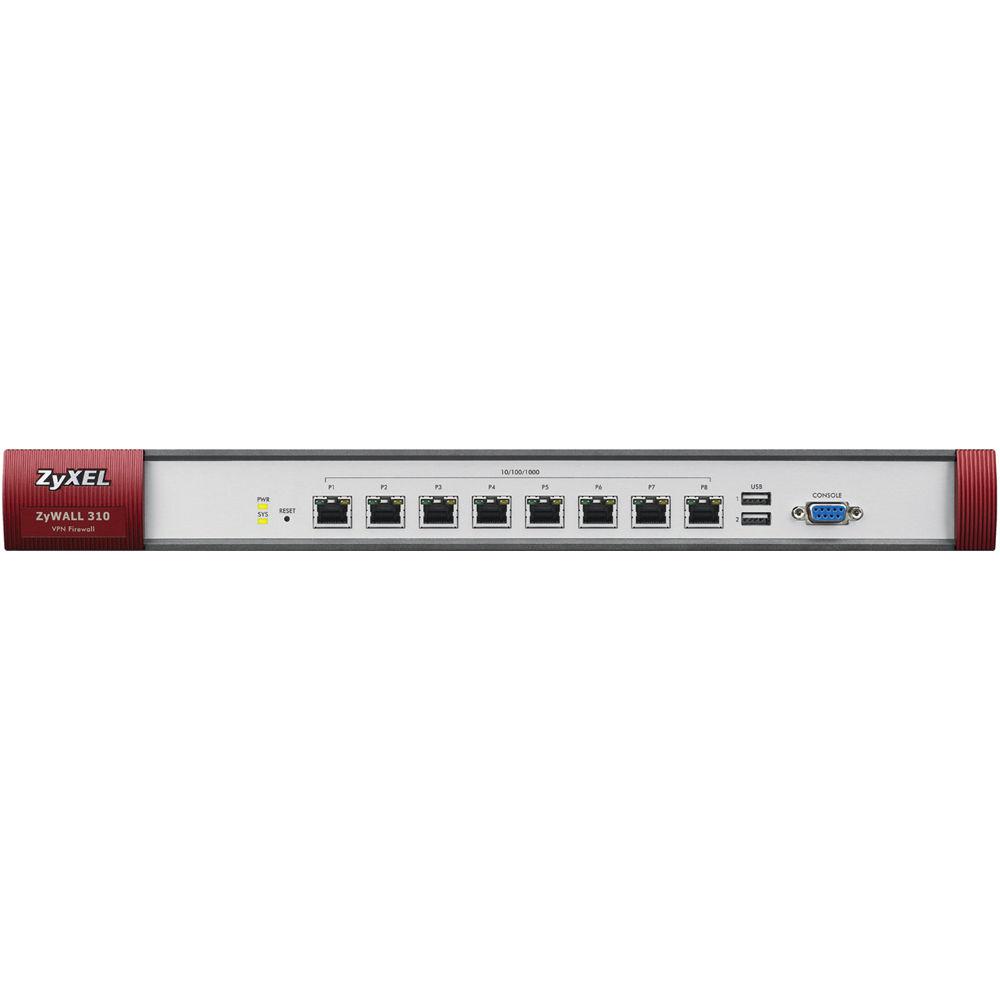

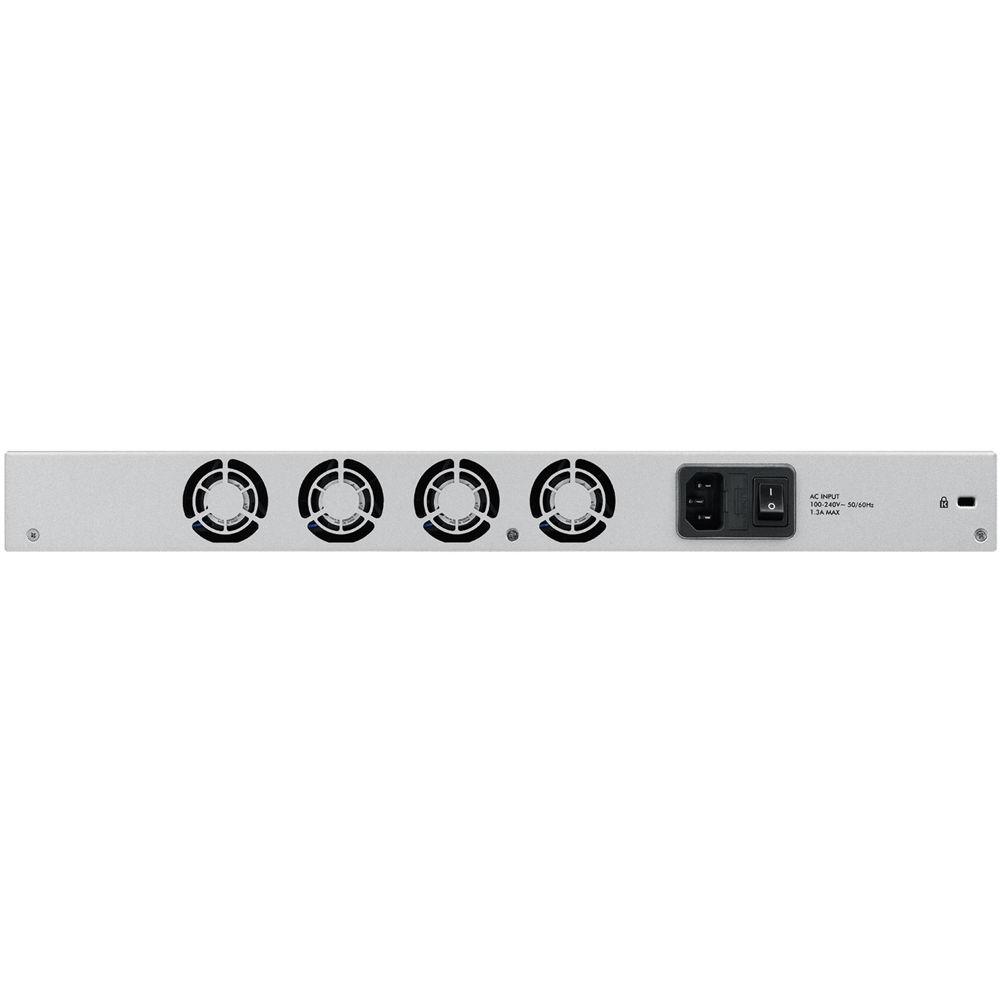

User Manual for ZyXEL ZyWALL310 2 GbE SPI 500 Mb s VPN Firewall with 8 GbE Ports Click to enlarge the picture
Contents of the user manual for the ZyXEL ZyWALL310 2 GbE SPI 500
- Product category: Firewalls & Security Devices ZyXEL
- Brand: ZyXEL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZyXEL Firewalls & Security Devices
 |
User manual for the ZyXEL ZyWALL310 2 GbE SPI 500 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZyXEL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZyXEL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZyXEL product will considerably shorten its lifespan!
|
Product description The ZyWALL310 2 GbE SPI/500 Mb/s VPN Firewall with 8 GbE Ports from ZyXEL provides secure VPN connections with SHA-2 encryption and VPN High-Availability with dual-WAN fail-over and fall-back support. The VPN firewall is designed with multi-core CPUs to deliver superior VPN and firewall performance.It has up to 9x the firewall performance and 4.4x the VPN performance of preceding models. The firewall supports L2TP VPN on a wide variety of mobile Internet devices running the iOS, Android, and Windows mobile platforms. It also features Easy VPN to provide auto-provisioned client-to-site IPsec VPN setup. - Ultra-Fast Performance for VPN Deployments
- The VPN firewall is a business-grade VPN gateway purpose-built to deliver superior performance for multi-site VPN deployments. This high-performance VPN firewall features multi-core CPUs and is fine-tuned to deliver ultra-fast performance with up to 2000 Mb/s firewall and 500 Mb/s VPN throughputs. It also features advanced VPN functionality SHA-2 encryption, VPN High-Availability (HA), and Layer 2 Tunneling Protocol (L2TP) for more secure, reliable, and mobile VPN connectivity.
- Best-In-Class VPN and Firewall Throughput
- High-speed networking performance is guaranteed with up to 2000 Mb/s firewall throughput and 500 Mb/s VPN throughput. Designed with completely advanced hardware platform, the VPN firewall delivers uncompromising performance for high-speed site-to-site and client-to-site VPN applications.
- Safe and Reliable VPN Connections
- The VPN firewall provides secure VPN connections and ensures maximum security for business communications. It also provides reliable, non-stop VPN services with dual-WAN fail-over and fall-back support. With two WAN connections, one for primary and another for redundancy, the VPN firewall automatically switches to the backup connection should the primary link fail, and automatically switches back to the primary connection once it is back online.
- Unlimited Business Mobility
- To support dynamic, mobile business operations in today's BYOD (Bring Your Own Device) business environment, the VPN firewall offers unlimited business mobility with L2TP VPN for mobile devices. The VPN firewall supports L2TP VPN on a wide variety of mobile Internet devices running the iOS, Android, and Windows mobile platforms.
- Zero-Configuration Remote Access
- Virtual private networks provide businesses a secure and convenient way of sharing company resources with partners, customers, or employees on business trips. The VPN firewall feature Easy VPN to provide auto-provisioned client-to-site IPsec VPN setup. A wizard is available with the IPsec VPN client software that automatically retrieves the VPN configuration file from the remote VPN firewall and completes the IPsec VPN setup in 3 simple steps. Easy VPN lowers administration effort and allows partners, customers, or traveling employees to access company servers, emails, or data centers easily and securely.
- Firewall
- Routing and transparent (bridge) modes
Zone-based access control list
Stateful packet inspection
User-aware policy enforcement
SIP/H.323 NAT traversal
ALG supports custom ports - IPv6 Support
- IPv6 ready gold logo certified
Dual stack
IPv4 tunneling (6rd and 6 to 4 transition tunnel)
Host, Router, firewall - Virtual Private Network (VPN)
- ICSA-certified IPsec VPN
Algorithm: AES, 3DES, DES
Authentication: SHA-2, SHA-1, MD5
Key Management: manual key, IKE
Perfect forward secrecy (DH Groups) support 1, 2, 5
IPsec NAT traversal
Dead peer detection/relay detection
PKI (X.509) Certificate Support
Centralize VPN support
VPN wizard support
Auto reconnect VPN
VPN HA (redundant remote VPN gateways) - SSL VPN
- Clientless secure remote access
Reverse proxy mode and full tunnel mode
Unified policy enforcement
Supports two-factor authentication - High Availability
- Active-passive mode
Device failure detection and notification
ICMP and TCP ping check
Link monitoring
Auto-sync configurations - Networking
- Routing mode, bridge mode, and mixed mode
Ethernet/PPPoE
NAT/PAT
Tagged VLAN (802.1Q)
Virtual Interface (Alias interface)
Policy-based Routing (User-aware)
Policy-based NAT (SNAT)
Dynamic Routing (RIP v1/v2, OSPF)
DHCP Client/Server/Relay
Dynamic DNS Support
WAN Trunk (More than 2 ports)
Per Host Session Limit
Guaranteed Bandwidth
Maximum Bandwidth
Priority-bandwidth Utilization - Authentication
- Local user database
Microsoft windows active directory integrate
External LDAP/RADIUS user database
Xauth over RADIUS for IPsec VPN
Forced user authentication (transparent authentication)
IP/MAC address binding - System Management
- Role-based administration
Multiple administrator login
Multi-lingual web GUI (HTTPS/HTTP)
Object-based configuration
Command line interface (console/web console/SSH/TELNET)
SNMPv2c (MIB-II)
System configuration rollback
Firmware upgrade via FTP/web GUI - Logging and Monitoring
- Comprehensive local logging
Syslog
Email alert
Real-time traffic monitoring
Built-in daily report
Advanced reporting (VRPT)
Customizable Zones UPC: 760559120894 In the Box ZyXEL ZyWALL310 2 GbE SPI/500 Mb/s VPN Firewall with 8 GbE Ports Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZyXEL ZyWALL310 2 GbE SPI 500 Mb s VPN Firewall with 8 GbE Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZyXEL ZYWALL310 Specs | | | MTBF | 560,811 | | Port | 10/100/1000 Mb/s RJ-45 Ports: 8 (configurable)
USB Ports: 2 | | | | Throughput | SPI Firewall Throughput: 2000 Mb/s
VPN Throughput: 500 Mb/s | | Unlimited User Licenses | Yes | | Concurrent Sessions | 100000 maximum | | Session Rate | 8000 | | Concurrent IPsec VPN Tunnels | 200 maximum | | Concurrent SSL VPN Users | 50 | | Included SSL VPN User No. | 50 | | | | Power Input | 100 to 240 VAC, 50/60 Hz, 1.3 A | | Power Consumption | 58.5 W maximum | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Operating Humidity | 10 to 90% (non condensing) | | | | EMC | FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI | | Safety | LVD (EN60950-1), BSMI | | | | Dimensions (W x H x D) | 16.93 x 1.73 x 9.84 (430.02 x 43.94 x 249.93 mm) | | Weight | 7.2 lb (3.3 kg) | | | | Package Weight | 10.52 lb | | Box Dimensions (LxWxH) | 20.13 x 15.5 x 6.13" |
